Intercooler Hose - Coolant Leak

Thread Tools

Search this Thread

Rate Thread

  #16
Old 04-04-2014, 09:19 AM
tomekplewa's Avatar
Registered User
Join Date: Apr 2014
Location: Florida
Posts: 8
Rep Power: 0
tomekplewa is on a distinguished road
Hi -

I think I am following into your footsteps with my 997tt. Did the repair ultimately fix the leak problem?

Tomek
--
Originally Posted by ssj4

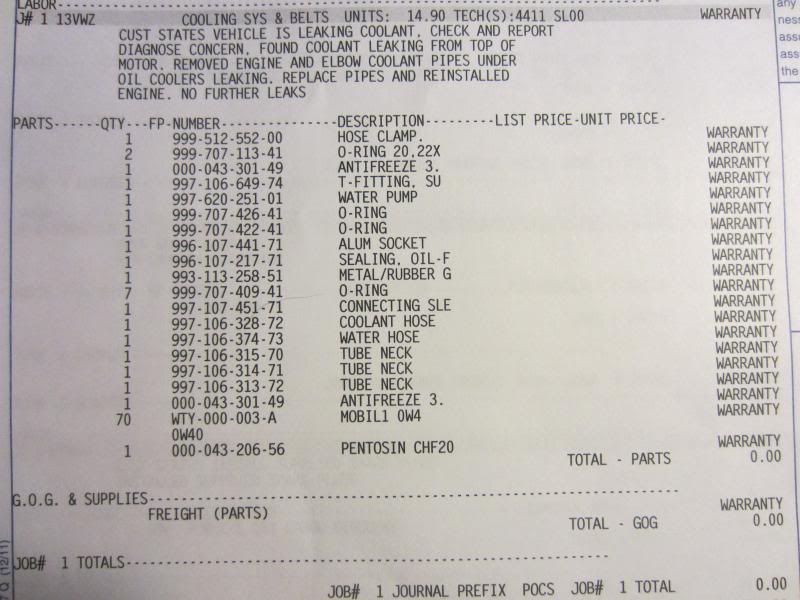

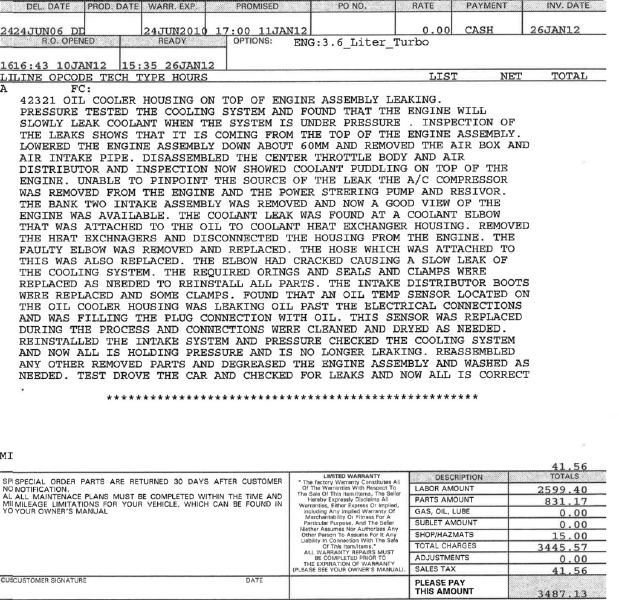

Here is the final answer.




Attached Thumbnails Click image for larger version

Name:	65346819.jpg
Views:	1246
Size:	120.1 KB
ID:	355585   Click image for larger version

Name:	49357836.jpg
Views:	1152
Size:	139.3 KB
ID:	355586
  #17
Old 04-04-2014, 12:52 PM
mikestyle's Avatar
Registered User
Join Date: May 2012
Location: Toronto
Posts: 288
Rep Power: 27
mikestyle is a glorious beacon of lightmikestyle is a glorious beacon of lightmikestyle is a glorious beacon of lightmikestyle is a glorious beacon of lightmikestyle is a glorious beacon of light
wow.. what side was the leak on? Driver or passenger?

  #18
Old 04-04-2014, 01:20 PM
tomekplewa's Avatar
Registered User
Join Date: Apr 2014
Location: Florida
Posts: 8
Rep Power: 0
tomekplewa is on a distinguished road
Unhappy

They do not know yet. The leak comes from atop of the engine block, though, and the only thing one can easily see is a puddle of coolant under the car between the rear wheels.

  #19
Old 04-04-2014, 05:42 PM
ahmedrashed's Avatar
Registered User
Join Date: Mar 2014
Location: Dubai
Posts: 35
Rep Power: 12
ahmedrashed is on a distinguished road
Click image for larger version

Name:	20140401_113840.jpg
Views:	185
Size:	3.57 MB
ID:	355786

Click image for larger version

Name:	20140401_113847.jpg
Views:	197
Size:	3.62 MB
ID:	355787

Click image for larger version

Name:	20140401_114644.jpg
Views:	217
Size:	3.19 MB
ID:	355788

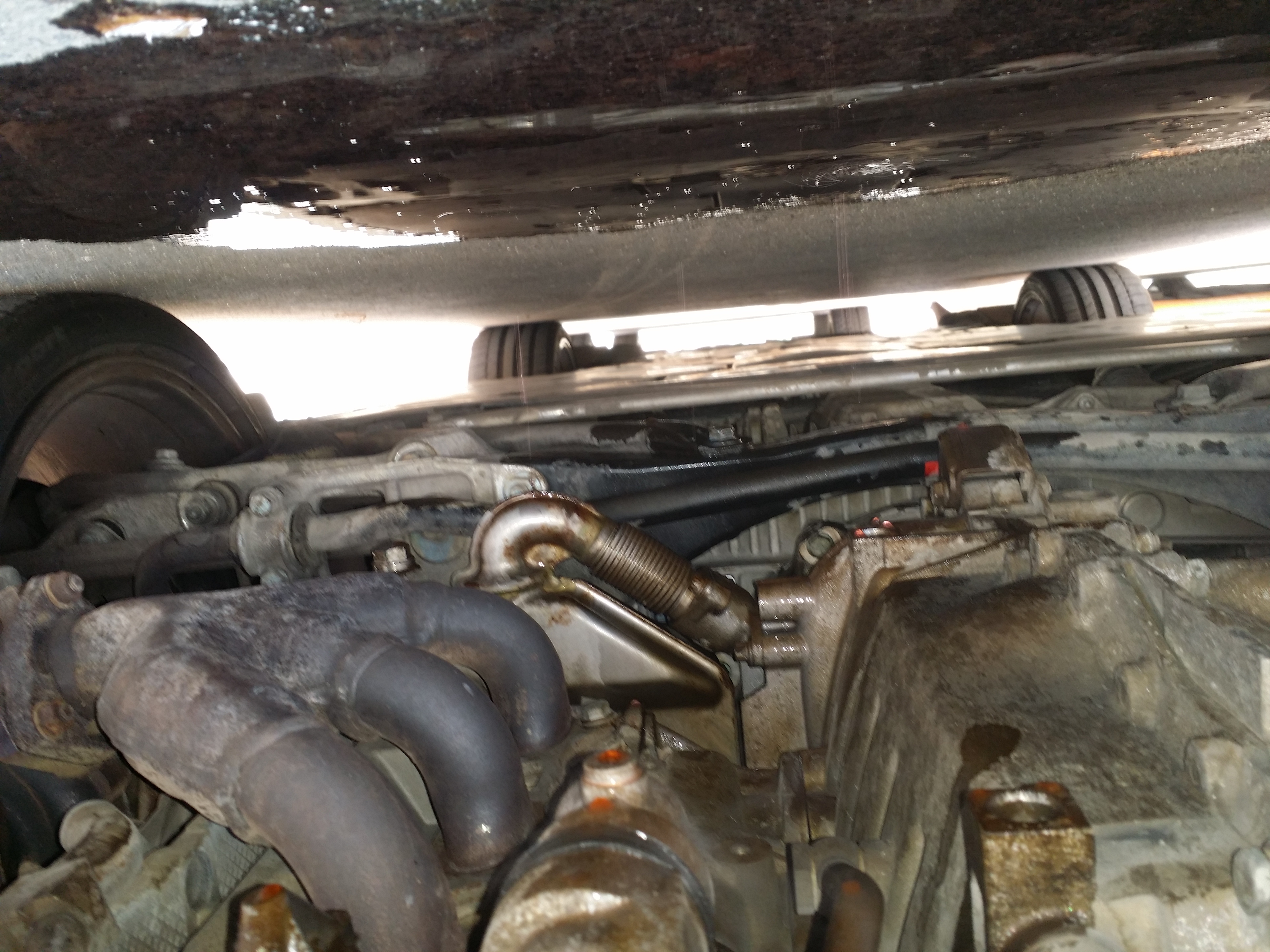

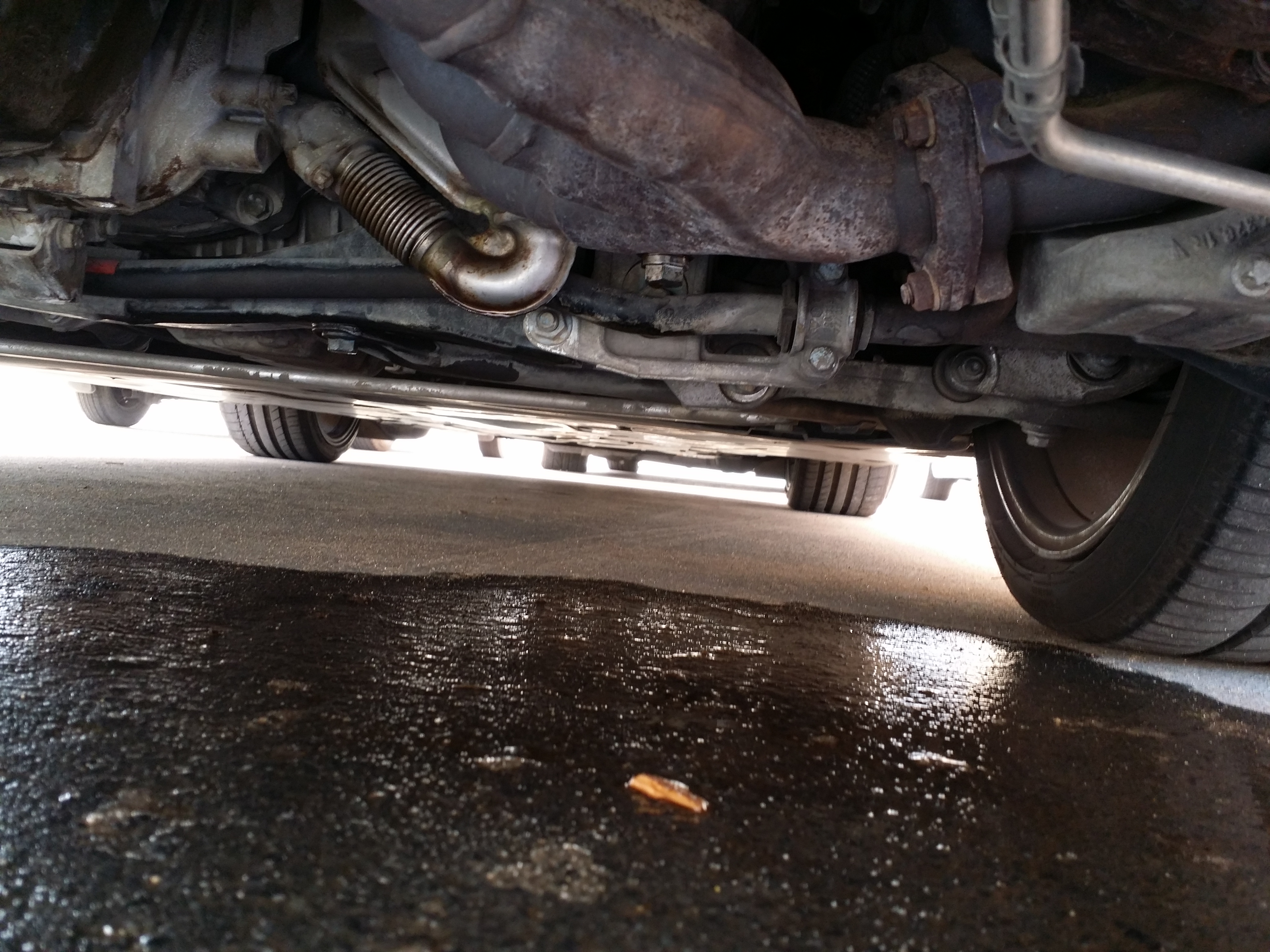

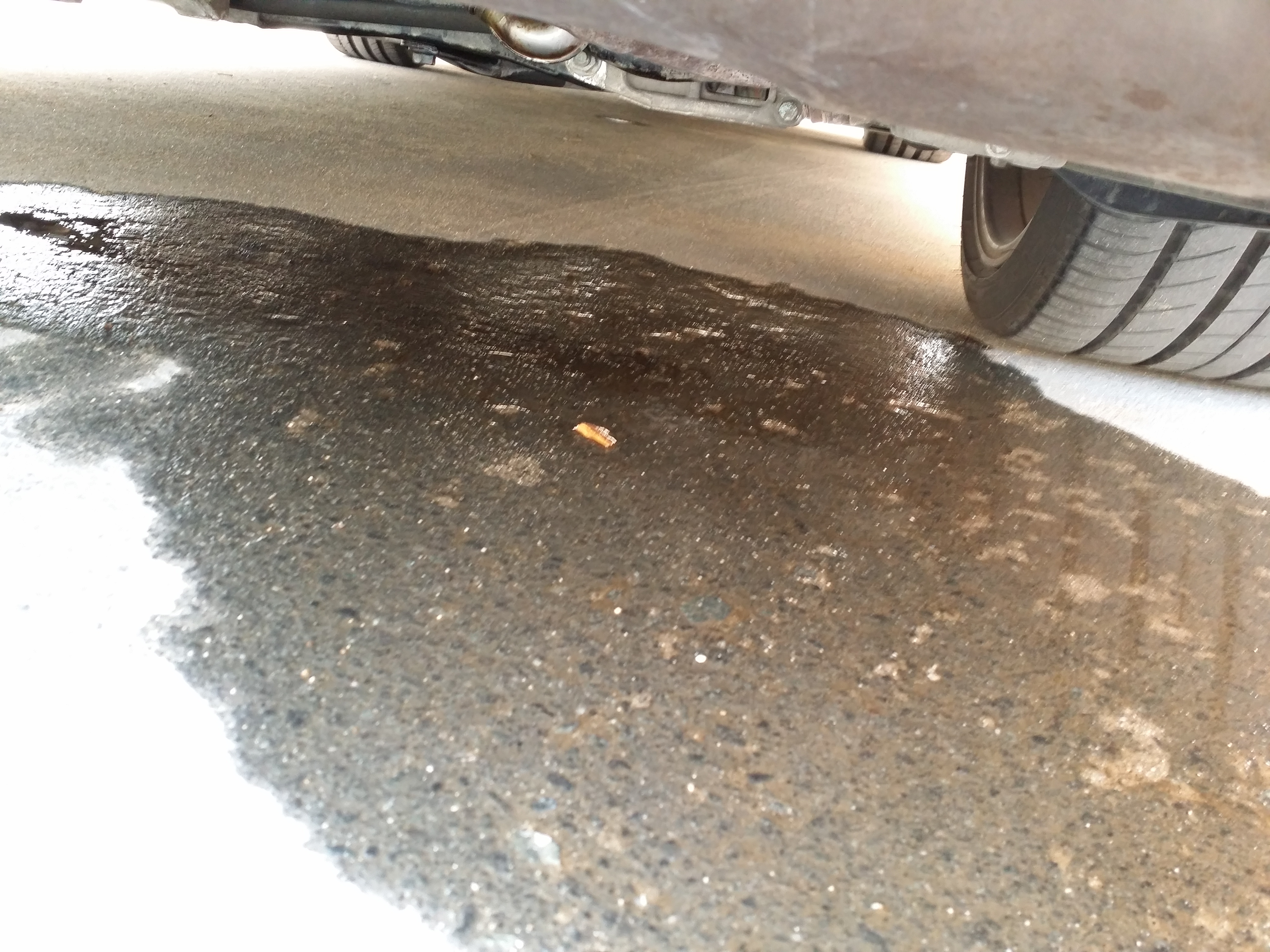

this is what I discovered few days back, major coolant leak!!


Last edited by ahmedrashed; 04-04-2014 at 05:45 PM.
  #20
Old 04-04-2014, 05:51 PM
ahmedrashed's Avatar
Registered User
Join Date: Mar 2014
Location: Dubai
Posts: 35
Rep Power: 12
ahmedrashed is on a distinguished road
my car is still under dealer warranty though, should that be covered completely guys?

  #21
Old 04-04-2014, 06:29 PM
teflon_jones's Avatar
Registered User
Join Date: Jul 2004
Location: 8000' up in the Rockies
Posts: 1,904
Rep Power: 146
teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !
I had the same problem on my 996 Turbo and the dealer's price was about the same. Luckily I had an extended warranty so it only cost me a couple of hundred bucks.

Originally Posted by ahmedrashed
my car is still under dealer warranty though, should that be covered completely guys?
That's what a warranty is for isn't it?

  #22
Old 04-04-2014, 06:30 PM
ahmedrashed's Avatar
Registered User
Join Date: Mar 2014
Location: Dubai
Posts: 35
Rep Power: 12
ahmedrashed is on a distinguished road
so that does fall under warranty, glad to hear so

  #23
Old 04-04-2014, 08:00 PM
swc's Avatar
swc
swc is offline
Registered User
Join Date: Oct 2006
Location: Lansdale, PA
Posts: 497
Rep Power: 79
swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !
Originally Posted by ahmedrashed
so that does fall under warranty, glad to hear so
Yes. I was lucky that my CPO warranty took care of my coolant leak.

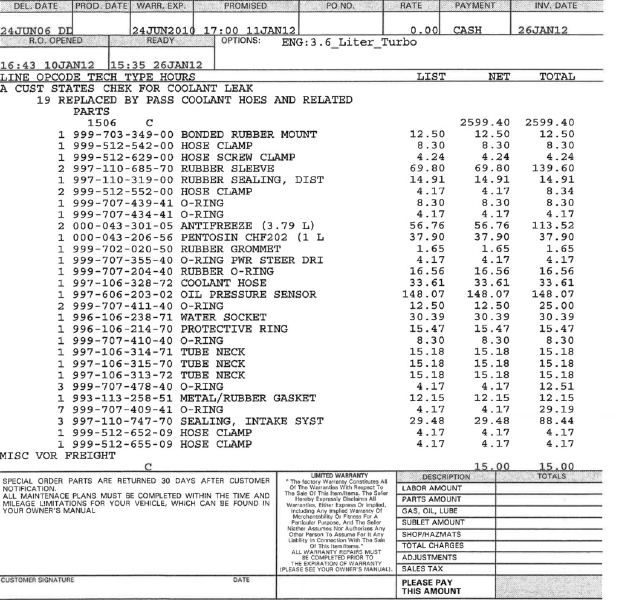

Attached Thumbnails Click image for larger version

Name:	IMG_0005_zpsb5e0664b.jpg
Views:	1079
Size:	67.9 KB
ID:	355829
  #24
Old 04-04-2014, 08:03 PM
swc's Avatar
swc
swc is offline
Registered User
Join Date: Oct 2006
Location: Lansdale, PA
Posts: 497
Rep Power: 79
swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !
Originally Posted by ahmedrashed
Attachment 355786

Attachment 355787

Attachment 355788

this is what I discovered few days back, major coolant leak!!
Your car looks more like water pump failure to me. Have you heard any noise from the back lately?

  #25
Old 04-04-2014, 09:11 PM
tomekplewa's Avatar
Registered User
Join Date: Apr 2014
Location: Florida
Posts: 8
Rep Power: 0
tomekplewa is on a distinguished road
Oh... I still have one year of CPO on my 997tt left, so I hope it will be declared covered by warranty as in the SWC's case. Or else, we are at $2300 as of now and still counting.

By the way, here is a pretty good article covering coolant leaks,

http://sharkwerks.com/porsche/techni...urbo-cars.html

Any experience with replacing original plastic pipes with one's made of stainless steel?

  #26
Old 04-05-2014, 12:19 AM
ahmedrashed's Avatar
Registered User
Join Date: Mar 2014
Location: Dubai
Posts: 35
Rep Power: 12
ahmedrashed is on a distinguished road
I don't recall any noise from the back, the leak was from the right back side (passenger side), is that where the water pump is?

I wonder how reliable porsche is if we get all those major problems and it is only 30k miles

  #27
Old 04-05-2014, 07:48 AM
tomekplewa's Avatar
Registered User
Join Date: Apr 2014
Location: Florida
Posts: 8
Rep Power: 0
tomekplewa is on a distinguished road
It's close to 60k miles in my case, but I had a numerous issues (main power cable corrosion, window motor failure, two various sensors failed, at least one valve replacement, and two or three vacuum leaks) in less than a year. Now it is likely that coolant elbow pipe. It has to make one wonder about Porsche's reliability indeed. On the other hand, I bought a used car. No accidents reported, but the car had some exterior upgrades/changes (front bumper, rear bumper) for no obvious reason. Well, the previous used 996tt had seen less frequent visits to the shop, but it was not problem free either.

  #28
Old 04-05-2014, 11:31 AM
c32AMG-DTM's Avatar
Registered User
Join Date: Aug 2009
Location: Philadelphia, PA
Posts: 650
Rep Power: 105
c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !c32AMG-DTM Is a GOD !
Originally Posted by swc
Yes. I was lucky that my CPO warranty took care of my coolant leak.


70 quarts of Mobil1 0w40 to repair a coolant leak...?

  #29
Old 04-05-2014, 11:59 AM
swc's Avatar
swc
swc is offline
Registered User
Join Date: Oct 2006
Location: Lansdale, PA
Posts: 497
Rep Power: 79
swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !swc Is a GOD !
Originally Posted by ahmedrashed
I don't recall any noise from the back, the leak was from the right back side (passenger side), is that where the water pump is?

I wonder how reliable porsche is if we get all those major problems and it is only 30k miles
Not sure where the water pump is located but when my water pump failed, huge amount of coolant was leaked on the floor and I had a little noise before it happened.

Originally Posted by c32AMG-DTM
70 quarts of Mobil1 0w40 to repair a coolant leak...?
They put 7 quarts of oil, not 70.lol It's a typo. They had to remove oil coolers in order to access coolant pipes.

  #30
Old 04-05-2014, 12:29 PM
teflon_jones's Avatar
Registered User
Join Date: Jul 2004
Location: 8000' up in the Rockies
Posts: 1,904
Rep Power: 146
teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !teflon_jones Is a GOD !
Originally Posted by tomekplewa
...but the car had some exterior upgrades/changes (front bumper, rear bumper) for no obvious reason.
I think there is an obvious reason. The bumper covers are one of the most replaced items as an appearance mod, especially the front bumper cover. If you look just at this forum you'll find the bumper covers on many, many of our cars have been changed (including mine!) for no other reason than appearance.

Originally Posted by tomekplewa
It's close to 60k miles in my case, but I had a numerous issues (main power cable corrosion, window motor failure, two various sensors failed, at least one valve replacement, and two or three vacuum leaks) in less than a year. Now it is likely that coolant elbow pipe. It has to make one wonder about Porsche's reliability indeed.
Originally Posted by ahmedrashed
I wonder how reliable porsche is if we get all those major problems and it is only 30k miles
As with any car, some examples have very few problems, and some have many. A forum like this is where people come to get help, so you're always going to see a lot of problems posted about. People don't come here often to say "I have no problems with my car and everything works great!"

All of us have bought Porsches at least in part because of their reliability versus other sports/luxury/exotic/supercars. Just look at Ferraris. They're much better than they used to be, but in general they break down WAY more than Porsches and require WAY more maintenance!
