HELP! My GT2RS ICs don't fit in my 997.1tt
#17
wow that works well. why doesn't everyone just do this?
#19
When my car was recently in for the 4 year major service I had Porsche do the install of my .2ttrs coolers. As normally i would have done the job myself I made a point of putting my nose in to see exactly what was entailed given there had been a report from Drvik that the outlets on the new coolers were a touch larger requiring minor packing.
From what I and the P techs saw it was impossible to use the existing .1tt ducting without the use of cable ties on one side of each cooler, along with a bit of trimming on the inside edges...which most are already familiar with. The other side of each cooler however was able to utilize the tabs as your photo appears to show.
Are you able to provide photos of both sides of the cooler to prove you do not need to use cable ties at all?
I assume the photo you show is of the side that doesn't need the ties. Just wanted to clear this up for the members and others out there so everyone knows exactly what can and can't be achieved using the stock .1tt ducting with the .2ttrs coolers.
TIA.
#20

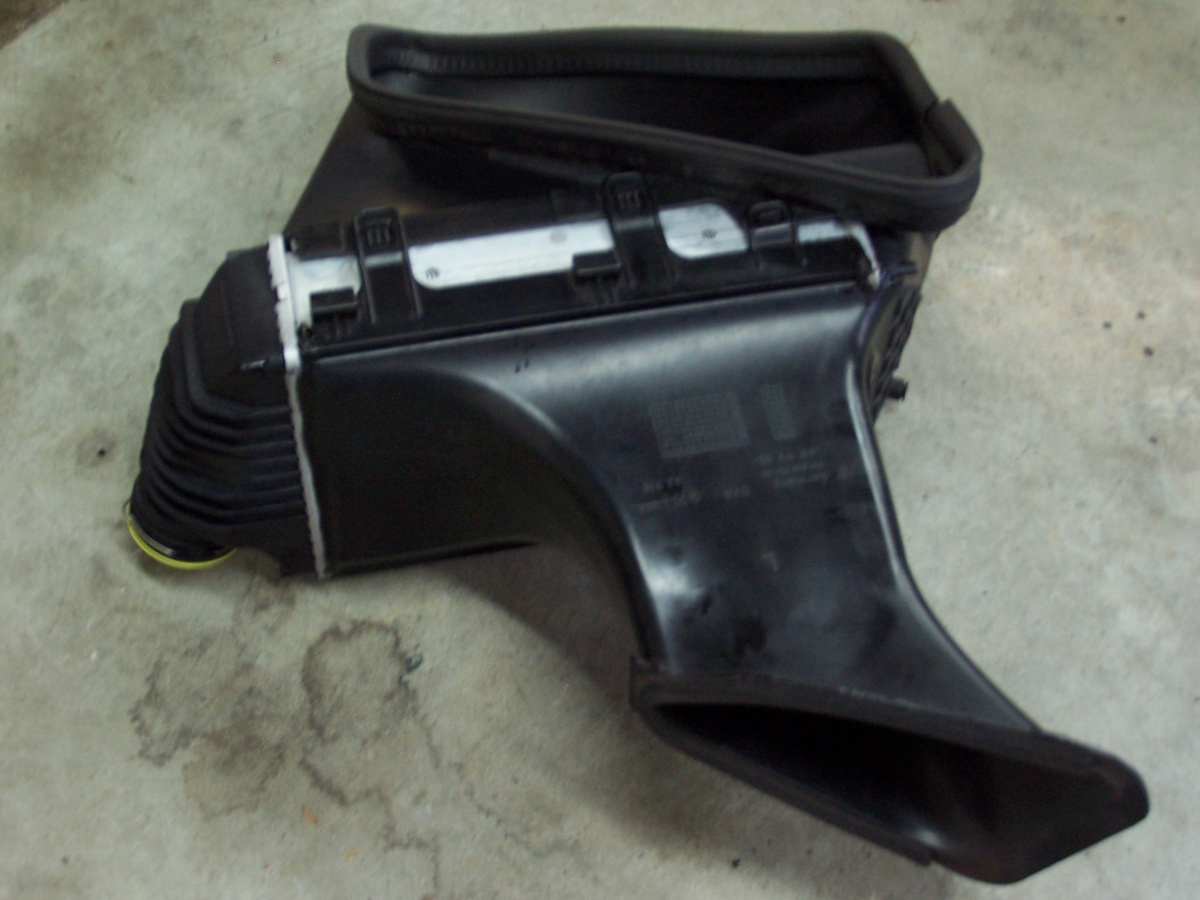

Sorry I don't have a picture of the other side OEM clips, but I assure you they are hooked together. I have attached a photo of the completed assembly from a different angle and I have attached some photos of the shrouds as modified.
The real key to doing it this way was to make a modification to several tabs on the edge of the GT2RS coolers. There is a photo attached and highlighted with red rectangles around the area of the tabs referred to. These tabs either need to be removed or bent over 180 degrees. Doing so makes the coolers the same thickness as the originals in the area where the clips will be hooked together. The shrouds themselves then need to be modified to fit down and over the thicker end tanks and such.
I chose to bend the tabs over. This creates a nice rounded edge area for the shrouds to sit against. I then used a bead of silicon along all the edges of the shrouds on the top side to seal them. It took about three hours to do the first side while I slowly removed material and test fitted. The second side took only an hour because you know where to go.
I have more photos and information to share. I'll just do a write-up and submit for the DIY section.
Thanks
The real key to doing it this way was to make a modification to several tabs on the edge of the GT2RS coolers. There is a photo attached and highlighted with red rectangles around the area of the tabs referred to. These tabs either need to be removed or bent over 180 degrees. Doing so makes the coolers the same thickness as the originals in the area where the clips will be hooked together. The shrouds themselves then need to be modified to fit down and over the thicker end tanks and such.
I chose to bend the tabs over. This creates a nice rounded edge area for the shrouds to sit against. I then used a bead of silicon along all the edges of the shrouds on the top side to seal them. It took about three hours to do the first side while I slowly removed material and test fitted. The second side took only an hour because you know where to go.
I have more photos and information to share. I'll just do a write-up and submit for the DIY section.
Thanks
#22
Sorry I don't have a picture of the other side OEM clips, but I assure you they are hooked together. I have attached a photo of the completed assembly from a different angle and I have attached some photos of the shrouds as modified.
The real key to doing it this way was to make a modification to several tabs on the edge of the GT2RS coolers. There is a photo attached and highlighted with red rectangles around the area of the tabs referred to. These tabs either need to be removed or bent over 180 degrees. Doing so makes the coolers the same thickness as the originals in the area where the clips will be hooked together. The shrouds themselves then need to be modified to fit down and over the thicker end tanks and such.
I chose to bend the tabs over. This creates a nice rounded edge area for the shrouds to sit against. I then used a bead of silicon along all the edges of the shrouds on the top side to seal them. It took about three hours to do the first side while I slowly removed material and test fitted. The second side took only an hour because you know where to go.
I have more photos and information to share. I'll just do a write-up and submit for the DIY section.
Thanks
The real key to doing it this way was to make a modification to several tabs on the edge of the GT2RS coolers. There is a photo attached and highlighted with red rectangles around the area of the tabs referred to. These tabs either need to be removed or bent over 180 degrees. Doing so makes the coolers the same thickness as the originals in the area where the clips will be hooked together. The shrouds themselves then need to be modified to fit down and over the thicker end tanks and such.
I chose to bend the tabs over. This creates a nice rounded edge area for the shrouds to sit against. I then used a bead of silicon along all the edges of the shrouds on the top side to seal them. It took about three hours to do the first side while I slowly removed material and test fitted. The second side took only an hour because you know where to go.
I have more photos and information to share. I'll just do a write-up and submit for the DIY section.
Thanks
#24
After trimming the 997.1 ducts one can also trim the oem clips to reach around with a sharp knife. No need for zip ties, and no need to spend $ on 997.2 ducts.
#25
I didn't and didn't use them. I did cut up existing duct though.
https://www.6speedonline.com/forums/...installed.html
I did spend a lot of time evaluating the change of vertical and horizontal offset though.
#26
I didn't like the idea using zip ties or straps or whatever, to hold the upper and lower ducts together so I used the 997.2 ducts with the 997.2 coolers. New coolers&ducts fit perfectly to existing metal frame, and the result is stock 100%.
Of course I had to pay for the 997.2 ducts, which weren't cheap....
p.s. GTRS and 997.2 coolers are the same, BUT the ducts are different so for the 997.1 the 997.2 ducts should be used.
Of course I had to pay for the 997.2 ducts, which weren't cheap....
p.s. GTRS and 997.2 coolers are the same, BUT the ducts are different so for the 997.1 the 997.2 ducts should be used.
#27
Not to revisit the zip tie argument but I spent some time in a garage that had 2 Mclaren f1 Gtr’s that have been raced all of their life. Half the car was held together by beefy zip ties...
#28
When I put 997.2 intercoolers on my car I was able to re-use 997.1 hoses. The connectors are (mostly) the same. I suffer from CRSD (Can't Remember "Stuff" disorder) so some of the finer parts may have been forgotten. One thing I do remember is that the 997.2 ductwork wasn't cheap. Hopefully the prices on that have come down!
Looks like we're in the the same general neighborhood, see you around.
Last edited by rix; 12-03-2018 at 02:12 AM. Reason: GrammAr
#29
Bill, I just wanted to cheer you on. Love what you're doing.
When I put 997.2 intercoolers on my car I was able to re-use 997.1 hoses. The connectors are (mostly) the same. I suffer from CRSD (Can't Remember "Stuff" disorder) so some of the finer parts may have been forgotten. One thing I do remember is that the 997.2 ductwork wasn't cheap. Hopefully the prices on that have come down!
Looks like we're in the the same general neighborhood, see you around.
When I put 997.2 intercoolers on my car I was able to re-use 997.1 hoses. The connectors are (mostly) the same. I suffer from CRSD (Can't Remember "Stuff" disorder) so some of the finer parts may have been forgotten. One thing I do remember is that the 997.2 ductwork wasn't cheap. Hopefully the prices on that have come down!
Looks like we're in the the same general neighborhood, see you around.
