Spoiler leak
#18
Unfortunately it looks like the 997T is affected by spoiler leaks as well. It seems Porsche didn't address many common issues between the two cars. Namely clutch hydraulics and spoiler Hydraulics. As far as I can tell nobody has a permanent fix. I do suggest you look up this issue on the 996 turbo site as it seems all cars will eventually be affected. I've had the entire assembly replaced TWICE under warranty. Alas I no longer have a warranty, but as least I have some brand new hydraulics.
If you are in the Los Angeles area I suggest you look up Speed Gallery. I beleive they have successfully recharged these units in the past. It's not a permanent fix, but it will last a couple years.
If you're doing this yourself, remember that
1. pentosin is very corrosive to paint

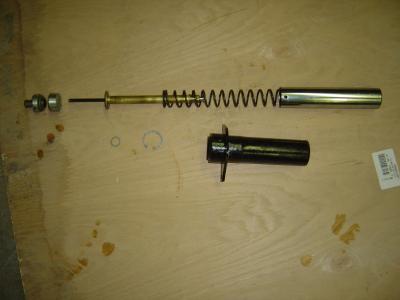

2. There is spring inside the system that is VERY COMPRESSED and will blow apart the parts when you're taking it apart. It can HURT YOU and lose parts as they get thrown around. BE VERY CAREFUL.
If you are in the Los Angeles area I suggest you look up Speed Gallery. I beleive they have successfully recharged these units in the past. It's not a permanent fix, but it will last a couple years.
If you're doing this yourself, remember that
1. pentosin is very corrosive to paint
2. There is spring inside the system that is VERY COMPRESSED and will blow apart the parts when you're taking it apart. It can HURT YOU and lose parts as they get thrown around. BE VERY CAREFUL.
Last edited by Turbo Fanatic; 07-03-2012 at 10:29 PM.
#19
Mine leaked and was covered under cpo. Dealer order a whole new unit. Getting the wing off was not easy as the deal had to inflate a rubber donut to get the wing off to change the hydraulics. Retail cost for the fix was 2k. Covered under warranty. Also covered under warranty transmission, front wheel bearing, rear boot-lid fan failure, cam position sensor, and front turn signal. If not for cpo warranty I would have been on the hook for 30k.
#21
The 911 turbo looks so much sportier with the spoiler raised that 2". Would like to raise it for city driving just for looks. However, looks like these spoiler pumps, etc are coming apart with too much up/down with the spoiler use. This says don't use which is a shame.
Big question: is there any way to lock the spoiler in the 'up-position"? This way one would get the looks without the hassle of leaks and big expense. I suppose when you turn off the engine after having the spoiler up with the switch, the spoiler stays up under pressure. I guess with this issue, it is best to be sure lower the spoiler to down position to avoid the pump sitting overnite while still under pressure. Would you agree?? Second big question: once all the oil is leaked out is that it, or is oil fed in from another reservoir??
Last edited by johnww; 05-02-2013 at 09:53 PM.
#22
I've never tried it, and don't own a 997TT any more. But, I suppose you could use Durametric to deactivate the wing once you deploy the wing.
However, when the wing is in the deployed position, the pressure inside the hydraulics is high. It could theoretically increase the risk of leaking.
However, when the wing is in the deployed position, the pressure inside the hydraulics is high. It could theoretically increase the risk of leaking.
#23
I've never tried it, and don't own a 997TT any more. But, I suppose you could use Durametric to deactivate the wing once you deploy the wing.
However, when the wing is in the deployed position, the pressure inside the hydraulics is high. It could theoretically increase the risk of leaking.
However, when the wing is in the deployed position, the pressure inside the hydraulics is high. It could theoretically increase the risk of leaking.
If that is case can the wing be supported in the open position by drilling a small hole into both pipes to stop the spoiler from returning to the down position?? In other words, just let the oil leak itself out if it is contained only within the wing pump itself.
When you say Durametric, I guess you are referring to some software to keep flipper up, I was considering manually with a pin-support locking the expensive thing in the upper position and bypass all these costly parts and dealership time.....just let the system bleed down to zero oil as long as it bleeds only itself. The spoiler looks a bit stupid anyway in down position compared to up position.
Last edited by johnww; 05-03-2013 at 07:38 AM.
#24
This is from the 996TT, but it is almost the same:
I was suggesting (although I haven't tried it) that you could deploy the spoiler, then trick the car into thinking it doesn't have a wing.
I was considering manually with a pin-support locking the expensive thing in the upper position and bypass all these costly parts and dealership time.....just let the system bleed down to zero oil as long as it bleeds only itself. The spoiler looks a bit stupid anyway in down position compared to up position.
Last edited by bbywu; 05-03-2013 at 08:20 AM.
#25
There is a company that rebuilds these hydraulics - I can not vouch for them as I have never used them. They do the repair on 996TTs, but it is essentially the same.
http://cabriolethydraulics.com/porsche-carrera-hydraulics.php
http://cabriolethydraulics.com/porsche-carrera-hydraulics.php
#26
There is a company that rebuilds these hydraulics - I can not vouch for them as I have never used them. They do the repair on 996TTs, but it is essentially the same.
http://cabriolethydraulics.com/porsc...hydraulics.php
http://cabriolethydraulics.com/porsc...hydraulics.php

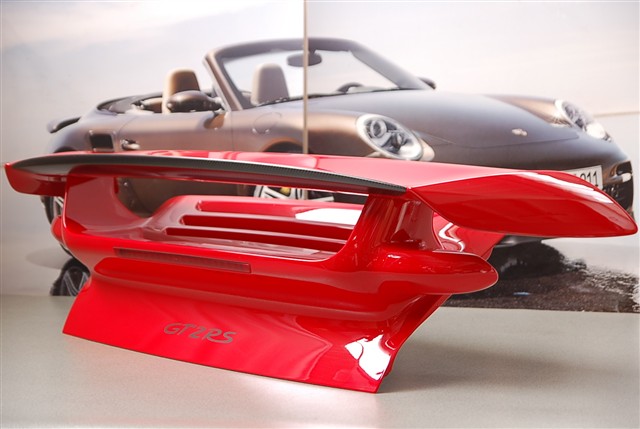

Interesting the GT2 wing is fixed. I guess that tube-light flat-bracket is from a GT2 wing shown above? If so, these brackets should be available at porsche. I would assume GT2 wing support pipes and turbo support pipes are same diameter. These brackets, however, would need some drilling (3 each) into the cars metal, whereas my idea with the cotter pin like solid pin would require only drilling the tubes in current wing-posts which sounds a bit easier. I guess key question still remaining is, is there a fuse just for the wing up/down??
Last edited by johnww; 05-03-2013 at 10:53 AM.
#27
There is a company that rebuilds these hydraulics - I can not vouch for them as I have never used them. They do the repair on 996TTs, but it is essentially the same.
http://cabriolethydraulics.com/porsc...hydraulics.php
http://cabriolethydraulics.com/porsc...hydraulics.php
Yeah, going through the company above is around $1000. Porsche dealership quoted me $2300 to replace.
My wing is now permanently fixed and I'm happy. That was much more reasonable. You can have the code cleared at the dealership (make your car think it's a GT2)
#28
I do not want to make the idiot up/down rear-wing mechanism work anyway. Looks 100% better in up position. I thought thru the pipe at its base(wing up), could drill a 1/16' hole thru and out the opposite side and place a cotter pin like solid bar into the hole to hold up the wing, then pull the fuse that operates the silly pump.
Interesting the GT2 wing is fixed. I guess that tube-light flat-bracket is from a GT2 wing shown above? If so, these brackets should be available at porsche. I would assume GT2 and turbo pipes holding wing are same diameter. These brackets, however, would need some drilling into the cars metal, whereas my idea with the cotter pin would require only drilling the tubes in current wing-posts which sounds a bit easier.
Interesting the GT2 wing is fixed. I guess that tube-light flat-bracket is from a GT2 wing shown above? If so, these brackets should be available at porsche. I would assume GT2 and turbo pipes holding wing are same diameter. These brackets, however, would need some drilling into the cars metal, whereas my idea with the cotter pin would require only drilling the tubes in current wing-posts which sounds a bit easier.

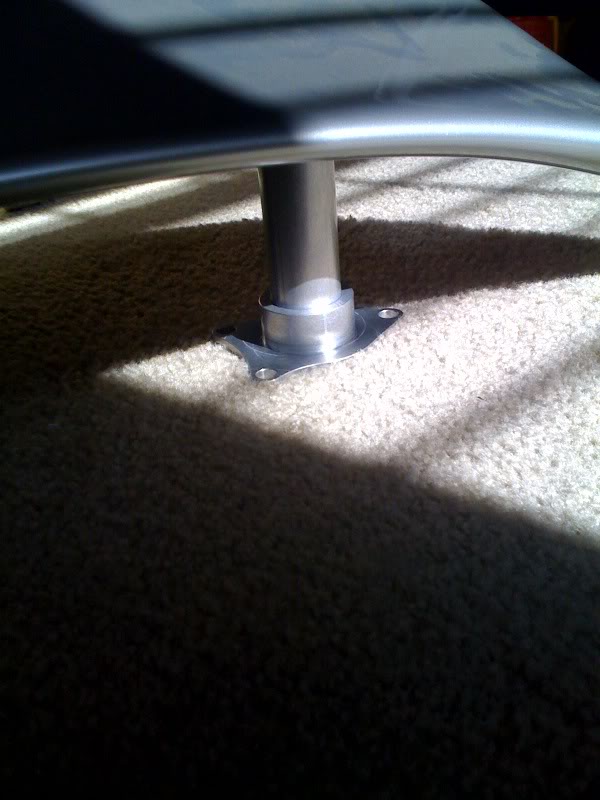

The uprights I posed were fabricated by a former sponsor from this site.

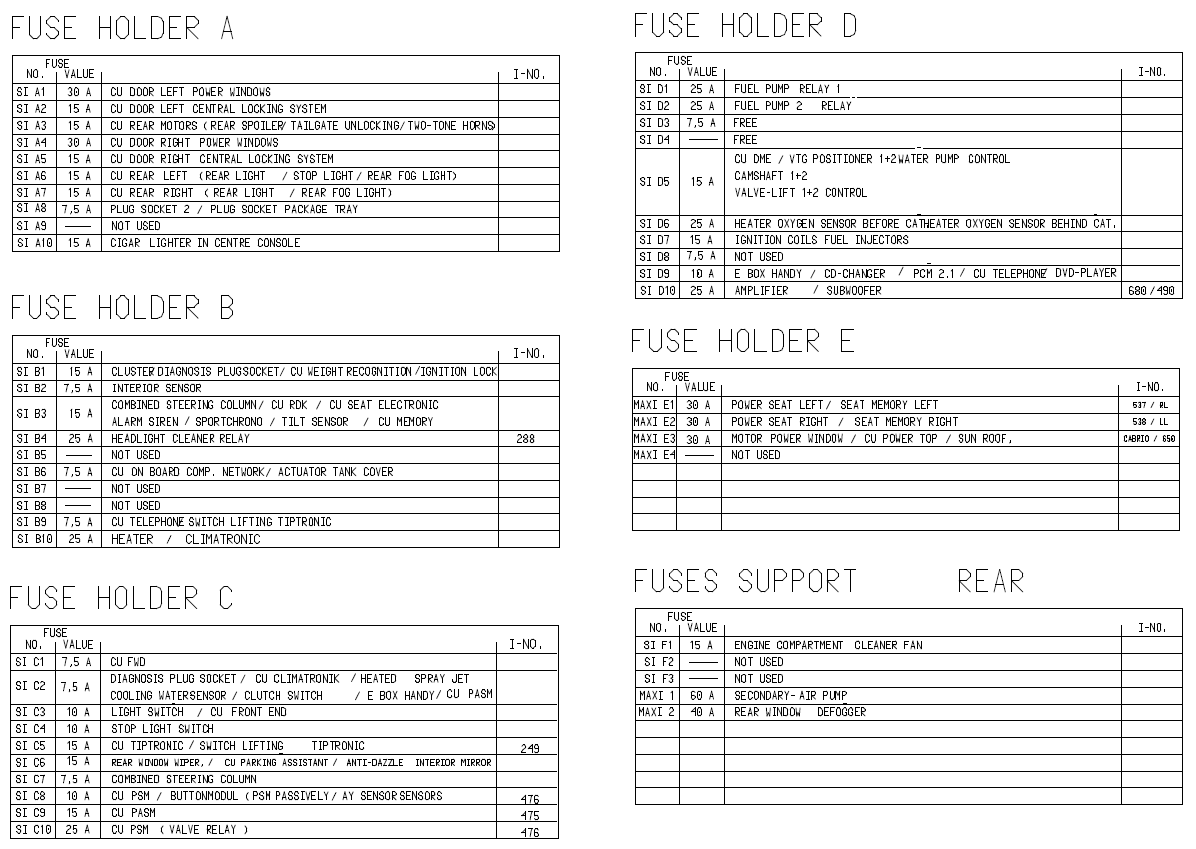

Not sure about the fuse - according to the fuse panel map, there is no specific fuse for the wing. I think it is tied into the other rear components (lights, turn signals, brake light, etc.) I'd just program the wing out with Durametric.
Last edited by bbywu; 05-03-2013 at 10:57 AM.
#29
#30
I think the refurbished kit they sell are with upgraded components preventing repeat leaking.
