Non PCCB calipers with PCCB rotors and pads possible?
#17
I will do so in my next opportunity to lift the car...sorry i dont have any inside photos now...you can see low end clearance at close photo...
#18

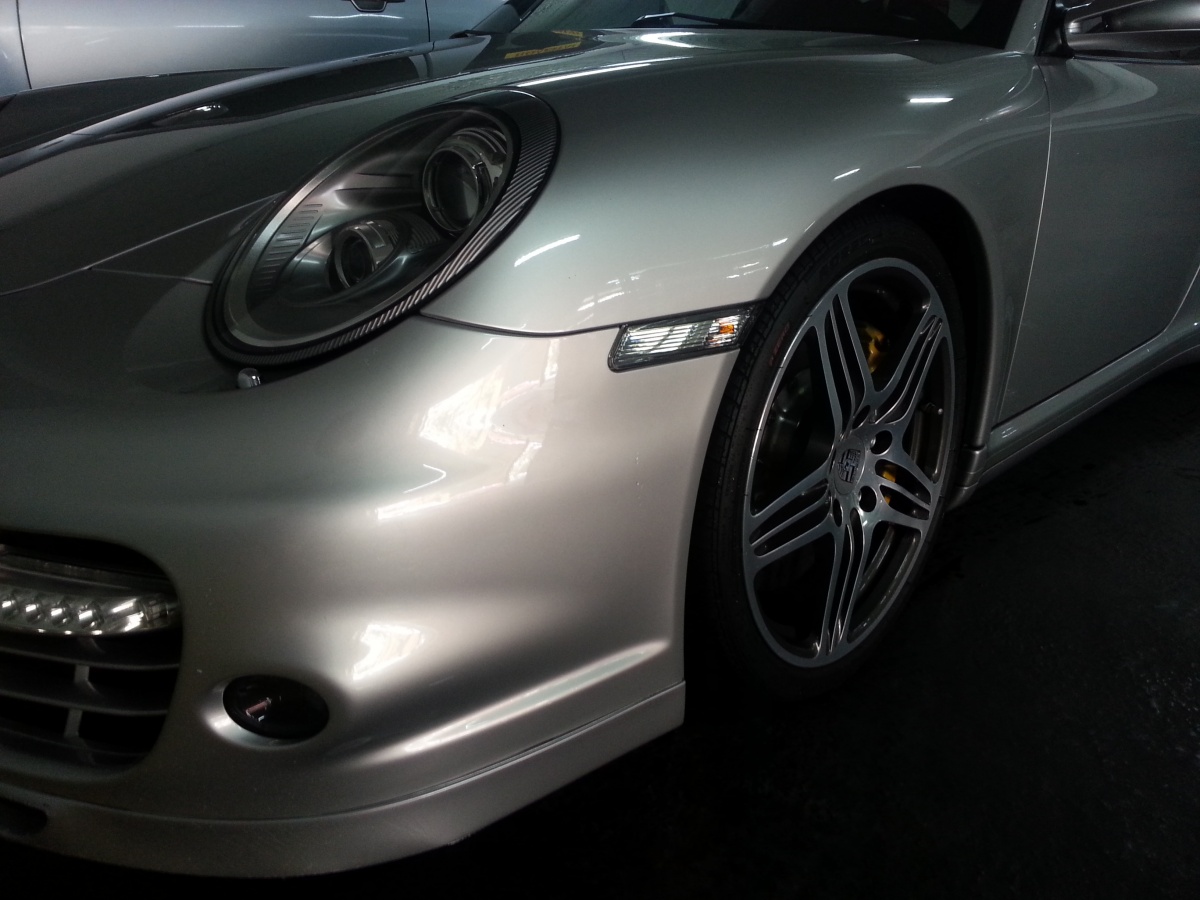

photos...
P.S. you wrote " The problem with the 146mm bolt space calipers is the fact that they will not space out radially "
did you think that 996TT can use both 4 and six piston calipers?both are 146mm...but red are for 330mm and yellow for 350mm steel or pccb...how do they space out radially at that difference?
P.S. you wrote " The problem with the 146mm bolt space calipers is the fact that they will not space out radially "
did you think that 996TT can use both 4 and six piston calipers?both are 146mm...but red are for 330mm and yellow for 350mm steel or pccb...how do they space out radially at that difference?
The stock 996TT front 4 piston caliper uses a 146mm bolt pattern that is spaced with respect to the center line of the caliper. This caliper can be spaced out to your hearts content because as you add spacers the caliper moves out at a 90 degree angle relative to the brake rotor centerline (same goes for the 225mm 997.2 calipers).
On the 146mm 6 piston caliper the bolt spacing is also 146mm. The major and very important difference, however, is fact that the the bolt pattern is not positioned on the caliper with respect to it's centerline. This fact precludes the caliper from spacing out at a 90 degree angle with respect to the centerline of the rotor as spacers are added. As spacers are added the caliper "moves" away from the center line of the rotor at an angle which causes the rotor/caliper gap between the lower portion of caliper to decrease and the upper portion of the caliper to increase.
This is very hard to explain or visualize unless you actually have the caliper in front of you. When you get a chance, please post a picture of your 146mm 6 pistons with spacers and 380mm rotors, front and back side showing the spacers. I would really love to see how you managed to get this to work.... Thx...
Last edited by pwdrhound; 04-21-2013 at 02:02 PM.
#19
Obviously the color of the caliper has no bearing here. The 996TT can use both the 4 piston and 6 piston calipers with with 146mm spacing. Both are a very simple direct bolt on with the 4 piston using 330mm rotors and 6 piston using 350mm rotors. You can also space out the OEM 4 piston calipers with spacers and longer 85mm bolts if you'd like to use 350mm rotors. As a matter of fact, you can space out the OEM 996TT 4 piston calipers to use 380mm rotors (or any size depending on spacer thickness) but you can't space out the 6 piston calipers. Why? Well, very simple.
The stock 996TT front 4 piston caliper uses a 146mm bolt pattern that is spaced with respect to the center line of the caliper. This caliper can be spaced out to your hearts content because as you add spacers the caliper moves out at a 90 degree angle relative to the brake rotor centerline (same goes for the 225mm 997.2 calipers).
On the 146mm 6 piston caliper the bolt spacing is also 146mm. The major and very important difference, however, is fact that the the bolt pattern is not positioned on the caliper with respect to it's centerline. This fact precludes the caliper from spacing out at a 90 degree angle with respect to the centerline of the rotor as spacers are added. As spacers are added the caliper "moves" away from the center line of the rotor at an angle which causes the rotor/caliper gap between the lower portion of caliper to decrease and the upper portion of the caliper to increase.
This is very hard to explain or visualize unless you actually have the caliper in front of you. When you get a chance, please post a picture of your 146mm 6 pistons with spacers and 380mm rotors, front and back side showing the spacers. I would really love to see how you managed to get this to work.... Thx...
The stock 996TT front 4 piston caliper uses a 146mm bolt pattern that is spaced with respect to the center line of the caliper. This caliper can be spaced out to your hearts content because as you add spacers the caliper moves out at a 90 degree angle relative to the brake rotor centerline (same goes for the 225mm 997.2 calipers).
On the 146mm 6 piston caliper the bolt spacing is also 146mm. The major and very important difference, however, is fact that the the bolt pattern is not positioned on the caliper with respect to it's centerline. This fact precludes the caliper from spacing out at a 90 degree angle with respect to the centerline of the rotor as spacers are added. As spacers are added the caliper "moves" away from the center line of the rotor at an angle which causes the rotor/caliper gap between the lower portion of caliper to decrease and the upper portion of the caliper to increase.
This is very hard to explain or visualize unless you actually have the caliper in front of you. When you get a chance, please post a picture of your 146mm 6 pistons with spacers and 380mm rotors, front and back side showing the spacers. I would really love to see how you managed to get this to work.... Thx...
Facts are facts and an engineering project is judged from its outcome...and guess what...we have two cars here with 350mm calipers running 380mm pccb disks...
upper and lower bolts are positioned in PARALLEL from the factory...so no matter how far or close they are spaced from wheelhub they will always be in parallel...I believe we both agree on that...
It really makes no sense to be able to space out 4piston caliper how far you like and not been able to do the same to 6 piston...SINCE THEY BOTH BOLT AT THE SAME wheelhub...
All i have to say is that when i was installing them i tried 15mm spacers and low end didnt clear out...So i tried 18mm spacers and everything was ok..

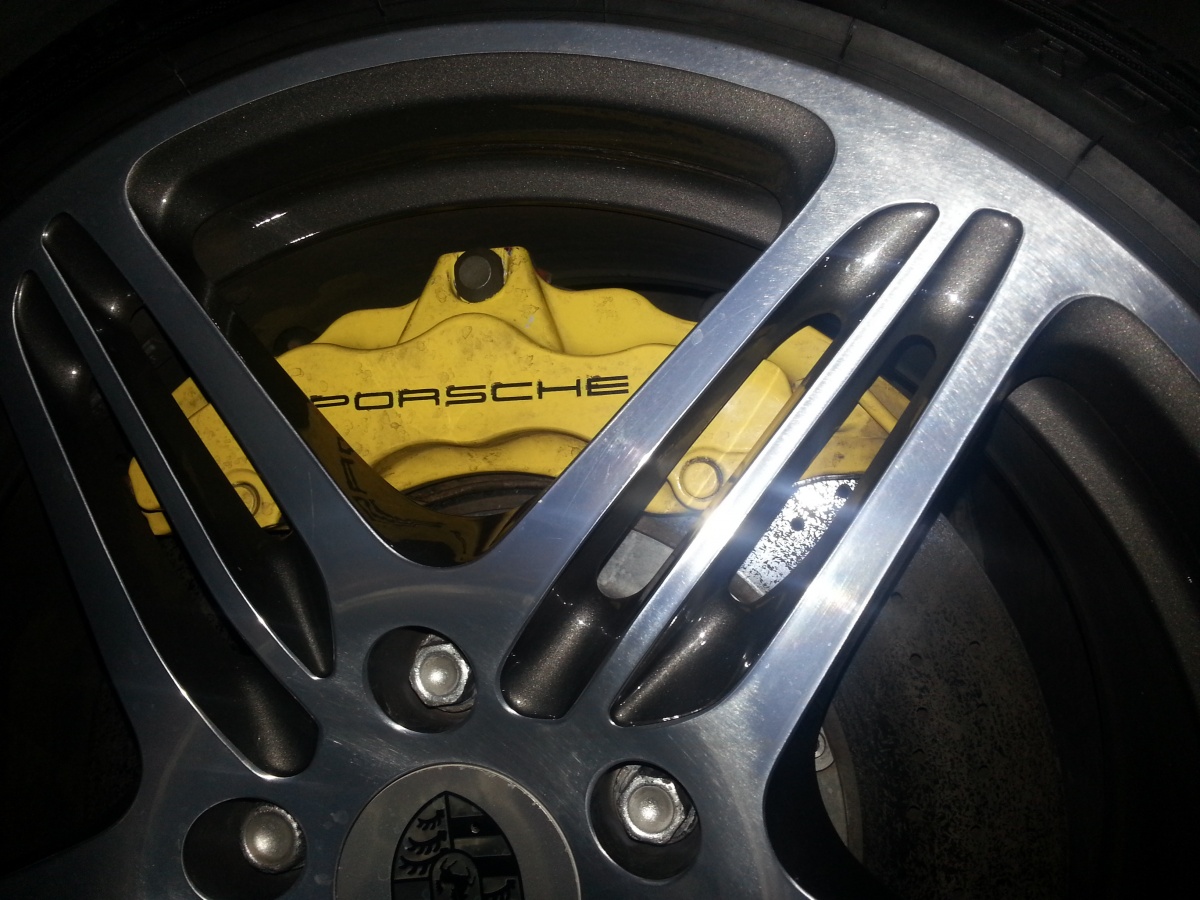

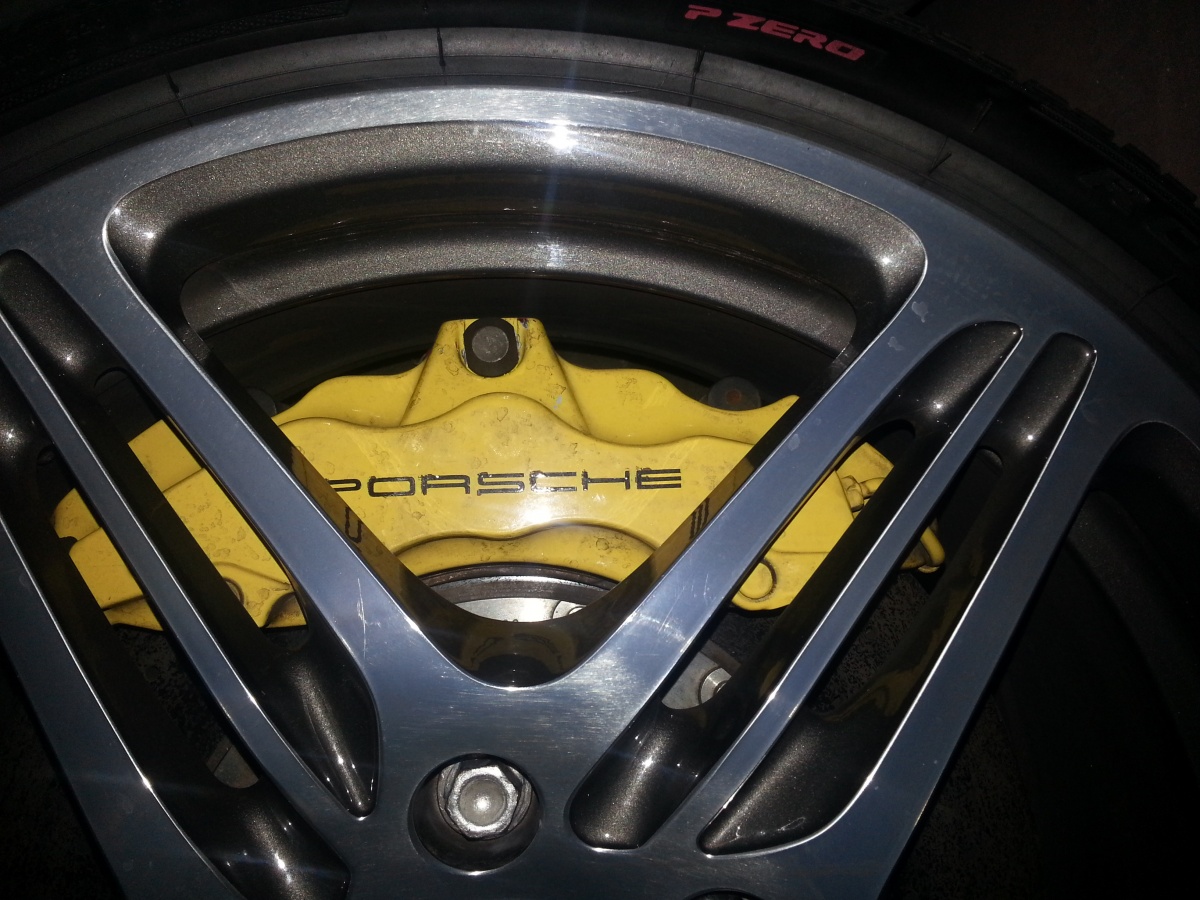

One of my photos shows crearly low end clearance from disk to caliper...i will photo inside side for you at first opportunity...

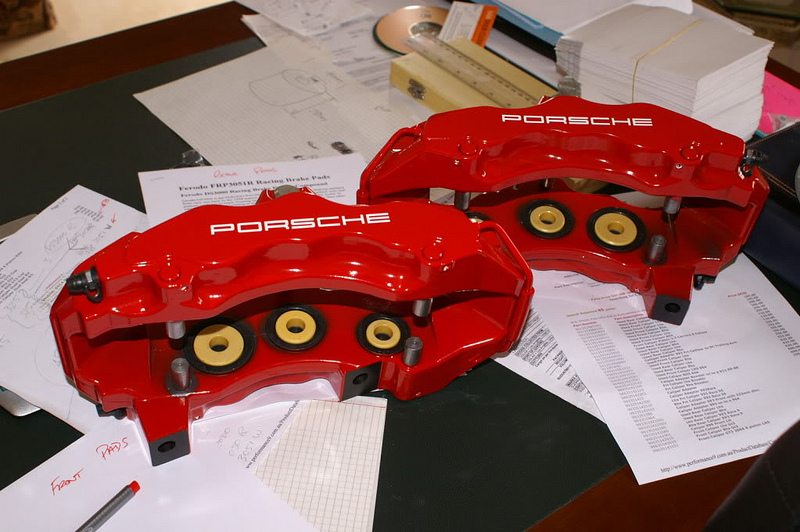

P.S. I mentioned colour so to see that we are talking about OEM red 997TT steel calipers
Last edited by skandalis447; 04-21-2013 at 02:41 PM.
#20
Sooo.... Finally... did the PCCB Discs and rotors will fit a 997.2 tt with red calipers if I just add the 18mm spacers and longer bolts???
Please skandalis 447 confirm me.
Thanks and Happy New Year to All!!
Please skandalis 447 confirm me.
Thanks and Happy New Year to All!!
#21
Why do you think on the cars with 997 PCCB 380s Porsche used an adapter in conjunction with the 997.2 calipers instead of just using simple 18mm spacers and longer bolts with the 997.1 calipers?
997.1 350mm
996 330mm
997.2 380mm
Last edited by pwdrhound; 01-07-2014 at 11:33 PM.
#23
They still are. I run steel 380s and it's pretty rare to see a track guy with ceramics. They usually run them till they get trashed and then swap to steels. Pad selection is very limited with ceramics too.
#25

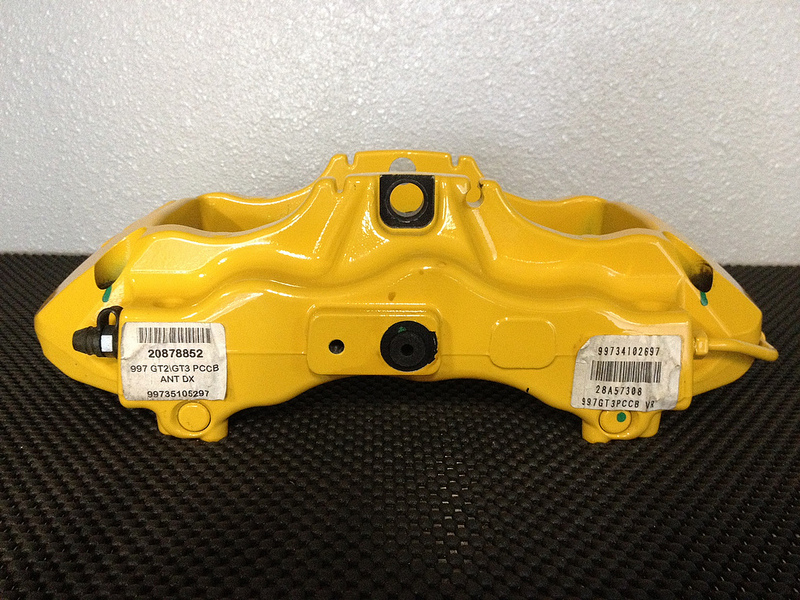

Are the red 997.2 RS calipers the same as the Yellow PCCB 997.2 calipers? I have a source selling a set of PCCB rotors and pads, but not sure if they're a direct swap or if I need the yellow calipers?
#26
They are the same.
#27
Actually thats the case...ceramic pads are way too expensive...they really have porsche tag...however I simply cant resist to amazing initial grip and awesome braking power of pccb...one of the best options for 997tt for sure...
#28
Thanks pwdrhound. So all one would need to go to pccb on a 997.2 rs is rotors and pads?
Last edited by groupagst; 02-02-2014 at 01:05 AM.
#29
Yes, that is correct. Turbo specific rotors if you have a TT. GT2/3 have different offsets on the front. Rears are the same.
#30
Are the piston sizes the same front and rear? I want my PCCB calipers painted red but if I can simply buy the red GT3RS calipers Ill do that.
