I'm not even done yet



Will need to make some adjustments to fix that dip in the mid range, but here it is.

Stock valve train, I plan to do springs when I do cams just for safety.



Again very strong and can't wait to see the final numbers!



E7x

Pump gas around 700whp



Found the limits of these turbos, finally

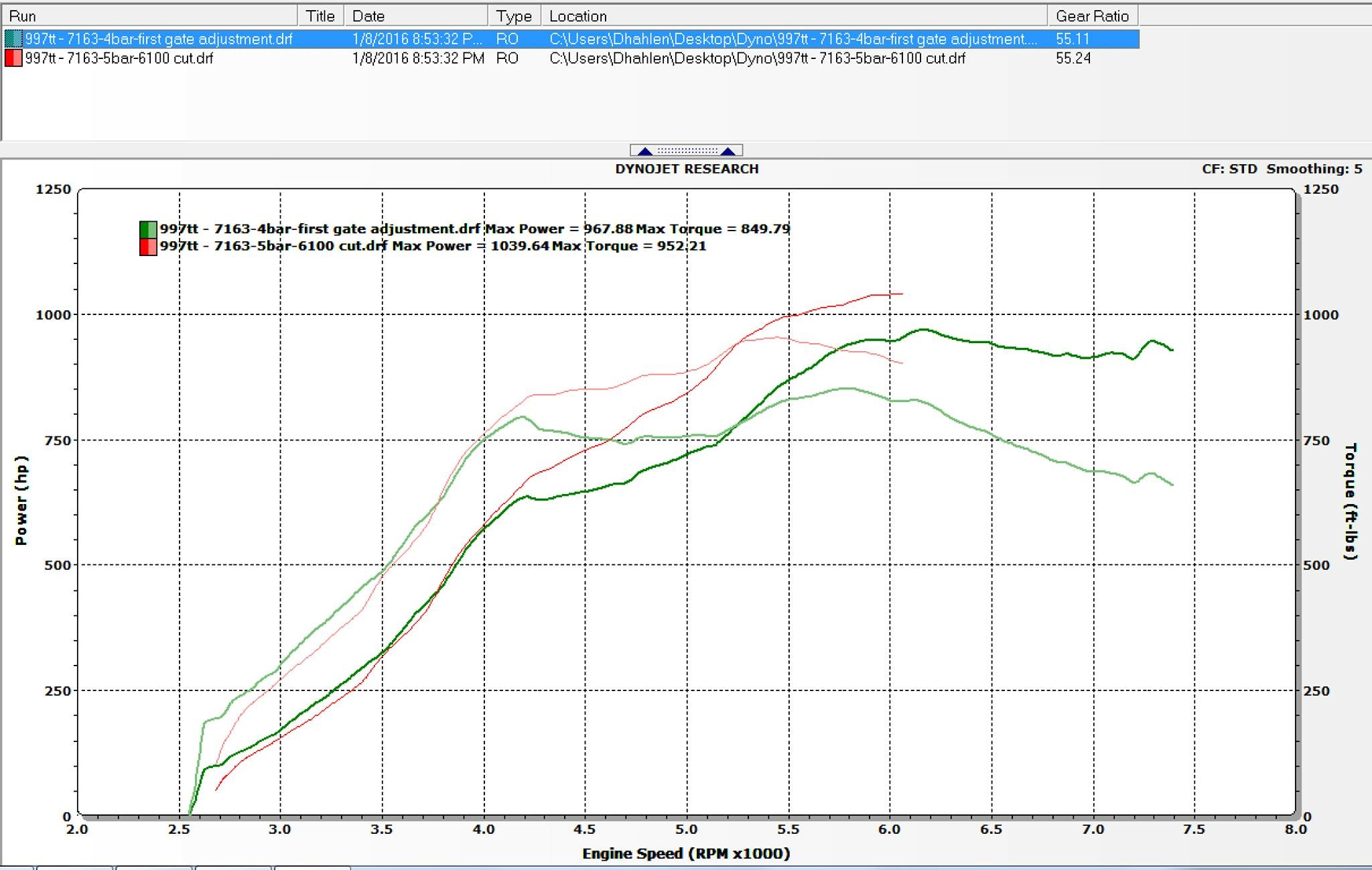

My max power on a mustang dyno was previously 867. I was able to pull a 1007awhp on a Mustang. Will schedule some time for the dynojet run, but I have a feeling it'll be close to 1100.

We were running 30psi on the Mustang dyno and adjusted the gates to allow more flow. At 32psi, we saw an increase in back pressure from 1.3 to 1.7 and were not making any more power. On the street, this is actually about 35psi, according to my logs.

The car rips. More to come soon!



Congratulations. You have some serious performance there. Who built the turbos for you?



This is part of the EFR7163 Eliminator kit.



silly rabbit motorsport builds these turbos. they now have dual port w/g that they installed on mine for more boost. hopefully they perform close to darrins setup!



Dual ports are used for resolution. 25psi for pump and 35 for e85. I could have ran 35 on original gates, but wouldn't have helped my pump map!



25 psi is for girls



Girls and 91 craptane
