Help reading Durametric 6.5.5.5 log

Got error code P0300, P0306 and trying to set up some log to se what causing this problem. In car it appear when I have WOT on 3,4,5,6 gear and CEL is going on if I continue with WOT but dissapear if I get off the throttle. I have trying to set up some logging with Durametric but I cant find the right value to set to find the cause.

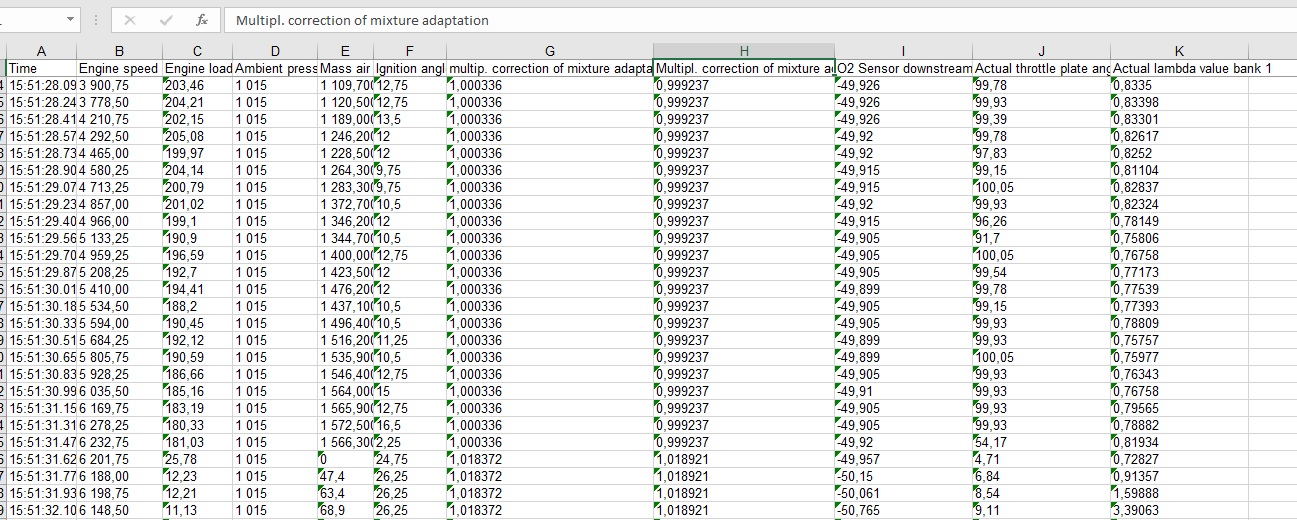

Got some value from log like this in attachment

Attached Thumbnails Click image for larger version

Name:	Test01.jpg
Views:	90
Size:	338.4 KB
ID:	526605

Last edited by nie-ff; May 27, 2018 at 10:27 AM.
Old May 27, 2018 | 10:36 AM
  #2
nie-ff's Avatar
Thread Starter
|
Registered User
Joined: May 2017
Posts: 8
From: Limhamn
Rep Power: 0
nie-ff is infamous around these parts

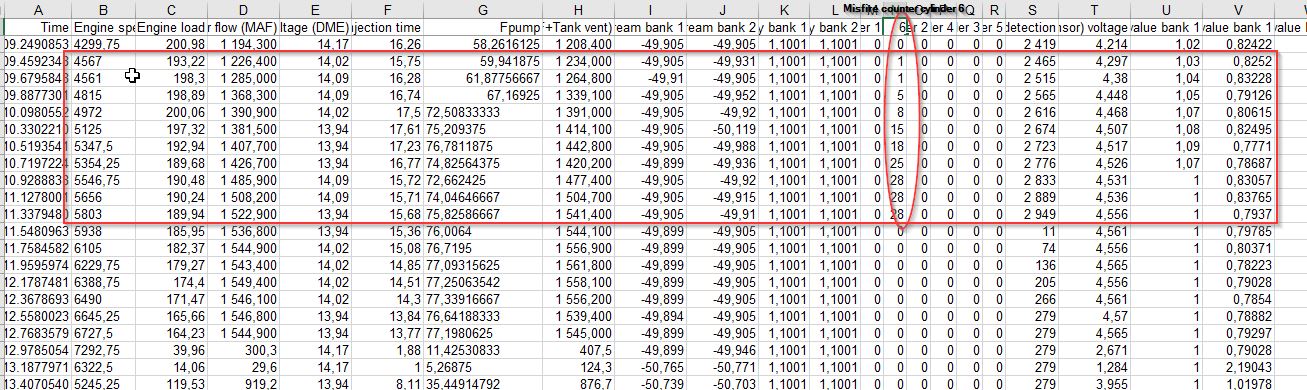

New log

Attached Thumbnails Click image for larger version

Name:	Log_P0300_P0306.jpg
Views:	63
Size:	206.3 KB
ID:	526612
Old May 28, 2018 | 07:38 AM
  #3
Brainz's Avatar
Registered User
Joined: Nov 2013
Posts: 31
From: Houston
Rep Power: 15
Brainz is infamous around these partsBrainz is infamous around these parts
Second log is showing misfires on cyl 6, consistent with the OBD code. Plugs and coils would seem the likely suspects.

Old Jun 5, 2018 | 09:50 AM
  #4
nie-ff's Avatar
Thread Starter
|
Registered User
Joined: May 2017
Posts: 8
From: Limhamn
Rep Power: 0
nie-ff is infamous around these parts
Trying to find boost pressure and also I got some odd values from the logs.
The O2 sensor value is about -49 to -50 somthing ?

Someone that have any explanation ?

Thanks Nic

Old Jun 5, 2018 | 09:53 AM
  #5
nie-ff's Avatar
Thread Starter
|
Registered User
Joined: May 2017
Posts: 8
From: Limhamn
Rep Power: 0
nie-ff is infamous around these parts
Thanks, I´v have test almost everything exept the Ignition coil and sparks, now ordered and waiting to replace.

Old Jun 15, 2018 | 02:24 AM
  #6
nie-ff's Avatar
Thread Starter
|
Registered User
Joined: May 2017
Posts: 8
From: Limhamn
Rep Power: 0
nie-ff is infamous around these parts
Fully service on my 9ff now, all new filters, new ignition coils, new sparkplug, oil and coolingwater e.t.c. Now all working fine, it´s a beast :-)
The problem was cracked ignition coils.

Old Jun 15, 2018 | 07:04 AM
  #7
Brainz's Avatar
Registered User
Joined: Nov 2013
Posts: 31
From: Houston
Rep Power: 15
Brainz is infamous around these partsBrainz is infamous around these parts
Glad to hear you got it sorted.
