The ground gives better traction than the air. It might seem obvious, but this simple truth runs deep at Öhlins.
Our technologically advanced suspension systems allow your car to spend more time in contact with the tarmac, helping you take the straightest line and maintain higher speeds through turns.
The unique Öhlins DFV technology maintains composure through bumps and compressions, settling the car quicker to provide better traction at all times.
Equipped with Öhlins suspension your car will feel more composed and compliant, both on the road and track, giving you more control and inspiring greater confidence, but without compromising on comfort.
A more than 30 year long tradition of high-end racing commitments and state-of-the-art solutions within advance suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises are over!
We have also added a clever light-weight design with a majority of the parts in aluminum and on top of that all shocks have suffered through vast corrosion tests according to ISO9227. The end results is a 2-year limited warranty on all of our Ohlins products – worldwide.
Images of previous install at GMP on 997 Turbo:

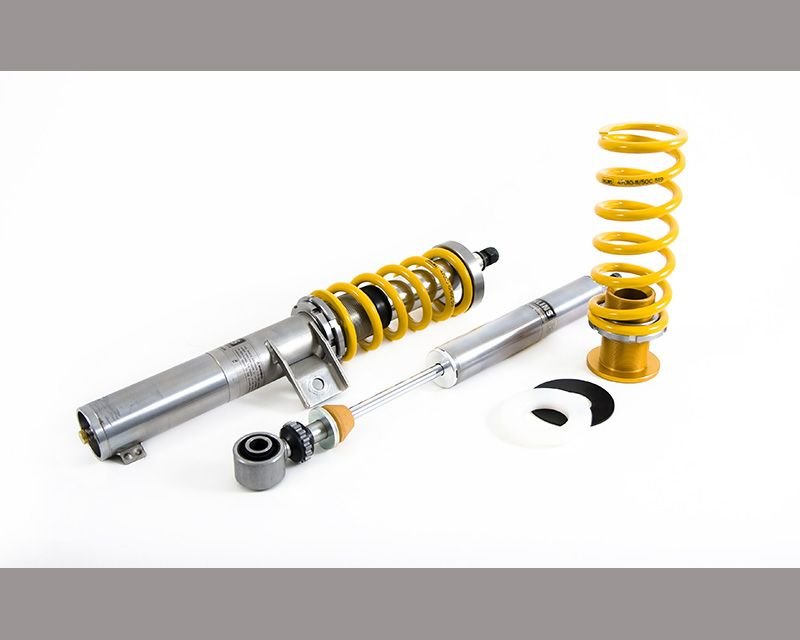

Image for reference:
Details of Road&Track Technology

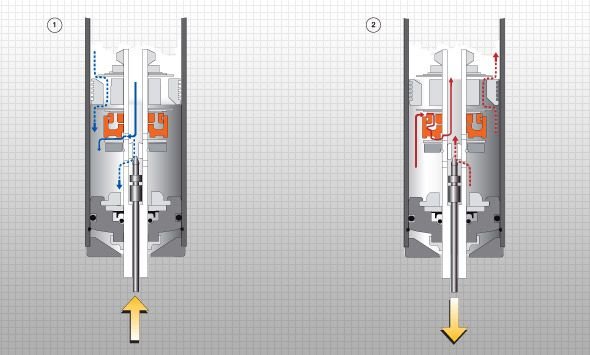

Figure 1: (Compression flow) At low shaft speeds, oil flows mostly through the shaft jet bleed (lower dotted arrow). At higher shaft speeds, oil flows mostly through the compression ports in the piston (upper dotted arrow). At very high shaft speeds, or during sudden shaft accelerations, oil can also escape through the compression ports in the DFV, increasing comfort. Figure 2: (Rebound flow) At low shaft speeds, oil flows mostly through the shaft jet bleed (lower dotted arrow). At higher shaft speeds, oil flows mostly through the rebound ports in the piston (upper dotted arrow). At very high shaft speeds, or during sudden shaft accelerations, oil can also escape through the rebound ports in the DFV, maintaining tyre contact with the road.

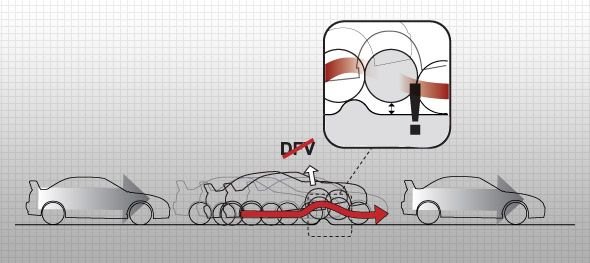

Figure 3: (Vehicle – no DFV) Without DFV the oil can not flow through the piston quickly enough on the rebound stroke after hitting a bump, so the tyre is not able to stay in contact with the road.

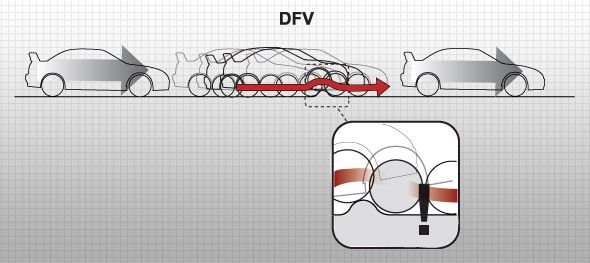

Figure 4: (Vehicle – DFV technique) The DFV valve opens, letting the oil flow quicker through the piston on the rebound stroke after hitting a bump, enabling the tyre to stay in contact with the road.

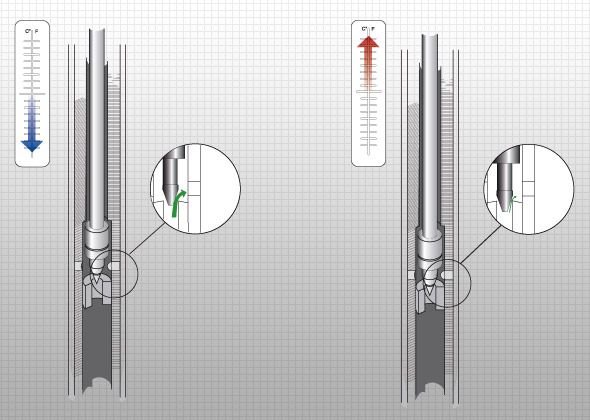

Figure 5: Thermal Expansion
These kits all work well ‘out of the box’, but there’s still plenty of adjustment for you to set things your way. You like stiff and reactive? Or soft and forgiving? It’s all there. Too much low speed rebound damping can have an adverse effect on grip, so the easily accessible adjuster at the base of the Öhlins units allows small, but positive increments of fine tuning, so you can take into account every single parameter. Sounds complicated? Nothing could be further for the truth. Just a few clicks either way from our factory settings will soon have your car responding precisely to your inputs and driving style.
Most of the Road & Track McPherson struts also feature camber adjustable upper and lower mounts to give you the possibility to fine tune your wheels for the right occasion – whether you want to go for a ride in your neighborhood or take your car for a spin at the track on a weekend.
