Only this connection is already used by what looks like one big connector.


Please let us know we are all waiting patiently to order!!!!



Ill have to check the purpose of the big connector. Anyone? Anyone?



subscribed



Any update?



NO ( Still need the info on removal( not a biggie) and AUX turn on...



I'll check with the local Dealer



Removal is easy: you need 2 Torx drivers (T20 and T25 I believe) to remove the two side panels. The first screw (T25) is hidden in the carpet about an inch below the secondary "lighter plug" in the passenger footwell. This will remove that small triangle of carpet/plastic and reveal the other screw (T20) that holds the side panel in place. Remove it, then pull the entire panel straight towards the rear of the car. Pull the bottom side forward first - sort of like you are trying to rotate the panel clockwise - there are three snap-in type fittings along the front edge that take a lot of force to release. Make sure you keep it against the center stack and are pulling towards the rear of the car and not into the footwell. Kind of like pulling a record from it's sleeve (not that everyone knows what that means anymore...).
Do the same for the driver's side.
After those two panels are removed it will be clear how to remove anything from the center console. There are some quarter-turn screws that lock things in place.

Hope this helps.



I just got it in the mail this morning. Ill try my best to fix it the day after tomorrow



I'd be interseted to know if it works as well. Does this mean you would not need the Dension 500?

Jack667 - What did you replace your system with? Looks like you changed out the speakers as well.



well find out if it works hopefully it will



I fixed the wire. it was a piece of cake. didnt take more than 20 minutes.
The thing is:

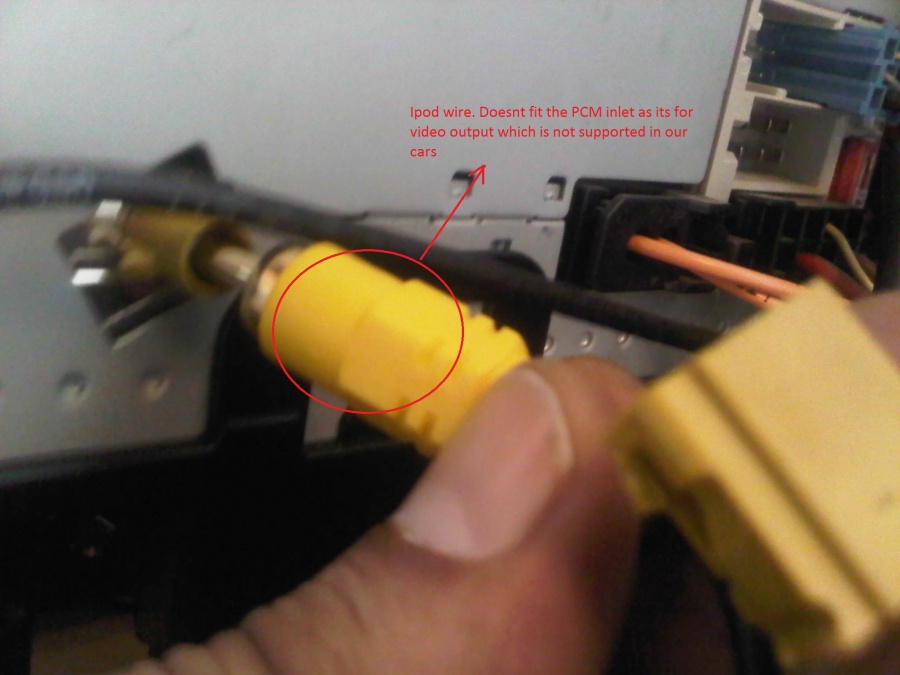

-The yellow wire is for video output which we dont have in our cars.

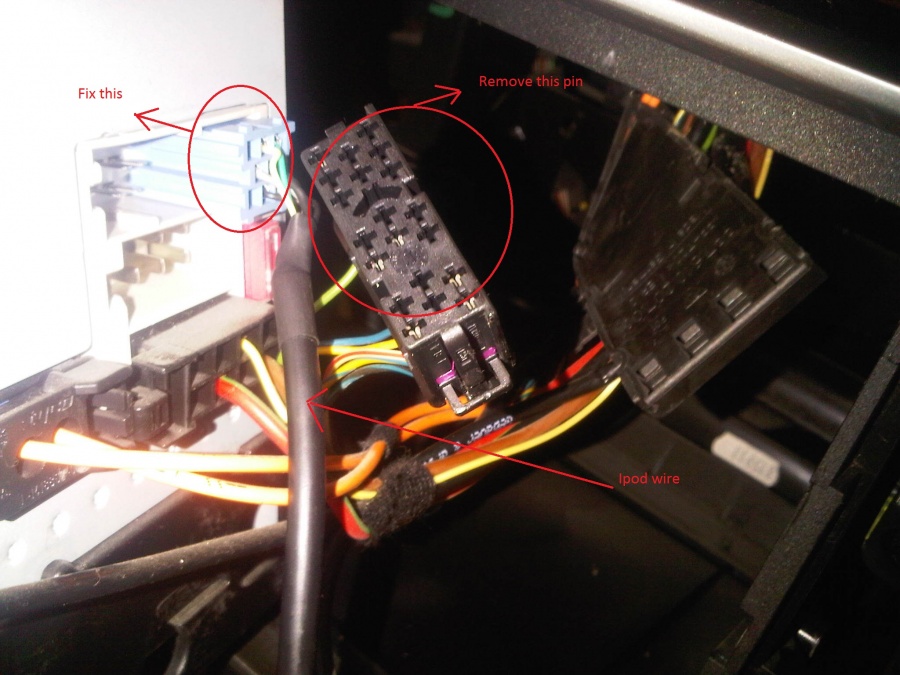

-The blue pin fits after u remove the existing pin from the PCM which i dont know what the purpose of it or what it does.
-The only thing left is how to turn on AUX????!!!!!!

Any help is really appreaciated.

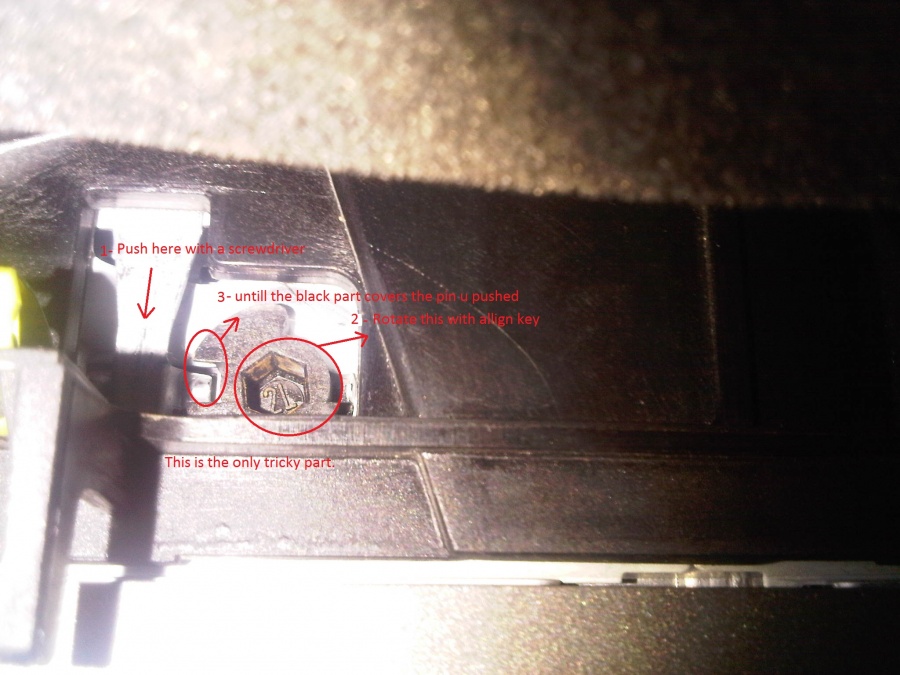

See attached pics. Hopefully these will help a bit as well as the write up in this link http://www.planet-9.com/reviews/elec...emoval-29.html



How did u turn the AUX on?



I replaced my head unit with one from Kenwood. Got a new amp, speakers and subs as well. I started a thread on that a week or two ago -
Jack



Funny - I read that Post
