Broken AC vent?

Hey guys. Did a quick search and didn't anything. So I'll take the easy route. My vent on the left of the steering wheel doesn't move the air left and right. Looks as if it has become disconnected from the piece behind it. Anybody every replace/fix one of these? Thanks in advance.

Old Aug 10, 2011 | 02:24 PM
  #2
fpjl's Avatar
Registered User
Joined: Aug 2010
Posts: 9
From: NC
Rep Power: 0
fpjl is infamous around these parts
Mine is the same and I was wondering the same thing.

Old Aug 10, 2011 | 02:55 PM
  #3
IslandS62's Avatar
Registered User
Joined: Feb 2011
Posts: 266
From: Honolulu
Rep Power: 30
IslandS62 is a glorious beacon of lightIslandS62 is a glorious beacon of lightIslandS62 is a glorious beacon of lightIslandS62 is a glorious beacon of lightIslandS62 is a glorious beacon of light
I just replaced my center and left side vents due to cracks in the silver trim. While not hard to remove, they can be frustrating to wrestle out without damaging. If yours has become "disconnected" it should be a simple fix and may not even require removal.

The "****" that adjusts the vent air flow to the left and right has nothing more than a thin stalk at the rear. The thin round stalk fits into a friction fit hole on the vent fins that pinches the stalk. Its all plastic and over-engineered, but really simple to see how it works. I would look in the vent with a flashlight and see if you can use a needle nose plier to get everything connected again.

Old Aug 10, 2011 | 05:10 PM
  #4
Recalcitrant's Avatar
Thread Starter
|
Registered User
Joined: Dec 2010
Posts: 246
From: Del Rio, TX
Rep Power: 28
Recalcitrant is just really niceRecalcitrant is just really niceRecalcitrant is just really niceRecalcitrant is just really nice
Originally Posted by IslandS62
I just replaced my center and left side vents due to cracks in the silver trim. While not hard to remove, they can be frustrating to wrestle out without damaging. If yours has become "disconnected" it should be a simple fix and may not even require removal.

The "****" that adjusts the vent air flow to the left and right has nothing more than a thin stalk at the rear. The thin round stalk fits into a friction fit hole on the vent fins that pinches the stalk. Its all plastic and over-engineered, but really simple to see how it works. I would look in the vent with a flashlight and see if you can use a needle nose plier to get everything connected again.
I'll take another look and give it a shot. Thanks.

Old Aug 11, 2011 | 07:10 PM
  #5
JTaylorGT's Avatar
Registered User
15 Year Member
Joined: Mar 2010
Posts: 376
From: Atlanta, GA
Rep Power: 33
JTaylorGT has a spectacular aura aboutJTaylorGT has a spectacular aura about
Have the same problem and have been living with it for awhile. The dealer just wants to replace the entire vent assembly for a nice price.

I've heard the pin that comes loose can actually fall out. I'm afraid mine is long gone sucked away by some vacuum during a car wash.

Old Aug 11, 2011 | 07:34 PM
  #6
v35's Avatar
v35
Registered User
Joined: Dec 2005
Posts: 2,390
From: socal
Rep Power: 144
v35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond reputev35 has a reputation beyond repute
I checked my broken vent as well to see if I can reconnect it and the the thin stalk connected to the adjustment **** has been lost.

Old Oct 23, 2020 | 11:33 PM
  #7
roadrunnerwheels's Avatar
Registered User
Joined: Oct 2020
Posts: 2
Rep Power: 0
roadrunnerwheels is infamous around these parts
Decent Inexpensive Fix

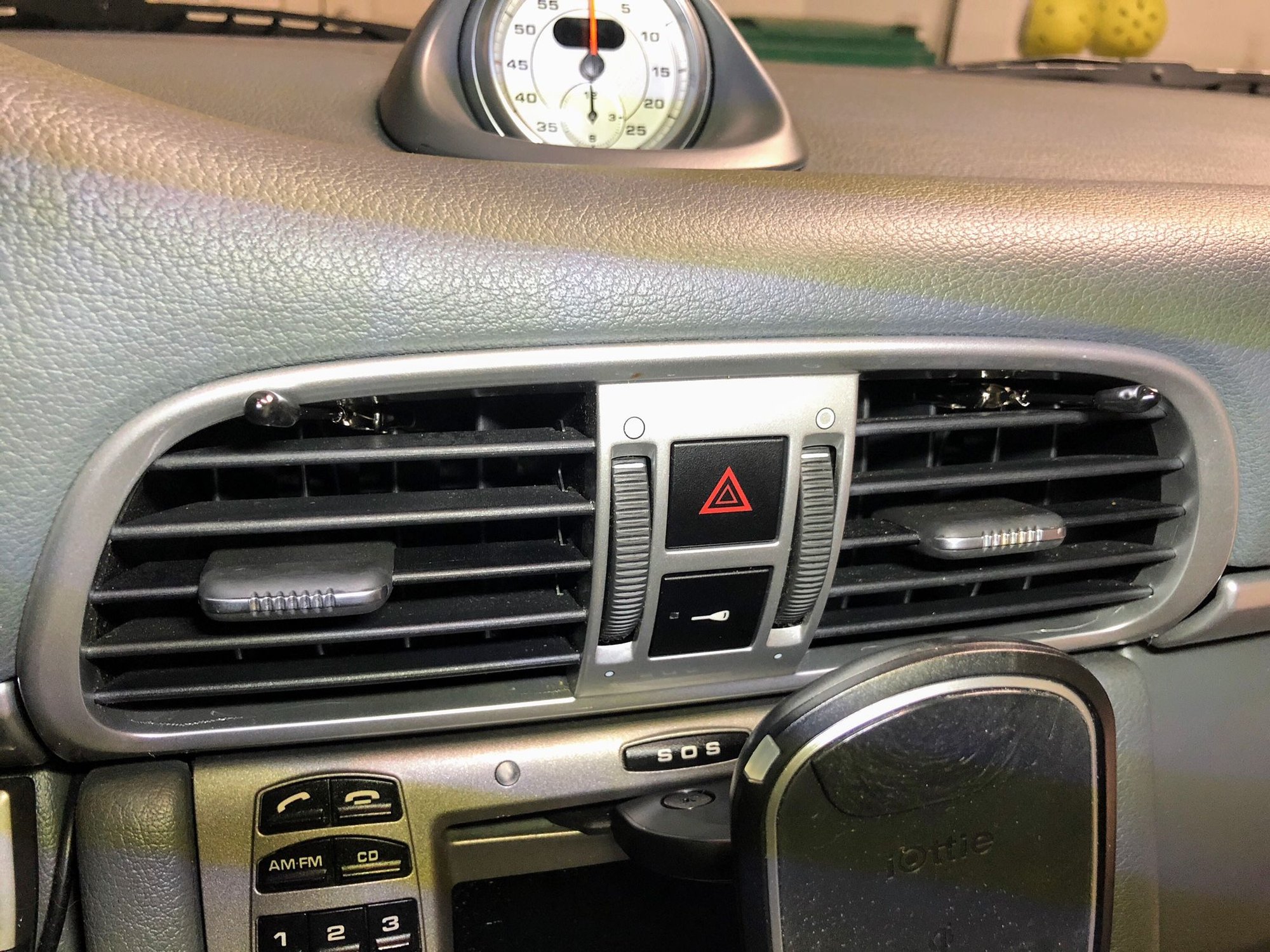

Here’s a decent inexpensive fix for a 997 with broken AC vent direction levers (left/right).


Made a little clip to attach to the left/right fins for easy adjustment.

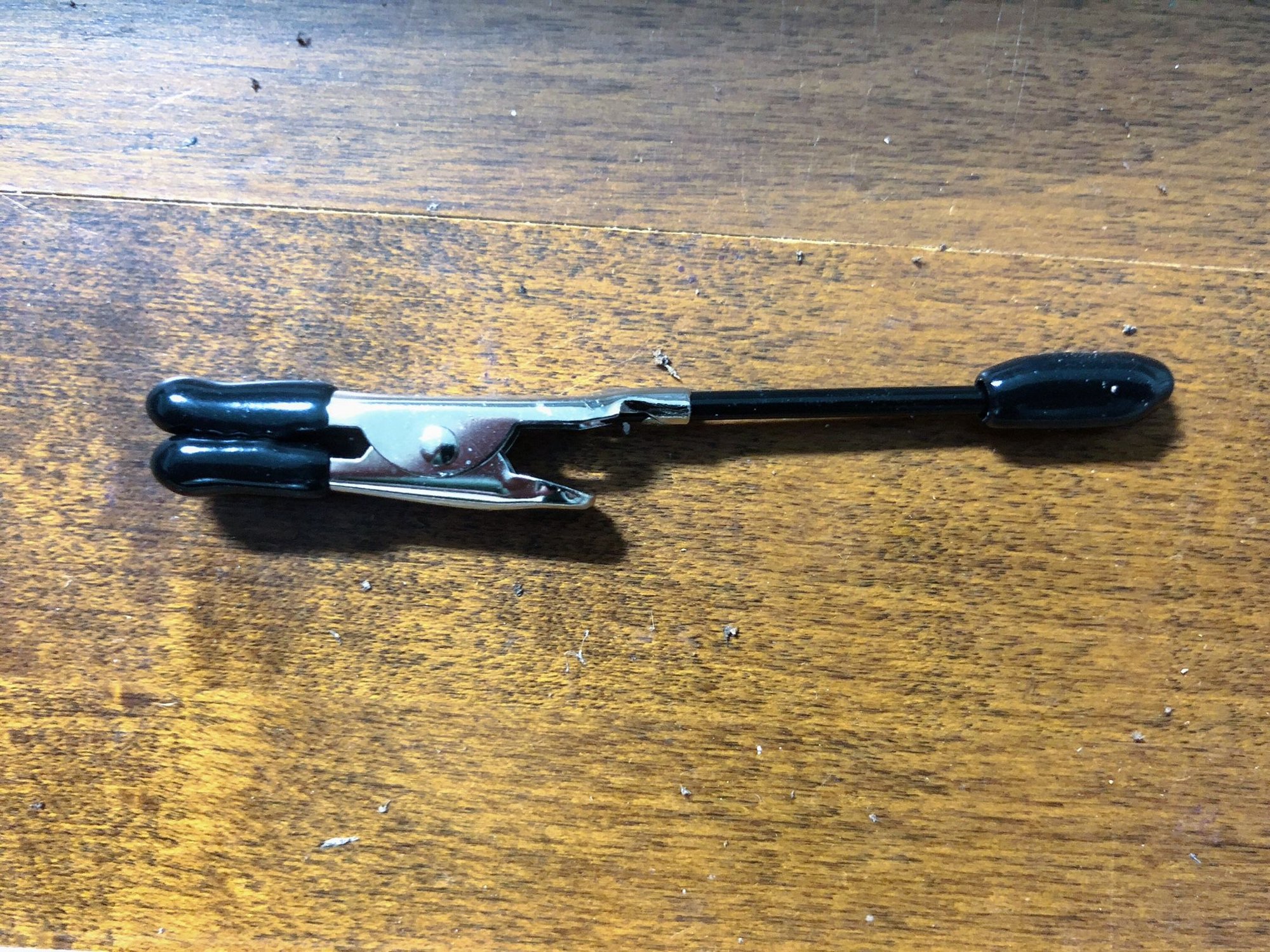

Got this on Amazon for $12, cut the posts, and used the rubber protectors on the ends.

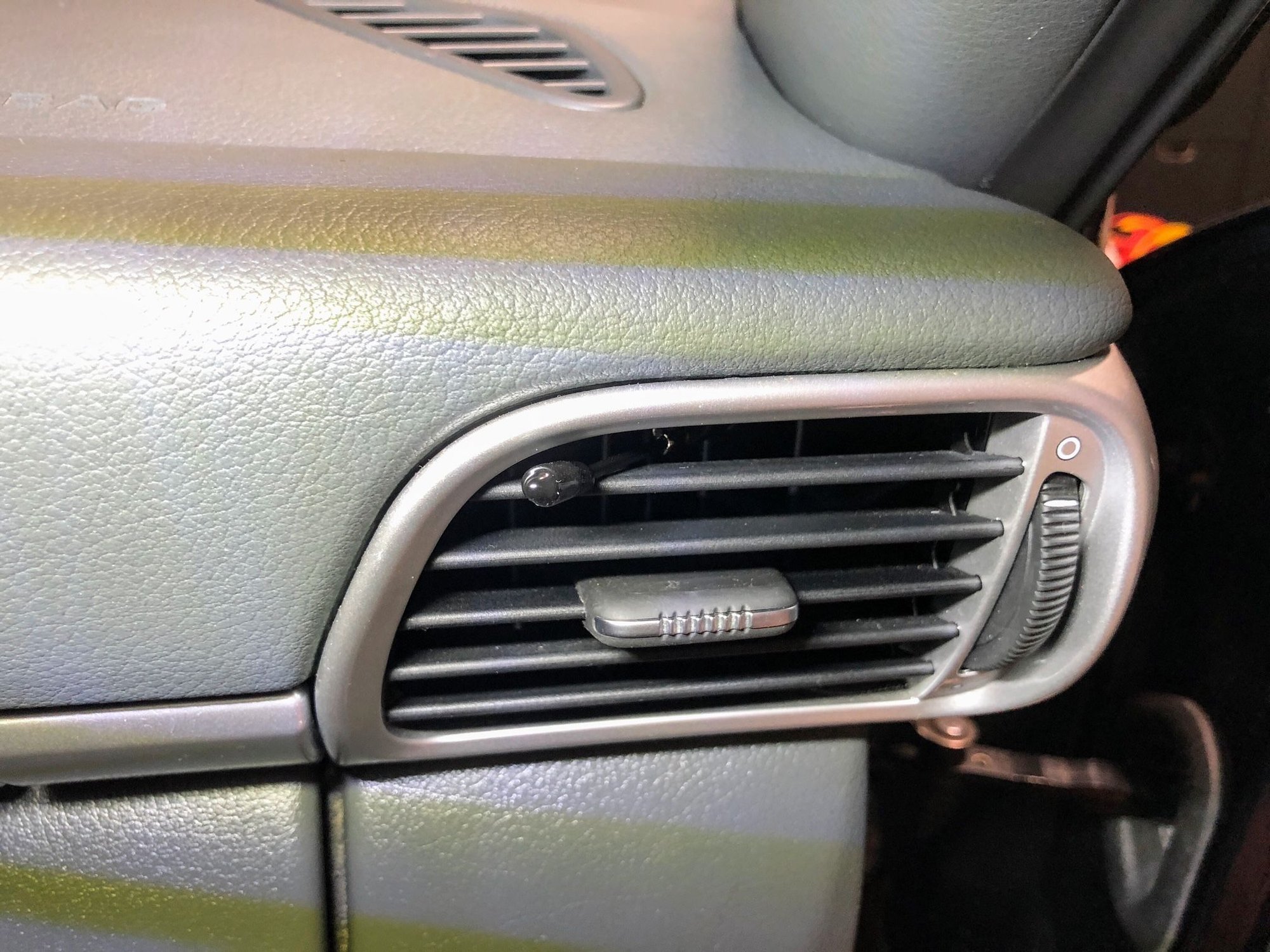

Clipped it towards the top of the vent.

The post is cut short enough so the tip is all that sticks out. Just point it left/right where you need the air. This doesn’t restrict the up/down that much. Still very usable.

Isn’t an eyesore and looks decent for $12 and 20 minutes.
