Old Apr 29, 2005 | 06:08 AM
  #61
VB997's Avatar
Registered User
Joined: Feb 2005
Posts: 48
Rep Power: 23
VB997 is infamous around these parts
Cats...

Attached Images
Old Apr 29, 2005 | 06:44 AM
  #62
LUISGT3's Avatar
Registered User
Joined: Mar 2005
Posts: 16,073
From: Minneapolis, Mn
Rep Power: 1071
LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !LUISGT3 Is a GOD !
Originally posted by KO KAINE
yeah Arling is holding on to the lobster take-offs for me for just that reason. thanks luis.

who made your new AVATAR?? looks great---- you know I am a HUGE 993 fan!
No prob. Porschefanatic did my avatar as well.
Luis

Old Apr 29, 2005 | 11:23 AM
  #63
jnx's Avatar
jnx
Registered User
Joined: Jan 2004
Posts: 687
From: Venice, Florida
Rep Power: 59
jnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to behold
VB997, I have a question about Fabspeed muffler install? How do I get the long and short bolts out? they both hit something solid. seems they were put in upside down. Thanks

Old Apr 29, 2005 | 12:25 PM
  #64
VB997's Avatar
Registered User
Joined: Feb 2005
Posts: 48
Rep Power: 23
VB997 is infamous around these parts

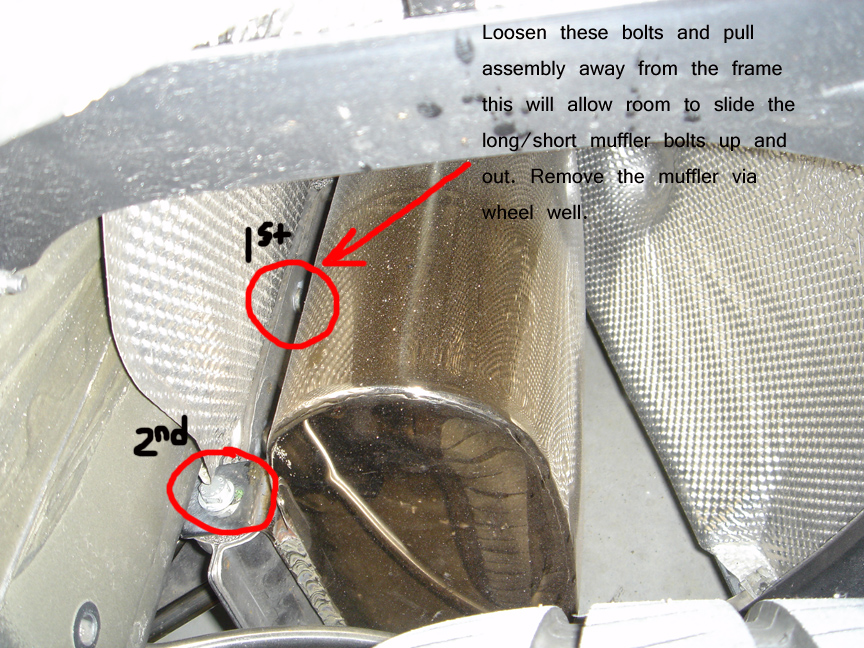

See photo..I hope this helps, feel free to yell if you need more help.

...Let me give you a hot tip while I'm at it...when you reassemble leave all nuts/bolts semi snug and adjust everything back into place working from the exhaust tips to the header flanges. This will ensure that your tips will be centered and at the proper depth in the valance. The trick is to keep everything centered and square. Use a rubber mallet if things get bound up...

Attached Images

Last edited by VB997; Apr 29, 2005 at 12:27 PM.
Old Apr 29, 2005 | 01:19 PM
  #65
jnx's Avatar
jnx
Registered User
Joined: Jan 2004
Posts: 687
From: Venice, Florida
Rep Power: 59
jnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to behold
Thanks, Got it. Now the muffler is about 3"-3 1/2 " from the cat. Is there supposed to be a connector of some kind? I just got the mufflers, outlet pipes, and a bag of clamps.

Old Apr 29, 2005 | 02:12 PM
  #66
911 flyn's Avatar
Senior Member
Joined: Mar 2004
Posts: 730
From: So Cal
Rep Power: 52
911 flyn is infamous around these parts
VB,

Nice photos and instructions..

Old Apr 29, 2005 | 03:16 PM
  #67
VB997's Avatar
Registered User
Joined: Feb 2005
Posts: 48
Rep Power: 23
VB997 is infamous around these parts

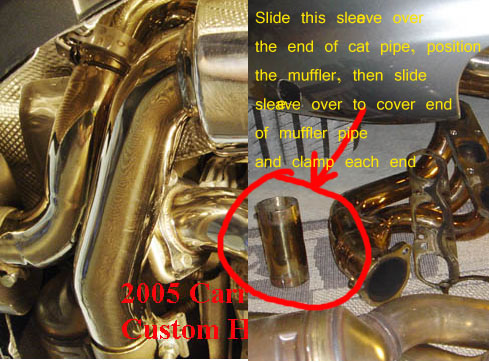

You should have two short sections of pipe (sleeves see photo)...they will slide on to the end of the cat pipe...after you position the muffler end you will move the sleeve over to bridge the gap...once you have joined the cat to the muffler clamp each end of the sleeve.

Attached Images
Old Apr 29, 2005 | 05:12 PM
  #68
jnx's Avatar
jnx
Registered User
Joined: Jan 2004
Posts: 687
From: Venice, Florida
Rep Power: 59
jnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to beholdjnx is a splendid one to behold
Thanks, I did not get the sleeves, They say they will overnight them. I hope so.

Old Apr 29, 2005 | 07:03 PM
  #69
VB997's Avatar
Registered User
Joined: Feb 2005
Posts: 48
Rep Power: 23
VB997 is infamous around these parts
You're welcome, I'm happy to help.

Old Apr 30, 2005 | 09:12 PM
  #70
JASCLASS's Avatar
Registered User
Joined: Jul 2003
Posts: 5,848
From: New York
Rep Power: 257
JASCLASS is infamous around these partsJASCLASS is infamous around these parts
Red calipers would looke much better on white car with black wheels.

Old Apr 30, 2005 | 09:17 PM
  #71
DJ's Avatar
DJ
Registered User
20 Year Member
Joined: Jul 2003
Posts: 10,837
From: New York, NY
Rep Power: 488
DJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond reputeDJ has a reputation beyond repute
JAS he is following his bannan theme - i like it personally
