Interior door handle on 2006 997S spring broke

Not sure if its a spring but whatever holds the handle in place when it's closed either broke or snapped off its housing...

Any ideas if this is easily fixable by me or do I need to rip off the door panel?

It still works but when door is closed the handle dangles a little bit like its open.

Attached is a pic of what is loose.

Thanks for any ideas/input!
-Kurt

Attached Images
  #2
Old 07-07-2013, 07:33 AM
semicycler's Avatar
Banned
Join Date: Jun 2012
Location: Chicago
Posts: 686
Rep Power: 67
semicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond reputesemicycler has a reputation beyond repute
Yes you can replace it yourself, but the door panel needs to come off. Once the panel is off you can see the broken piece.

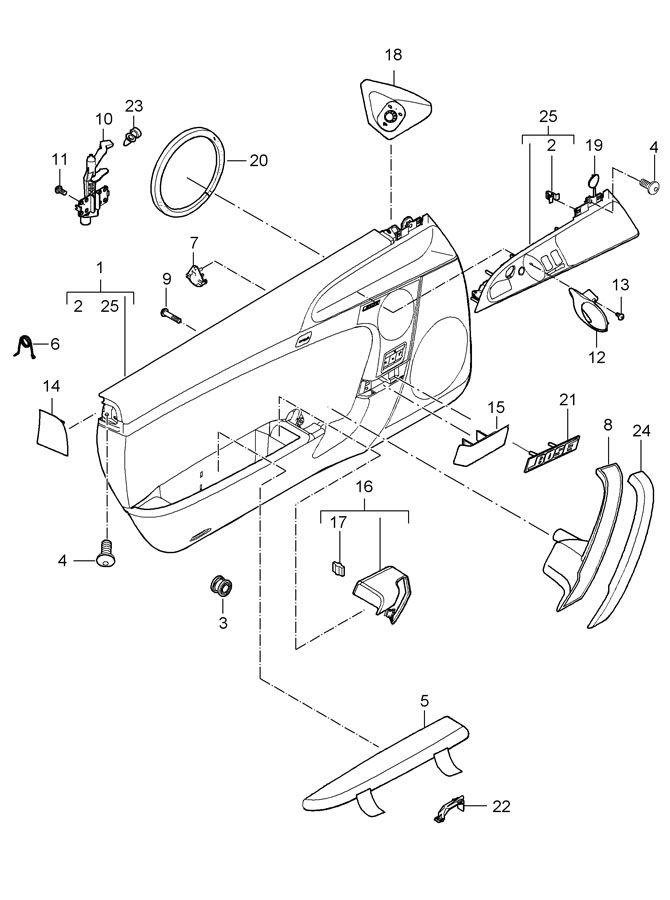

It's likely #10 in the diagram, "axle bearing" part no 997.555.381.02. Dig around for a door panel removal DIY here or on rennlist. I also recommend getting a few #3 "fixing clip for mount door trim panel" as these break easily during the door panel removal. Total parts cost should be less than $20.


Attached Images
  #3
Old 07-07-2013, 09:08 AM
sixgun95's Avatar
Registered User
Join Date: Apr 2012
Posts: 597
Rep Power: 35
sixgun95 is on a distinguished road
I had been saving this thread in case mine broke -
https://www.6speedonline.com/forums/...ing-broke.html

  #4
Old 07-07-2013, 09:25 AM
OCT's Avatar
OCT
OCT is offline
Registered User
Join Date: Jul 2012
Location: NY
Posts: 248
Rep Power: 21
OCT is on a distinguished road
Bro you have to take the panel off, mine was broken a year ago, when I took off both side panel, I found it is switchable, I just switch left to right and upside down, if it's the case...
Good luck!

  #5
Old 07-07-2013, 11:47 AM
kauai_diver's Avatar
Registered User
Thread Starter
Join Date: Aug 2005
Location: Los Gatos, CA
Age: 52
Posts: 258
Rep Power: 29
kauai_diver is on a distinguished road
Thanks guys!
