DIY: Rear Seat Delete

I removed my rear seats today on my 997 and decided to write up a DIY on it. I've search around for one before I did it but could find one so I thought it's worth sharing how I've done it. It is a relatively simple process which should take less than 30 mins to complete.

Tools Required:

- Torx T25 Screwdriver
- Torx T40 Screwdriver
- Medium Flat Head Screwdriver

Performance Gain: Drops weight of the car by approx. 20Lbs

All pictures shown below are from the drivers side.

1) Remove the bracket cover on the backrest outer side with the flat head screwdriver.
2) Remove the bolt with a Torx T40 screwdriver. Mine was on there really tight so I needed a wrench to crack it lose.





3) Remove the backrest bracket cover on the inner side out using flat head screwdriver.
4) Remove the bolt with a Torx T25 screwdriver.




5) The backrests are now ready to come out. Pull up from the right backrest until both inner and outer backrests are off the brackets. Both backrests should come off real easy from here.

6) Repeat steps 1 & 2 to remove the left side backrest bracket.

7) Optional: Remove the seat bottoms by pulling them up. No tools required since they are attached with a velco. I've left mine on there as I didn't like how it looked without it.

8) Put the outer bracket covers back on both sides. For the center brackets, I used a velco to keep the plastic cover to the carpet.




Walla Your Done!!!

Attached Images

Last edited by Romysc4s; 09-16-2013 at 07:36 PM.
  #2
Old 09-15-2013, 09:36 PM
Romysc4s's Avatar
Registered User
Thread Starter
Join Date: May 2011
Location: SoCal
Posts: 490
Rep Power: 42
Romysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud ofRomysc4s has much to be proud of
Additional pictures to wrap it up. I plan to hide the seat belts behind the side covers. Save that for another Sunday project.

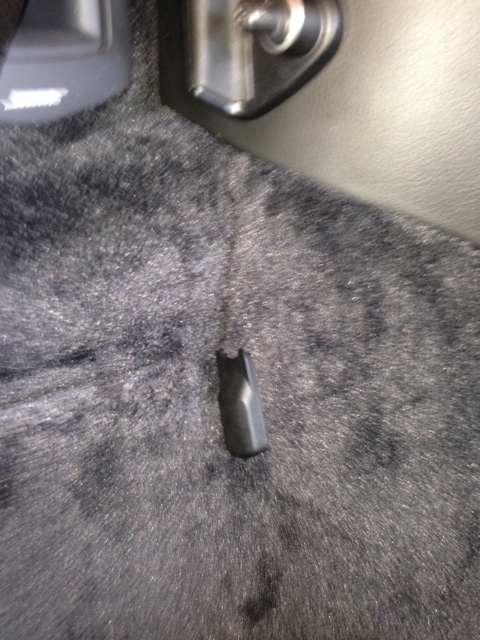

Inner bracket with cover attached to the carpet with velcro.



Attached Images

Last edited by Romysc4s; 09-16-2013 at 03:07 PM.
  #3
Old 09-16-2013, 01:43 PM
silver329's Avatar
Registered User
Join Date: Apr 2010
Location: New York
Posts: 230
Rep Power: 27
silver329 is a jewel in the roughsilver329 is a jewel in the roughsilver329 is a jewel in the roughsilver329 is a jewel in the rough
That looks clean. I think once the rear seat belts are gone, it will look perfect. I want to do this too, but I actually use my rear seats every so often...

  #4
Old 04-11-2014, 04:22 PM
3POINT8's Avatar
Registered User
Join Date: Jan 2013
Posts: 343
Rep Power: 25
3POINT8 is on a distinguished road
awesome! thanks. gotta make room for a couple car seats.....
