997.2 PCM3 Sirius Integration Success

Old Feb 8, 2015 | 11:05 AM
  #1
NYC997's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2013
Posts: 60
Rep Power: 16
NYC997 has a spectacular aura aboutNYC997 has a spectacular aura about
Talking 997.2 PCM3 Sirius Integration Success

Just putting up this post for all the people who like myself have been looking for a while to integrate Sirius into their 997.2

I came across a old post stating that NavTV still does in fact make a kit but it doesn't sell it on the site, since they need to verify your radio is compatible.

I called Tony @ NavTV and he confirmed that my car does in fact support it.

997.2 NAV/BOSE/Bluetooth/iPod

So i received the kit which included the Sirius tuner from Sirius , the PCM3 Filter and Sat Radio Interface as well as a Signal sensing kit that acts as a switch to power down the kit when car is off.

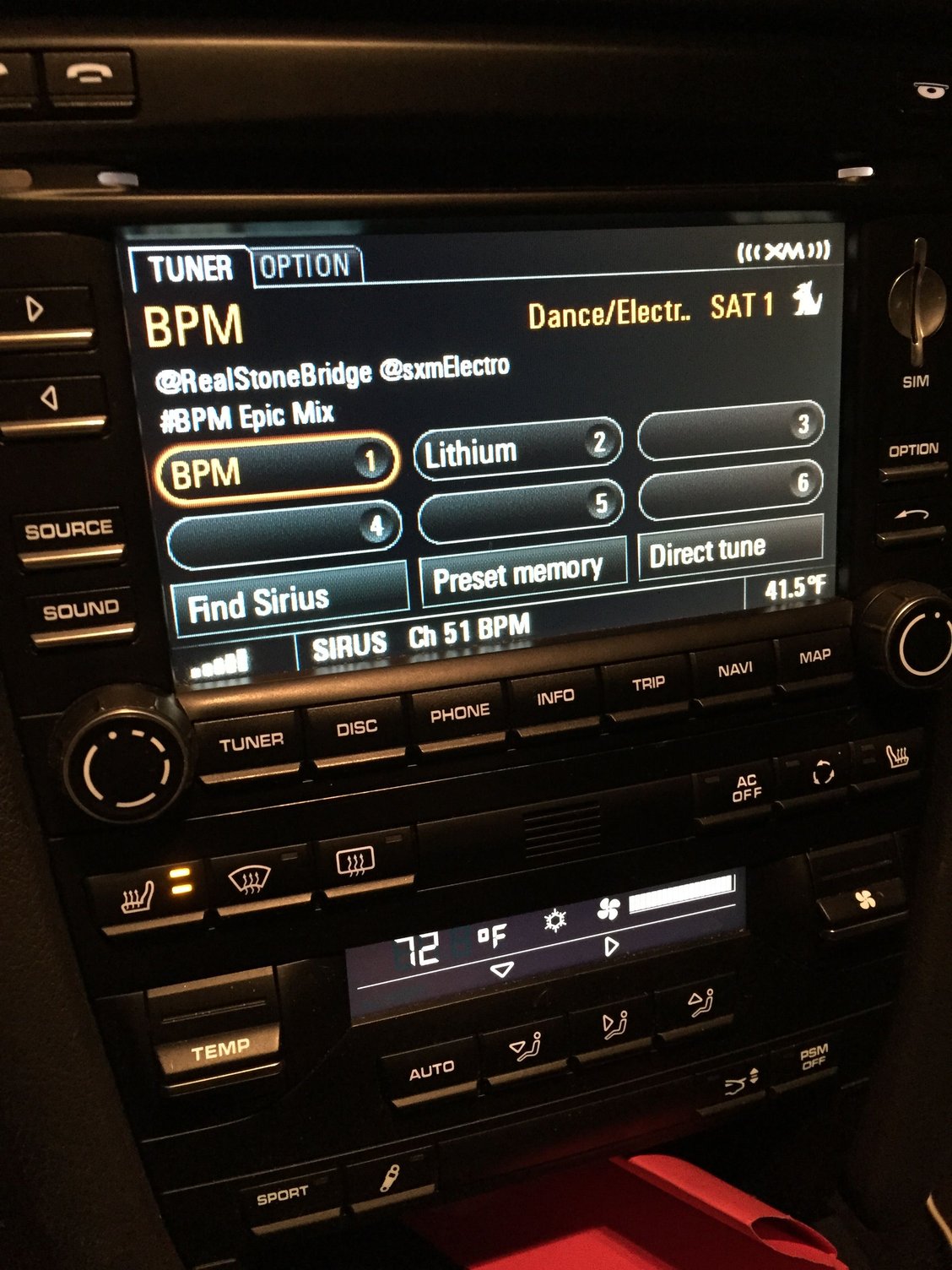

Integration is utter perfection.... looks 100% factory and the sound is substantially better then FM and to my ear sounds better then my iPod setup did.

As for the install , my buddies shop, modified the harness from NavTV so that nothing from the factory harness would be modified and also installed it for me.
Install was relatively straight forward, only hard part was getting everything to fit behind the PCM3.

Seriously so Happy with this set up.



Old Mar 21, 2015 | 10:02 AM
  #2
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts
What are the specific requirements? For example, do you have to have NAV or is the rest of your list sufficient?

Old Mar 21, 2015 | 01:45 PM
  #3
NYC997's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2013
Posts: 60
Rep Power: 16
NYC997 has a spectacular aura aboutNYC997 has a spectacular aura about
Originally Posted by woodguy
What are the specific requirements? For example, do you have to have NAV or is the rest of your list sufficient?
I don't think NAV has anything to do with this mod... when I contacted Tony he was able to verify if my PCM would be compatible based on a photo I took of the configuration screen.

My guess is certain PCMs have the correct software and some simply do not.

BTW I have had this now installed close to a month... its perfect. Still can't believe how perfect the integration is.

Old Mar 21, 2015 | 03:04 PM
  #4
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts
Thanks for the reply. It would be nice if NAV isn't required since I don't have it. Was the image you sent Tony just the INFO display?

Old Mar 21, 2015 | 03:11 PM
  #5
NYC997's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2013
Posts: 60
Rep Power: 16
NYC997 has a spectacular aura aboutNYC997 has a spectacular aura about
Originally Posted by woodguy
Thanks for the reply. It would be nice if NAV isn't required since I don't have it. Was the image you sent Tony just the INFO display?

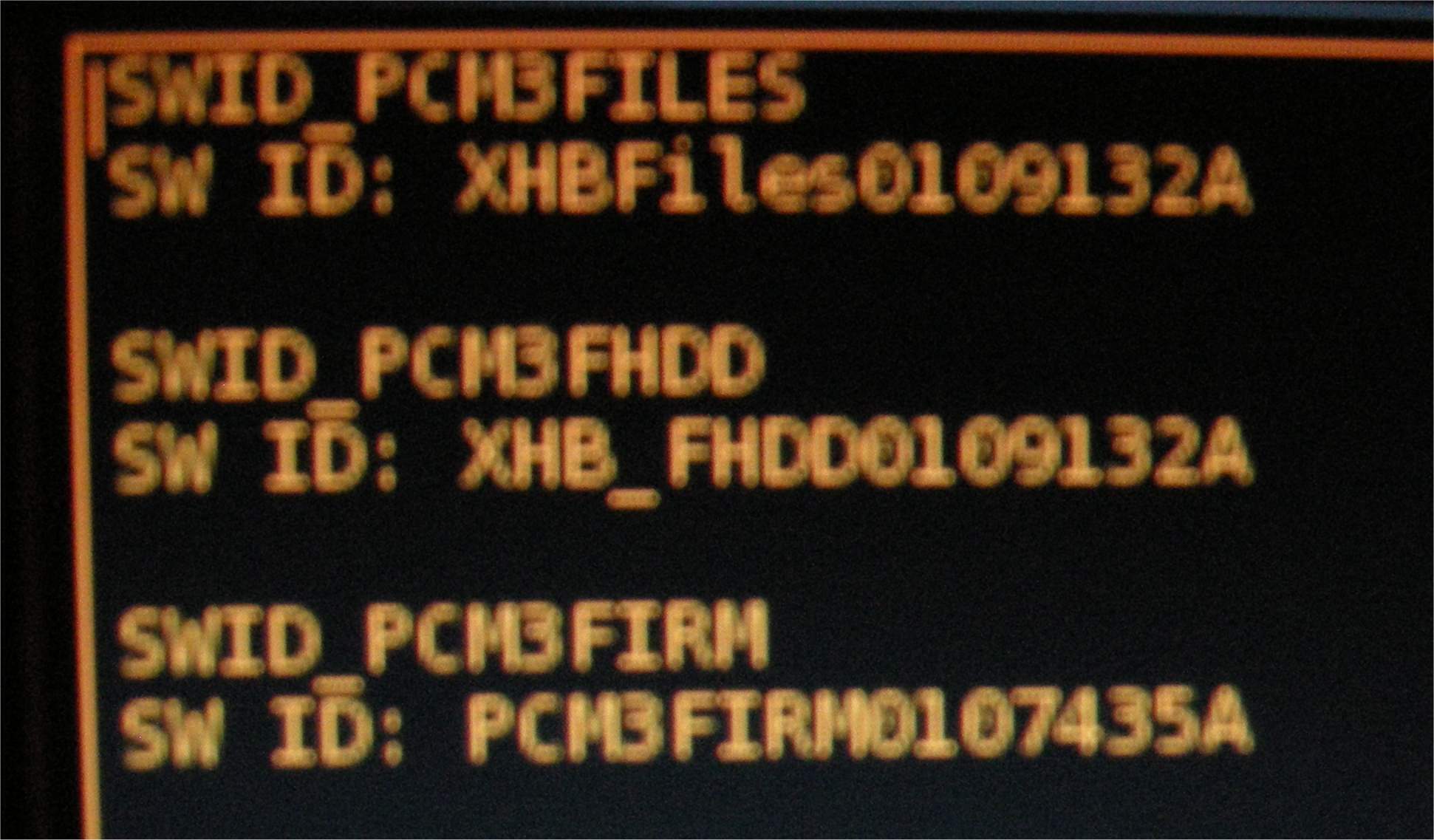

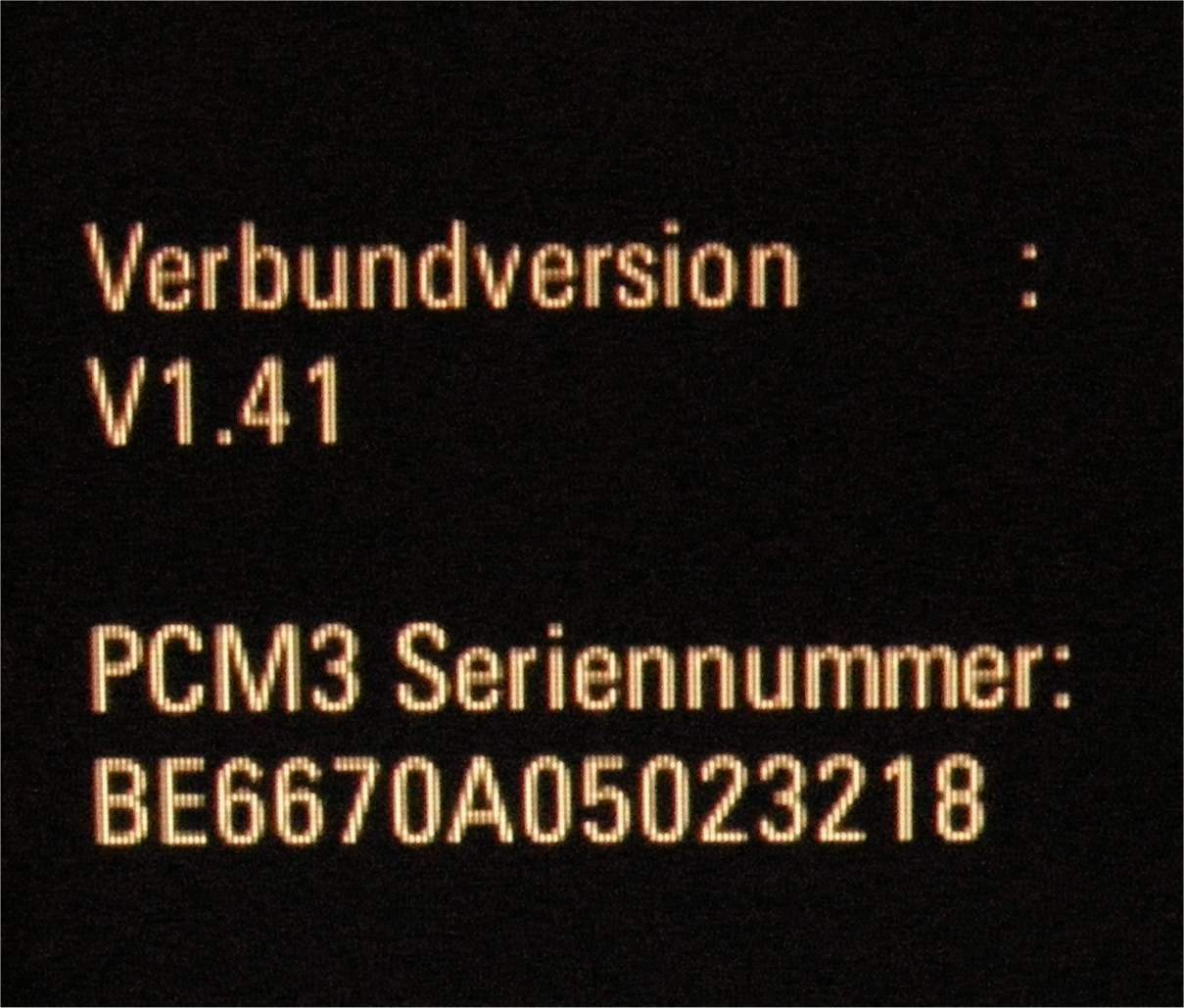

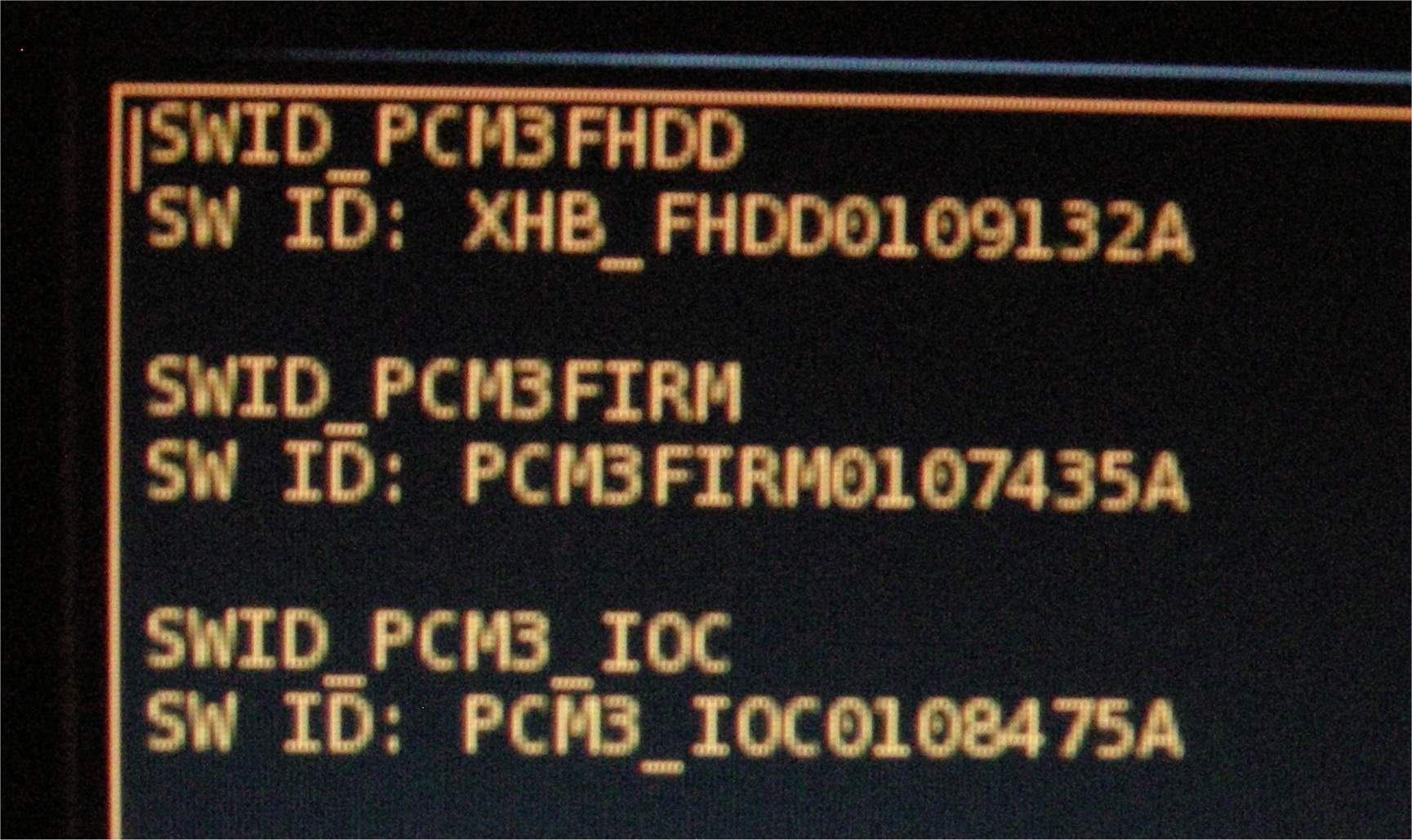

This is the email i got from Tony and the photos I sent over.... I don't think you need nav just a specific hardware version of the PCM3

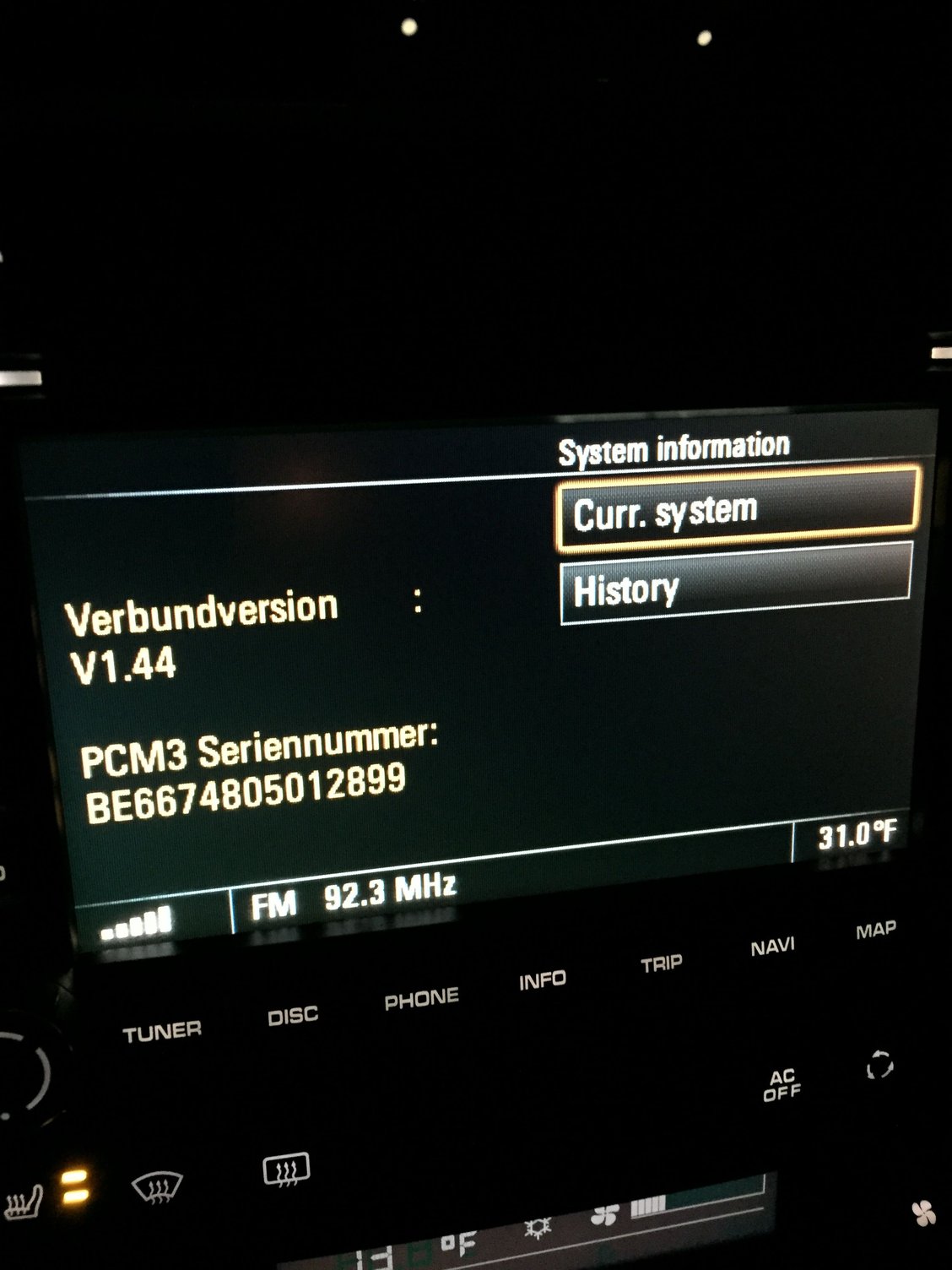

I need to see a picture of the screen that appears when you press the INFO + SOURCE buttons together.











Old Mar 21, 2015 | 03:24 PM
  #6
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts
That's great - I'm off to take some photos now.

Old Mar 21, 2015 | 03:55 PM
  #7
NYC997's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2013
Posts: 60
Rep Power: 16
NYC997 has a spectacular aura aboutNYC997 has a spectacular aura about
Originally Posted by woodguy
That's great - I'm off to take some photos now.
Awesome , post em up when you do.

Old Mar 21, 2015 | 04:03 PM
  #8
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts
Well, my versions differ from yours. Now I'm wondering if it turns out that my versions don't work for this upgrade - can I get the software updated? The car is on warranty.
By the way, there was no history available, so I assume the software has never been updated.













Last edited by woodguy; Mar 21, 2015 at 04:06 PM.
Old Mar 21, 2015 | 06:31 PM
  #9
NYC997's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: May 2013
Posts: 60
Rep Power: 16
NYC997 has a spectacular aura aboutNYC997 has a spectacular aura about
Originally Posted by woodguy
Well, my versions differ from yours. Now I'm wondering if it turns out that my versions don't work for this upgrade - can I get the software updated? The car is on warranty.
By the way, there was no history available, so I assume the software has never been updated.
I just found the manual... did it say current system when you pressed the buttons?

Here is Tony's email...I would forward those photos to him to confirm, but I bet your good to go.

tony@navtv.com



Old Mar 21, 2015 | 07:46 PM
  #10
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts

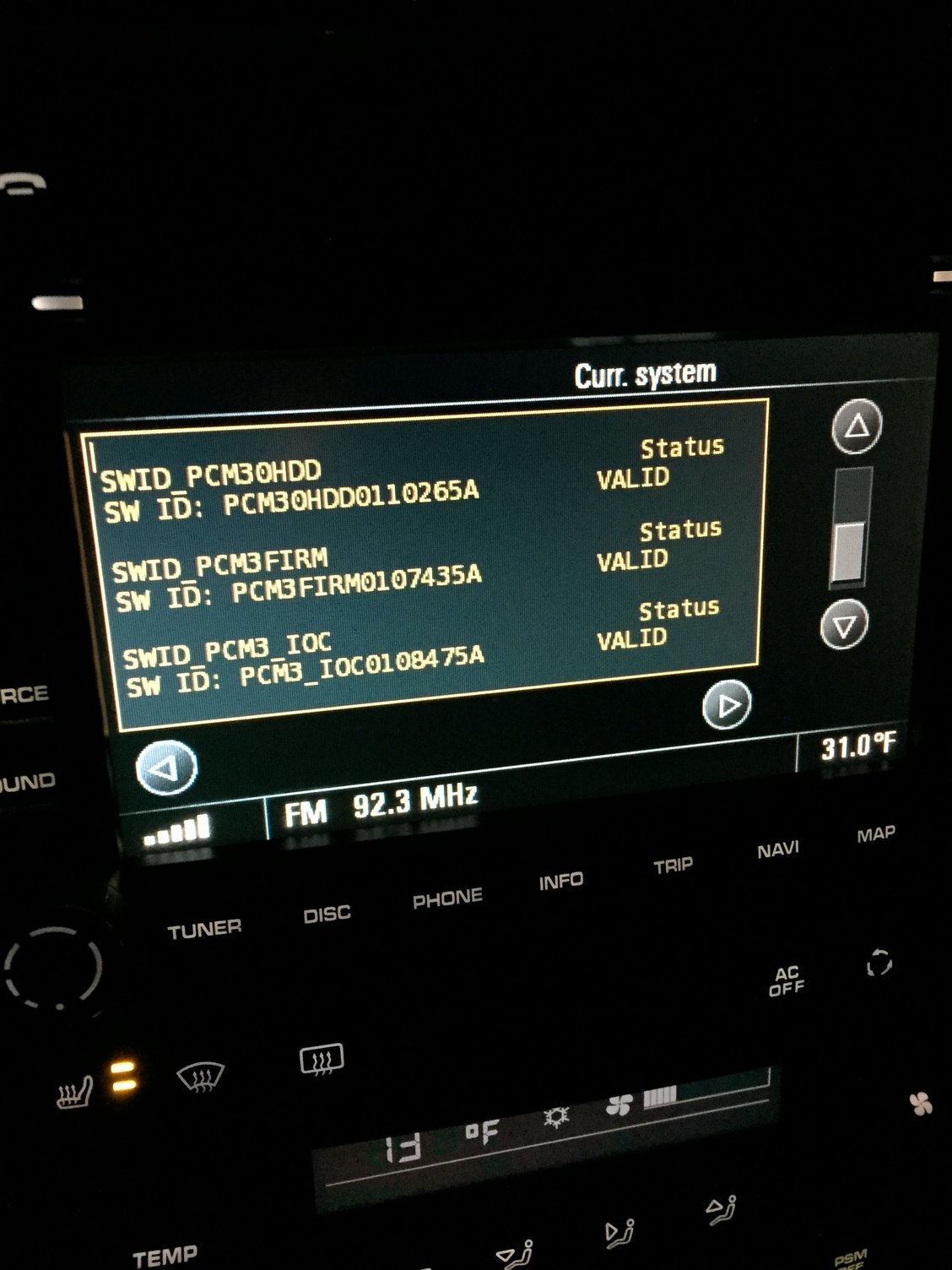

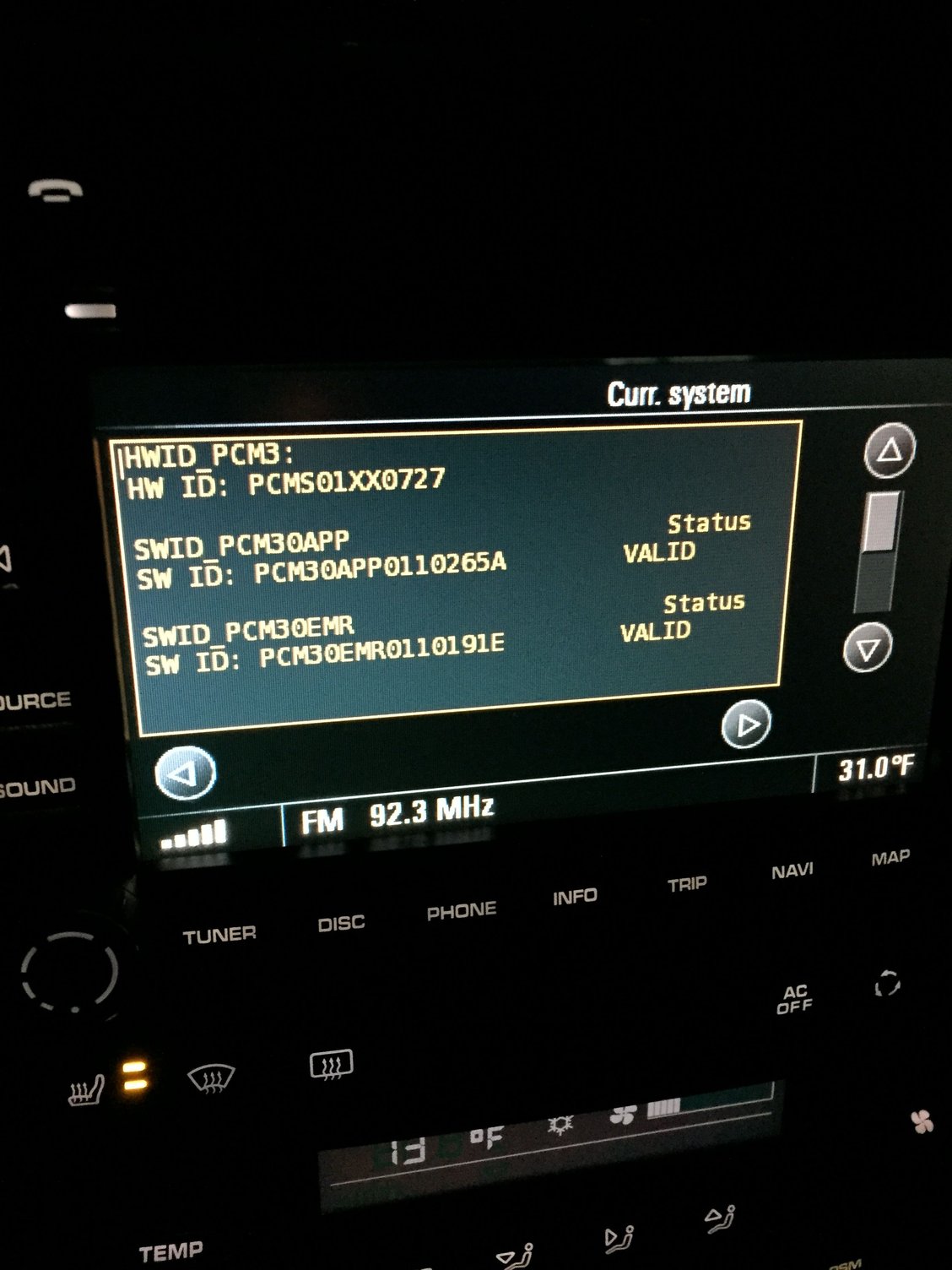

After pressing info and source together a screen appears with 2 buttons, one of which is labeled current system and the other history. Pressing history gets me a message that says there isn't any. Current system gets me what I posted.

I've sent tony an email - we'll see what he says.

Quick update: Tony is away until Mar 28


Last edited by woodguy; Mar 22, 2015 at 01:18 PM.
Old Apr 6, 2015 | 04:00 PM
  #11
woodguy's Avatar
Registered User
Joined: Mar 2015
Posts: 16
From: Canada
Rep Power: 0
woodguy is infamous around these parts
Heard From Tony and I am good to go. Kit ordered - Will post again when the install is done.
