re:Footwell Lights Not Working

Thread Tools

Rate Thread

Old Jul 14, 2015 | 02:33 PM
  #1
MYC2SPC's Avatar
Thread Starter
|
Registered User
Joined: Jul 2011
Posts: 838
From: Ventura,CA
Rep Power: 51
MYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really nice
re:Footwell Lights Not Working

Anyone know if there's a fuse for the lights under the dash over the foot-wells? Both of them are not working. Looked in fuse box but couldn't locate a designated fuse? I have LED lights throughout vehicle plus my brushed aluminum LED door sill lights aren't working either? Just noticed this today


Last edited by MYC2SPC; Jul 14, 2015 at 02:36 PM.
Old Jul 14, 2015 | 03:17 PM
  #2
911-targa4s's Avatar
Registered User
Joined: Aug 2014
Posts: 30
From: VA
Rep Power: 13
911-targa4s is infamous around these parts
The footwell lights are linked to the overhead lights. Make sure the switch on the overhead console by the mirror is turned on.

Not sure about the fuse. Good luck.

Old Jul 14, 2015 | 04:55 PM
  #3
MkC2S's Avatar
Registered User
15 Year Member
Joined: Mar 2010
Posts: 1,849
From: Big D, Tx
Rep Power: 101
MkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud ofMkC2S has much to be proud of
Originally Posted by 911-targa4s
The footwell lights are linked to the overhead lights. Make sure the switch on the overhead console by the mirror is turned on.

Not sure about the fuse. Good luck.
+1

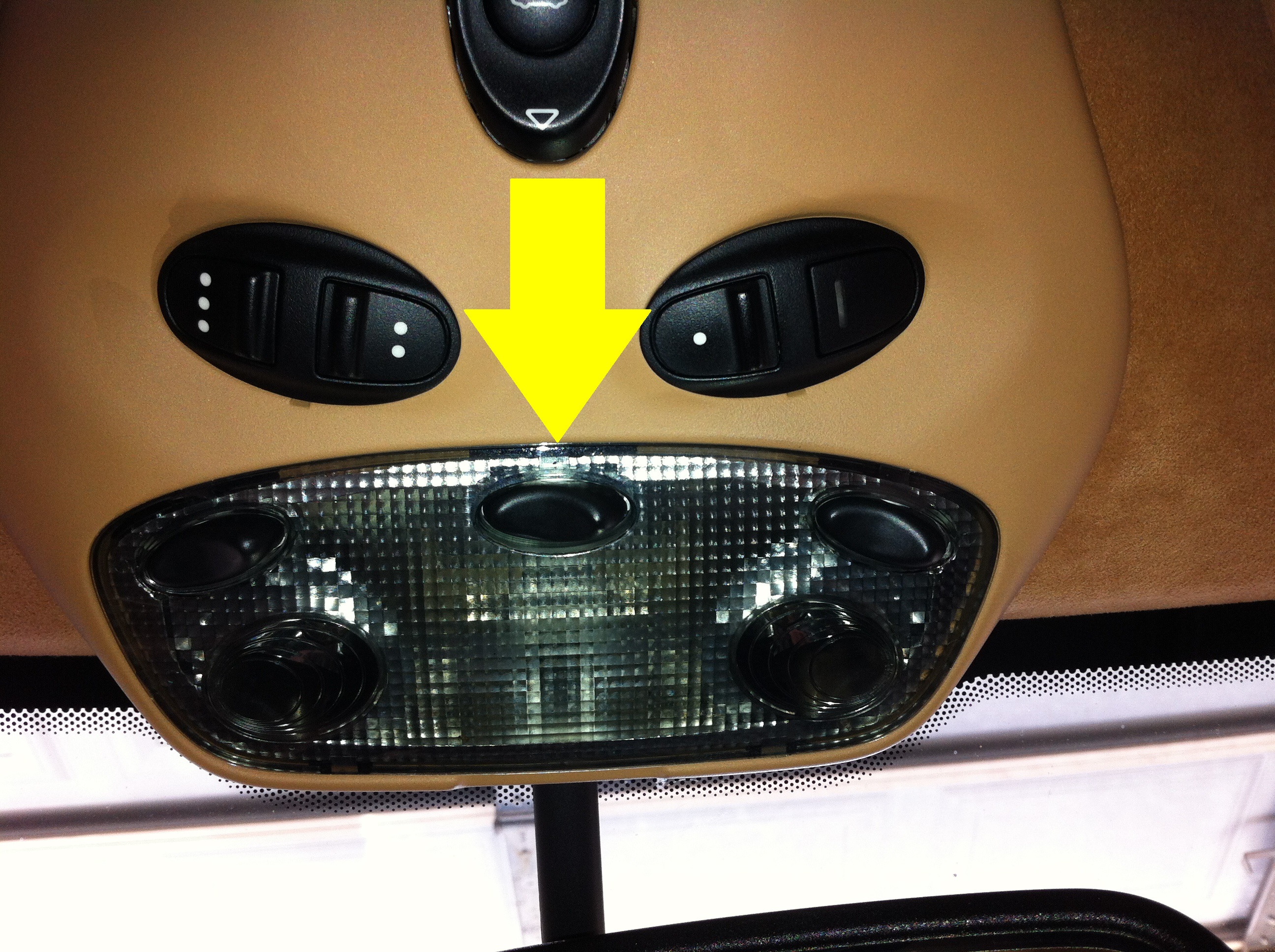

check your switch in the overhead console. Should be in the middle position for on. If it doesn't work, could be a blown bulb. I couldn't find any fuse in the fuse sheet either.

Attached Thumbnails Click image for larger version

Name:	IMG_1430.JPG
Views:	174
Size:	1.51 MB
ID:	423935
Old Jul 14, 2015 | 07:20 PM
  #4
MYC2SPC's Avatar
Thread Starter
|
Registered User
Joined: Jul 2011
Posts: 838
From: Ventura,CA
Rep Power: 51
MYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really nice
Overhead switches are fine haven't been touched. Lights above work, just like I said not the footwell lights or the LED door sill lights and there is nothing in the chart on the fuses that mentions anything on a fuse for any of those interior lights.?

Old Jul 15, 2015 | 12:17 PM
  #5
MYC2SPC's Avatar
Thread Starter
|
Registered User
Joined: Jul 2011
Posts: 838
From: Ventura,CA
Rep Power: 51
MYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really niceMYC2SPC is just really nice
Originally Posted by MkC2S
+1
check your switch in the overhead console. Should be in the middle position for on. If it doesn't work, could be a blown bulb. I couldn't find any fuse in the fuse sheet either.
Just wanted to thank you for your advice! You were right! Somehow I guess had hit it while fumbling for the home-link garage opener. After pulling my hair out rechecking all of the fuses for being blown and my wiring to my led door sills, I was dumbfounded! I push the rocker switch overhead and there were the lights on the sills & the footwells! Thanks again! p.s. I'm still shocked there is no fuse for any of the interior lighting!?


Last edited by MYC2SPC; Jul 23, 2015 at 08:39 AM.
Old Jul 22, 2015 | 06:05 PM
  #6
Minok's Avatar
Registered User
Joined: Aug 2008
Posts: 1,282
From: Pacific Northwest
Rep Power: 70
Minok has a spectacular aura aboutMinok has a spectacular aura about
Originally Posted by MYC2SPC
Just wanted to thank you for your advice! You were right! Somehow I guess had hit it while fumbling for the quick-link garage opener. After pulling my hair out rechecking all of the fuses for being blown and my wiring to my led door sills, I was dumbfounded! I push the rocker switch overhead and there were the lights on the sills & the footwells! Thanks again! p.s. I'm still shocked there is no fuse for any of the interior lighting!?
Yep, if you switch the switch to "lights OFF" setting, the car obeys your request. Having such additional lights not found in all cars has us forget its part fo the interior lighting controlled via that circuit.
