Or where to get it? It's a coolant hose that goes from the coolant expansion tank. The one my finger is pointing at. The second picture shows the leak where it connects to the tank. It looks like a single hose but the only hose on Pelican parts is a 3 way hose. I called the local dealer and they said it could take a month to order from Germany but even they were unclear on the part number. I think I'm going to pull it and visit the dealer in person. I've already ordered a new expansion tank in case that is cracked.



Leak. This is the connection to the coolant expansion tank which is at the rear of the tank towards the bottom but physically on the side





This is the other end of the hose

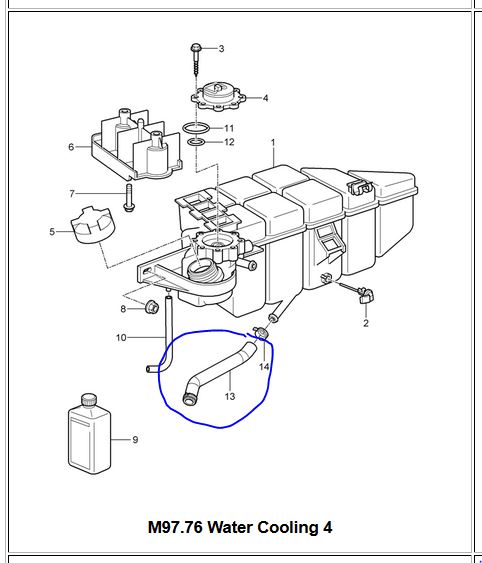

#13 water hose ?

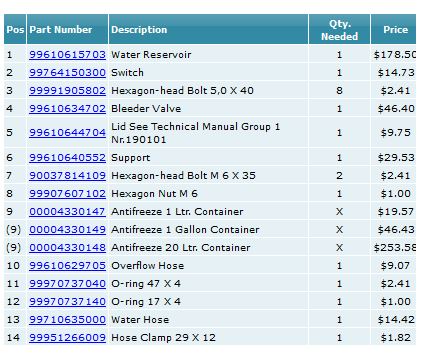

autoatlanta.com is a great place to look if you need parts diagram



Thank you. That looks about right!



try autoatlanta if u can find at dealer



Dealer can get it Tuesday so I went that route as I also needed a gallon of the pink coolant. Thank you both. Now I know where to find schematics with part numbers which is a huge help.
