Battery Replacement - New battery covers up fastening screw hole
#1
Battery Replacement - New battery covers up fastening screw hole
old battery

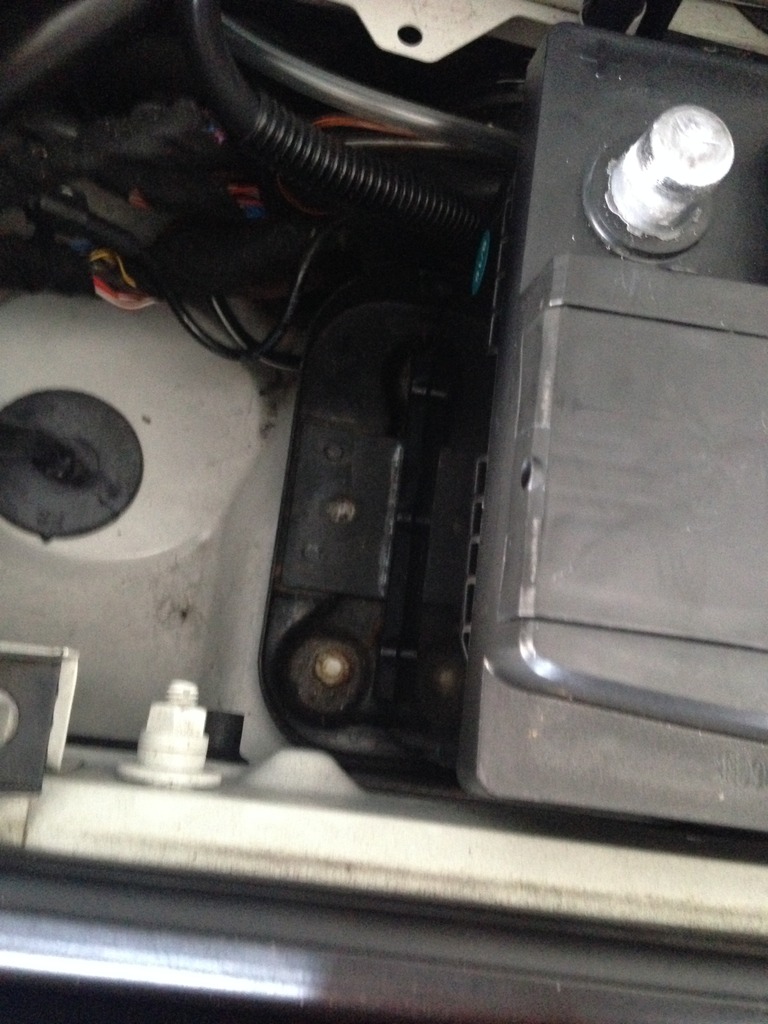

new battery covered up where the thread was to screw in the plate.
http://s537.photobucket.com/user/halperin/media/IMG_5551_zpslhhyhrbi.jpg.html"]
There is about an inch and a half of room for the battery to move around and so far driving it like this it has not shifted a ton. Is this bad to leave like this?
Solution someone recommended, other then getting a new battery, was to place about a 2-3 inch circle of this on the left side underneath the battery and let it side over night to act as a glue/adhesive.
https://www.amazon.com/Permatex-82180-Maximum-Resistance-Silicone/dp/B0002UEN1U
new battery covered up where the thread was to screw in the plate.
http://s537.photobucket.com/user/halperin/media/IMG_5551_zpslhhyhrbi.jpg.html"]
There is about an inch and a half of room for the battery to move around and so far driving it like this it has not shifted a ton. Is this bad to leave like this?
Solution someone recommended, other then getting a new battery, was to place about a 2-3 inch circle of this on the left side underneath the battery and let it side over night to act as a glue/adhesive.
https://www.amazon.com/Permatex-82180-Maximum-Resistance-Silicone/dp/B0002UEN1U
#2
Well you purchased the wrong size. OEM size is H7/94R, looks like you bought an H8 which is an inch longer than the H7. Some folks use the H8 and use the 3rd hole but modifying with a nut. if you ever track you may be required to have a proper hold down so I wouldn't recommend gluing or leaving it un-clamped.
#4
It's probably not going to go anywhere unless you're in some type of collision...I'd still want it clamped properly. Did you hook up your vent tube - picture isn't clear enough for me to tell although it doesn't look like it.
#5
+1 install your vent tube
The other holes have a nut attached to the bottom of the tray. The last hole as you have found out does not. So take the mounting bolt to the hardware store and match a nut to it (metric). Then mount it from below. The bottom tray is removable after you take the battery out. It shouldn't be that hard to figure out a solution.
The other holes have a nut attached to the bottom of the tray. The last hole as you have found out does not. So take the mounting bolt to the hardware store and match a nut to it (metric). Then mount it from below. The bottom tray is removable after you take the battery out. It shouldn't be that hard to figure out a solution.
#6
Bad practice to drive around with a loose battery and could cause other issues, a short if it contacts something, fatigue of the battery cables, etc. I see 3 options for you:
If you'll be utilizing either a newly drilled hole or the existing last hole that doesn't have a welded nut, it's not too difficult to set a nut under the tray in the correct position (or temporarily tape it) and they you can actually use an open end wrench slid under the tray to hold the nut once you get the bolt from the top started into it. I think it did it this way on either my car or my wife's when going to the Optima Batteries.
- Return the incorrectly sized battery and get the correct size
- If the remaining hole doesn't line up correctly, you can remove the tray, as semicycler says, and drill a new hole in the appropriate position for the stock hold-down to work correctly
- alternatively, you can go to your auto-parts store and maybe find a different sized hold-down that works with the one exposed hole.
If you'll be utilizing either a newly drilled hole or the existing last hole that doesn't have a welded nut, it's not too difficult to set a nut under the tray in the correct position (or temporarily tape it) and they you can actually use an open end wrench slid under the tray to hold the nut once you get the bolt from the top started into it. I think it did it this way on either my car or my wife's when going to the Optima Batteries.
Last edited by Petza914; 09-19-2016 at 08:28 AM.
#7
I'd take it back and ask them to exchange it for the correct one.
Trending Topics
#8
^^100%. Get an H7. Autozone's Duralast Gold (~$185) drops in perfectly...~$185. http://www.autozone.com/batteries-st...?checkfit=true
I just recently dropped in a Walmart EverStart Maxx (~$150) -- perfect fit. https://www.walmart.com/ip/EverStart...&veh=aff#about
FYI, both Autozone and Walmart batteries are made by Johnson Controls..they might be identical in fact with different branding. I'd take it back to Autozone, demand an appropriate battery, and also demand a discount for your hassle. Otherwise, return it and go buy the one from Walmart (they will install for free).
I just recently dropped in a Walmart EverStart Maxx (~$150) -- perfect fit. https://www.walmart.com/ip/EverStart...&veh=aff#about
FYI, both Autozone and Walmart batteries are made by Johnson Controls..they might be identical in fact with different branding. I'd take it back to Autozone, demand an appropriate battery, and also demand a discount for your hassle. Otherwise, return it and go buy the one from Walmart (they will install for free).
#9
ya, for some reason the smaller h7 is more expensive. but anyways if there is no harm in having the bigger size, i think i can use some plyers to hold a nut underneth the tray and use that 3rd hole. if not, i guess i will take it back. i am trying to avoid going back out there and lugging batteries in and out. thats why i thought the glue option was viable. it will hold it in place and can be ripped up when i change the battery again.
#10
Im running the everstart walmart battery....like everyone else and their Mom on here.
you have every right to return that battery for a full refund and take your money elsewhere. AZ seems to be a hack type parts store anyways....(not that walmarts any better), but they sell oil very reasonably.
remember, if you return the incorrect battery, you also have the right to ask for a core back to you to be able to return to Walmart for the correct battery youre about to purchase.
GL.
you have every right to return that battery for a full refund and take your money elsewhere. AZ seems to be a hack type parts store anyways....(not that walmarts any better), but they sell oil very reasonably.
remember, if you return the incorrect battery, you also have the right to ask for a core back to you to be able to return to Walmart for the correct battery youre about to purchase.
GL.
#11
I purchased an auto zone battery a few years ago and it died under 2 years. I took it back under warranty and they replaced it no questions asked. They had an optional gel battery that fit my 911 and that is what I took. Cost me a few dollars more. I keep it on a tender when not driving the car and it starts the car much stronger than the non-gel, and the OEM Porsche battery.
#12
The battery wants to be secure. If it is loose it will shift about in the battery box.While it probably won't fall out this can wear the battery plastic and the base case could leak (acid).
Not what you want to risk.
Either find a way to secure the current battery properly using the hold down hole and the battery hold down or get a proper sized battery that can use the proven/tried and true original hold down so the battery is secure.
Not what you want to risk.
Either find a way to secure the current battery properly using the hold down hole and the battery hold down or get a proper sized battery that can use the proven/tried and true original hold down so the battery is secure.
#13
The battery wants to be secure. If it is loose it will shift about in the battery box.While it probably won't fall out this can wear the battery plastic and the base case could leak (acid).
Not what you want to risk.
Either find a way to secure the current battery properly using the hold down hole and the battery hold down or get a proper sized battery that can use the proven/tried and true original hold down so the battery is secure.
Not what you want to risk.
Either find a way to secure the current battery properly using the hold down hole and the battery hold down or get a proper sized battery that can use the proven/tried and true original hold down so the battery is secure.
#14
My battery became loose and it would make a thump when I brake. Over time, the connection can get loose and battery life is compromised due to the acid sloshing around excessively. If you insist on keeping the battery, you need another clamp
