Vantage Seatbelt Strap

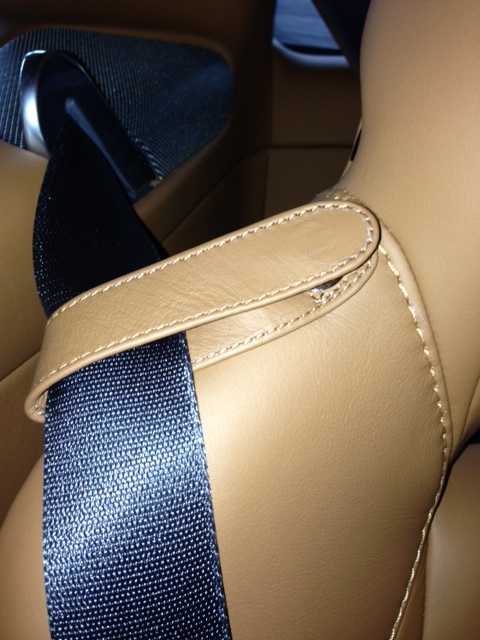

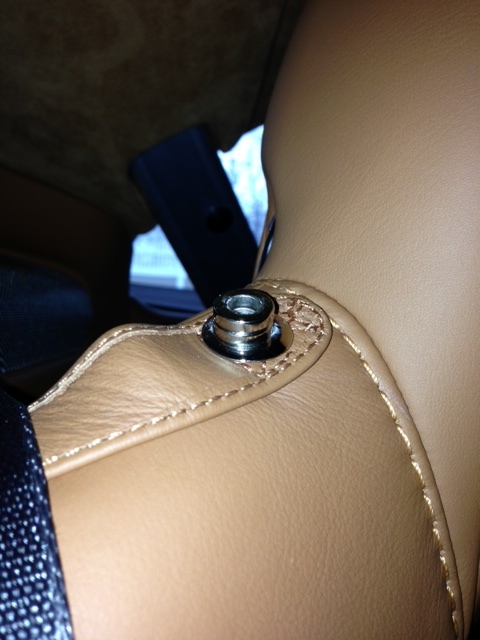

The factory magnets that hold the seatbelt strap in my V8VS (and my previous Vantage) are too weak to hold the leather strap secure. I found an inexpensive solution. By using two small doughnut shaped, nickel plated rare earth magnets (super strong), the straps stay in place. I used two on each seat. I used super glue to secure the bottom magnet to the factory magnet on the seat side. I did not glue the two magnets together, and I did not glue the strap side so that I can still release the strap if necessary. A set of 10 rare earth magnets cost about $15.
Amazon Amazon

Attached Images
Old Jan 13, 2013 | 09:59 AM
  #2
dicktahoe's Avatar
Registered User
Joined: Aug 2010
Posts: 599
From: Incline Village, NV
Rep Power: 43
dicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of light
Thanks for an excellent, easy to implement suggestion to a nagging problem--I just added to your "Rep Power".

Old Jan 13, 2013 | 06:26 PM
  #3
DoctorWill's Avatar
Registered User
Joined: Aug 2010
Posts: 260
From: Marina del Rey, CA
Rep Power: 26
DoctorWill is infamous around these parts
Thank you! I was just about to post about this issue. Where did you order the magnets?

Old Jan 13, 2013 | 06:32 PM
  #4
62Jeff's Avatar
Registered User
10 Year Member
Joined: Nov 2011
Posts: 391
From: Houston-ish
Rep Power: 73
62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !62Jeff Is a GOD !
Originally Posted by DoctorWill
Where did you order the magnets?
Click on the Amazon link in his post.

Old Jan 13, 2013 | 08:57 PM
  #5
kba's Avatar
kba
Registered User
Joined: Feb 2010
Posts: 165
From: Houston
Rep Power: 23
kba is infamous around these parts
Thank you! This is such an annoying issue. How do you give rep power? Because you definitely earned it

Old Jan 13, 2013 | 09:20 PM
  #6
plastique999's Avatar
Registered User
15 Year Member
Joined: Jan 2008
Posts: 1,262
From: SoCal
Rep Power: 75
plastique999 is a name known to allplastique999 is a name known to allplastique999 is a name known to allplastique999 is a name known to allplastique999 is a name known to allplastique999 is a name known to all
Originally Posted by DoctorWill
Thank you! I was just about to post about this issue. Where did you order the magnets?
Will, on you brand new V12V?

Old Jan 13, 2013 | 09:39 PM
  #7
DoctorWill's Avatar
Registered User
Joined: Aug 2010
Posts: 260
From: Marina del Rey, CA
Rep Power: 26
DoctorWill is infamous around these parts
Yep, their magnet is useless!

Originally Posted by plastique999

Will, on you brand new V12V?

Old Jan 13, 2013 | 09:44 PM
  #8
Speedraser's Avatar
Registered User
15 Year Member
Joined: Feb 2010
Posts: 927
From: NY
Rep Power: 74
Speedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond reputeSpeedraser has a reputation beyond repute
Interesting, because I've never had this problem. If the center raised part of one "half" of the magnet is seated in the center recessed part of the other "half," it has always held perfectly well.

Old Jan 13, 2013 | 10:27 PM
  #9
DoctorWill's Avatar
Registered User
Joined: Aug 2010
Posts: 260
From: Marina del Rey, CA
Rep Power: 26
DoctorWill is infamous around these parts
I thought it was just my car until I saw this post the magnet doesn't stick so the latch is always open. I think I'll give the extra magnet a try!

Originally Posted by DoctorWill
Yep, their magnet is useless!


Last edited by DoctorWill; Jan 14, 2013 at 12:20 AM.
Old Jan 13, 2013 | 11:46 PM
  #10
sunir's Avatar
Registered User
Joined: Nov 2010
Posts: 5,045
From: MD
Rep Power: 278
sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !sunir Is a GOD !
What's the deal w this strap thingy? Seats on the vantage are similar to the DB9/DBS is basic shape and so forth I thought, I don't ever recall seeing or using such a strap or magnets in my DB9 just pull the seatbelt and fasten like any other car...why didn't Aston just use a nice button instead of weaker magnets for the vantage?

Old Jan 13, 2013 | 11:56 PM
  #11
groutguy's Avatar
Registered User
Joined: Sep 2012
Posts: 102
From: Alberta
Rep Power: 20
groutguy has a spectacular aura aboutgroutguy has a spectacular aura aboutgroutguy has a spectacular aura about
Originally Posted by sunir
What's the deal w this strap thingy? Seats on the vantage are similar to the DB9/DBS is basic shape and so forth I thought, I don't ever recall seeing or using such a strap or magnets in my DB9 just pull the seatbelt and fasten like any other car...why didn't Aston just use a nice button instead of weaker magnets for the vantage?
No such strap on my V12V either!

Old Jan 14, 2013 | 12:20 AM
  #12
DoctorWill's Avatar
Registered User
Joined: Aug 2010
Posts: 260
From: Marina del Rey, CA
Rep Power: 26
DoctorWill is infamous around these parts
Really, I have them on my V12V!

Originally Posted by groutguy

No such strap on my V12V either!

Old Jan 14, 2013 | 04:46 AM
  #13
Racer_X's Avatar
Registered User
Joined: Jun 2010
Posts: 2,266
From: whereabouts unknown
Rep Power: 120
Racer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud ofRacer_X has much to be proud of
Rare earth magnets are a good idea, but is it necessary to superglue them in place? I lean towards easily reversible modifications.

Old Jan 14, 2013 | 05:24 AM
  #14
wem's Avatar
wem
Thread Starter
|
Registered User
Joined: Jun 2011
Posts: 82
From: Connecticut, USA
Rep Power: 20
wem is a jewel in the roughwem is a jewel in the roughwem is a jewel in the rough
Originally Posted by Racer_X
Rare earth magnets are a good idea, but is it necessary to superglue them in place? I lean towards easily reversible modifications.
My first attempt was to use the two rare earth magnets without super glue. You should also try it first without super glue (it might work for some). In my case, I discovered that while the supplemental magnets did not separate from each other, the weak point was between the bottom supplemental magnet and the factory magnet on the seat (i.e. the strap still did not hold all the time. The strap separated with the 2 supplemental magnets attached to the strap side factory magnet). When I super glued the bottom magnet (4 drops on the bottom magnet) to the factory magnet on the seat, everything held together. I did not need to super glue the top magnet to the factory strap magnet (if you want you can super glue the top magnet to the strap magnet, but only if you use a pair of supplemental magnets so that the strap can still be undone when necessary by separating the magnetic bond between the two supplemental magnets - fyi, rare earth magnets are very strong). Although you cannot see the supplemental magnets when the strap is fastened, I chose rare earth magnets that had a nickel finish to match the factory magnet finish. I also chose a doughnut shaped magnet to accommodate the raised pin on the factory magnet. Usually I hesitate to make "permanent" changes, but the flopping strap was such an annoyance that I felt it was worth making the alteration especially since no one will notice it when the strap is in place, and most won't even notice what was done when you lift up the strap.


Last edited by wem; Jan 14, 2013 at 05:27 AM.
Old Jan 14, 2013 | 11:53 AM
  #15
dicktahoe's Avatar
Registered User
Joined: Aug 2010
Posts: 599
From: Incline Village, NV
Rep Power: 43
dicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of lightdicktahoe is a glorious beacon of light
Originally Posted by kba
How do you give rep power? Because you definitely earned it
To Give "Rep Power" click on the "Star Medal" up in the right-hand corner by the Red Exclamation Point.
