I give up!! Where is the cabin fuse panel AM v8 '06

Manual says driver side
Handbook says passenger footwell
I can't find it
I have to replace a cigarette lighter socket fuse

Reply

#2

11-11-2013, 11:34 AM

mikey k

Registered User

Join Date: Jan 2012

Location: The Heart of England

Posts: 867

Rep Power: 52

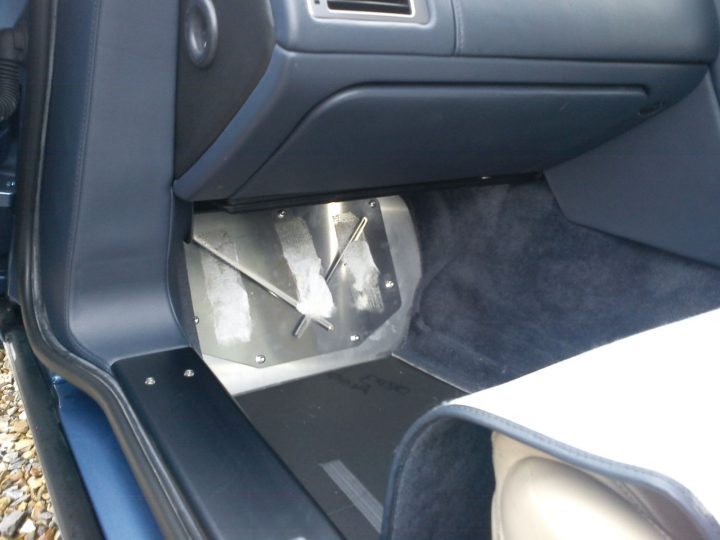

"passenger" foot well under the carpet

Attached Thumbnails

Click image for larger version

Name: Gce5Wsga.jpg
Views: 8898
Size: 43.1 KB
ID: 299211

Reply

#3

11-11-2013, 01:32 PM

XWCGT

Registered User

Thread Starter

Join Date: Oct 2013

Location: saratoga

Posts: 620

Rep Power: 37

U need to remove 8 torx to get to it ??
Really?

Reply

#4

11-11-2013, 01:44 PM

karlfranz

Registered User

Join Date: Apr 2011

Location: Melbourne

Posts: 2,358

Rep Power: 212

^^^^ Yes

Reply

#5

11-11-2013, 02:00 PM

XWCGT

Registered User

Thread Starter

Join Date: Oct 2013

Location: saratoga

Posts: 620

Rep Power: 37

Uggg
I Guess AM had a lot of confidence in the fuses and users

Reply

#6

11-11-2013, 04:12 PM

drcollie

Registered User

Join Date: Oct 2009

Location: Alexandria, VA

Posts: 1,172

Rep Power: 85

There is one in the hatch/trunk as well - passenger side, not sure where the cig lighter one is located but the one in the back is MUCH easier to get to.

Reply

#7

11-11-2013, 04:40 PM

XWCGT

Registered User

Thread Starter

Join Date: Oct 2013

Location: saratoga

Posts: 620

Rep Power: 37

Quote:

Originally Posted by drcollie

There is one in the hatch/trunk as well - passenger side, not sure where the cig lighter one is located but the one in the back is MUCH easier to get to.

it said the accessory/lighter socket and illumination fuse was #45 and it was in the cabin fuse panel. so, I guess ill start untorquing the torx.
