Do you know where are the bluetooth parts and how to acces them ?
- The bluetooth module the blue one,
- The bluetooth light module,
- Blutooth switcher kit.


Cheers
Bruno



The switcher kit is behind a panel underneath the carpet on the passenger-side floor, pull back the carpet from the top of the floor under the dash and the panel is held on with about 8 torx screws. Easy to get to. I replaced mine last week because my stereo quit working due to a failed BT switcher.


The light module is located in front of the shifter surround on the center console.


I don't know where the Bluetooth module is located.



Thanks a lot Jeff ;-)

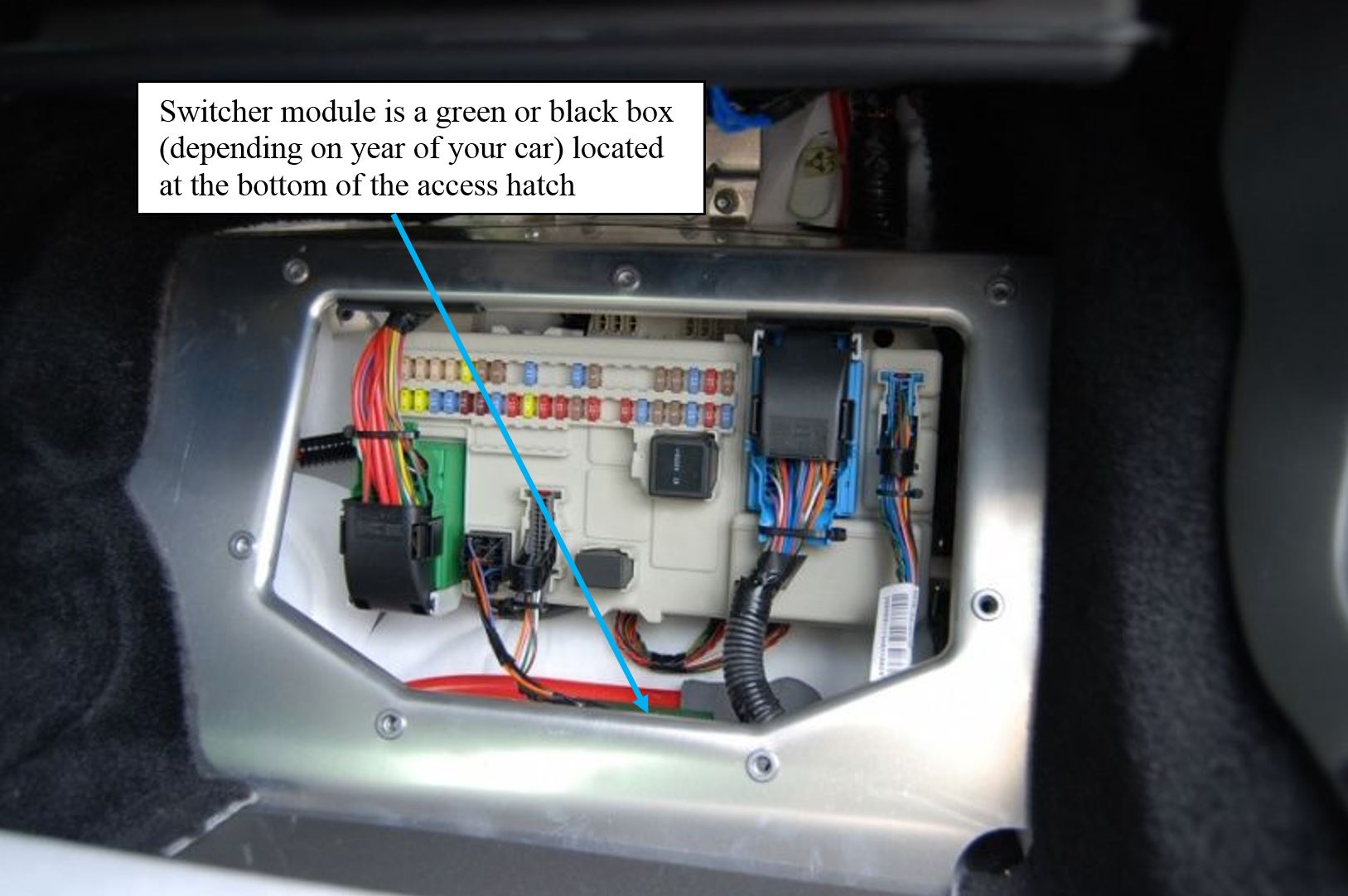

@Jeff where is exactly the switcher kit in the fuse box :

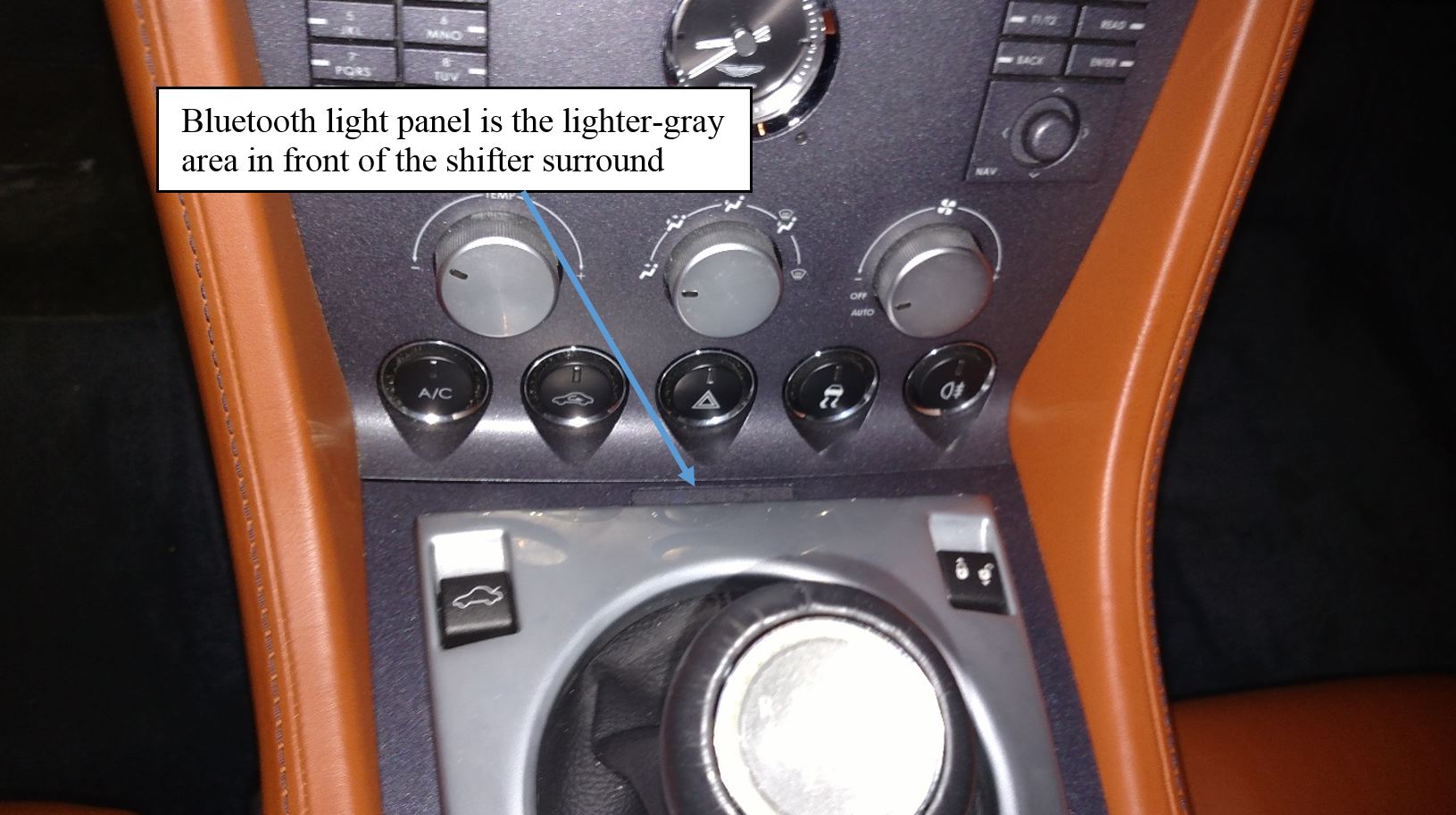

And where is the light module on the center console :



Hope this helps



Great ! Simply perfect !
