Can someone tell me what this is?

Subscribe
Mar 2, 2016 | 07:21 PM
  #1

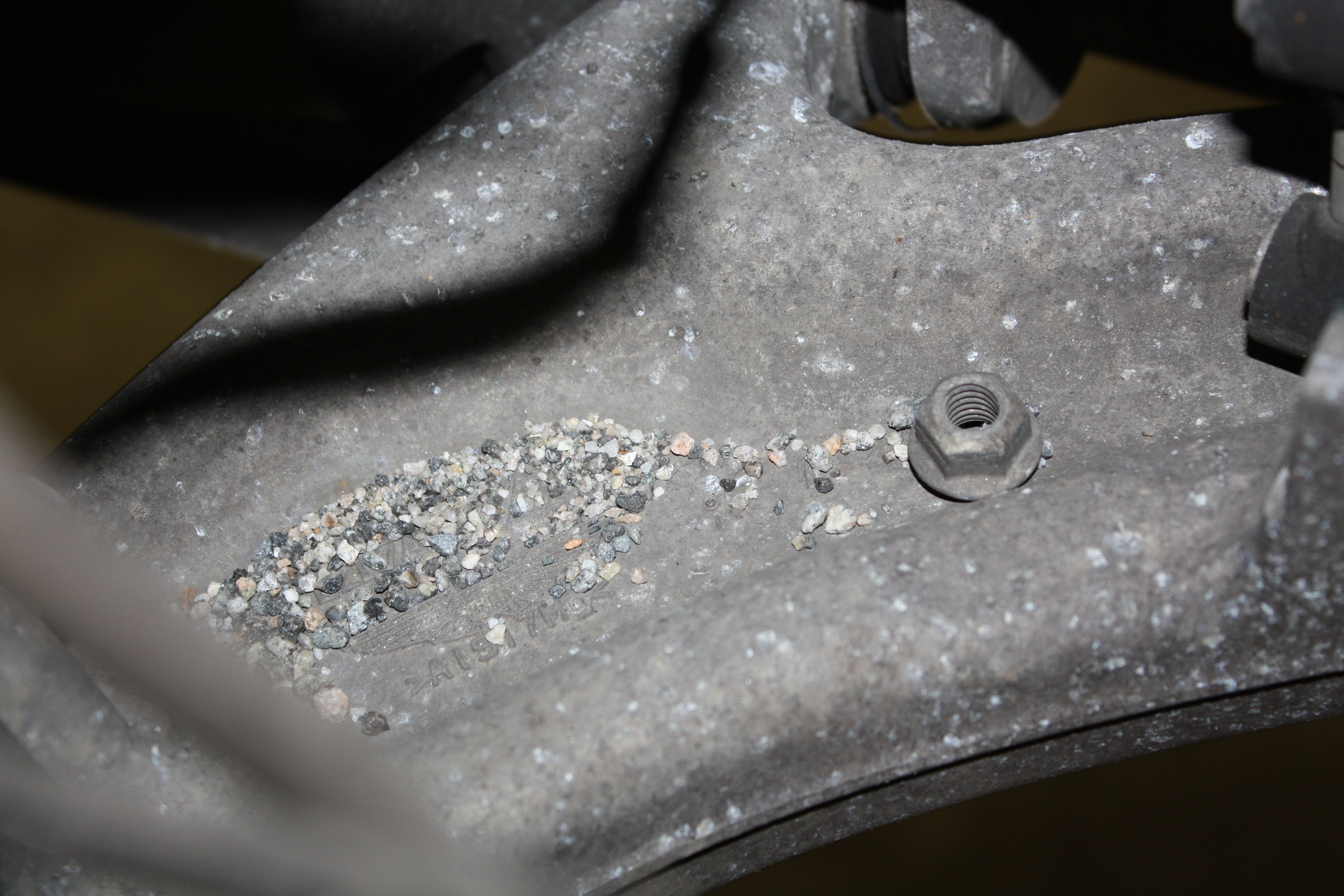

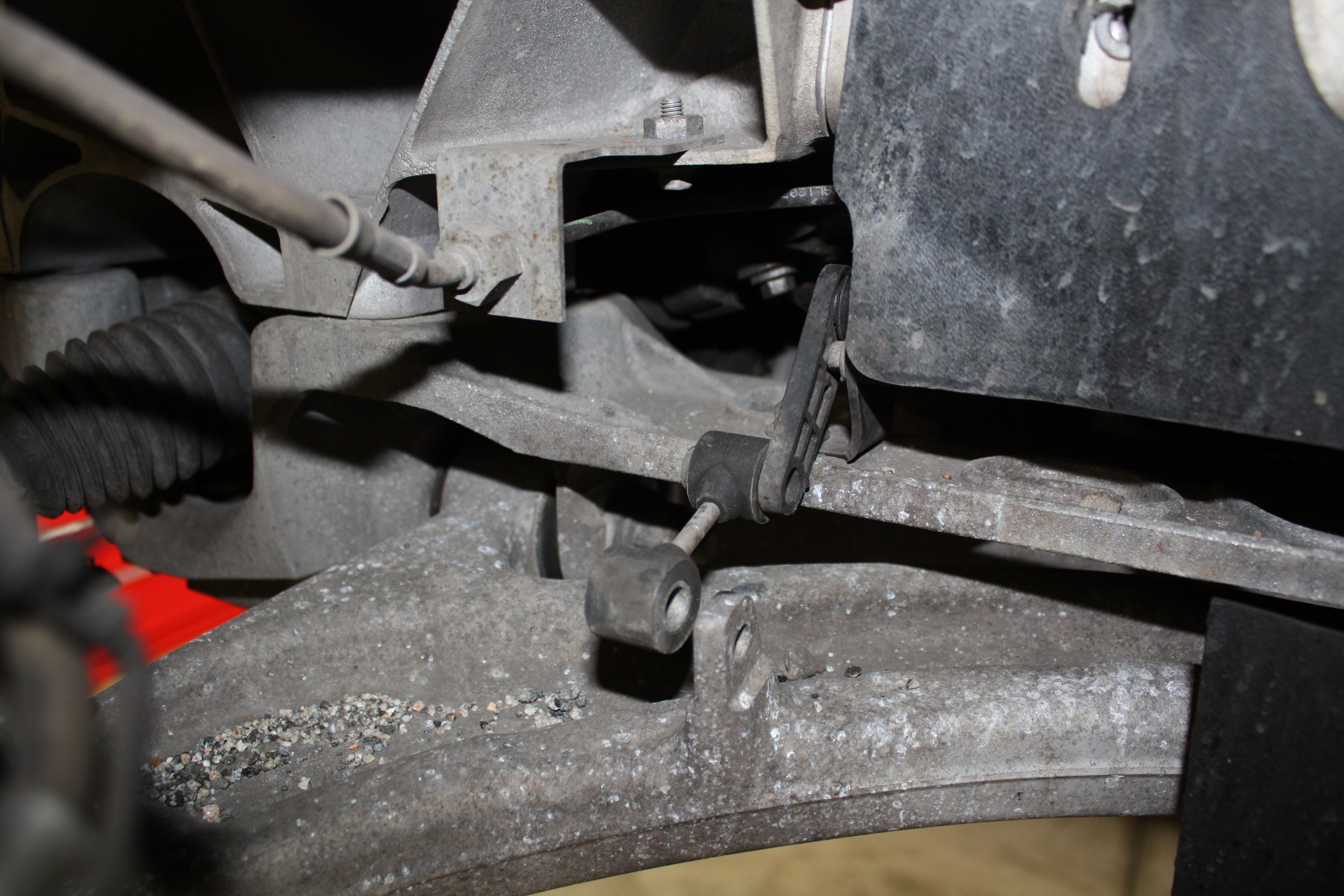

While preparing to remove the fenderwell liners, I found a nut lying on the lower control arm and a link that was not hooked up. This link is only on the driver's side. What does it do?

Name:  3-2-16%20a%20arm%202_zpsvfrcm1fg.jpg
Views: 63
Size:  5.82 MB


Name:  3-2-16%20a%20arm_zpsnibg4ypu.jpg
Views: 41
Size:  5.74 MB


Reply
Mar 2, 2016 | 07:33 PM
  #2

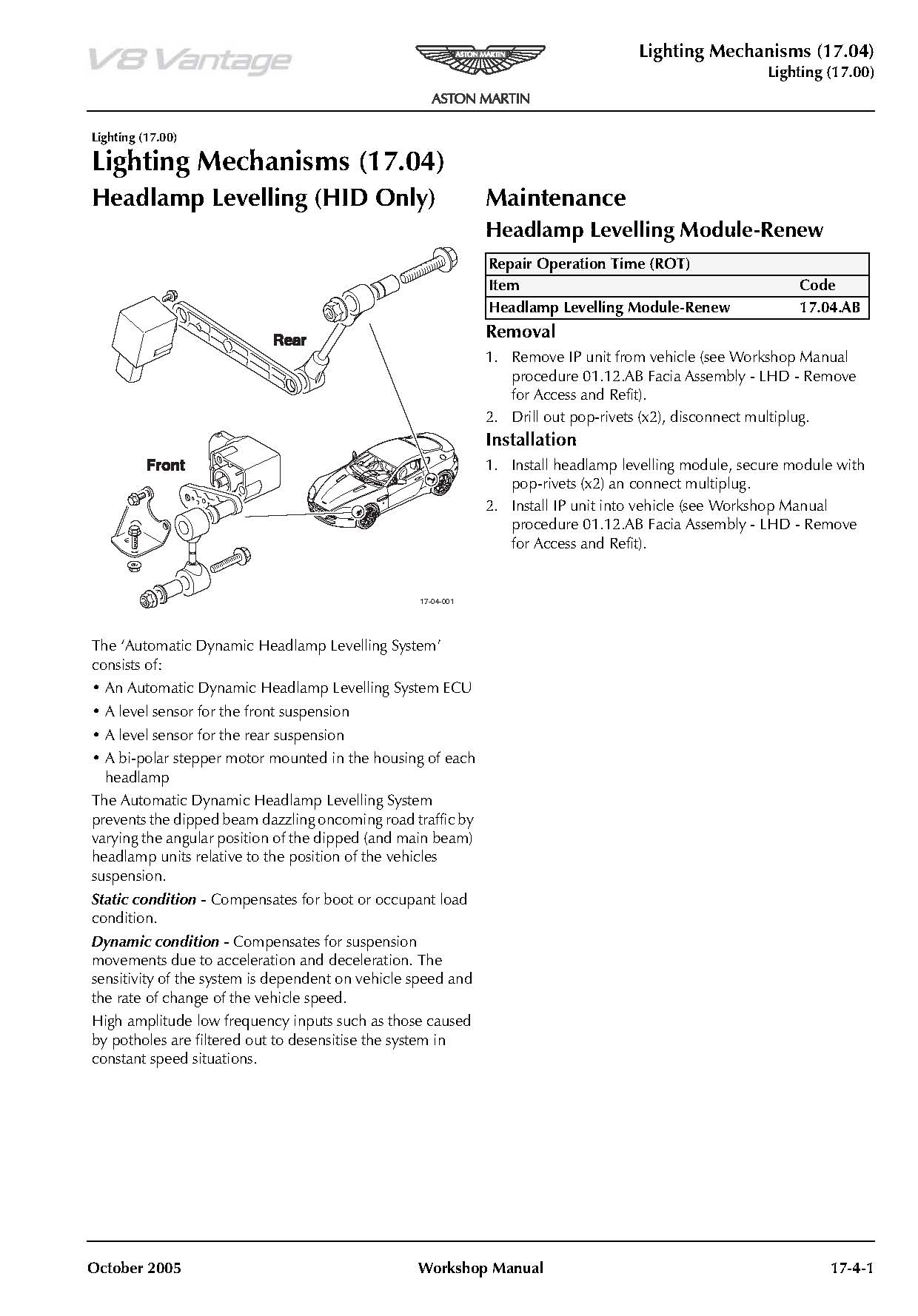

Headlight leveling sensor
Presuming that you have the HID option...

V8 Vantage 2006MY Workshop Manual 329.jpg

Reply
Mar 2, 2016 | 07:57 PM
  #3
What DonL said. It's for the headlight leveling system.
Reply
Mar 2, 2016 | 07:59 PM
  #4
Quote: Presuming that you have the HID option...
Thanks. I will have to check out the hardware in the rear to make sure it is connected.
Reply
Mar 3, 2016 | 05:07 PM
  #5
I had the same thing the first time I took my wheels off. Although in my case, the nut was had tightened on the bolt, just not connected to the arm. My rear one was connected. I can only guess that it was undone for some sort of work and then forgotten to be put back. Perhaps the same happened to yours, but your nut/bolt came undone?
Reply
Mar 3, 2016 | 07:40 PM
  #6
Quote: I had the same thing the first time I took my wheels off. Although in my case, the nut was had tightened on the bolt, just not connected to the arm. My rear one was connected. I can only guess that it was undone for some sort of work and then forgotten to be put back. Perhaps the same happened to yours, but your nut/bolt came undone?
There was no bolt. Only the nut.
Reply
