Aston Martin DB7, DB9, DBS, Vantage V8, Vanquish, and Classic models

Exhaust cutouts

Thread Tools

Rate Thread

Old Oct 26, 2017 | 01:21 PM
  #16
GDay2's Avatar
Registered User
Joined: May 2014
Posts: 191
From: Austria
Rep Power: 21
GDay2 is a jewel in the roughGDay2 is a jewel in the roughGDay2 is a jewel in the rough
As far as I know the original valves bypass the muffler completly when open, that is when you still have the AM backbox.

Old Oct 26, 2017 | 02:52 PM
  #17
007JB's Avatar
Registered User
10 Year Member
Joined: Apr 2014
Posts: 964
From: Los Angeles
Rep Power: 55
007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light
Originally Posted by GDay2
As far as I know the original valves bypass the muffler completly when open, that is when you still have the AM backbox.
How sure you're about that? if that's the case, just need to get remote kit & that will get the job done.

Old Oct 26, 2017 | 04:04 PM
  #18
007JB's Avatar
Registered User
10 Year Member
Joined: Apr 2014
Posts: 964
From: Los Angeles
Rep Power: 55
007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light
Originally Posted by GDay2
As far as I know the original valves bypass the muffler completly when open, that is when you still have the AM backbox.
How sure you're about that? if that's the case, just need to get remote kit & that will get the job done.

Old Oct 26, 2017 | 11:16 PM
  #19
007JB's Avatar
Registered User
10 Year Member
Joined: Apr 2014
Posts: 964
From: Los Angeles
Rep Power: 55
007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light007JB is a glorious beacon of light
Originally Posted by Stuart@VelocityAP
I have remote control kits in stock. Key fob operated. The factory exhaust is 2.5" after the cats (63mm).

If you want a valved exhaust setup that is a muffler bypass when open, we can make one no problem.
Stuart

Do you know whats inside oem rear silncer box? When bypass valves open, is it straight out to tail pipes or still flows trough some silencer tubes?

Avo

Old Oct 27, 2017 | 02:49 AM
  #20
GDay2's Avatar
Registered User
Joined: May 2014
Posts: 191
From: Austria
Rep Power: 21
GDay2 is a jewel in the roughGDay2 is a jewel in the roughGDay2 is a jewel in the rough

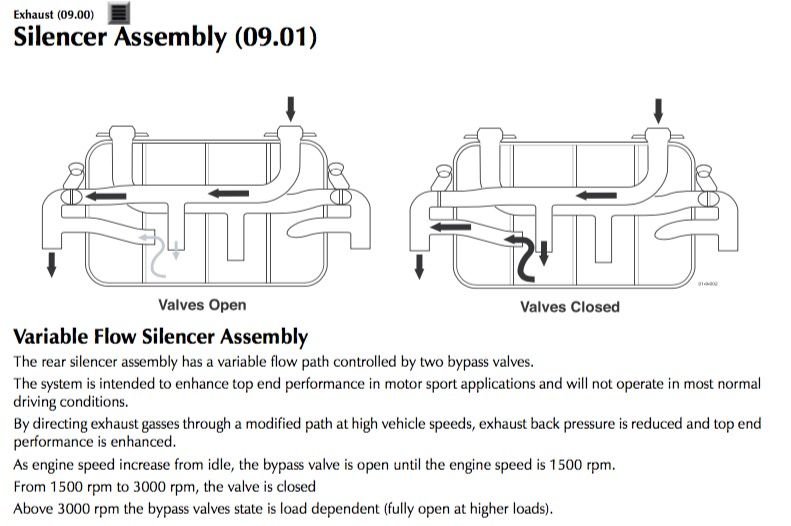

I am 100% sure that the open flaps enable a complete bypass of the silencing parts of the back box, look at the image from the workshop manual:



Cheers
Christian

Old Oct 29, 2017 | 02:52 PM
  #21
speedracer800's Avatar
Registered User
15 Year Member
Joined: Jun 2010
Posts: 799
From: Lake Geneva, WI
Rep Power: 51
speedracer800 is a glorious beacon of lightspeedracer800 is a glorious beacon of lightspeedracer800 is a glorious beacon of lightspeedracer800 is a glorious beacon of lightspeedracer800 is a glorious beacon of light
Originally Posted by Stuart@VelocityAP
I have remote control kits in stock. Key fob operated. The factory exhaust is 2.5" after the cats (63mm).

If you want a valved exhaust setup that is a muffler bypass when open, we can make one no problem.
I need this Stuart.. Shoot me an email with details if you don't mind.
