ABS, traction control, emergency brake lights

Please forgive me if this has been posted recently, just sharing...
The above lights are on (see photos) and the culprit. Parts on order, I'll update after repair.




LH front wheel speed sensor harness, broken wire.

Old Aug 28, 2018 | 06:55 AM
  #2
bunob's Avatar
Registered User
Joined: Aug 2013
Posts: 273
From: France
Rep Power: 23
bunob is infamous around these parts
I recently have the same problem with the Integrated Magnetic Ring wheel Bearing failure (For ABS Sensor Pulse).

Old Sep 14, 2018 | 07:21 PM
  #3
Danno62's Avatar
Thread Starter
|
Registered User
Joined: Mar 2017
Posts: 56
From: Louisville Ky.
Rep Power: 12
Danno62 is infamous around these parts
Update.....




Pictured is the damage area after I accessed the harness section removing the tie wraps/studs. Also the harness assembly part number 6G43-90-10445, LH wheel speed sensor harness assembly.

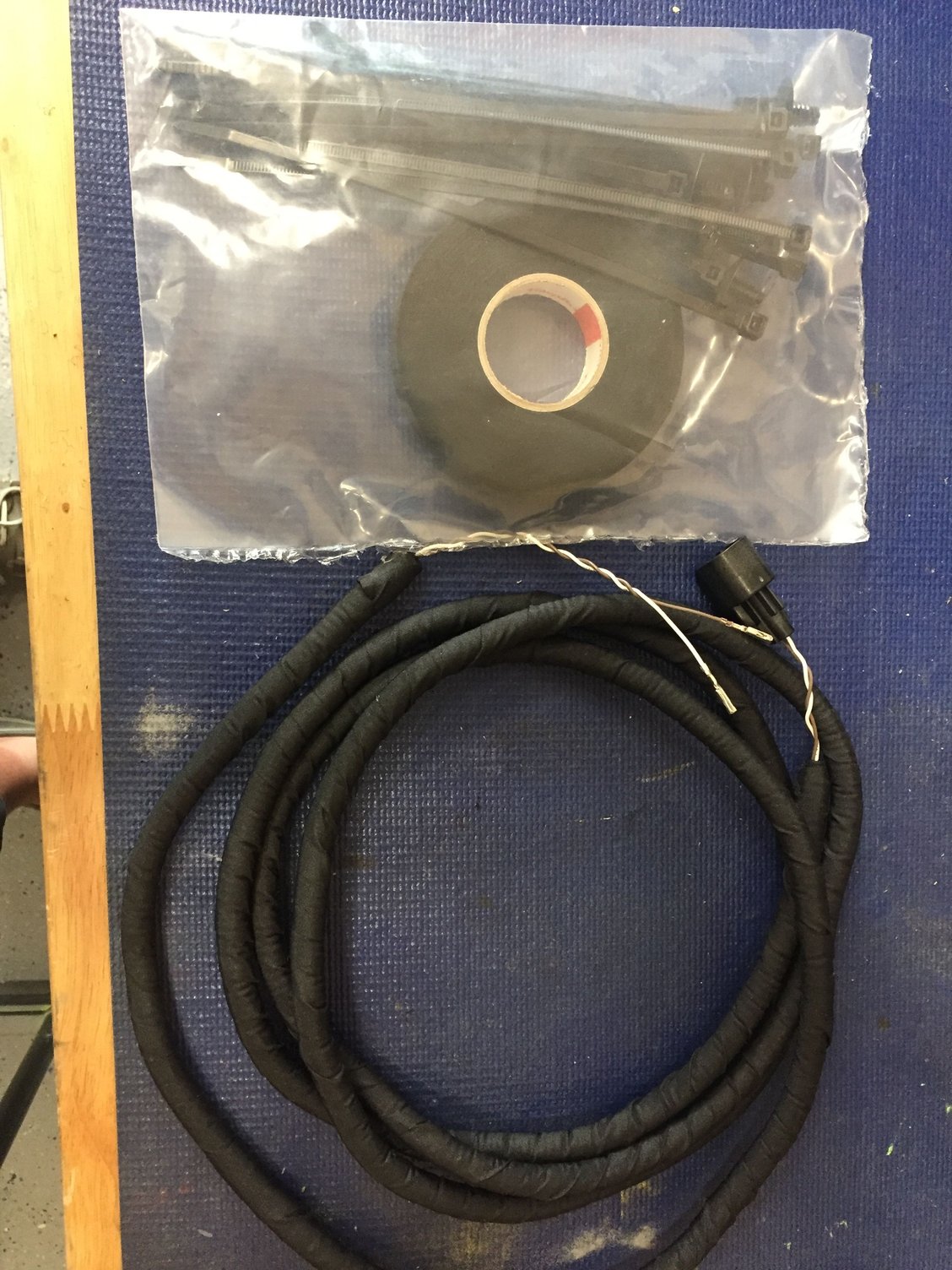

I cut a section with the new plug off the new harness (the harness intersects another loom/harness across the car so I didn't want to disassemble the loom all that way) you can see what came in the harness assembly, the harness, ties and tape.
I used heat shrink to splice the new plug on, re taped a bit better than the factory since they left 6 inches of wire exposed.
Installed the plug and all the lights reset/extinguished.

Old Sep 15, 2018 | 08:46 AM
  #4
Old phart's Avatar
Registered User
10 Year Member
Joined: Feb 2015
Posts: 405
From: Corcoran, California
Rep Power: 31
Old phart is a jewel in the roughOld phart is a jewel in the roughOld phart is a jewel in the roughOld phart is a jewel in the rough
Well done. I'm sure having AM replace/install the loom would have been substantial.
