2009 Aston Martin DBS Door Latch

Hey guys! The interior passenger-side door latch cable in my DBS has completely disconnected. I have since removed it from the door to try to reinstall it but I am unable to reattach neither the metal hook inside the door nor the plastic holder/bracket that's next to that metal hook. Does anyone have any guidance as to how to proceed? I've been able to take off the interior aspect of the door but I am not able to reach inside the door to reattach the metal hook to where it's supposed to go. Many thanks in advance.
The metal hook I am unable to reattach.

The entire passenger-side door latch, removed from the inside of the door.

Old Sep 23, 2018 | 02:38 PM
  #2
J doubleU's Avatar
Registered User
10 Year Member
Joined: Mar 2013
Posts: 2,423
From: So Cal
Rep Power: 261
J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !
You may want to get a copy or download of the service manual and proceed to remove the entire latch assembly to inspect. That cable doesn't just fall out of position, there's more to it than that.

Old Sep 23, 2018 | 04:09 PM
  #3
Sokalaw's Avatar
Thread Starter
|
Registered User
Joined: Sep 2018
Posts: 4
Rep Power: 0
Sokalaw is infamous around these parts
I was able to find DB9 and Vantage workshop manuals, and I will see if I am able to easily remove the door latch from here. Thank you for the advice!

Old Sep 23, 2018 | 07:55 PM
  #4
spyder997s's Avatar
Registered User
Joined: Jan 2006
Posts: 1,515
From: Bay Area, CA
Rep Power: 88
spyder997s is a splendid one to beholdspyder997s is a splendid one to beholdspyder997s is a splendid one to beholdspyder997s is a splendid one to beholdspyder997s is a splendid one to beholdspyder997s is a splendid one to beholdspyder997s is a splendid one to behold
This is a fairly simple fix:

Remove the opposite, still functional door pull, note the wiring, and copy on the side that needs it.

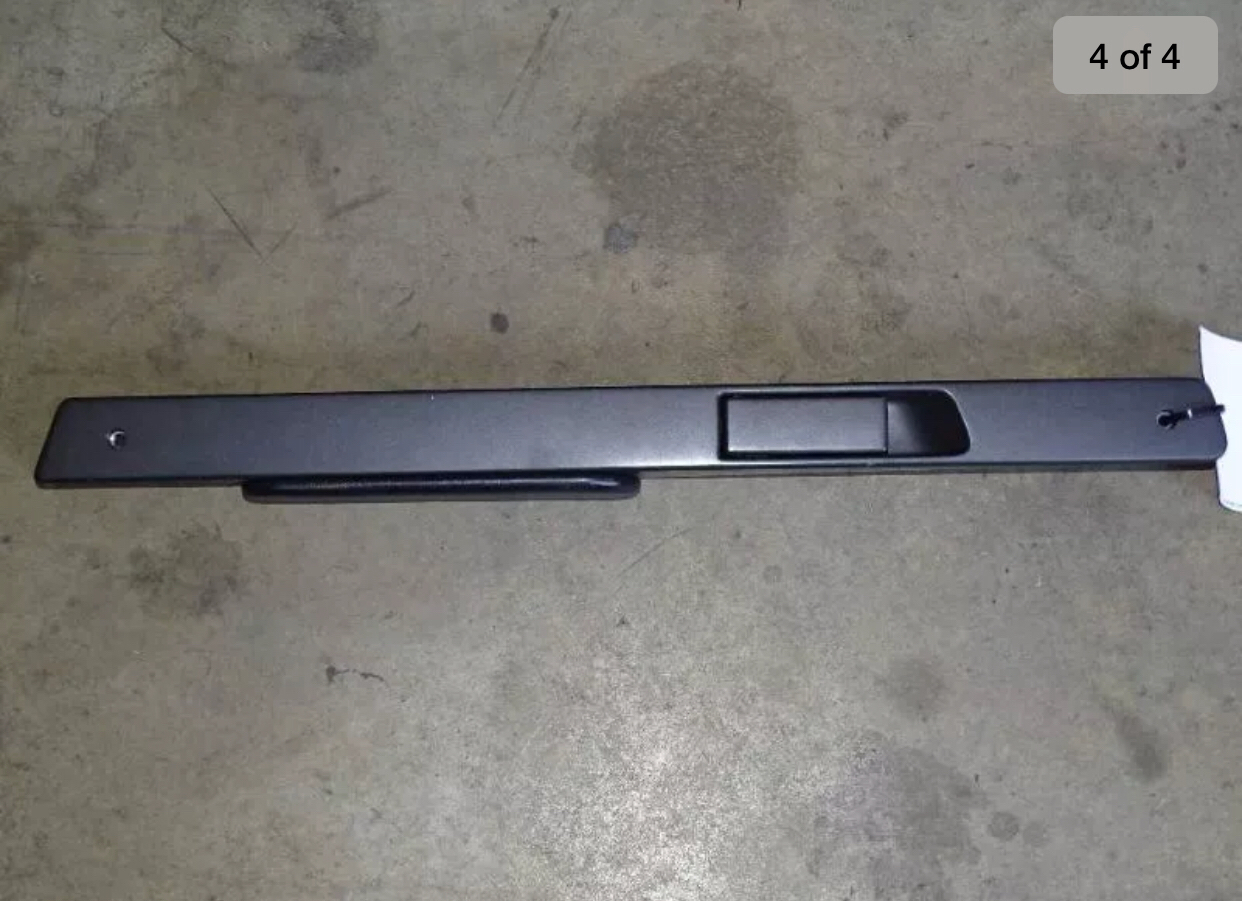

This is the part you should remove.

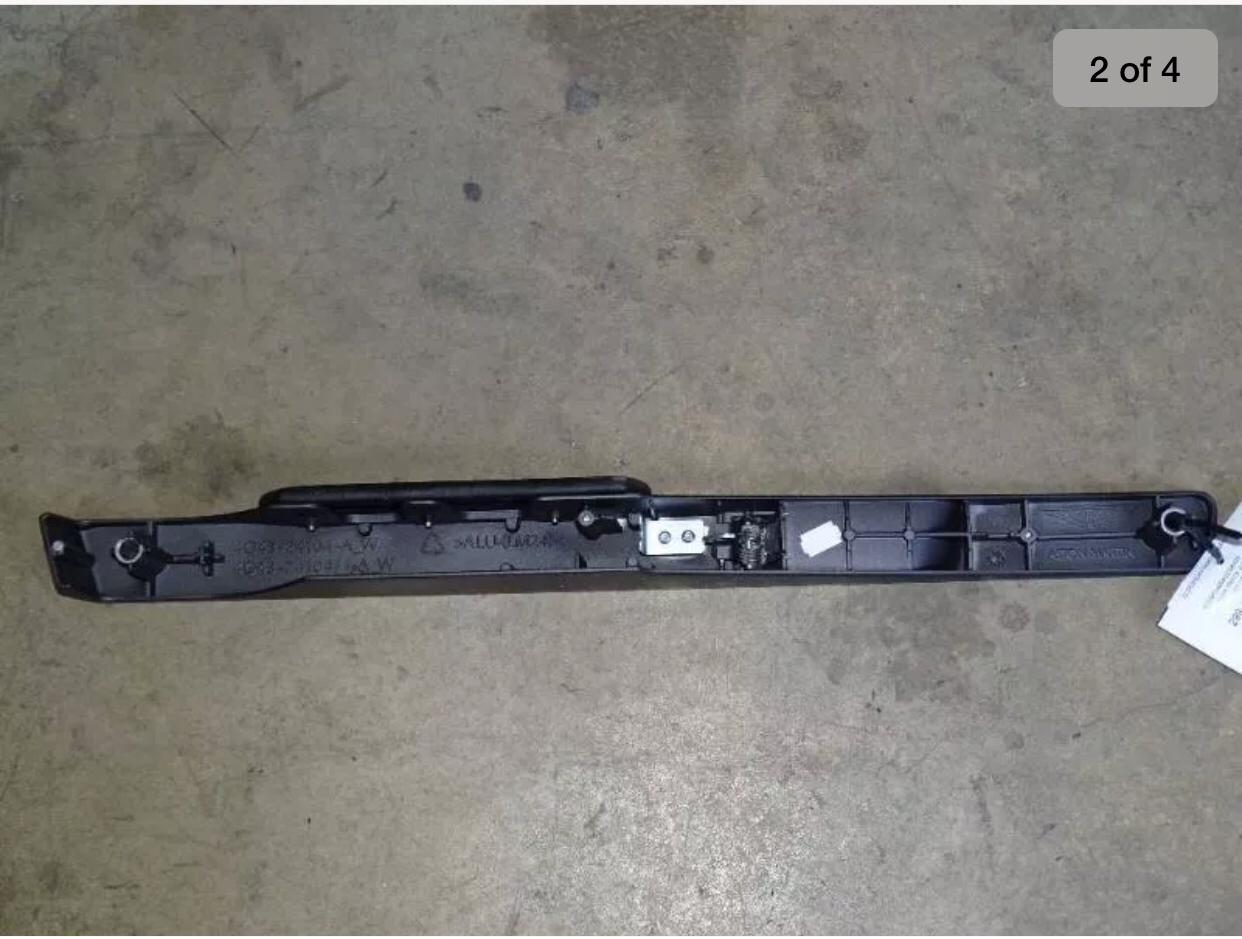

The underside of the door pull has placed for each of those tabs.

Attached Thumbnails Click image for larger version

Name:	photo676.jpg
Views:	62
Size:	846.4 KB
ID:	529902   Click image for larger version

Name:	photo298.jpg
Views:	67
Size:	935.3 KB
ID:	529903
Old Sep 23, 2018 | 08:36 PM
  #5
J doubleU's Avatar
Registered User
10 Year Member
Joined: Mar 2013
Posts: 2,423
From: So Cal
Rep Power: 261
J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !J doubleU Is a GOD !
I believe he's on the other end of the simple inner handle to cable. The puzzle is @ the door latch side.

Old Sep 23, 2018 | 08:47 PM
  #6
Sokalaw's Avatar
Thread Starter
|
Registered User
Joined: Sep 2018
Posts: 4
Rep Power: 0
Sokalaw is infamous around these parts
Thank you for your reply, spyder997s. Unfortunately, it is on the other side of the cable by the latch, as stated by J doubleU. I will attempt the repair sometime in the upcoming week when I have time. I will of course post an update.
