Good evening, I am having a couple electrical issues that seem to be related to bad/loose ground connections, mainly "earth header 2, 3, 5, and CEM".
Does anybody have a picture of what these earth headers look like? @UltraMarine could find a drawing with the main harness, but I am not sure what to look for.
I assume the 4 red circles are ground connections?
Any help appreciated, thank you!
Last edited by EJ_Rapide; 05-10-2024 at 09:36 PM.
Reason: Picture added

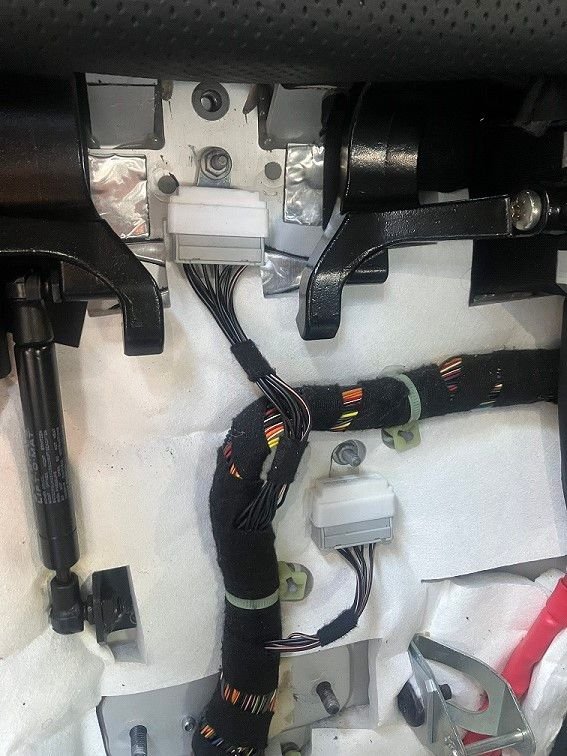

Those look like earth connections to me. Those are interesting. Very different from mine where it's just a bunch of eyelets with a nut to an earth stud in the body.
Those look like earth connections to me. Those are interesting. Very different from mine where it's just a bunch of eyelets with a nut to an earth stud in the body.
Definitely an upgrade to the ground connections in my 06 DB9!
I am just having trouble identifying all of them so I can check/clean and see if it fixes the electrical gremlins.
Will report once I am done.
Thank you.
