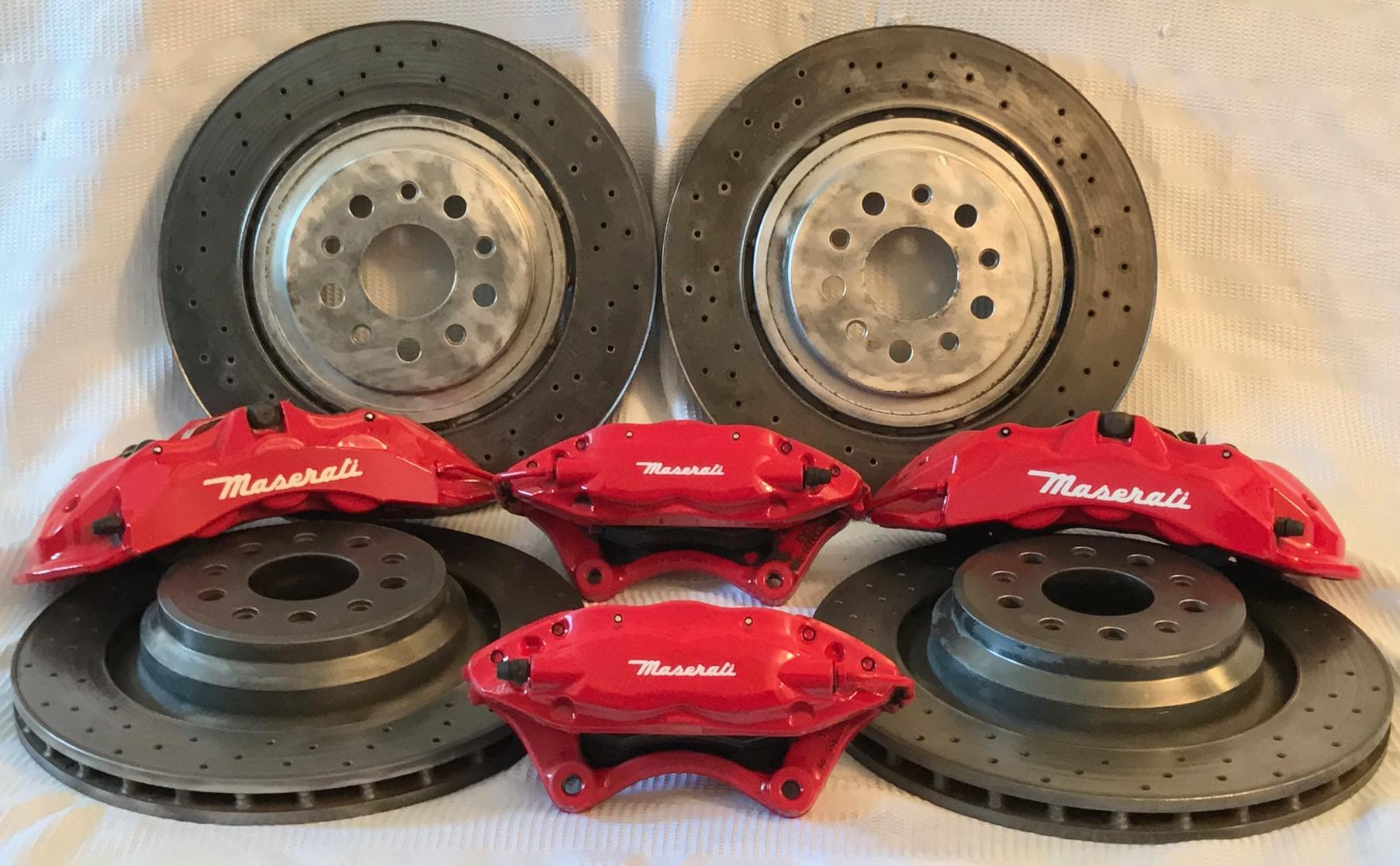

For sale is a beautiful complete set of the powerful Brembo brakes off of the 2015 Maserati Ghibli S Q4, all components have less then 15,000 miles of normal road use.

Included in the sale are:

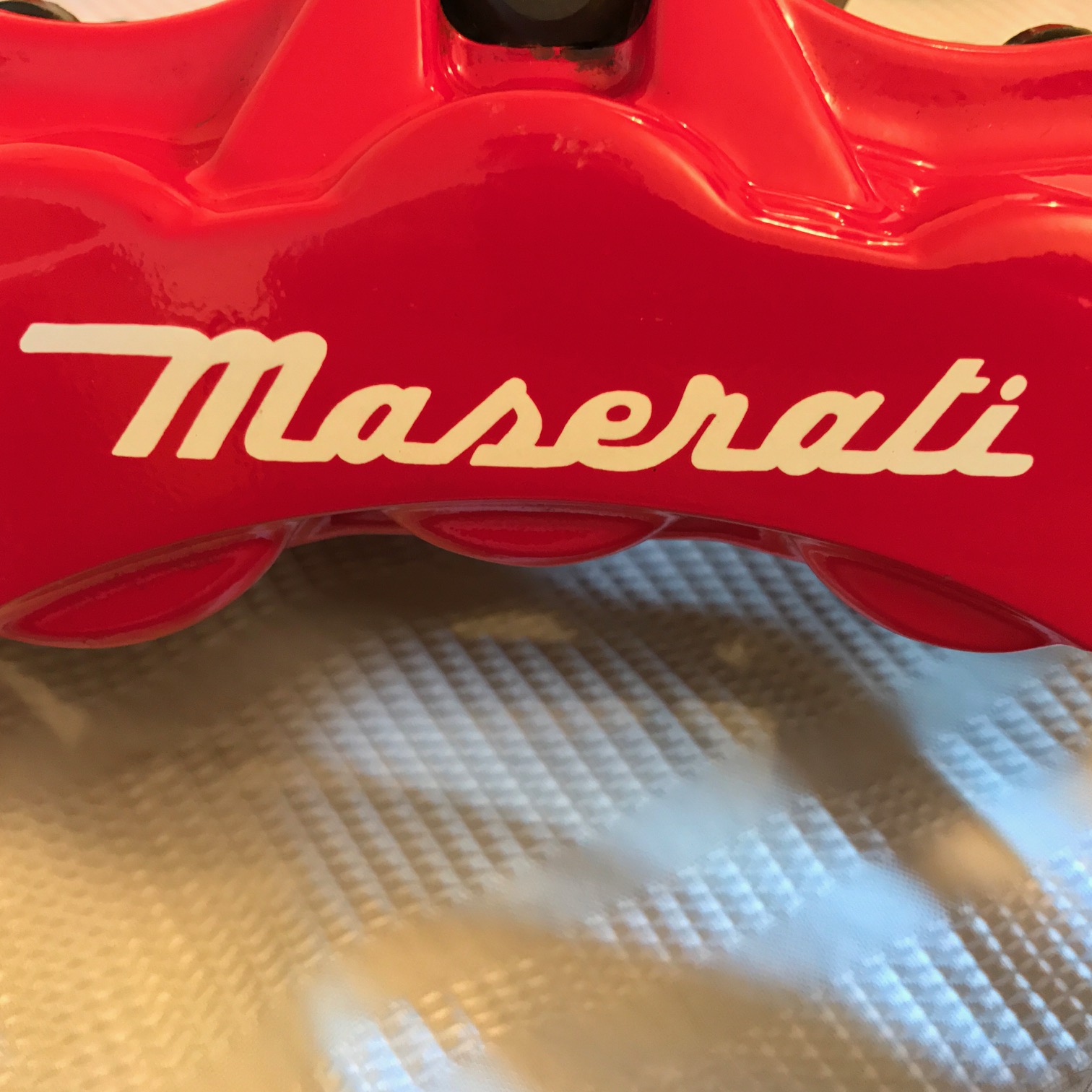

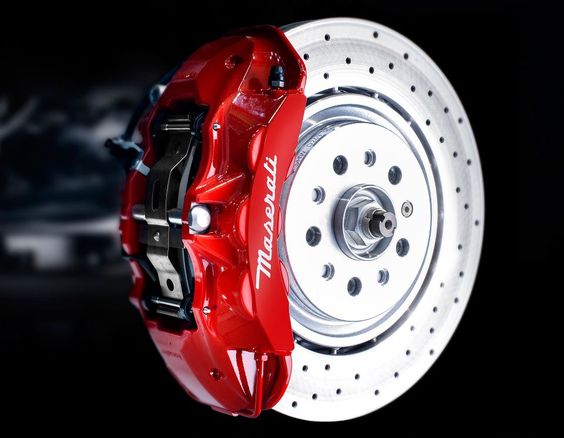

1) Brembo supplied two front 6 piston monobloc and two rear 4 piston monobloc calipers finished in the original factory Maserati Rosso paint. (An $800 option)

2) Two gently used Maserati front ventilated, slotted and drilled 360 x 32mm discs Manufacturer Part Number: 670030935 (Superseded Part Number: 670007374) (New $261.89 a side) and two gently used ventilated, slotted and drilled 350 mm x 28 mm rear discs 670031597 (new 173.36 per side). These are dual-cast discs, which combine the properties of cast iron with the light weight of aluminum, helping to reduce the unsprung mass.

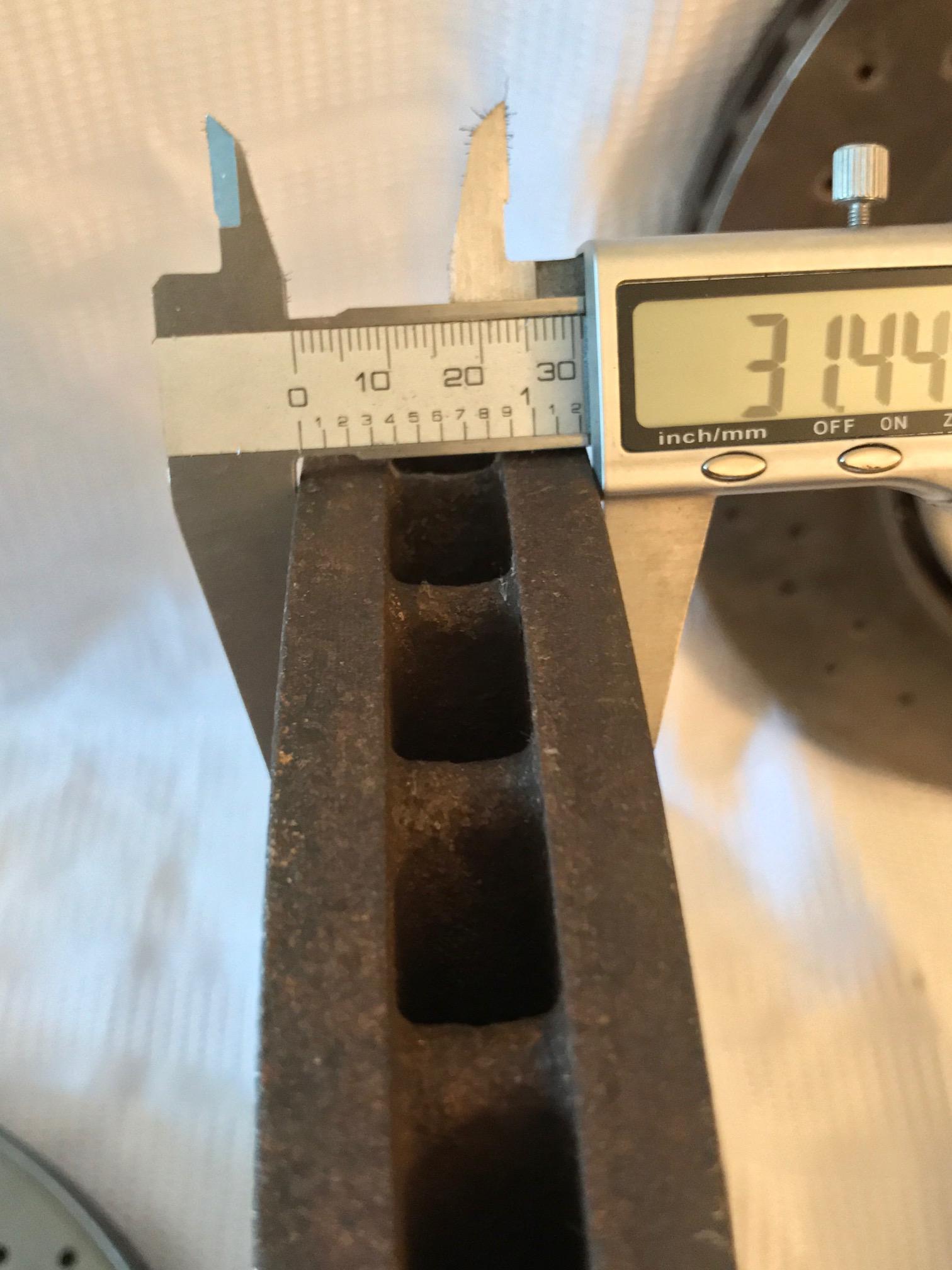

Front rotor thickness as sold: 31.44mm (new 32mm)

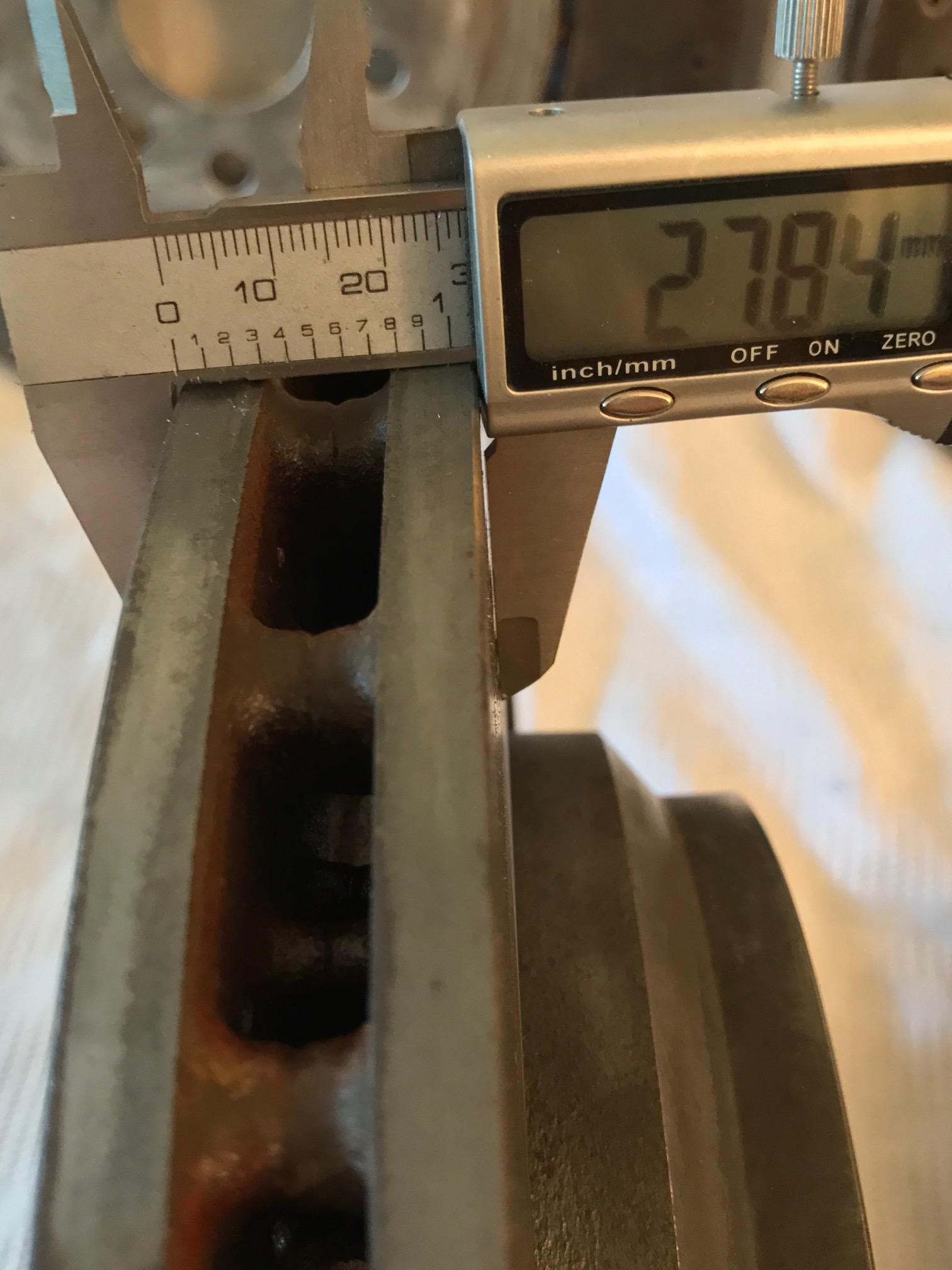

Rear rotor thickness as sold: 27.84mm (new 28mm)

3) Gently Used (<15000miles) Brembo Front Brake Pads 980156013 approximately 30-40% pad life remaining (New $361.73)
Gently Used (<15000miles) Brembo Rear Brake Pads 980156007 approximately 70-80% pad life remaining (New $312.59)

4) Fedex Ground Shipping in the CONUS

Price is $3000 Shipped via Fedex Ground , payment options include certified check, cash up front, or Paypal Gift. Local pick-up is available.

Since may people have expressed interested in the measurements so they can see if this kit can be retrofitted to their Maserati or Ferrari, here is the best of my knowledge and research.

**For additional rebuild parts, these are the same exact calipers found on the Australian Market Only Ford Falcon FPV!**


FITMENT COMPATIBILITY: M156 and M157
GHIBLI S (YEAR 2014 TO CURRENT)
GHIBLI SQ4 (YEAR 2014 TO CURRENT)
GHIBLI BASE, W/ SPORT PKG (YEAR 2015 TO CURRENT)
QUATTROPORTE S (YEAR 2014 TO CURRENT)
QUATTROPORTE SQ4 (YEAR 2014 TO CURRENT)
QUATTROPORTE GTS V8 (YEAR 2014 TO CURRENT)

**THE 2011 MASERATI QUATTOPORTE 4.7L REAR CALIPERS ARE RADIAL MOUNTED, THUS THESE REAR CALIPER CANNOT BE USED!

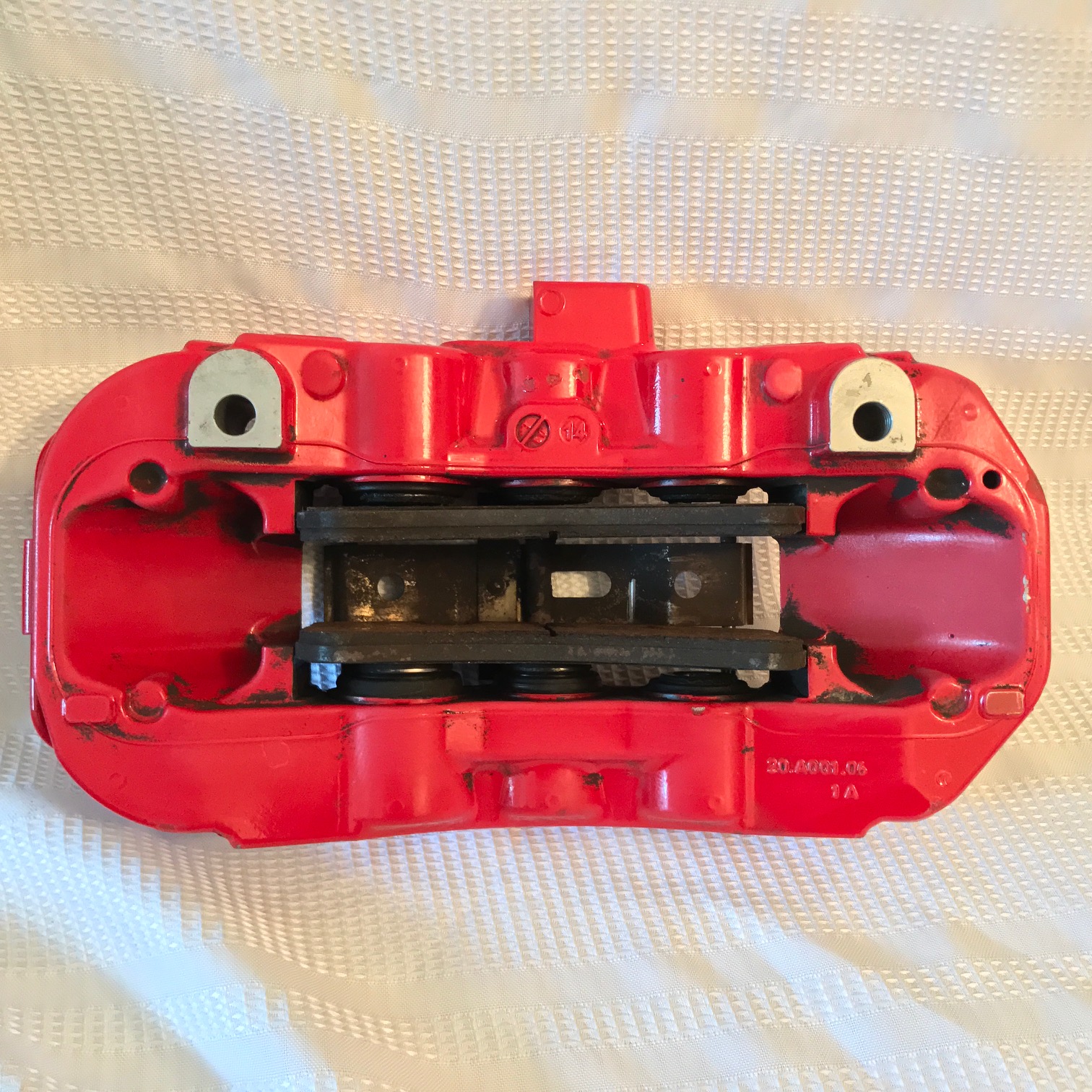

Front Calipers:

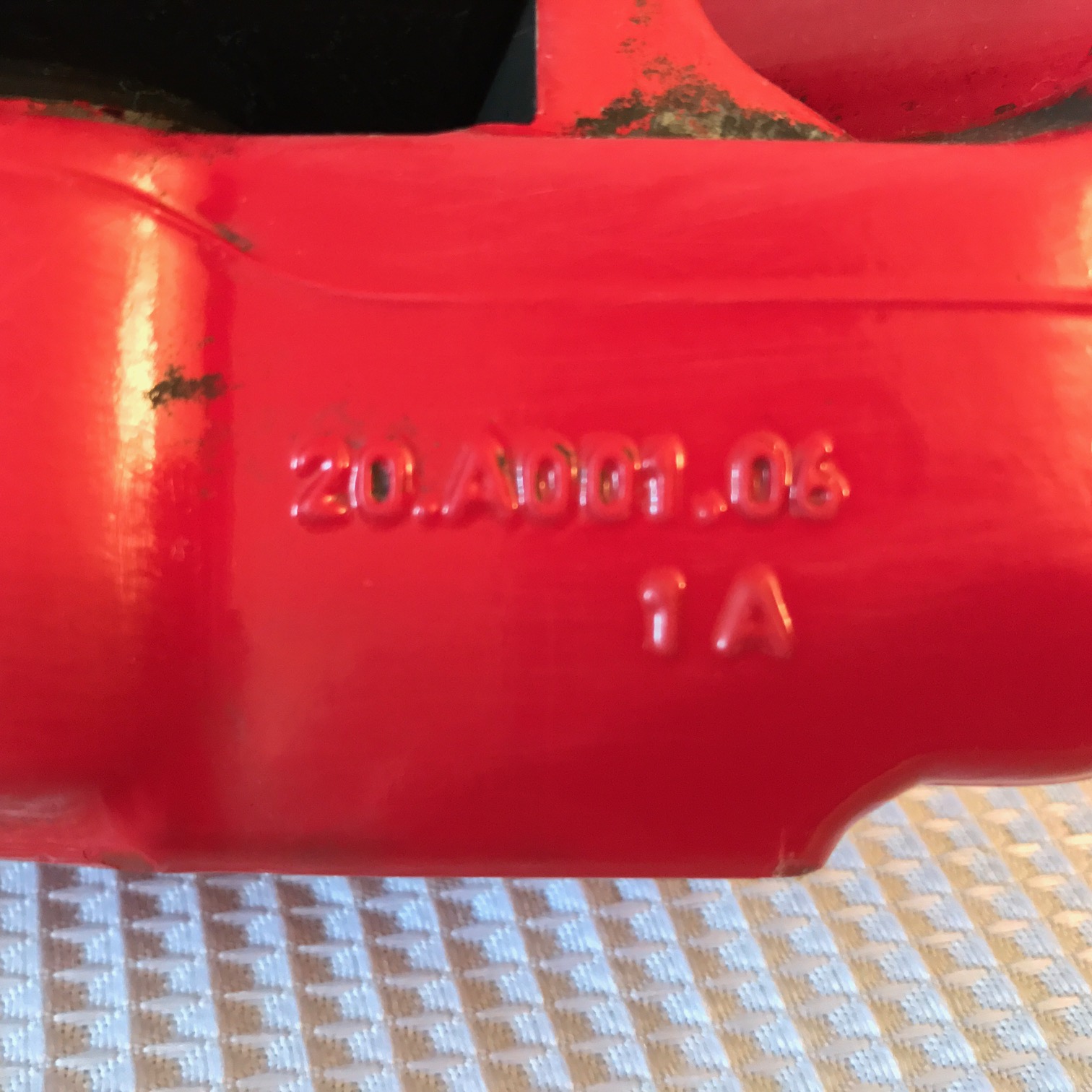

RHF Brembo no: 20.A001.05
LHF Brembo no: 20.A001.06
Pistons: 6 pistons
Unloaded Weight: 3.3kg
Piston Sizes: 2x 30mm, 2x 34mm, 2x 38mm
Piston Area: 5500mm2
Mount: Radial
Bolt hole to bolt hole distance : 194mm
Pad Length 190mm
Maximum Accommodating Rotor Dimension: 390x34mm
Caliper Mounting Bolt Holes: M14, non-threaded.
38mm Boot and Seal: pn: 182121
34mm Boot and Seal: pn: 215664
30mm Boot and Seal: pn: 215663
Centric Pn for all boots and seals: 143.35037
Bleeder Screw Maserati PN: 152954 (M10x1.0)
Bleeder Dust Seal PN: 215666


Front Disc:
Maserati pn: 670030935
Material : Cast Iron
Pattern: Drilled and Ventilated
Centering Diameter: 67.5mm
Vane: Non-Directional
Rotor Bolt Pattern: 5x114.3
Diameter: 360mm
Max Thickness: 32mm
Min Thickness: 30mm
Hub Height: 13,2mm
Total Height: 45.2mm
Weight: 12.7kg


Rear Calipers:
RHR Brembo no: 20.B67700.01
LHR: Brembo no: 20.B67700.02
Pistons: 4 pistons
Piston Sizes: 2x 28mm, 2x 42mm
Mount: Axial
Bolt hole to bolt hole distance : 120mm
Caliper mounting Bolt Hole: M12, threaded
Bleeder Screw Maserati PN: 152954 (M10x1.0, Qty: 2)
Bleeder Dust Seal PN: 215666

Rear Disc:
Maserati pn: 670031597
Material : Cast Iron
Pattern: Drilled and Ventilated
Vane: Non-Directional
Rotor Bolt Pattern: 5x114.3
Centering Diameter: 67.5mm
Diameter: 350mm
Max Thickness: 28mm
Min Thickness: 26mm
Total Height: 65mm
Hub Height: 37mm
Weight: 10.6kg


**Also, I realize many of you are getting taken advantage of because of the Marquee name when purchasing replacement parts…I can assure you that I can find you much better prices of both OEM and Aftermarket Brake solutions. I realize the Brembo pads certainly don't hold up very well for the Ghibli and there are many more aggressive pads out there for less which give you a little more life with a trade off of a little more dust.

For instance: the front 6 piston calipers take the pad D116/D1365/D1666 that is made by many companies.

The rear pads are model: D592/D1053

These are a direct bolt on for all Maserati Ghibli models, base Ghibli model Specs: Rotors: Front 345x32mm and rear of 320x28mm

The Maserati Levante diesel and base models are equipped FLOATING calipers!! Not the Brembo monoblocks and the rotors are smaller 345x32mm fronts and 330x28mm rear ventilated discs.
**Thus an upgrade if mated with the set-up I am selling

The Levante S has the same Brembo six-piston aluminum monoblocc calipers as listed but larger front rotors and smaller rear rotors. 380x32mm front discs and 330x32mm drilled and ventilated rears.

I have provided as much information as I could for you the buyer to may an educated purchase. The calipers are in excellent condition, the pistons are without cracks or scratches and move seamlessly. The rotors are without cracks or defects and almost brand new thickness. Their are a few sub centimeter chips in the paint on the brembos, but mostly out of sight when mounted to the vehicle.

I have been buying and selling exotic Brembo brake kits from Lamborghini, Audi, Mercedes, Porsche, and Maserati for years with over 50 kits sold. You can certainly trust that this will be a seamless sale without question.



Price is negotiable.



July 4th Sale: $2400 shipped.



$2100 shipped



Still available.



Feel free to make an offer



Sold
