2008 Bentley CGTC ignition coil and fuses

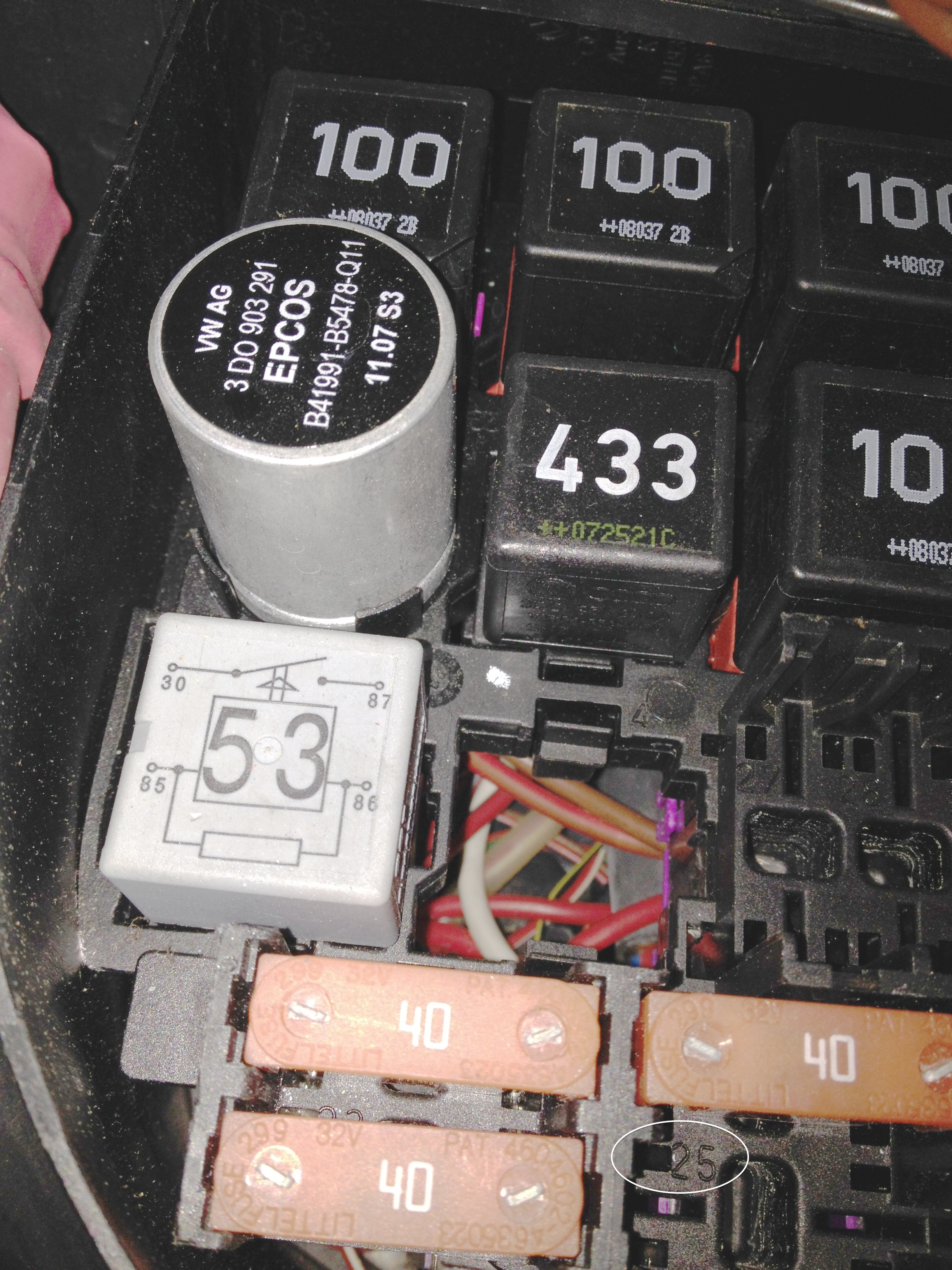

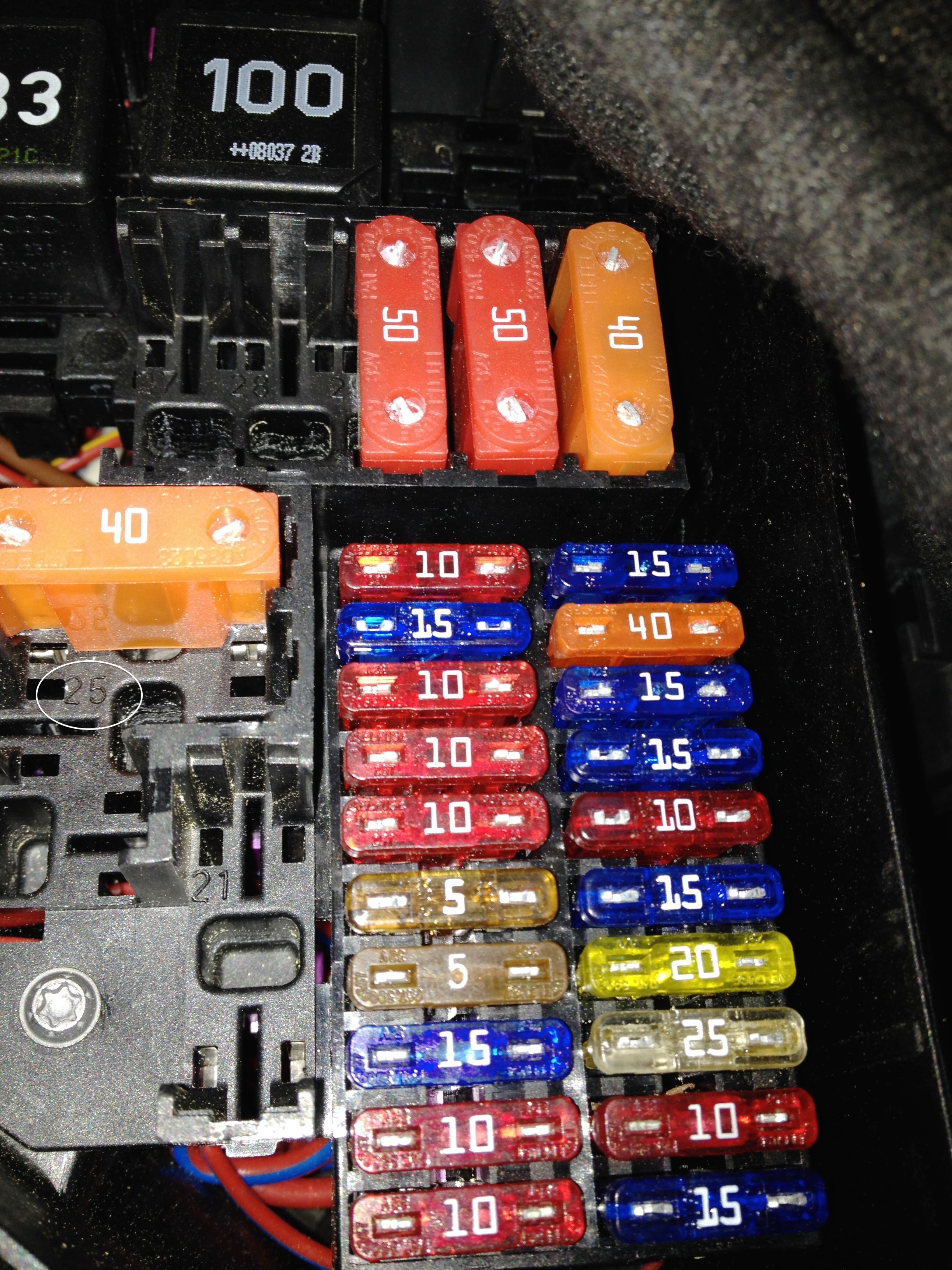

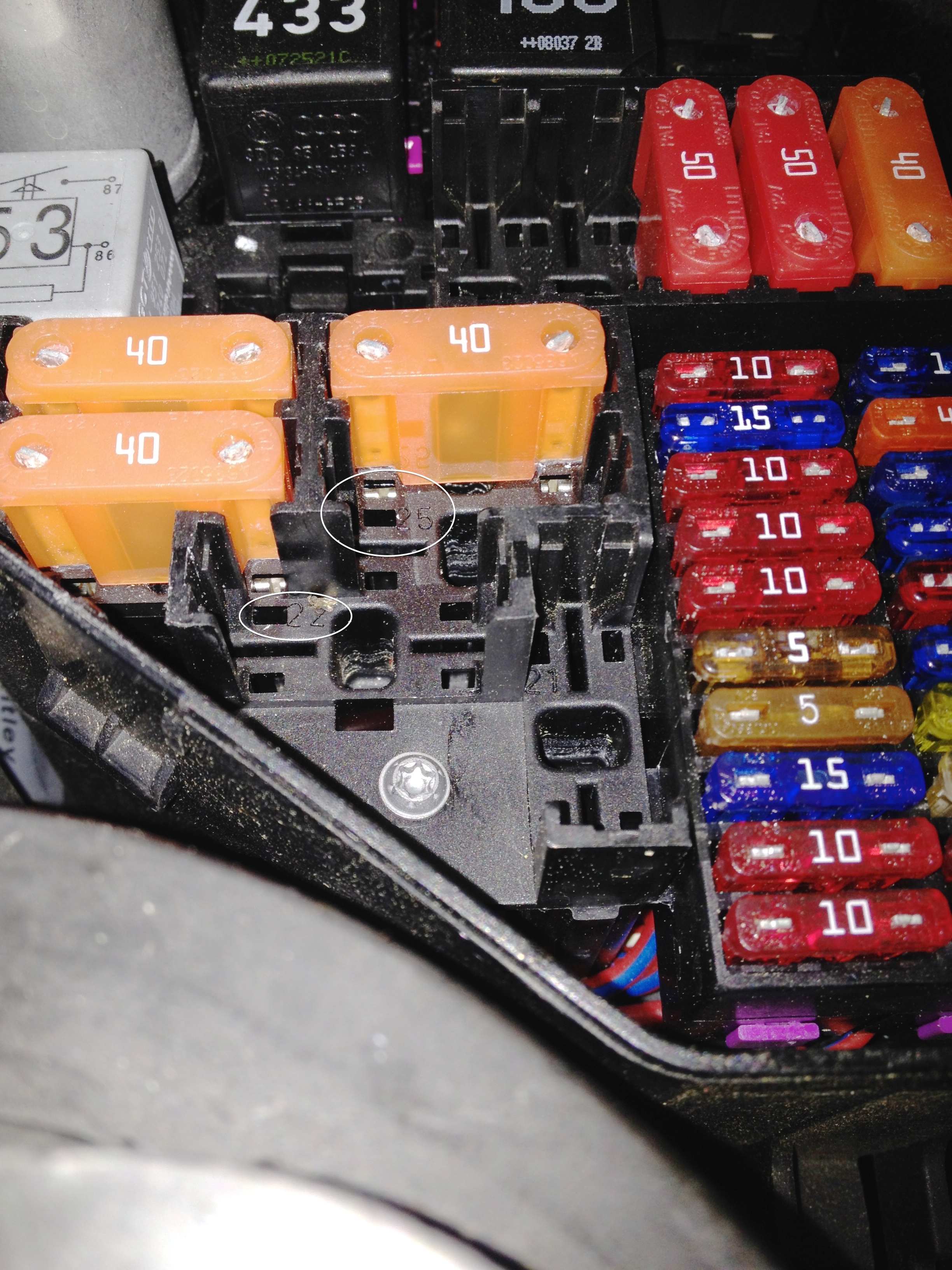

Anyone know where the fuses are to the Ignition coil bank 1 and 2? I'm not sure if I've blown a fuse or ignition coil. Here's what happened. We had our first near freezing temp. night here. I started my GTC in the garage but didn't let the engine warm. Pulled out and went directly to street (30 seconds and a couple hundred feet). Started to pull out on the main road and a car was coming waaaay fast at me so I floored the gas to avoid an accident. The car got up to about 35 mph in a second or two and I was doing great, then all of the sudden, the engine light came on and the engine went to 1/2 power. I just circled around, went home and put the car back in the garage. I figured I didn't let the engine warm up enough before putting "the pedal to the metal" and I blew a fuse or an ignition coil. Any ideas? Here's photos of my fusebox under hood (bonnet) on passenger side USA car.

Attached Thumbnails Click image for larger version

Name:	IMG_4821.jpg
Views:	105
Size:	2.54 MB
ID:	406739   Click image for larger version

Name:	IMG_4822.jpg
Views:	94
Size:	2.70 MB
ID:	406740   Click image for larger version

Name:	IMG_4823.jpg
Views:	87
Size:	2.97 MB
ID:	406741
Old Nov 4, 2014 | 07:18 AM
  #2
PMS's Avatar
PMS
Registered User
10 Year Member
Joined: Oct 2011
Posts: 543
From: Thornhill, Ontario CANADA
Rep Power: 49
PMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud of

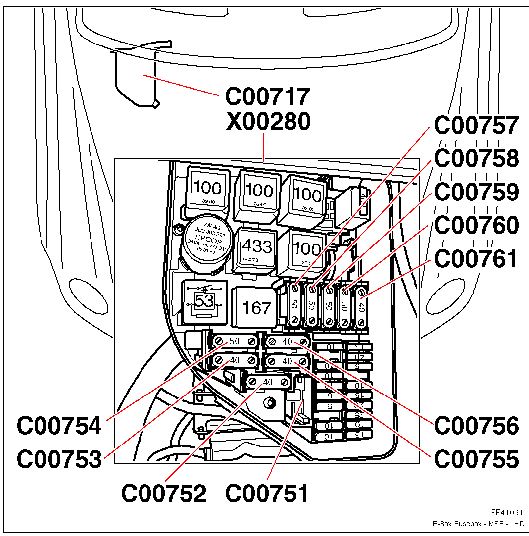

You should do a diagnostic scan first. It appears your car has gone into "limp" mode. Once you can report on DTCs, we can offer more insight. To check engine management fuses, see the diagram I have provided as an attachment. Check C00754,753, 752, 751,756,755.

Attached Thumbnails Click image for larger version

Name:	fuse.jpg
Views:	95
Size:	92.8 KB
ID:	406765
Old Nov 4, 2014 | 10:52 AM
  #3
ExSF's Avatar
Registered User
10 Year Member
Joined: Sep 2013
Posts: 649
From: Europe
Rep Power: 43
ExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to allExSF is a name known to all
I can't imagine that flooring the car with a cold engine would blow a fuse or coil.
Have you tried the car since as it may just be a one off?
Good luck anyway.

Old Nov 4, 2014 | 12:10 PM
  #4
smiledoc's Avatar
Thread Starter
|
Registered User
Joined: Nov 2014
Posts: 2
From: Little Rock, AR
Rep Power: 0
smiledoc is infamous around these parts
I have the complete Bentley (just like at the dealership) computer and software. I just haven't hooked up the car and gone through the diagnostics.

My mechanic says "check the remaining fuses with a test light or ohm meter on both sides. There will be a blown fuse I bet."

This happened once before and it was an ignition coil. We will see. Now just need the time to do some mechanic work and investigation. Car is still like it was...after sitting a couple days...engine running at about 1/2 power and noxious fumes...dies easily too. I just pulled it in and out of the garage a time or two.

Thanks and keep any suggestions coming.

Old Nov 5, 2014 | 08:04 AM
  #5
PMS's Avatar
PMS
Registered User
10 Year Member
Joined: Oct 2011
Posts: 543
From: Thornhill, Ontario CANADA
Rep Power: 49
PMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud of
You may have a catalytic converter issue. Again, please provide any fault codes your computer can provide.

Old Nov 7, 2014 | 02:18 PM
  #6
Bentley Tech NC's Avatar
Registered User
Joined: Feb 2014
Posts: 20
From: Monroe NC
Rep Power: 0
Bentley Tech NC has a spectacular aura aboutBentley Tech NC has a spectacular aura aboutBentley Tech NC has a spectacular aura about
Another good idea would be to check the hoses to and from the inter cooler.
