Looking for wiring diagram
Hi
I'm looking for a wiring diagram of the electric passenger seat on a 2005 continental Gt.

Can anyone help me please?

Mine does move anymore....

Thanks!

Reply
  #2
Old 04-15-2016, 08:05 AM
PMS's Avatar
PMS
PMS is offline
Registered User
Join Date: Oct 2011
Location: Thornhill, Ontario CANADA
Posts: 539
Rep Power: 47
PMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud of
The seat control module is equipped with diagnostics that can be read with a VAS5054A diagnostic computer. See the attached pic for the wiring diagram.

Attached Thumbnails Click image for larger version Name: passenger seat circuit.JPG Views: 1185 Size: 106.2 KB ID: 445770
Reply
  #3
Old 04-15-2016, 10:09 AM
fellap65's Avatar
Registered User
Thread Starter
Join Date: Apr 2016
Location: Quebec
Age: 34
Posts: 2
Rep Power: 0
fellap65 is on a distinguished road
Originally Posted by PMS
The seat control module is equipped with diagnostics that can be read with a VAS5054A diagnostic computer. See the attached pic for the wiring diagram.
Thanks really appreciate!
Do you have the output wiring of the module?
I do have a scan tool that work with it, I just want to confirm that my module have to be replace!

Thanks again!

Reply
  #4
Old 04-15-2016, 10:28 AM
PMS's Avatar
PMS
PMS is offline
Registered User
Join Date: Oct 2011
Location: Thornhill, Ontario CANADA
Posts: 539
Rep Power: 47
PMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud ofPMS has much to be proud of
I assume you have checked your fuses. Is this the wiring information you need? See attached pic

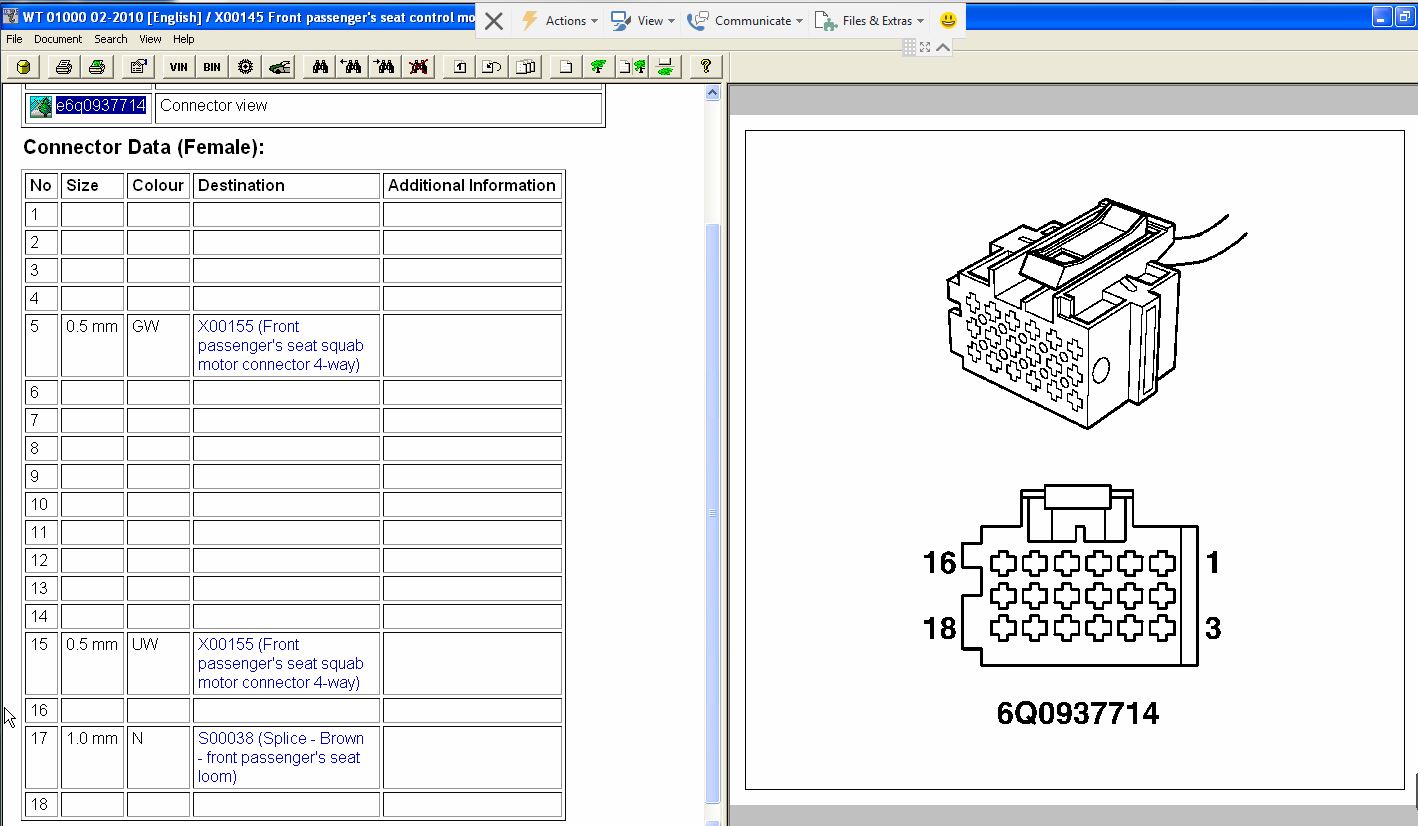

Attached Thumbnails Click image for larger version Name: seat module output.JPG Views: 771 Size: 177.2 KB ID: 445795
Reply
