Privacy phone disassembling for battery replacement.
#1
Privacy phone disassembling for battery replacement.
Hello All,

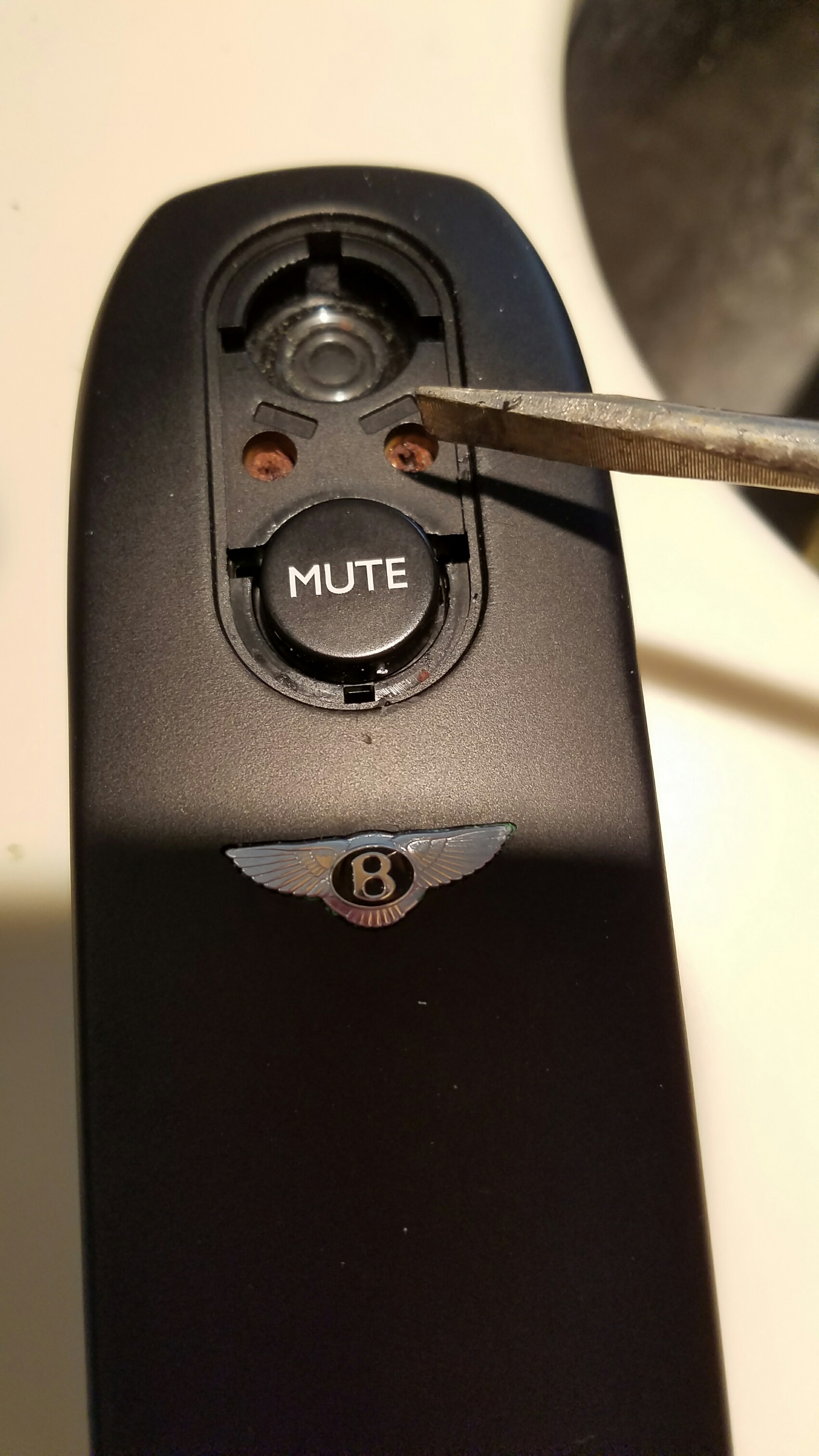

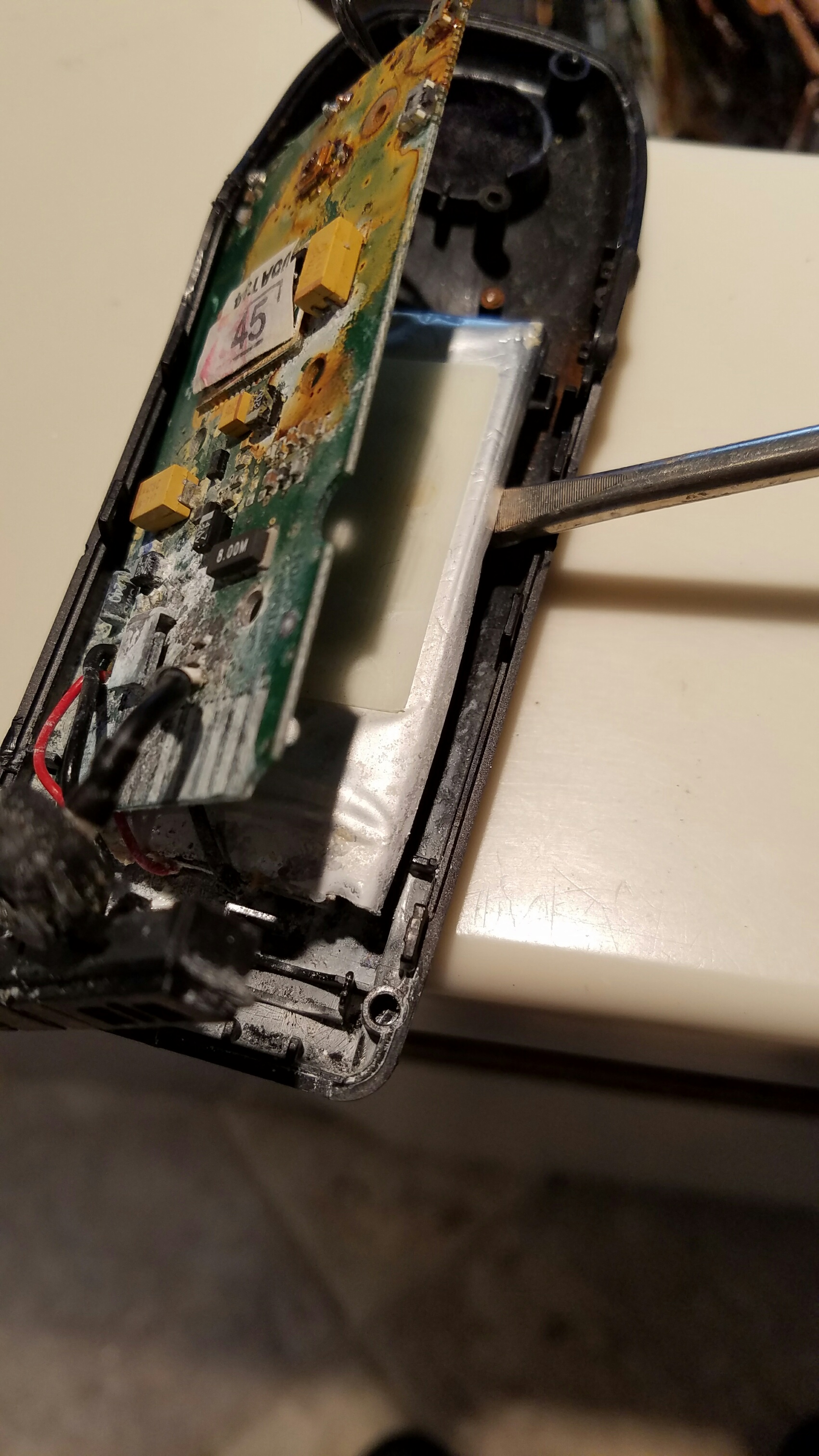

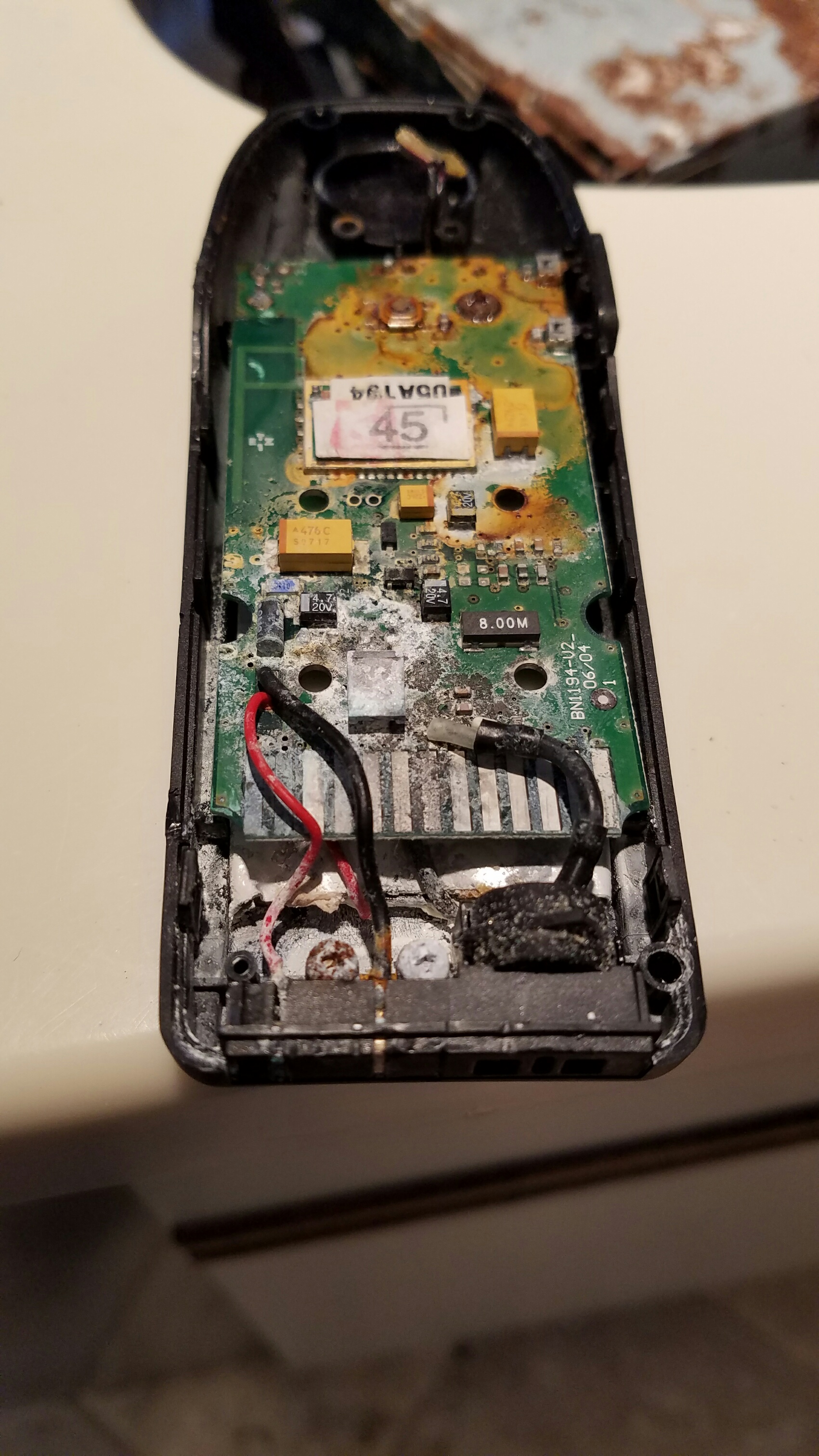

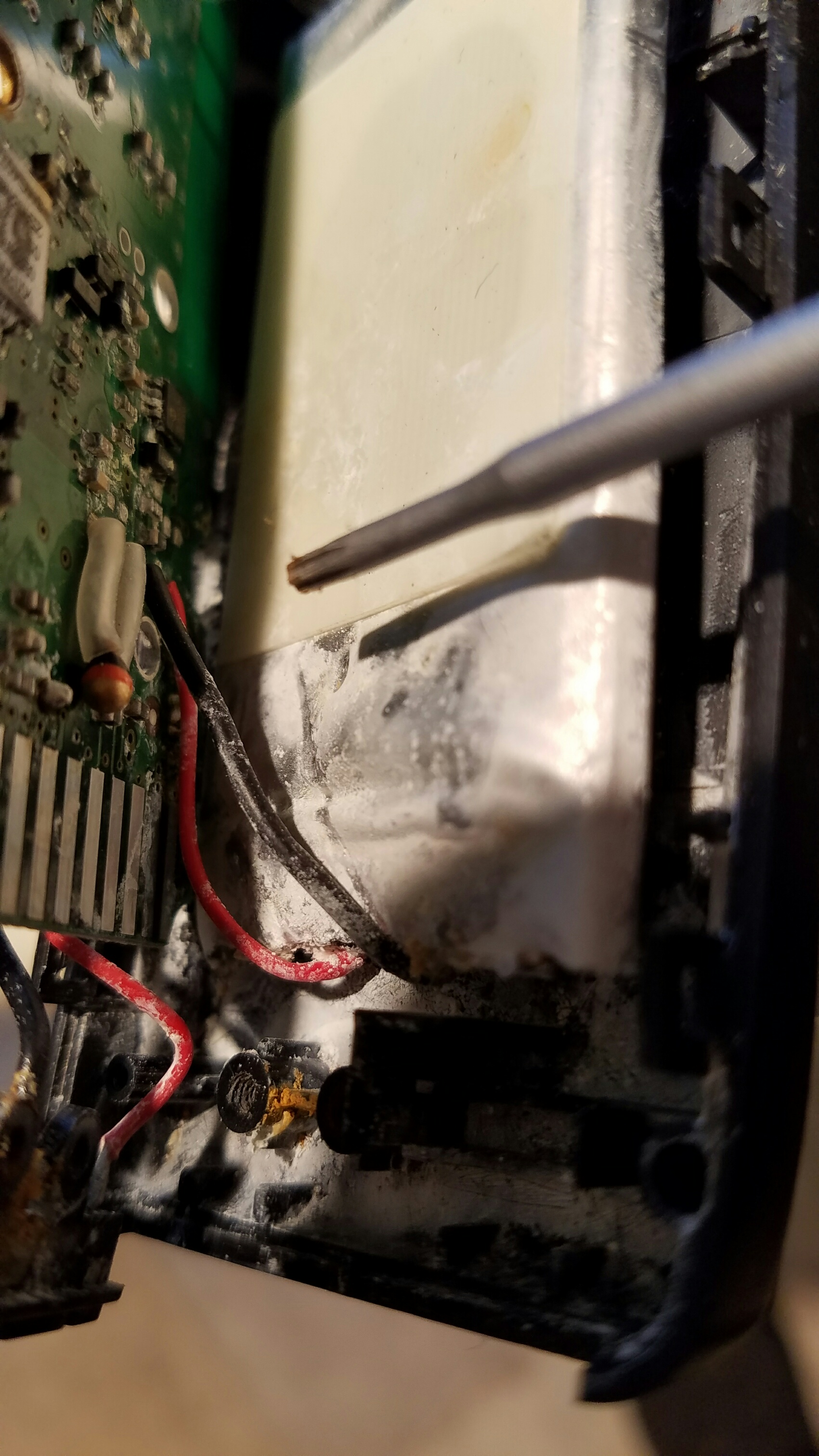

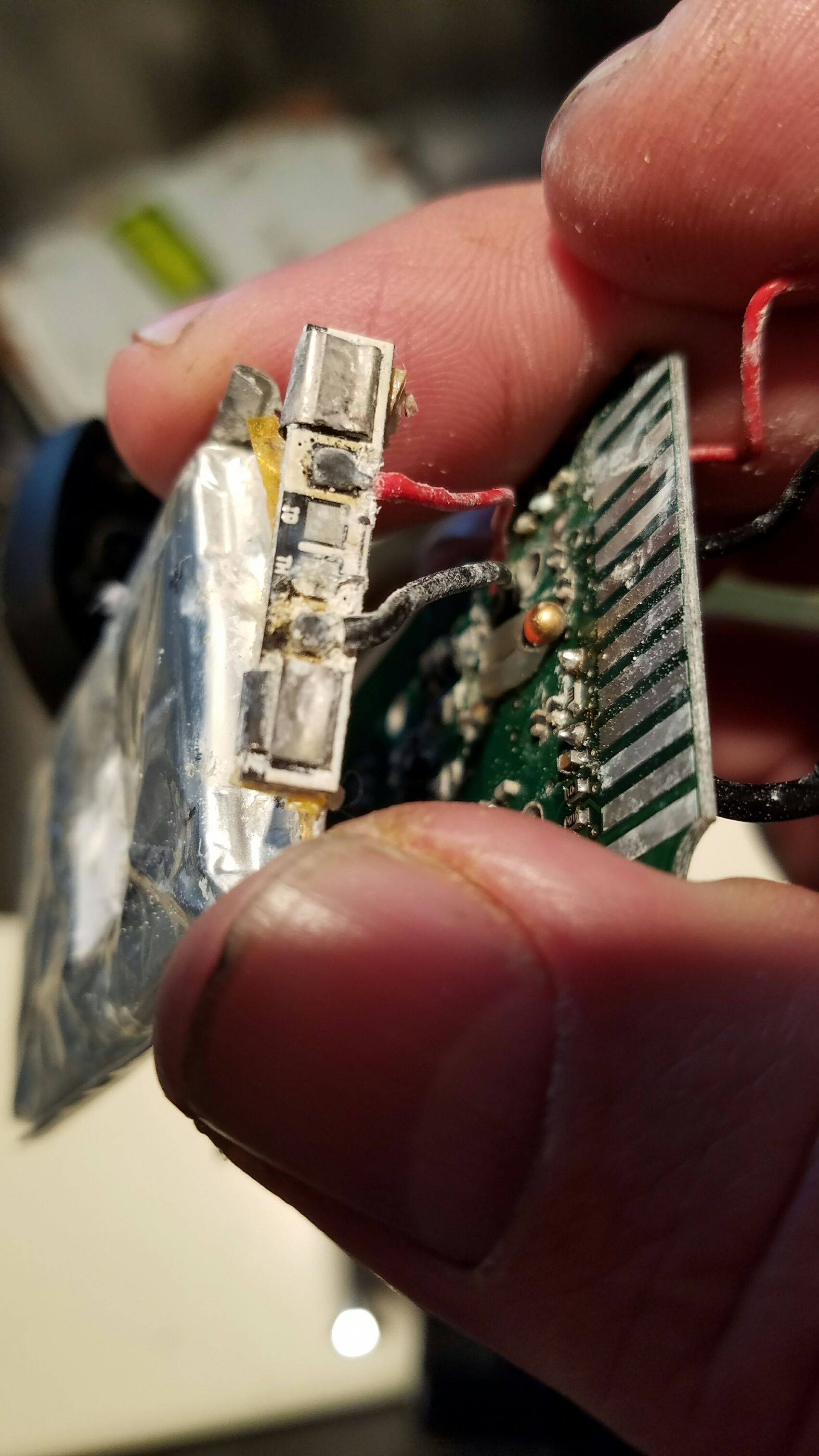

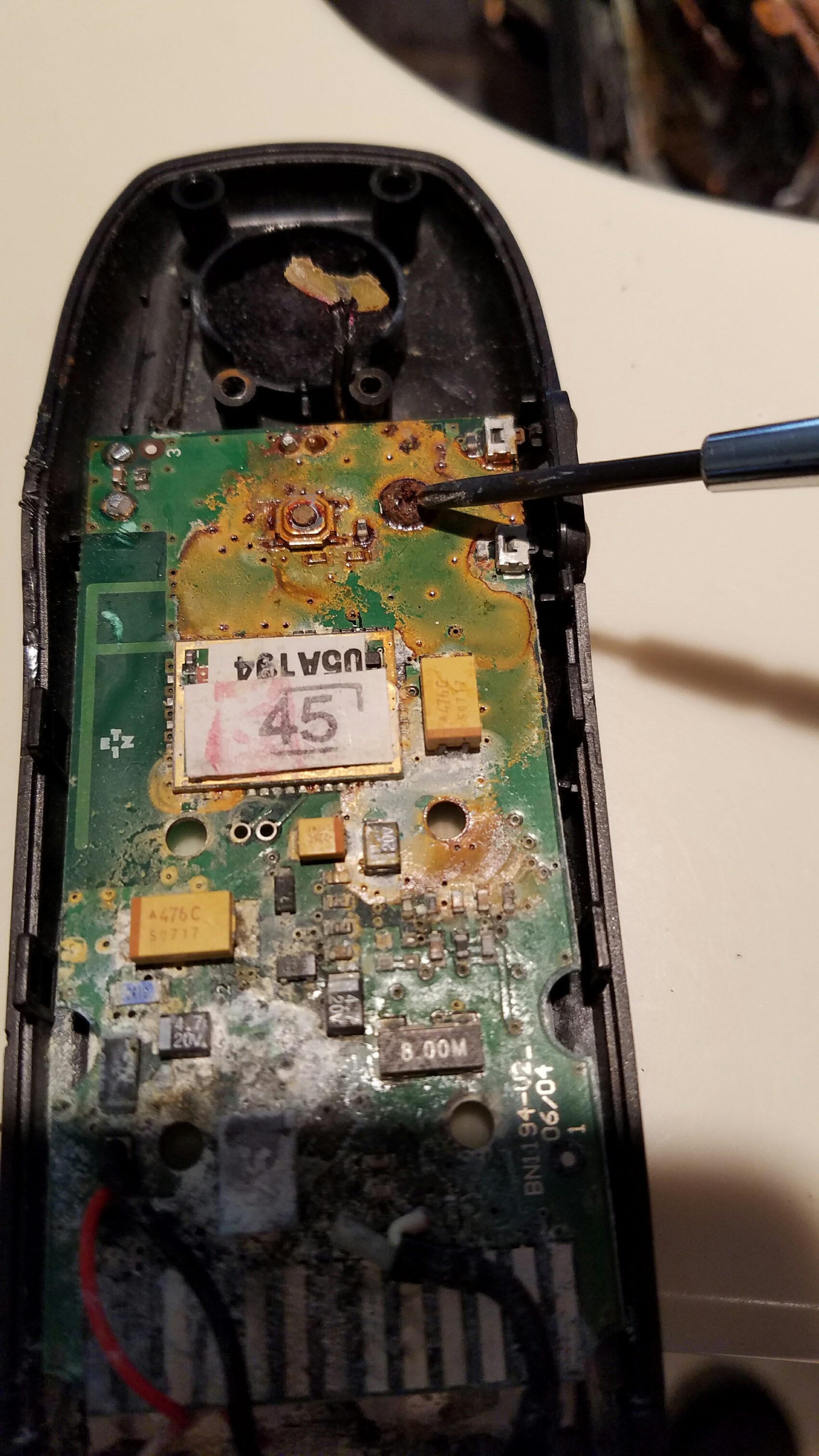

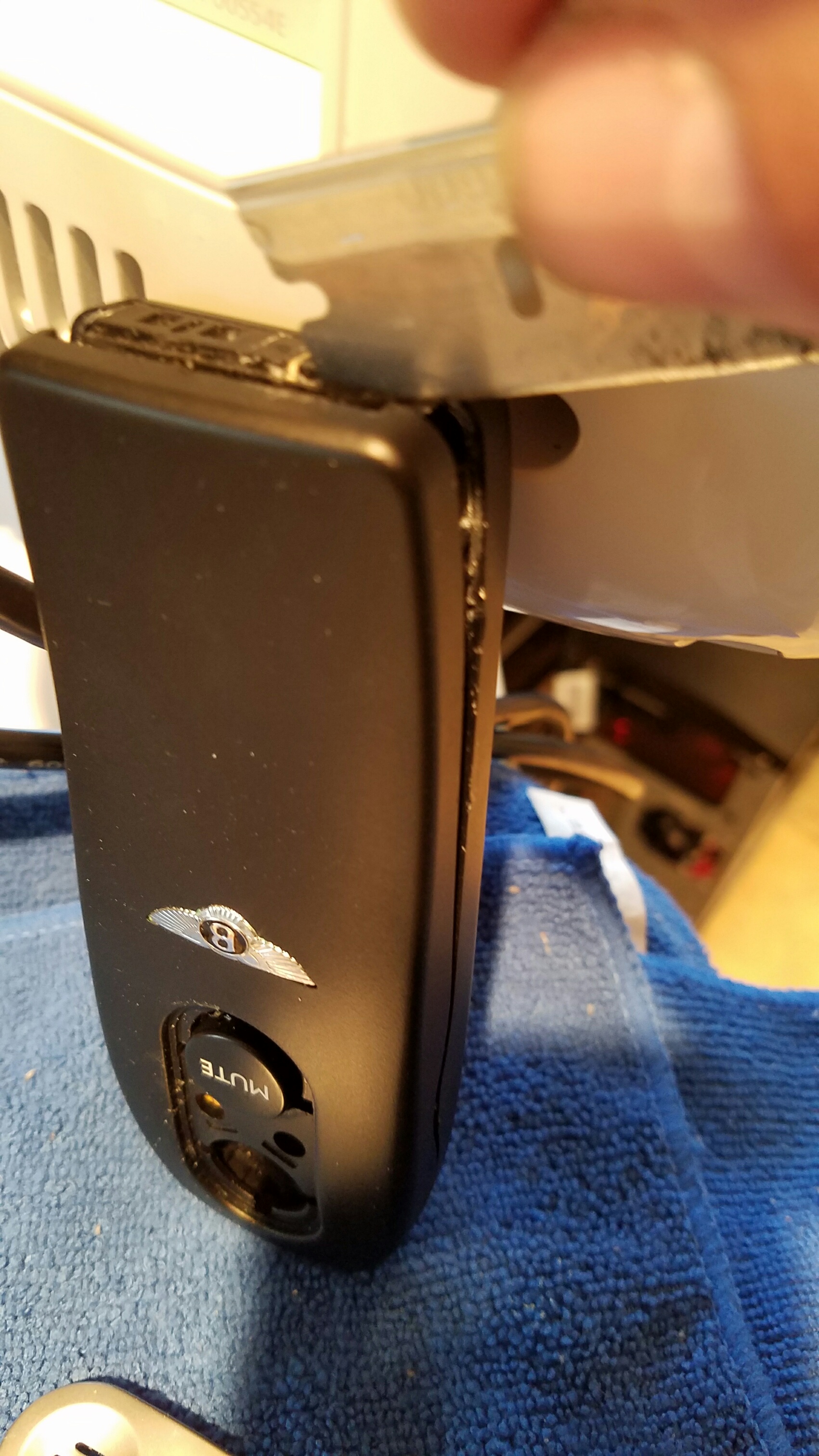

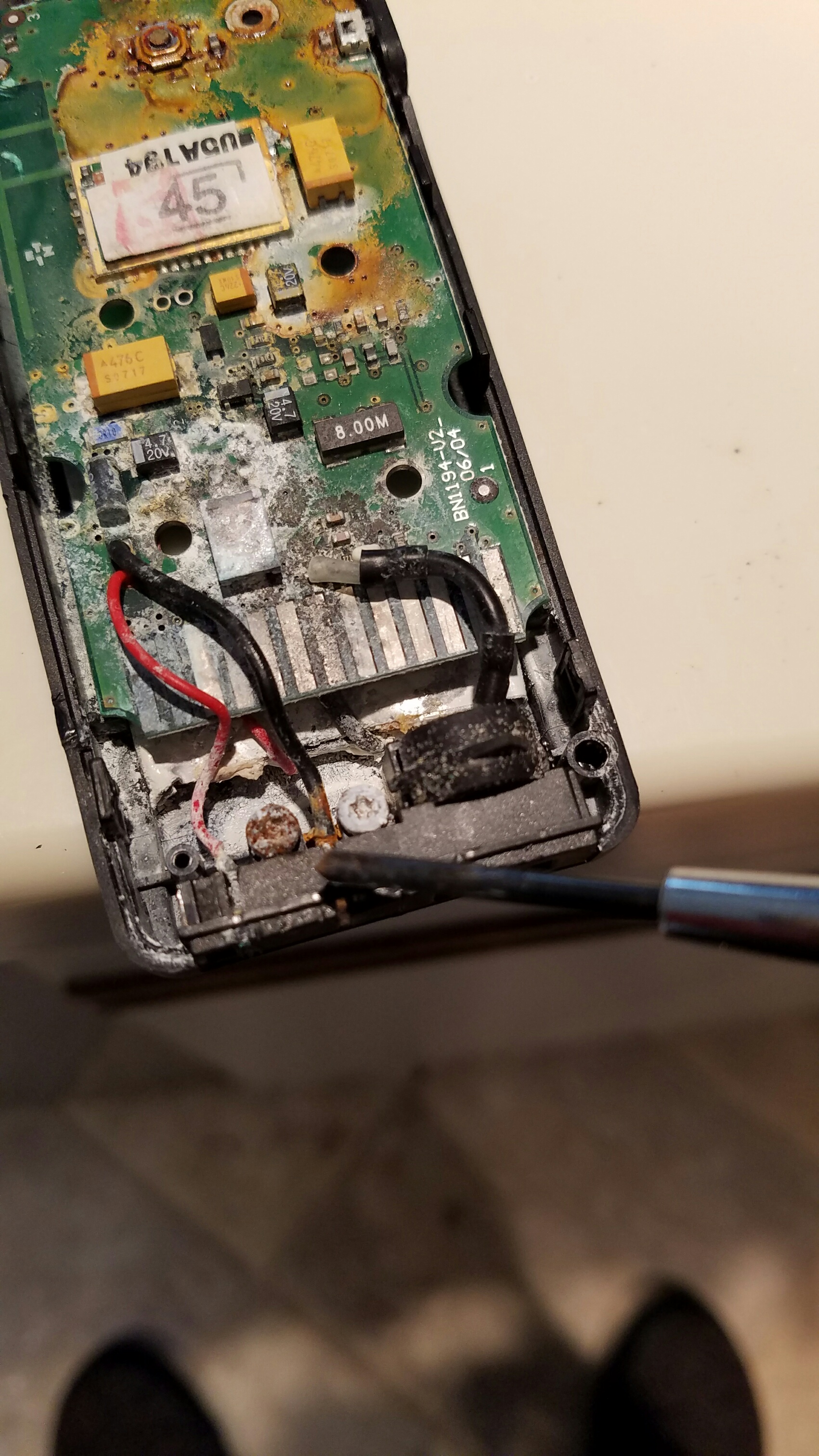

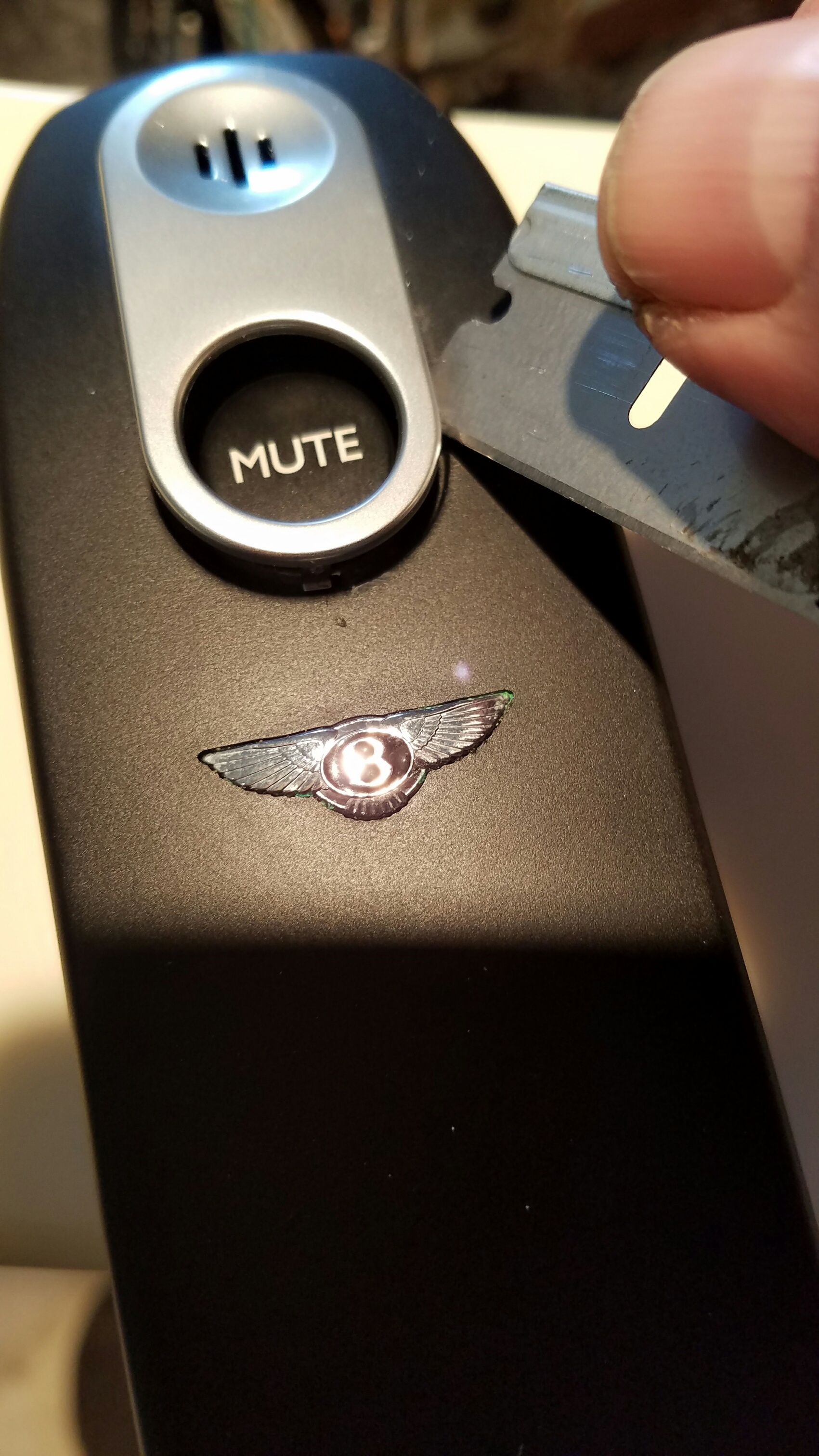

A fellow member asked me my thought on how to open the phone without damage, so here are the pictures, WARNING, be very careful with the 2 wires for the speaker, you may want to pop the speaker out by prying around the circle it's in, plus the same care for the 2 wires for the antenna.

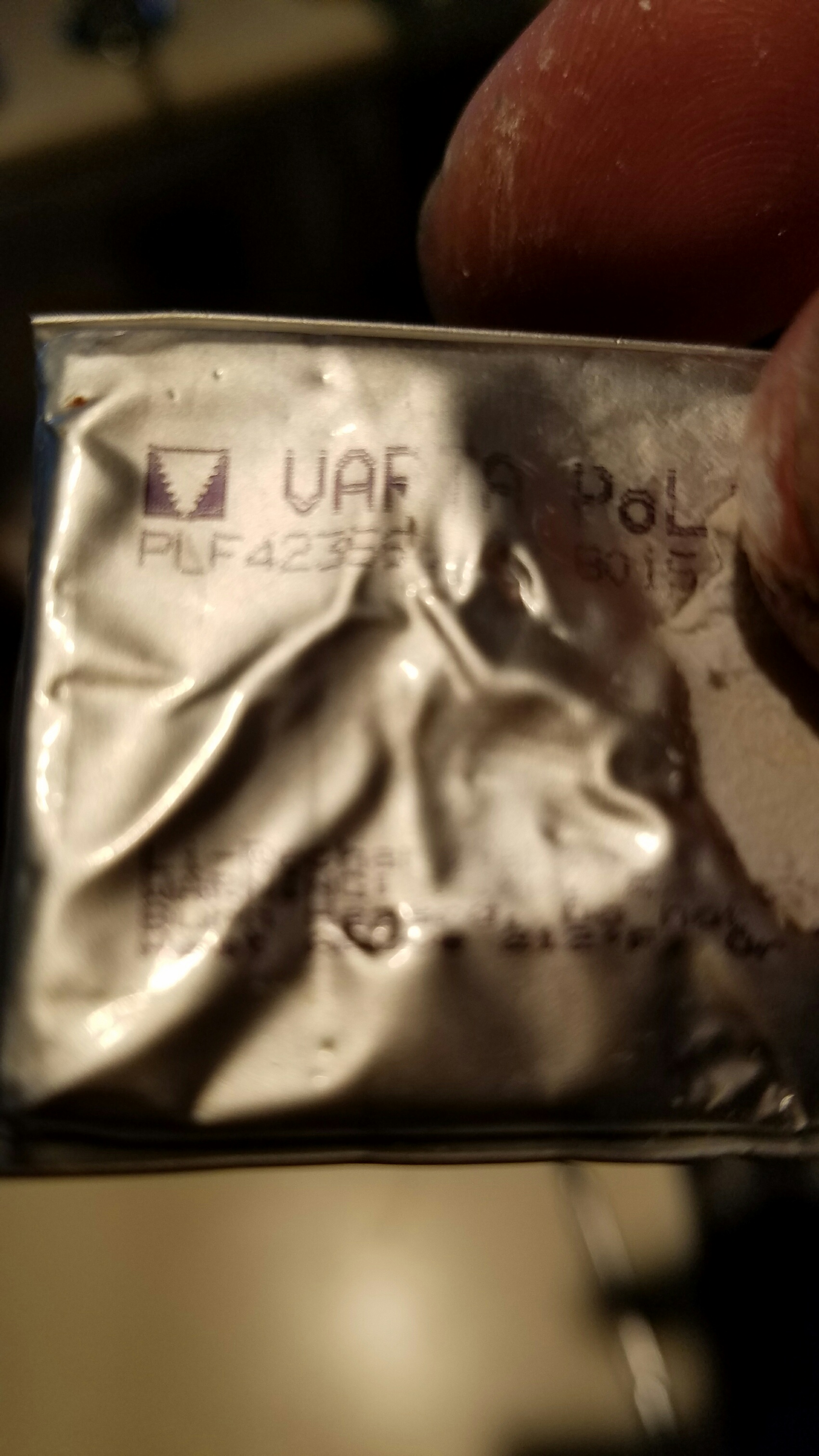

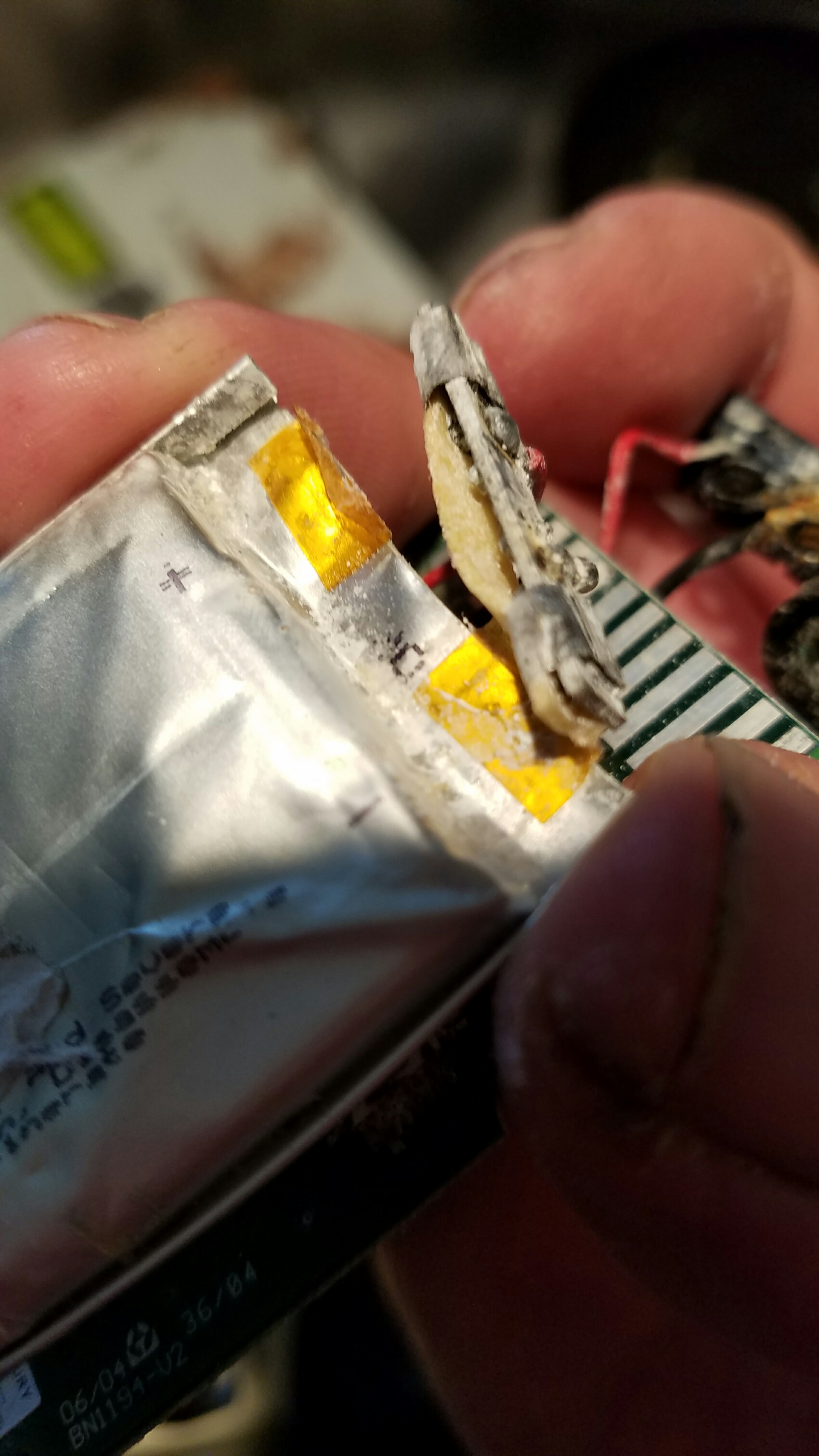

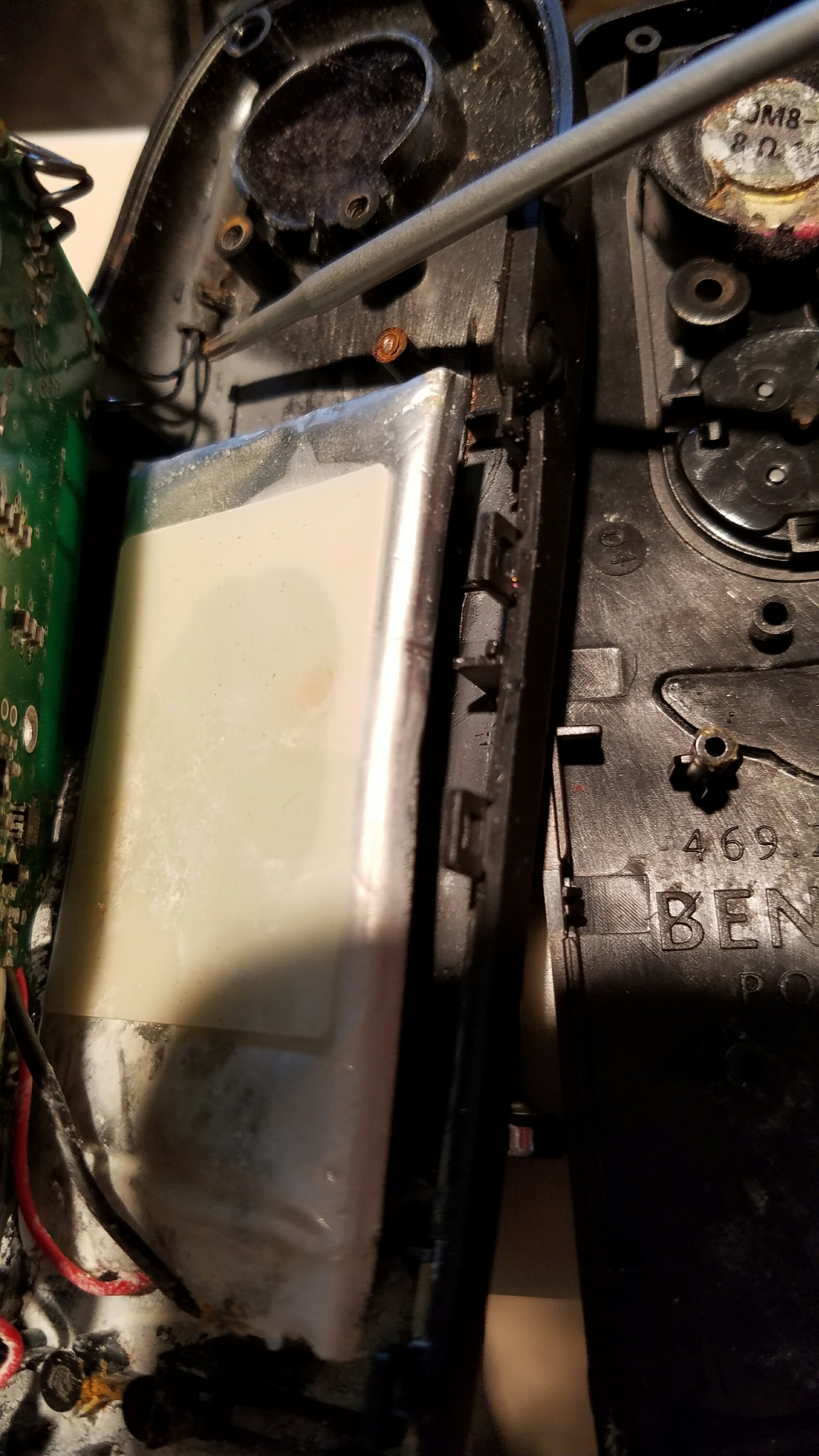

Also, here are some links for the battery, Varta # PLF423566.
The guy in Texas (Best Buy IC) is checking on stock and price.
There is a battery on EBay at $5, but it not exactly the same part number letter wise, same 3.7 volts though, I am also attaching the PDF Varta Spec sheet for the PLF423566, it shows the measurements.
Just a note, I tried to respond to the PM, buy I received this message "xxxxxxxxxxxxx has chosen not to receive private messages or may not be allowed to receive private messages. Therefore you may not send your message to him/her."
http://www.ebay.com/itm/Varta-Batter...gAAOSwZ1lWgp0T
http://www.bestbuyic.com/p/PLF423566S-PLF423566S.php
https://www.netcomponents.com/2P/sit...F423566-S.html
.
A fellow member asked me my thought on how to open the phone without damage, so here are the pictures, WARNING, be very careful with the 2 wires for the speaker, you may want to pop the speaker out by prying around the circle it's in, plus the same care for the 2 wires for the antenna.
Also, here are some links for the battery, Varta # PLF423566.
The guy in Texas (Best Buy IC) is checking on stock and price.
There is a battery on EBay at $5, but it not exactly the same part number letter wise, same 3.7 volts though, I am also attaching the PDF Varta Spec sheet for the PLF423566, it shows the measurements.
Just a note, I tried to respond to the PM, buy I received this message "xxxxxxxxxxxxx has chosen not to receive private messages or may not be allowed to receive private messages. Therefore you may not send your message to him/her."
http://www.ebay.com/itm/Varta-Batter...gAAOSwZ1lWgp0T
http://www.bestbuyic.com/p/PLF423566S-PLF423566S.php
https://www.netcomponents.com/2P/sit...F423566-S.html
.
Last edited by Johnny Hotspur GT; 04-25-2016 at 09:19 AM.
#3
LOL !!
I was going to toss the innards in the trash......
BUT now you got me thinking..... Thanks
#5
Yeah I wasn't planning on saving it, I only took it apart to show the other member how to disassemble, I found one for $100.00
Oh, I'm sorry everyone for the dirty fingernail pics my hands took a beating the last 2 weeks, and they hurt like he'll, especially the two thumbs......
Oh, I'm sorry everyone for the dirty fingernail pics my hands took a beating the last 2 weeks, and they hurt like he'll, especially the two thumbs......
