@Littlj01 ,
Also check the 5amp fuse for the telephone control module, the fuse is number 28 in the driver's fascia fusebox.

Johnny



Johnny, how do you reset the head unit?

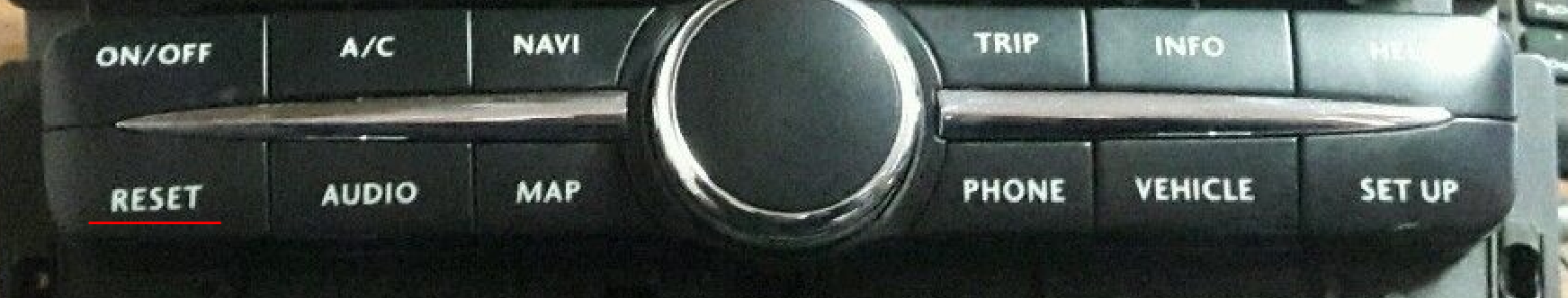

Press the "RESET" button as pictured, do you not have one ?

Johnny

...



WOW !!
Here is a 23rd week of 2010 infotainment head unit for only $466.00 !
It has SW 2270, and your replacment "AT" BT unit would work, BUT, then you would need a DVD NAV drive, and lose the armrest inserts, or upgrade them as I did....

https://www.ebay.com/itm/BENTLEY-CONTROL-UNIT-CENTRAL-PHONE-SAT-NAV-SATELLITE-NAVIGATION-GPS-3W0-035-007P/174223866762?epid=530311621&hash=item28908d3b8 a:g]https://www.ebay.com/itm/BENTLEY-CONTROL-UNIT-CENTRAL-PHONE-SAT-NAV-SATELLITE-NAVIGATION-GPS-3W0-035-007P/174223866762?epid=530311621&hash=item28908d3b8a:g: pPkAAOSwWnReNu6g

Johnny



@Littlj01 ,
Any luck with the reset button, or fuse ?

Johnny



No luck. Reset did not work and fuses are all OK. Maybe I broke the unit when I opened it to remove the antenna. I will try and find someone who can look at the electrics. Or get a second hand one.

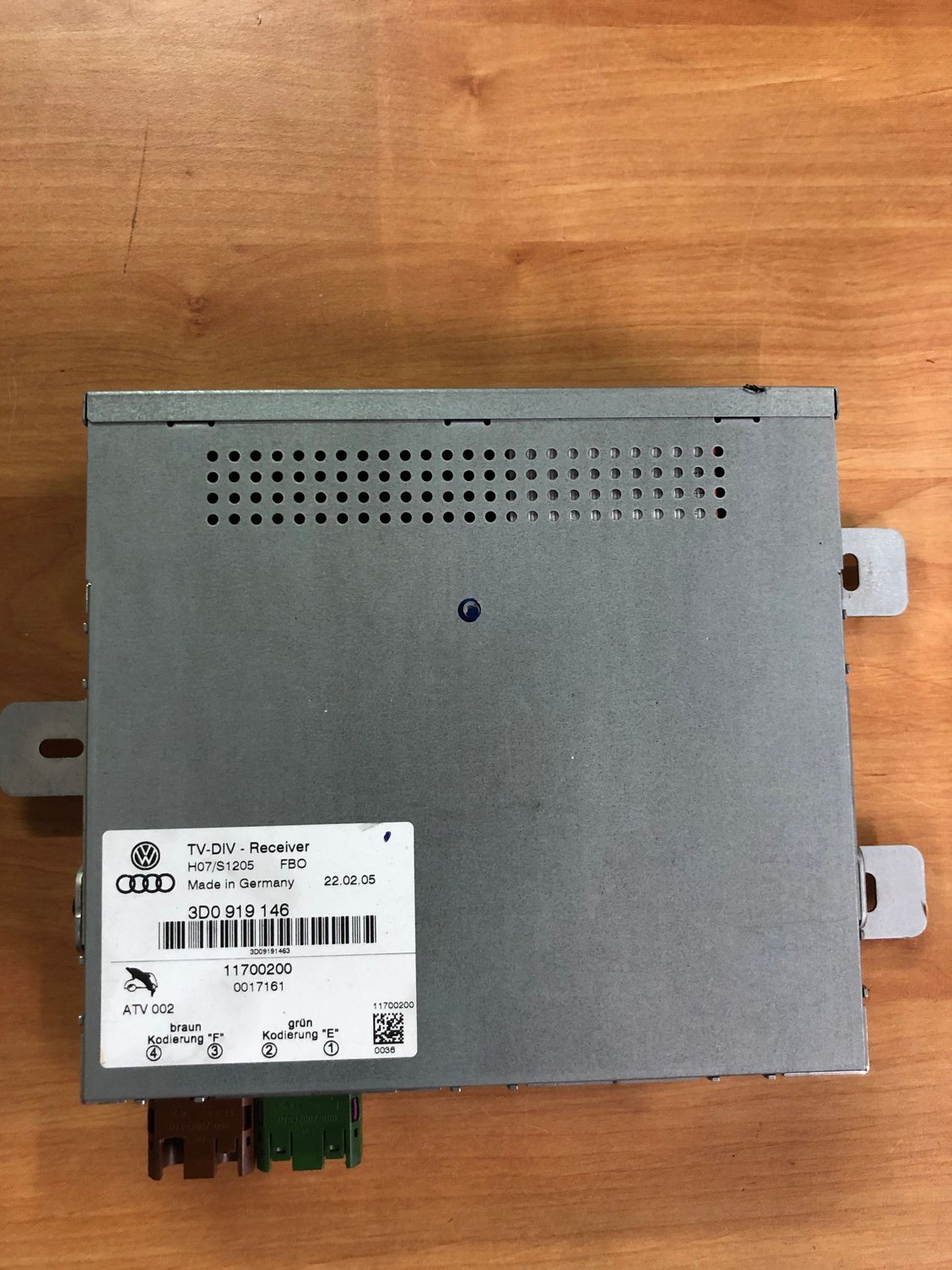

I've noticed the new TV tuner does not retain its stations. Is that your experience? It has to tune each time I use it.



As I previously mentioned, I have no stations, as we never had the TV tuner option here in the USA, did your old analog tuner retain the stations when it was working ?

Are you sure you checked all the fuses, as by not retaining stations sounds like a lack of memory power backup.

Johnny



I need to play with it more. Its definitely got power. Baybe its just old.



Yeah I just went through the fuse layout, and there appears to be no standby power, so if it is working then fuse number 9 at the dash is good.

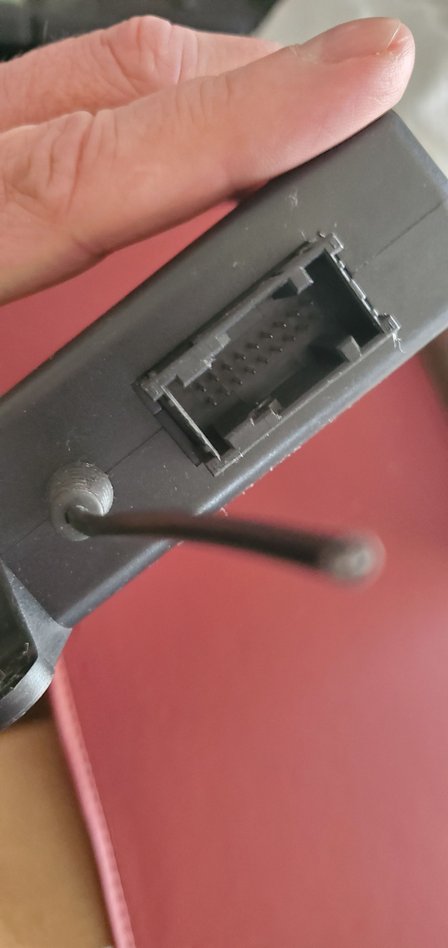

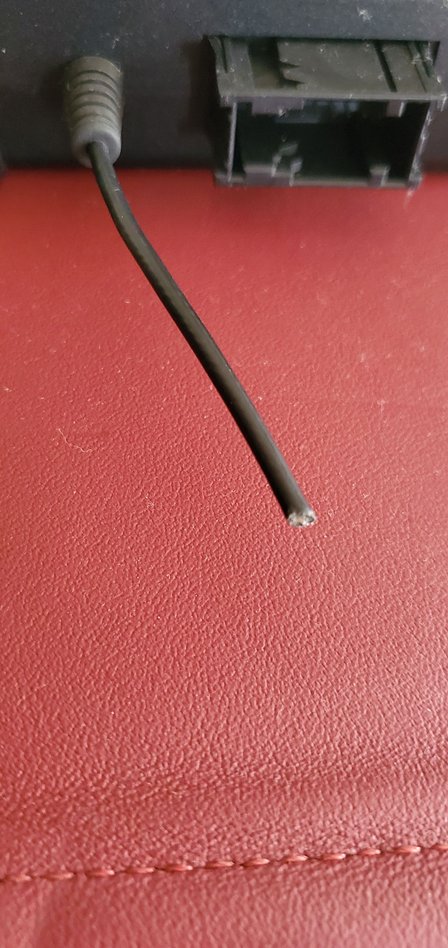

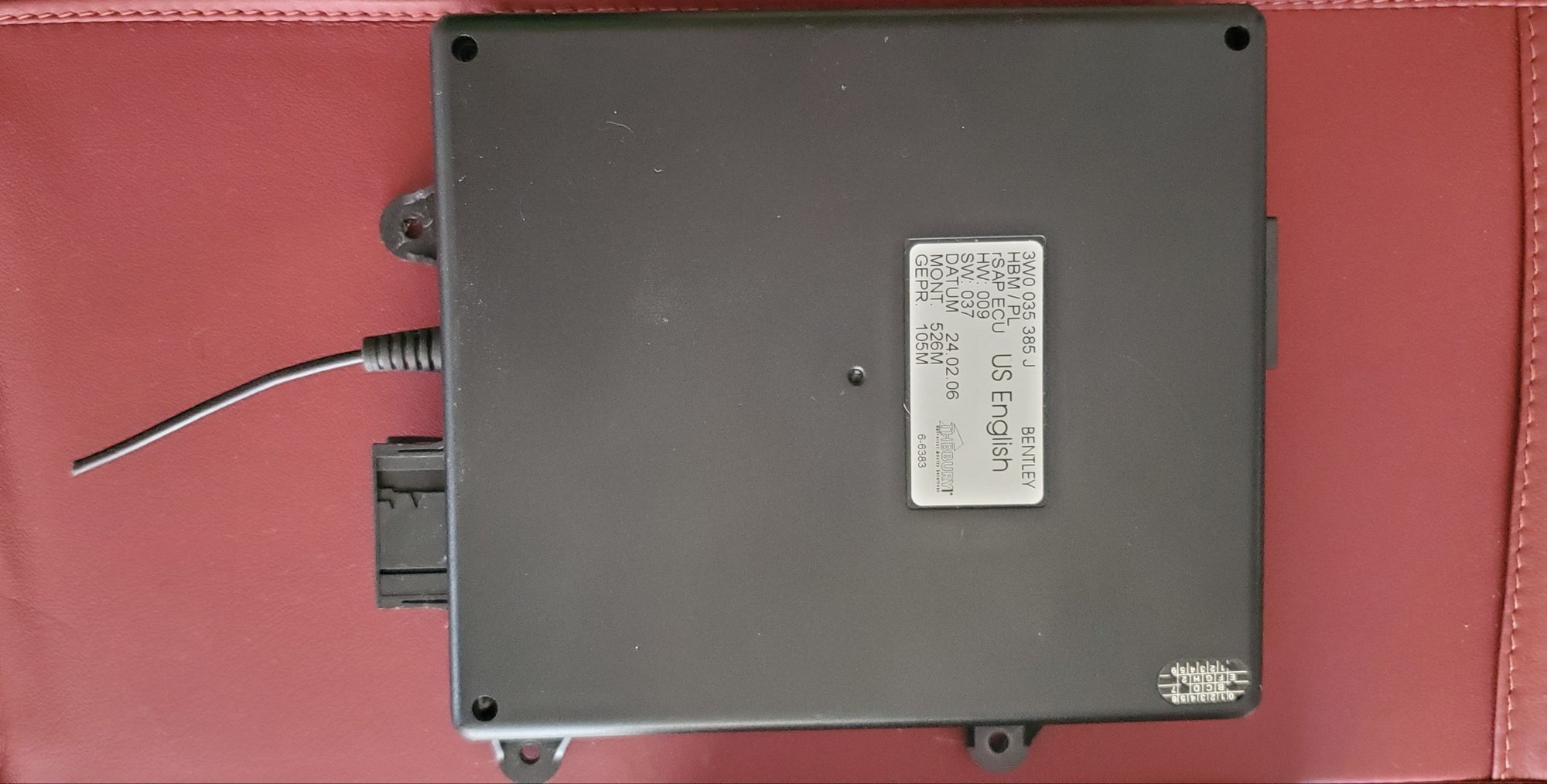

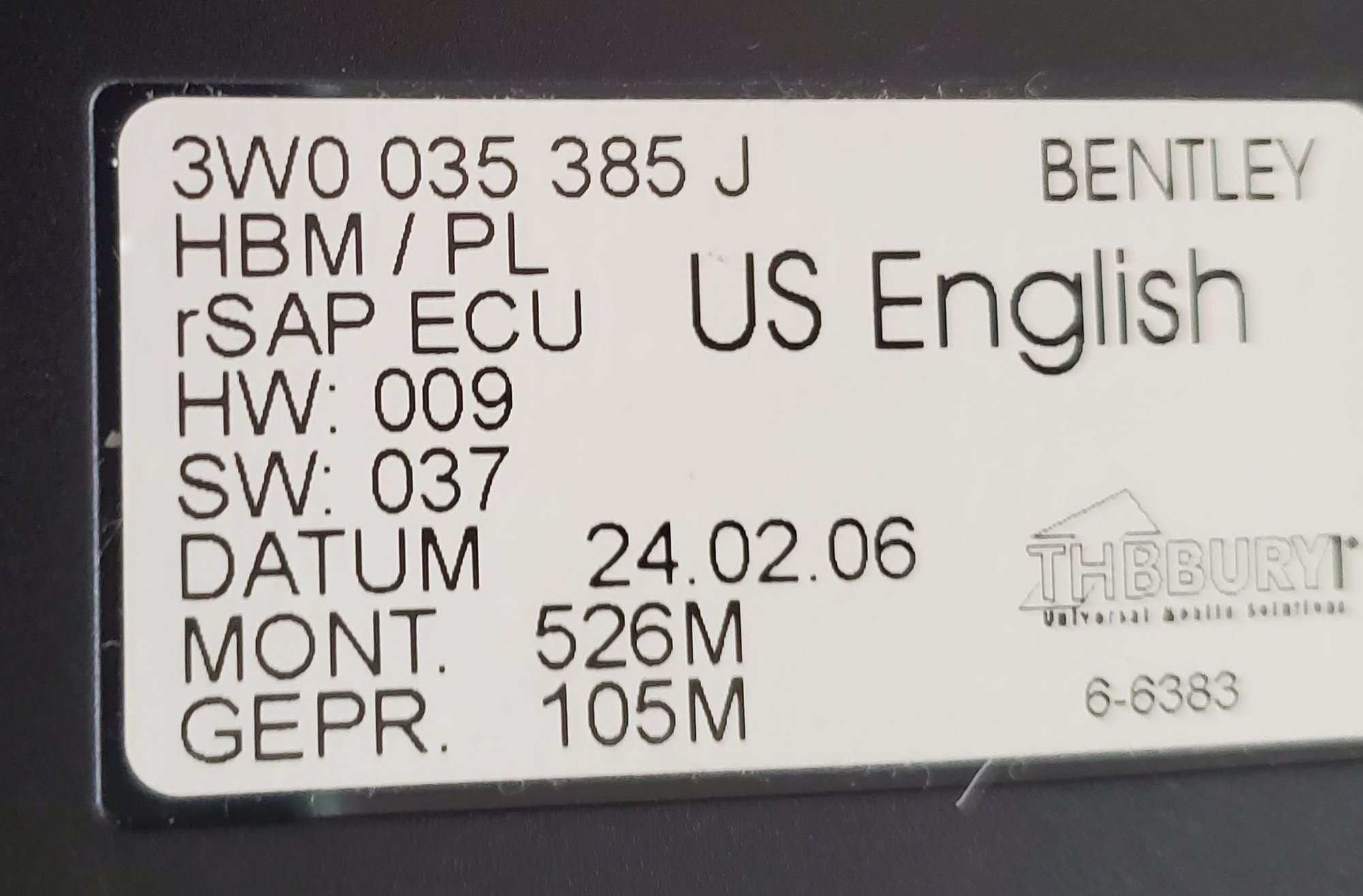

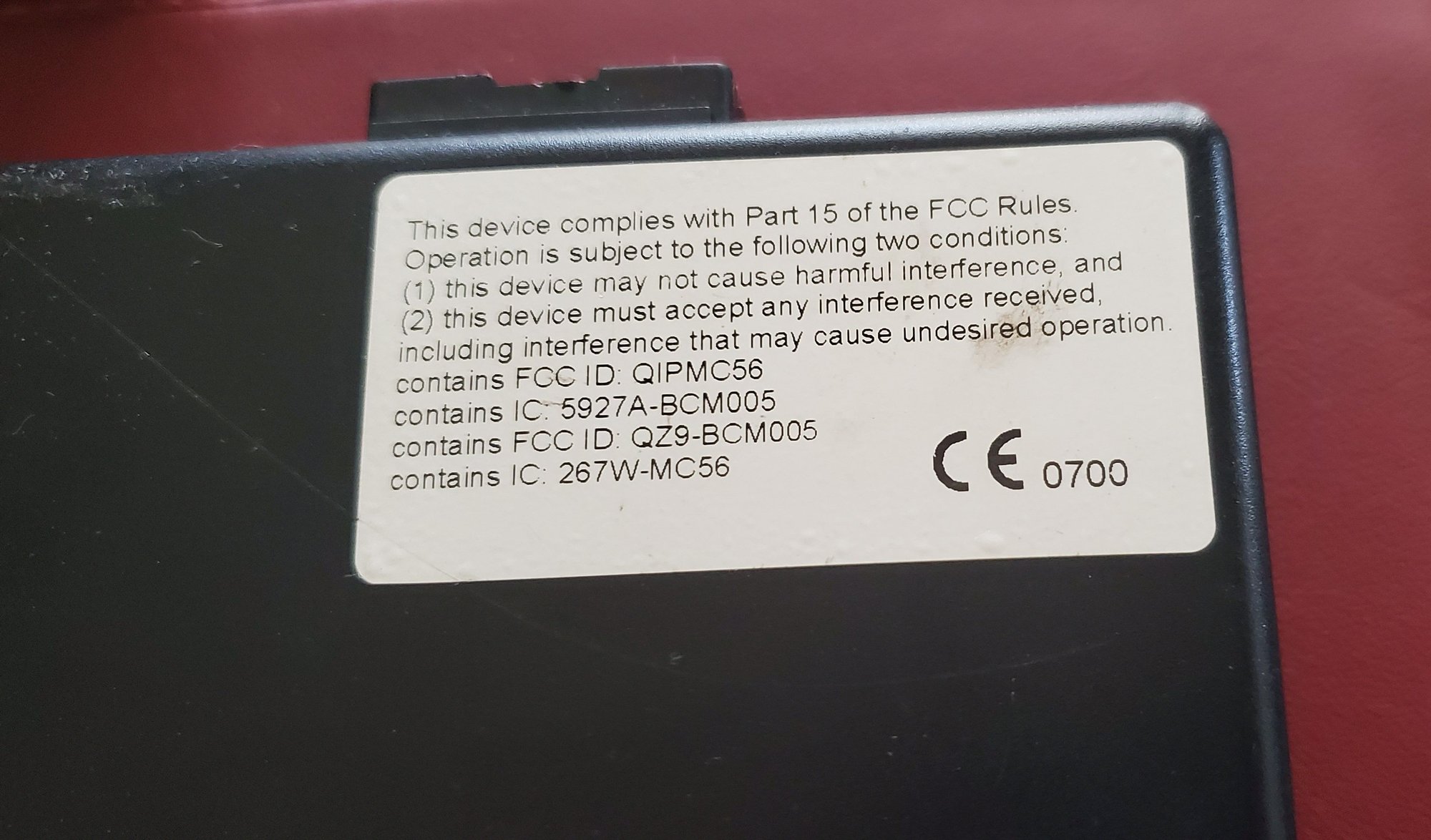

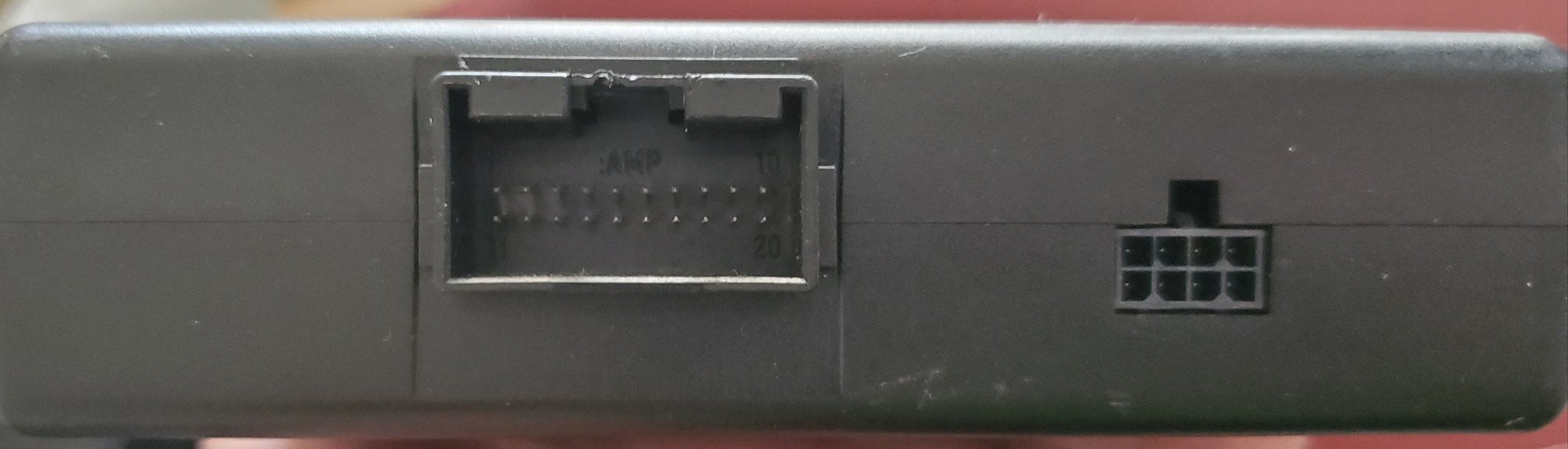

As far as your BT module, if you find that you need a replacement, I have the 3W0 035 385 J at 75us + ship if needed, the "J" is the "US English" version, still with HW:009 & SW:037, although the wire is cut, it can be spliced as I did mine.

Johnny

...



Thanks Johnny. I'll have a think. The cut antenna cable is not an issue as if you open the unit the antenna cable just pulls out from its connection.



Hello Johnny
I could only today send the photos as requested. Sorry, I was away for the weekend.
I have tried all sorts of settings and coding, nothing seems to work. This is why I concluded that my headunit isn't up to the job of showing digital media.
See if you can see if I am missing something.
Thanks

VCDS

ATV

DTV

Only white noise, scanning produces no results. All 4 Antennas checked OK



​@sspeeder ,
Ok, give me a few I will be back with some settings, the TV tuner is being seen by your infotainment head unit, otherwise it wouldn't be showing the TV screen, also it has nothing to do with digital, as the screen itself is feed an analog video signal from the digital TV tuner box.

BRB.

Johnny



@sspeeder ,
What happens when you press the settings button and select your country, format (PAL, NTSC, etc.) ?

Johnny

..



@Littlj01 ,
James,
Would you kindly post some pictures of your screen and the buttons you pushed to set the settings for TV in your area.

Thank you.
Johnny
