Been trying to find the location of this module but to no avail.

This is regarding to a few posts here in the past. Finally figured up how to open my Boot. Now I need to figure out why, it will not release. After done here, I will post a HowTo opening boots and troubleshooting

Cheers,

~ZaOs~



Hello @Zaos ,

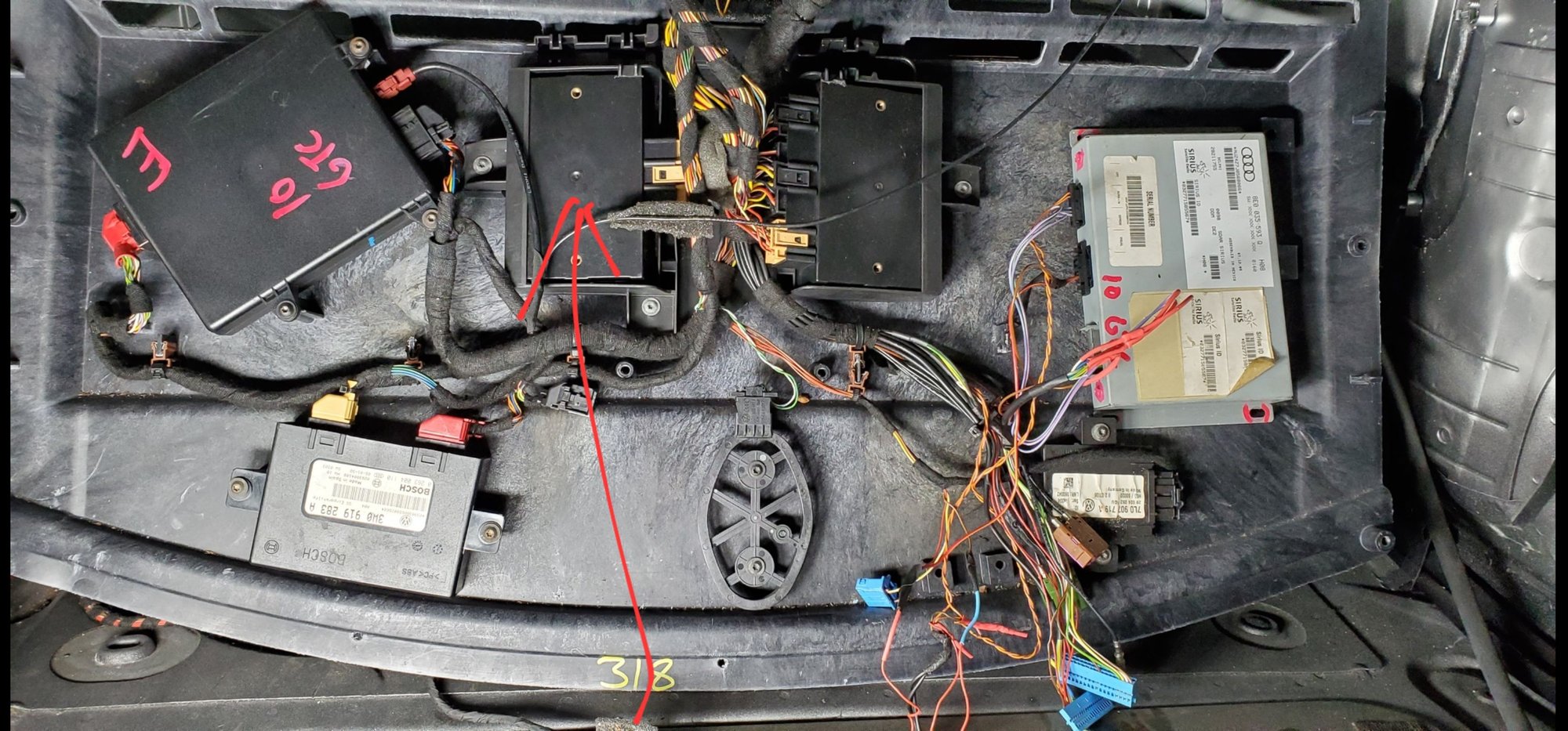

The bootlid control module is located on the drop down shelf in the trunk, it is the single plug module as shown by the red arrow.

Note, mine is on the left as pictured, although I have seen it on the right, as the are both the same size, I may have just swapped them during my rebuild, just know that the module in question is the single plug, not the triple plug.

Part # 3W0909610E, or G.

Johnny

.



Thx really helped,

Did not have the IETIS avail and could not find the module. I am documenting all to help and again write it up here. This has been my most painful experience owning my Bentley since ever and I had to pull my engine twice. This trunk/boot issue is the worst LoL........

Cannot wait to share
