Hi. Looking for a set of drawings for my continental gt speed 2008.
If not, then specifically then the wiring diagram for the reverse camera.
Suddenly stopped working this week, checked all the fuses, because I don't have the drawings to find the exact one. So far all good. So I'm thinking it runs through a relay to the control unit.
Had the control unit out, it looks fine, no signs of any damage.
So I really need to trace this back before I start buying replacement parts.
Cheers
Tony.



Hello @TonyQuinn ,
I take it you are RHD..

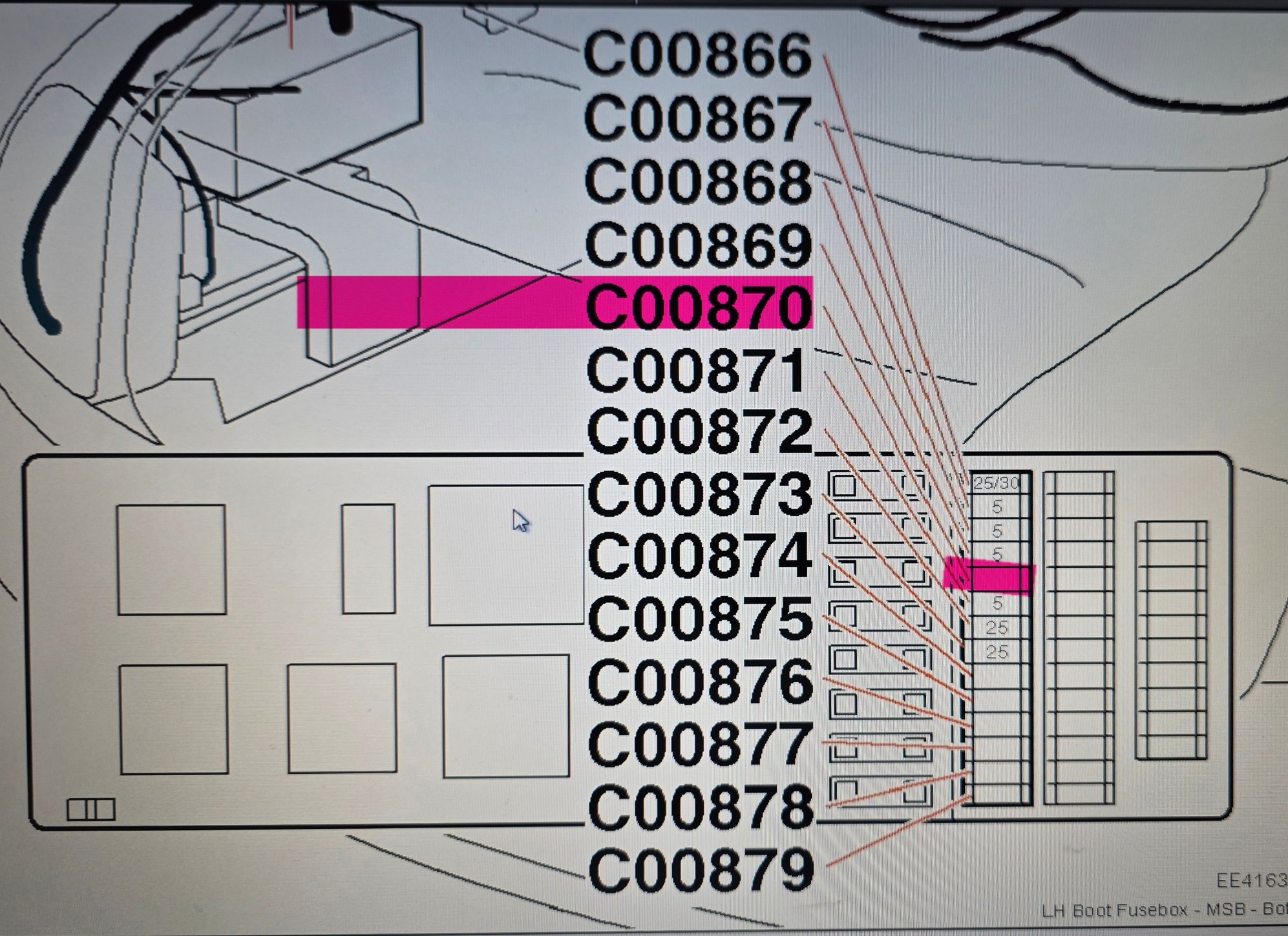

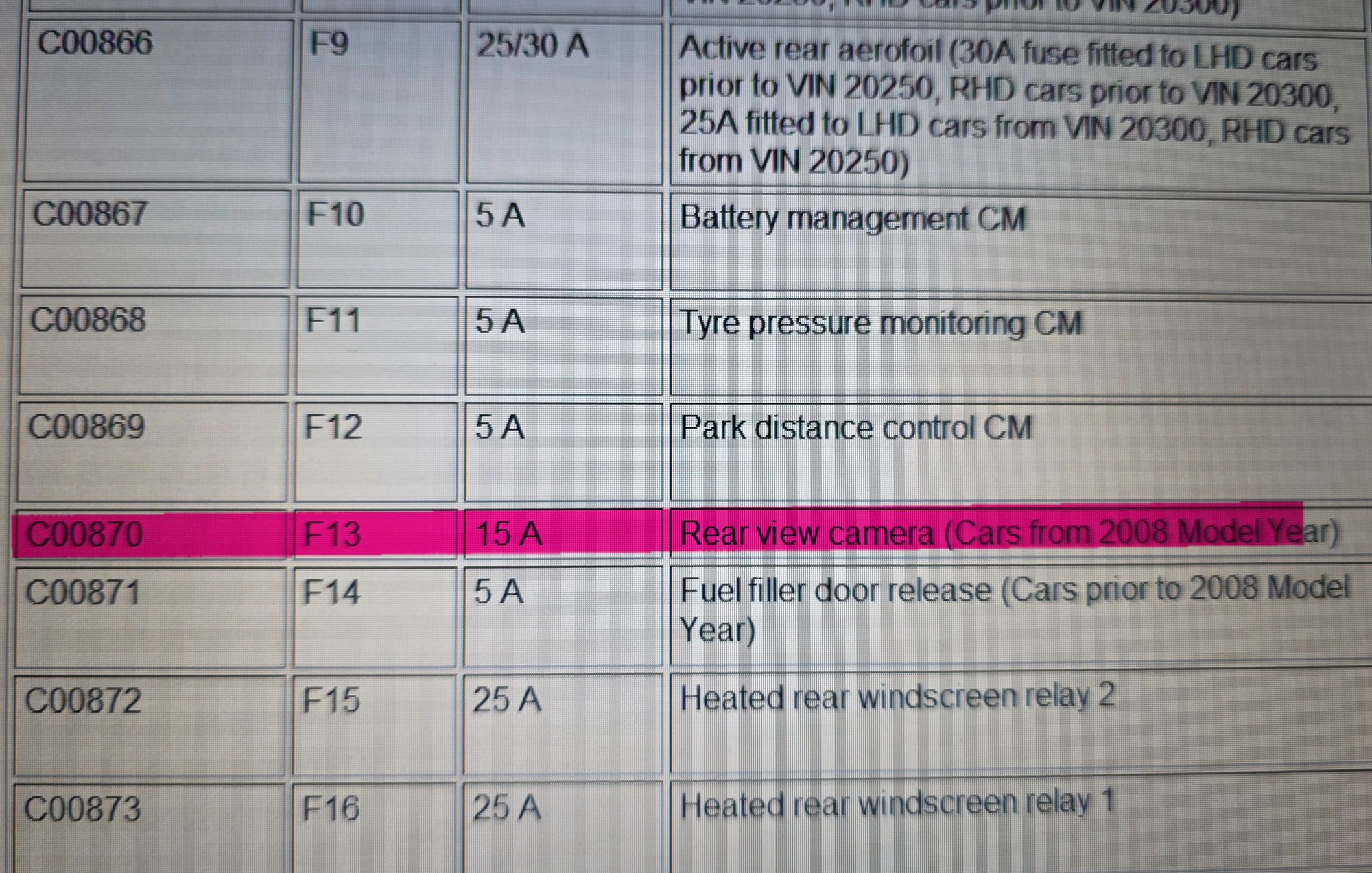

Fuse F13 in the boot on the left is for the reverse camera.






And the wiring diagram for the RVC module.







Johnny


.



Hi Johnny.
Yes I'm RHD.
Many thanks for the info. I will have a look at it tomorrow.
Fingers crossed it's the relay and not the control unit. Will let you know.
I owe you a beer.
Cheers
Tony.
