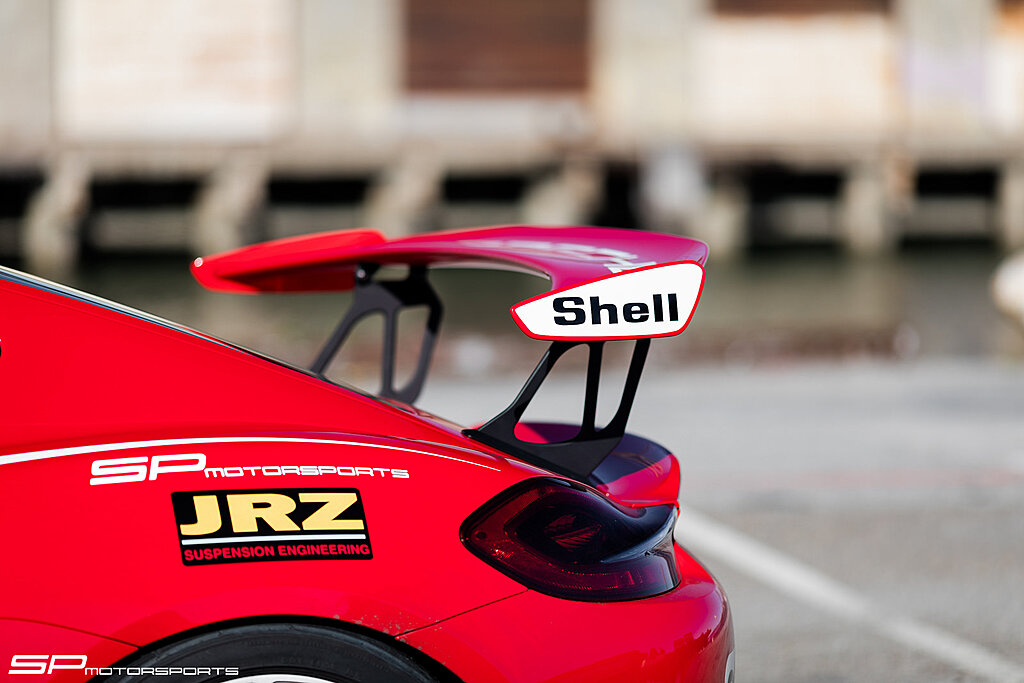

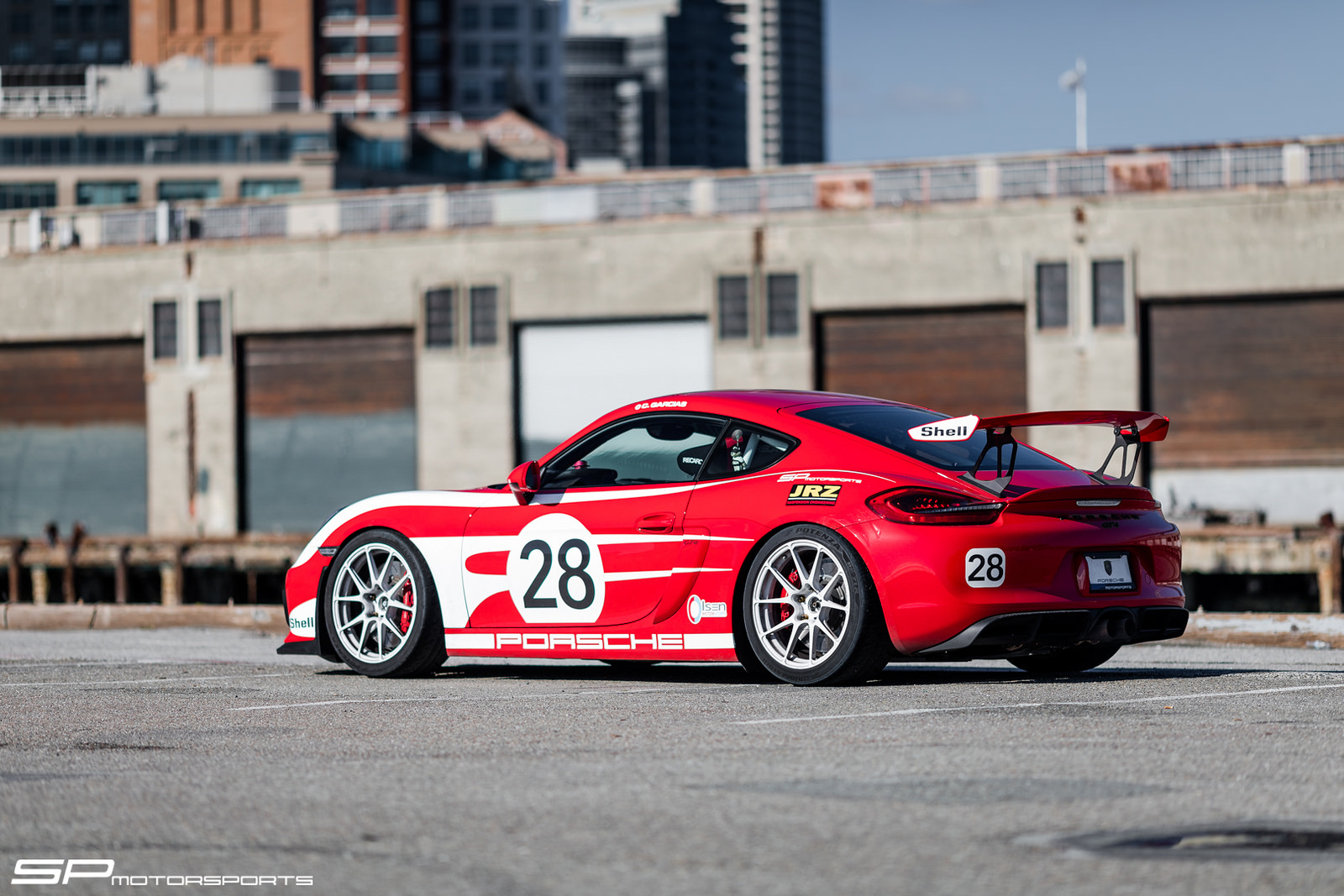

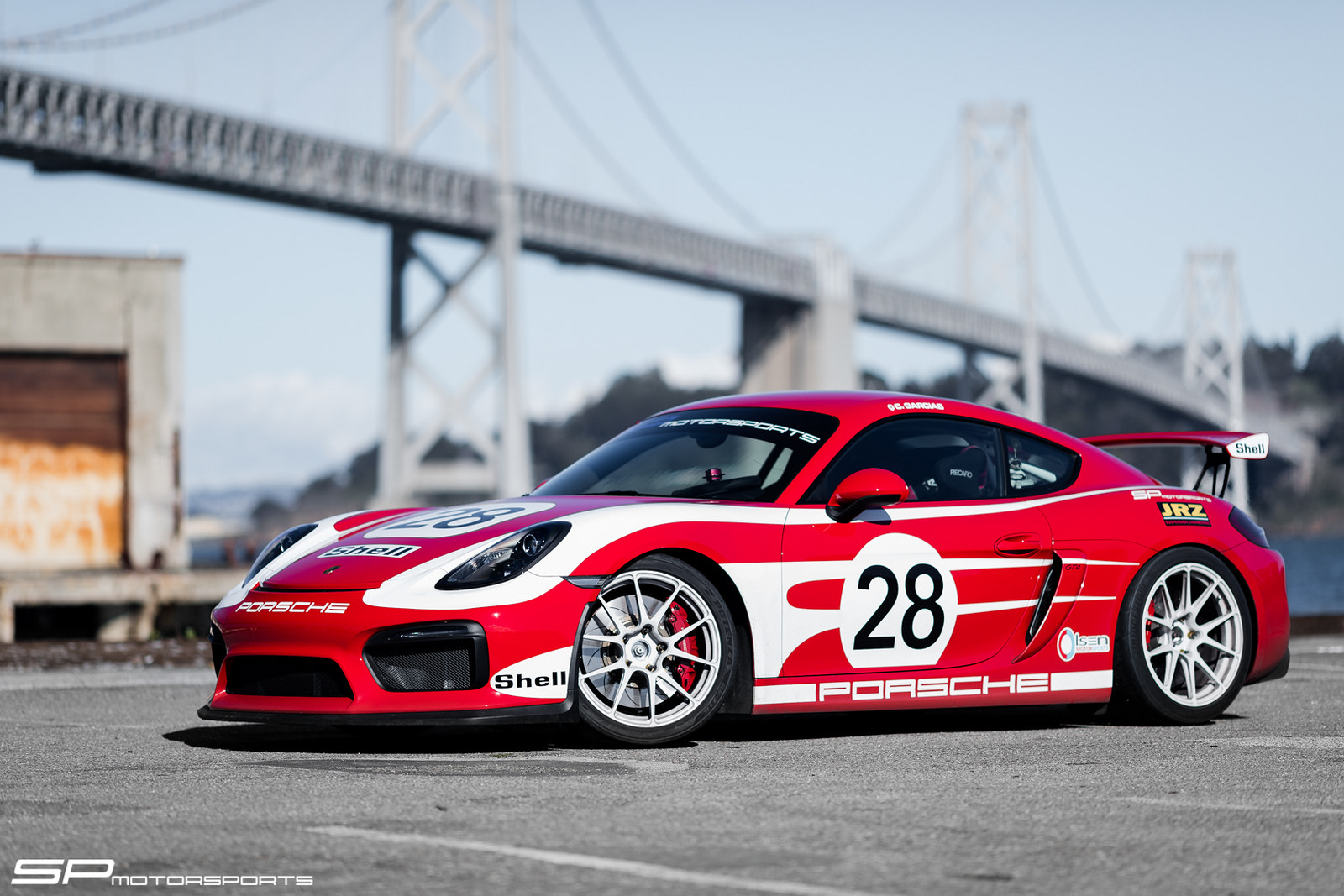

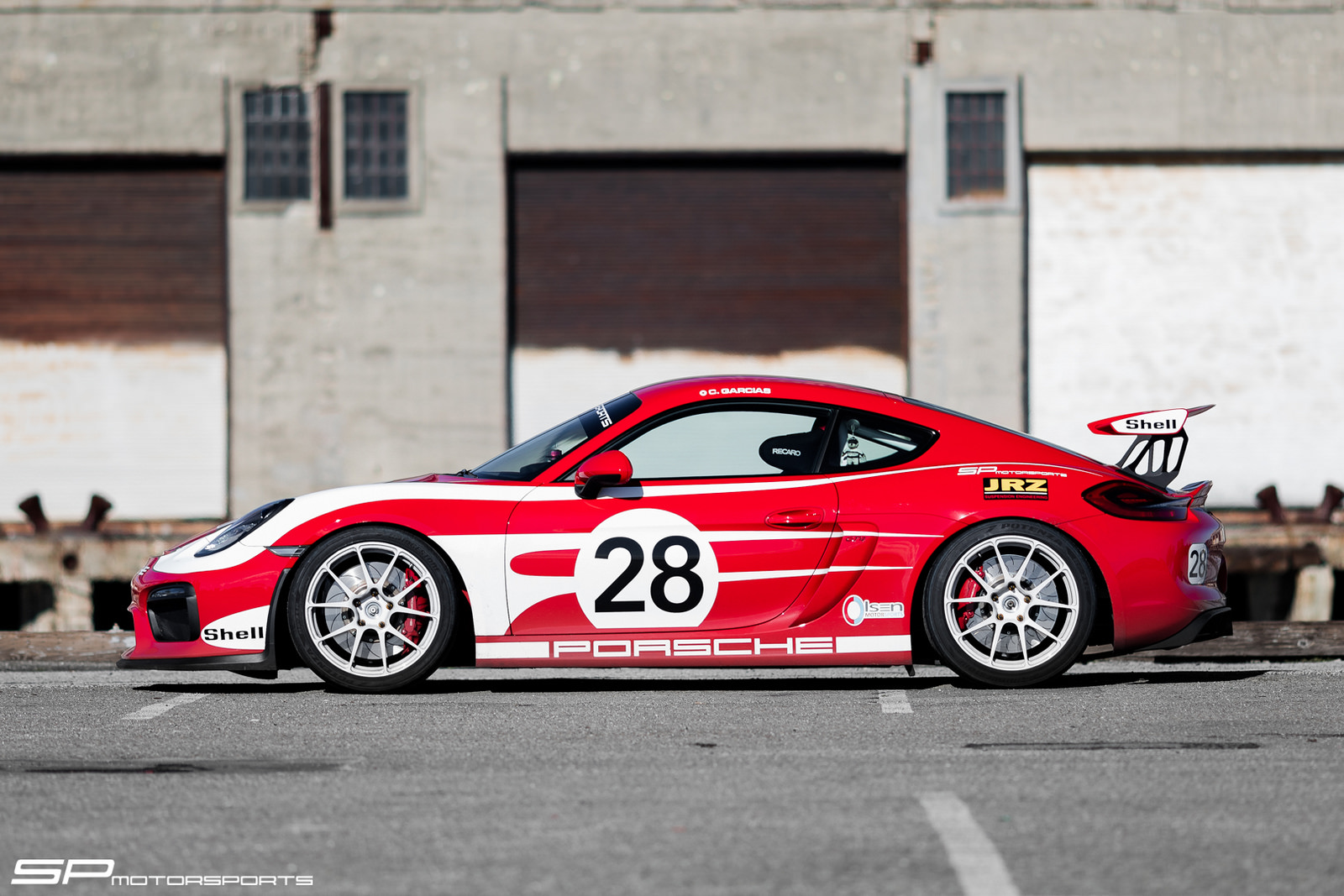

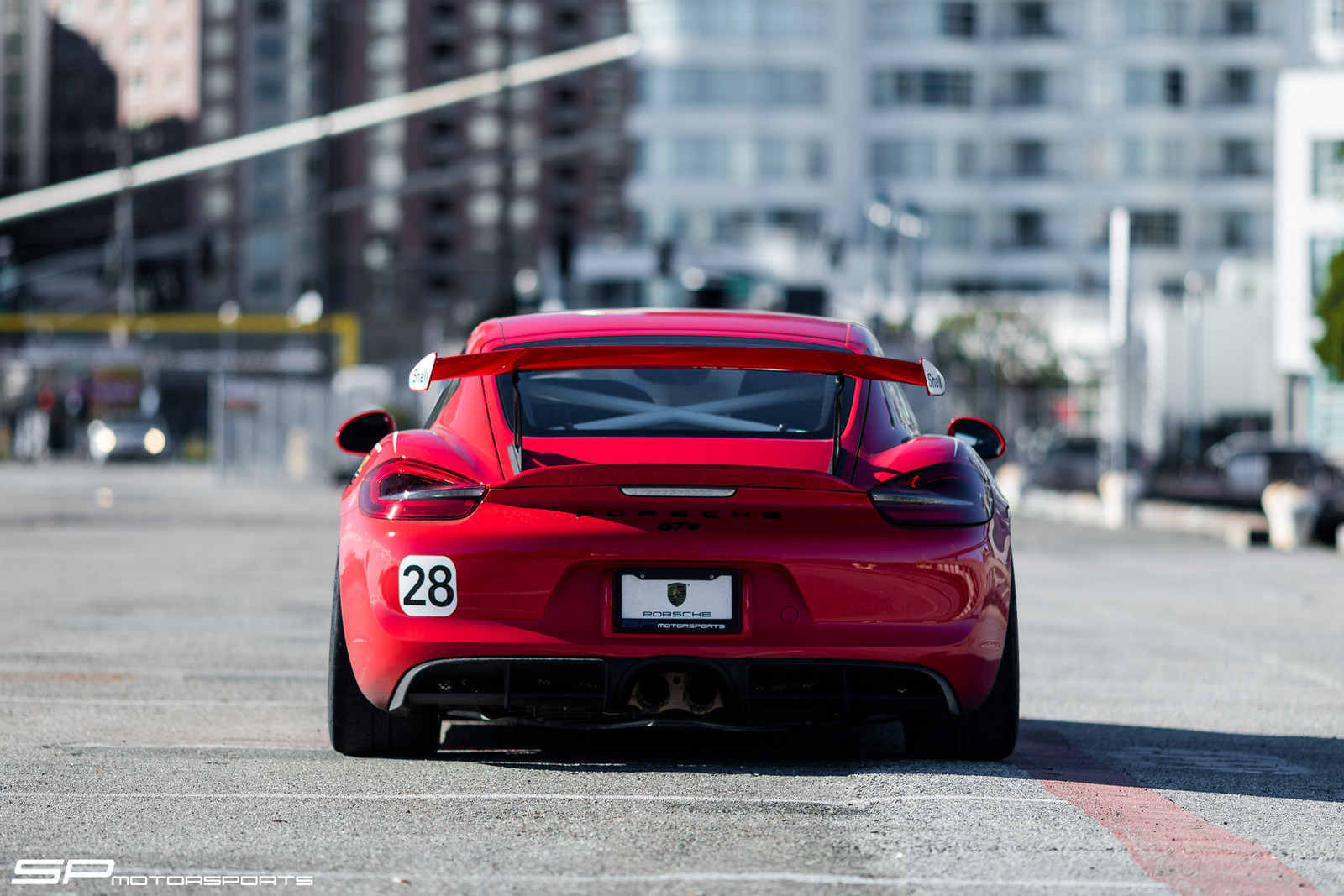

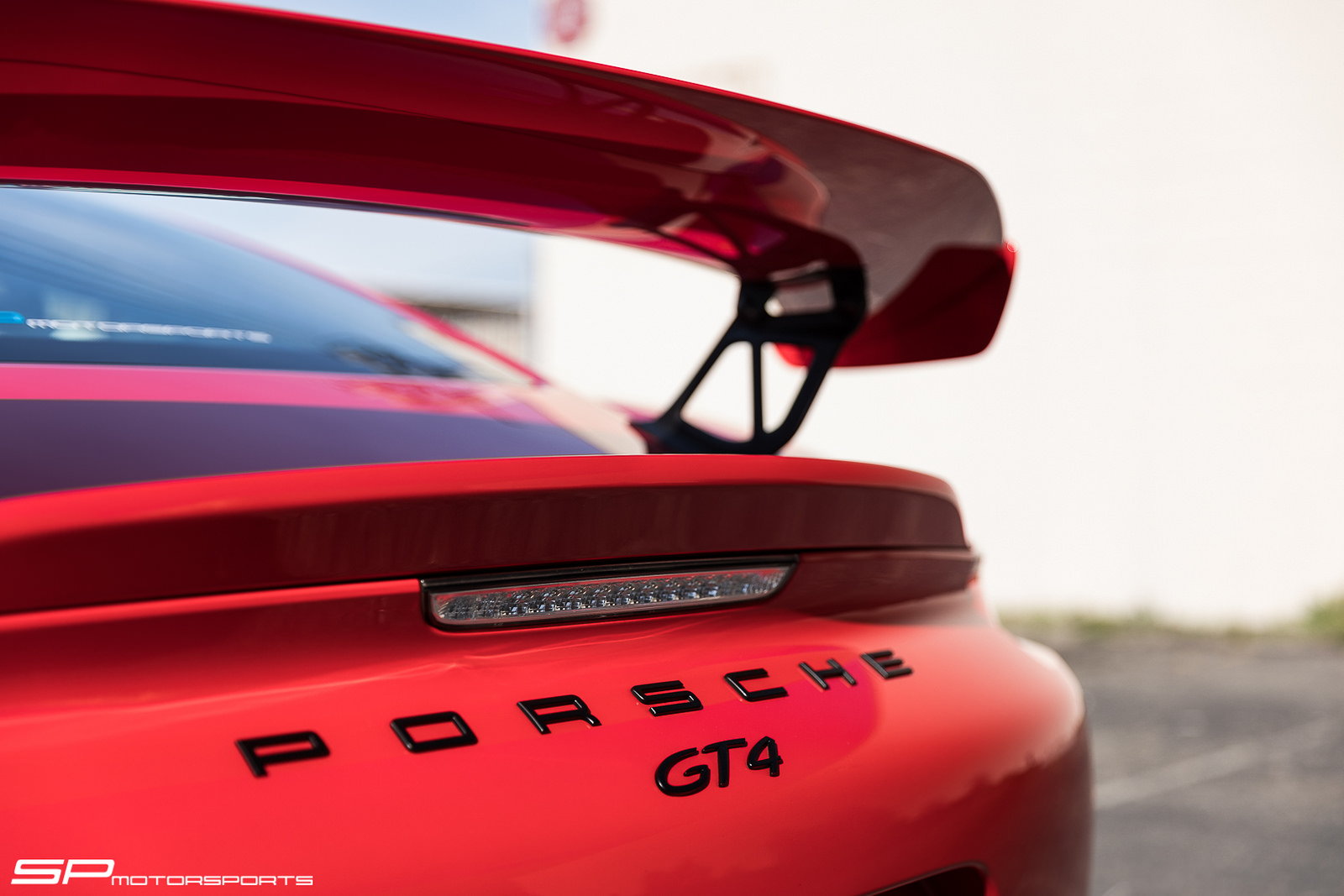

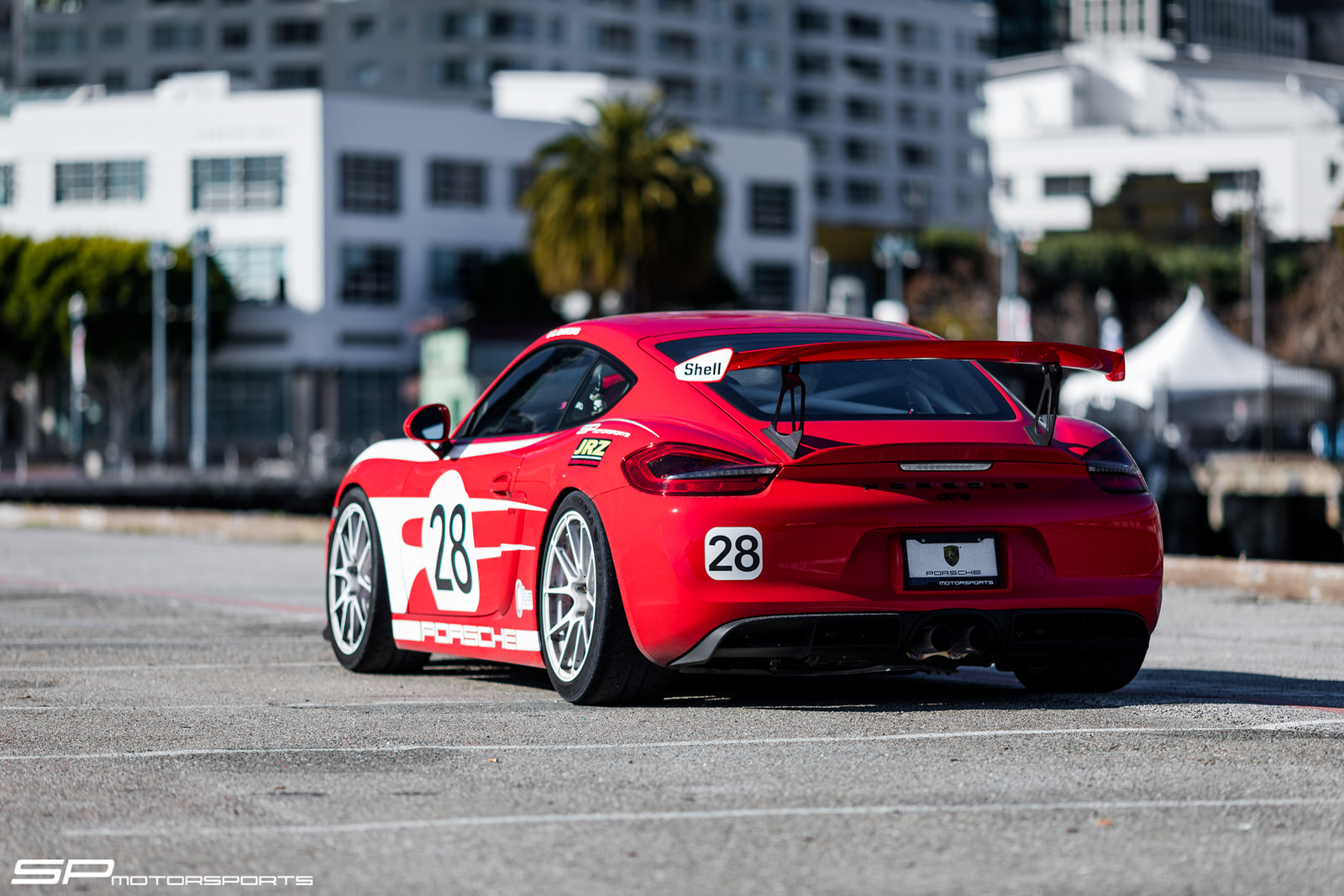

SP Motorsports' 2016 Cayman GT4 with Salzburg Livery
In collaboration with SP Motorsports, we would like to present this stunning 2016 Cayman GT4 build with the legendary Salzburg Livery. To turn her into a weekend track warrior, SP Motorsport installed our complete BBi Autosport StreetCup Track Package along with other goodies from Forgeline Wheels, Cargraphics, Recaro, and many more. Located in Northern California, we are proud to have SP Motorsports as one of our premiere dealers in the country representing our complete line of performance and safety upgrades. Here are some detailed pictures of the build process that we would like to share below.
Vehicle Specifications
Interior:

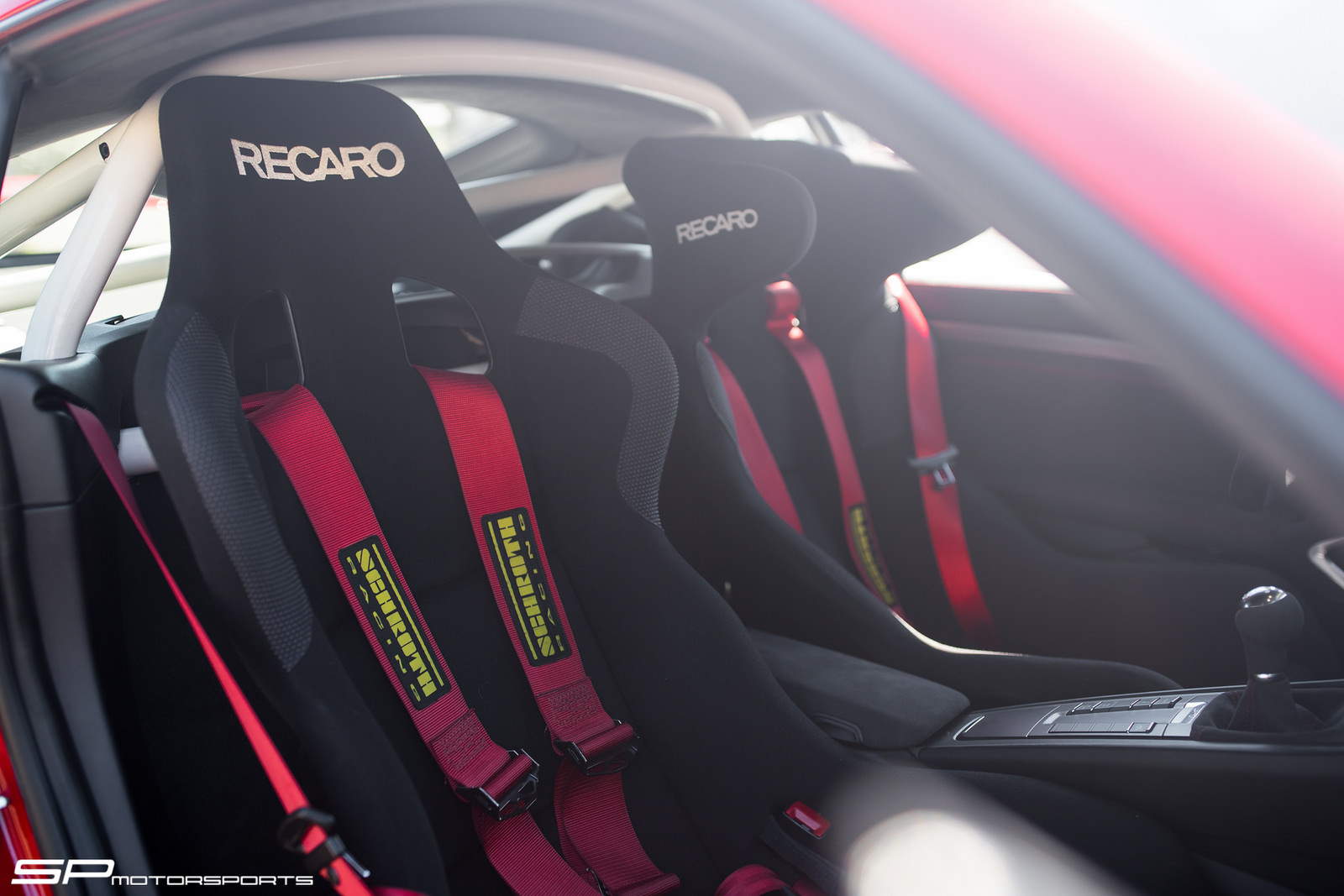

- Schroth Profi II Harnesses
- BBi Autosport GT4 Roll Bar White
- Recaro Pro Racer Hans XL Driver Seat
- Recaro Profi XL Passenger Seat

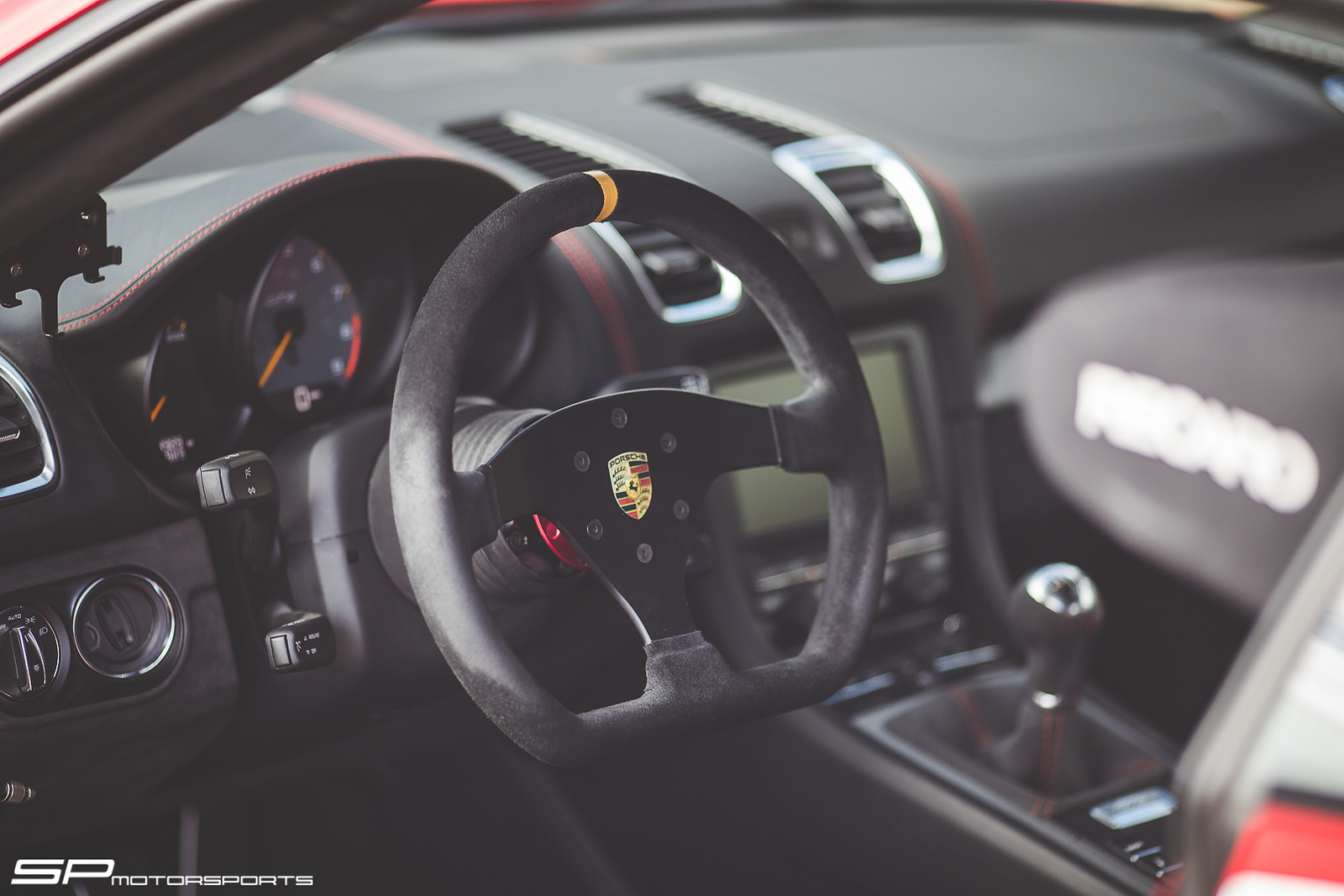

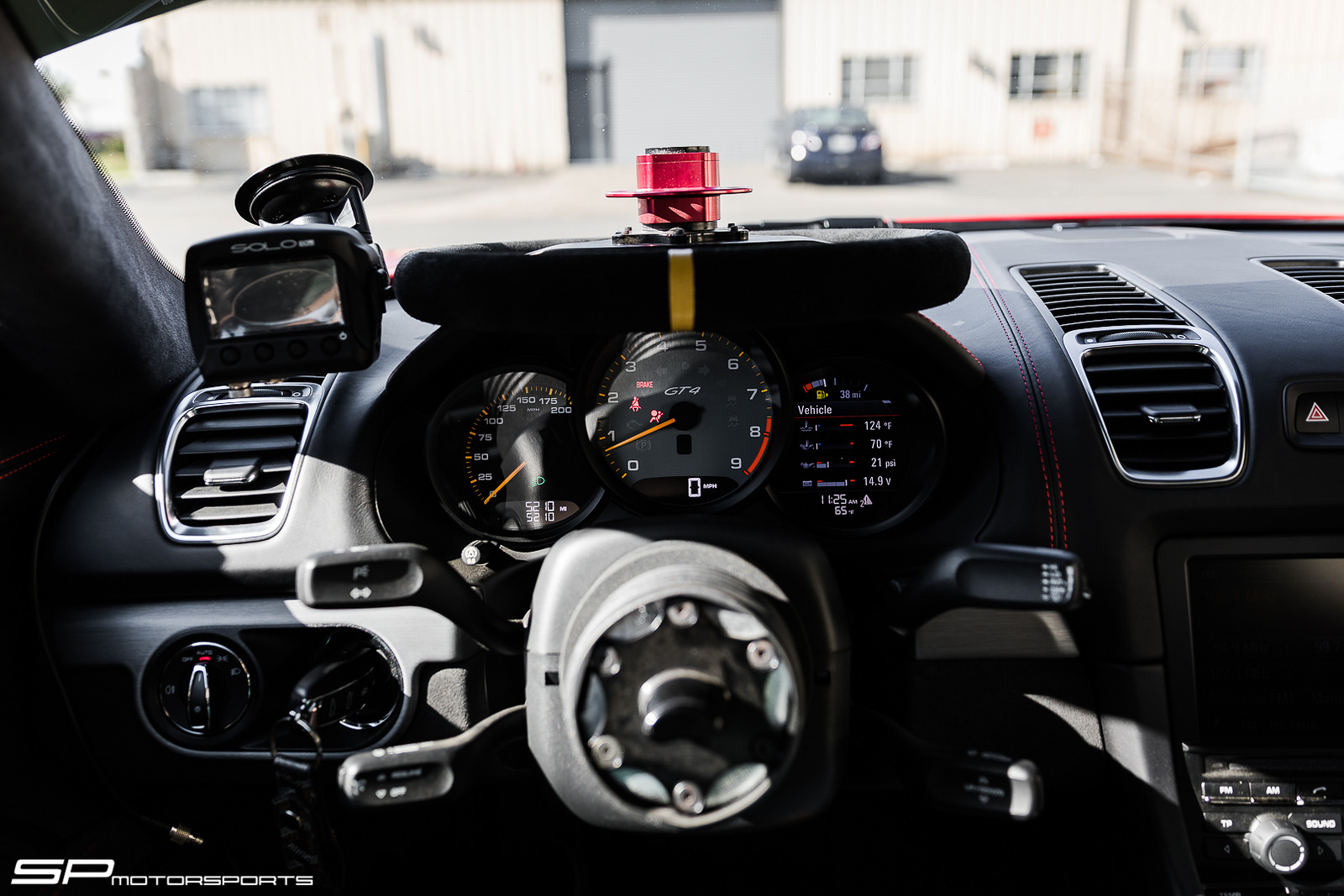

- GT4 Clubsport Steering Wheel

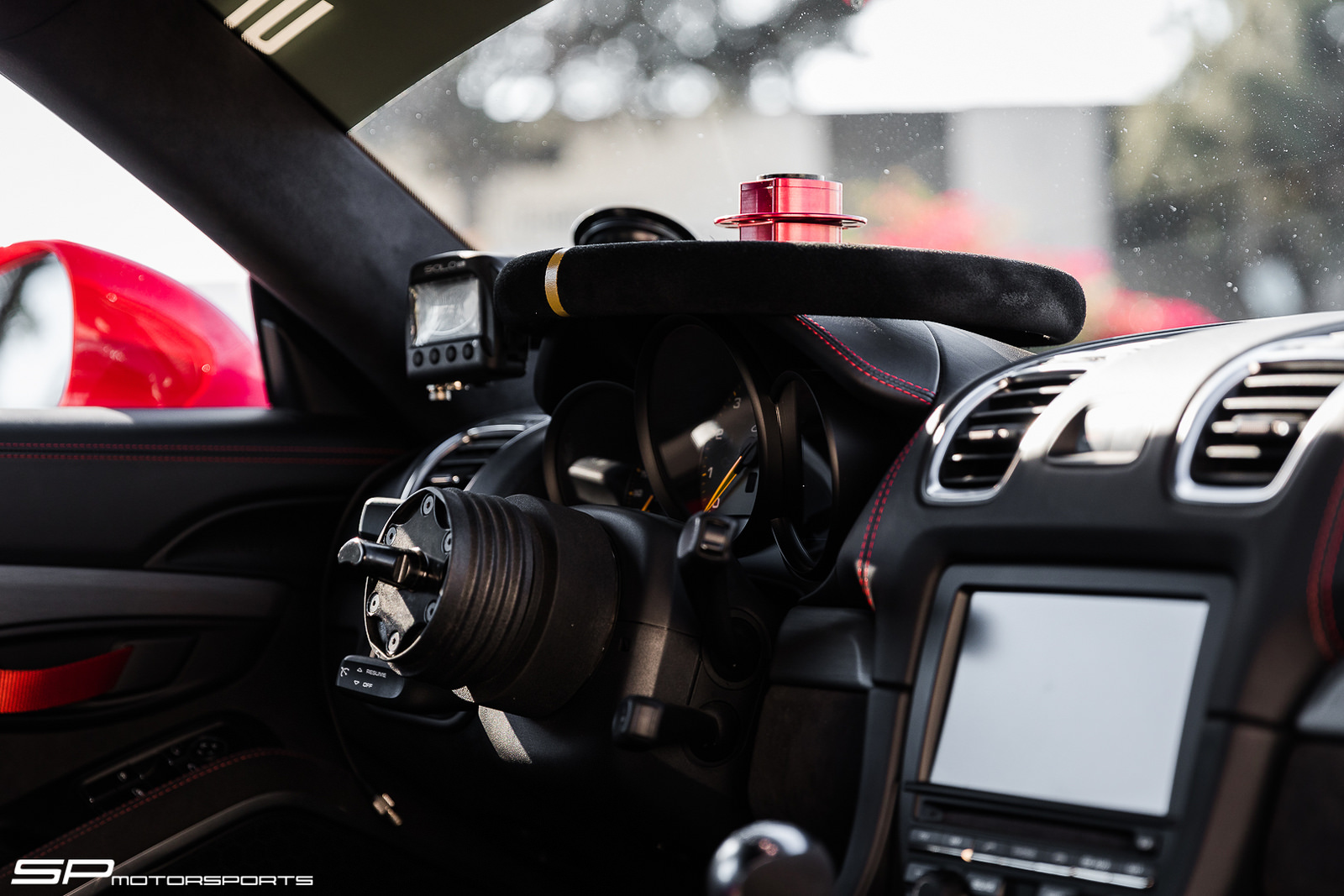

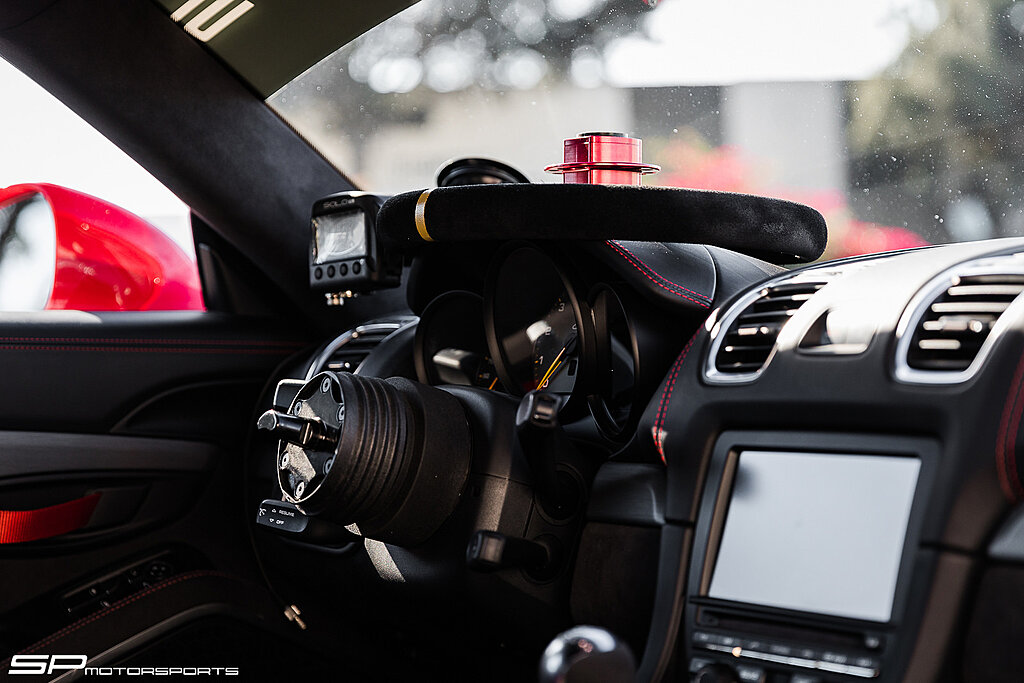

- Rothsport Quick Release
- Momo Hub
Exterior:
- Olsen Motorsports Side Intake Screens
Engine/Transmission:
- BMC Air Filters
- Cargraphic Longtube Exhaust Manifolds
- Custom 991 GT3 Center Muffler with custom tips
- IPD Competition Intake Plenum
- GT3 82mm Throttle Body
- Cobb Accessport V3 W/ Custom 100Oct tune
- Aasco Lightweight Flywheel
- Sachs Clutch Disc
- Sachs Sport Pressure Plate
- Guards LSD
- Mobil Delvac 75W-90
Suspension Upgrades:

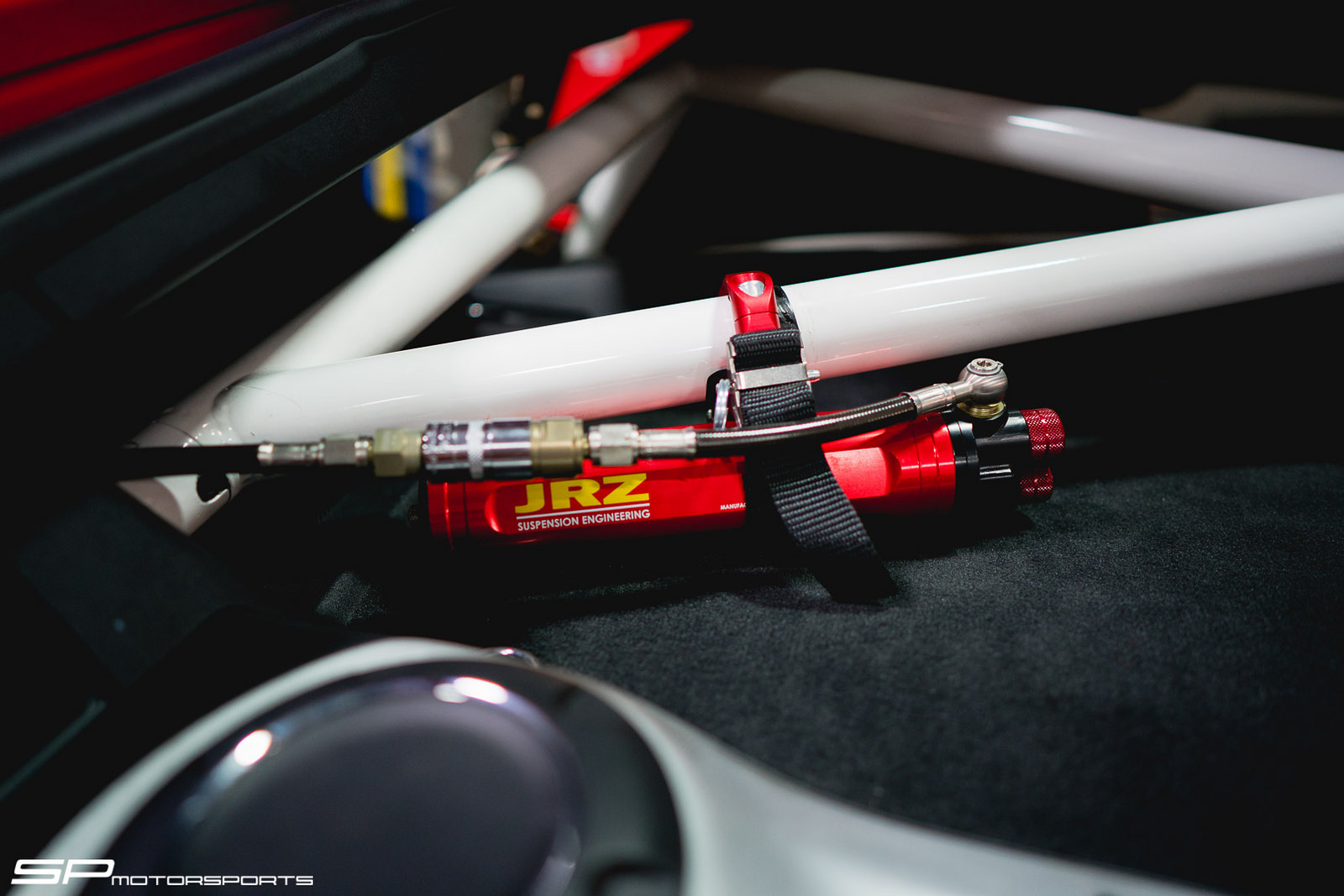

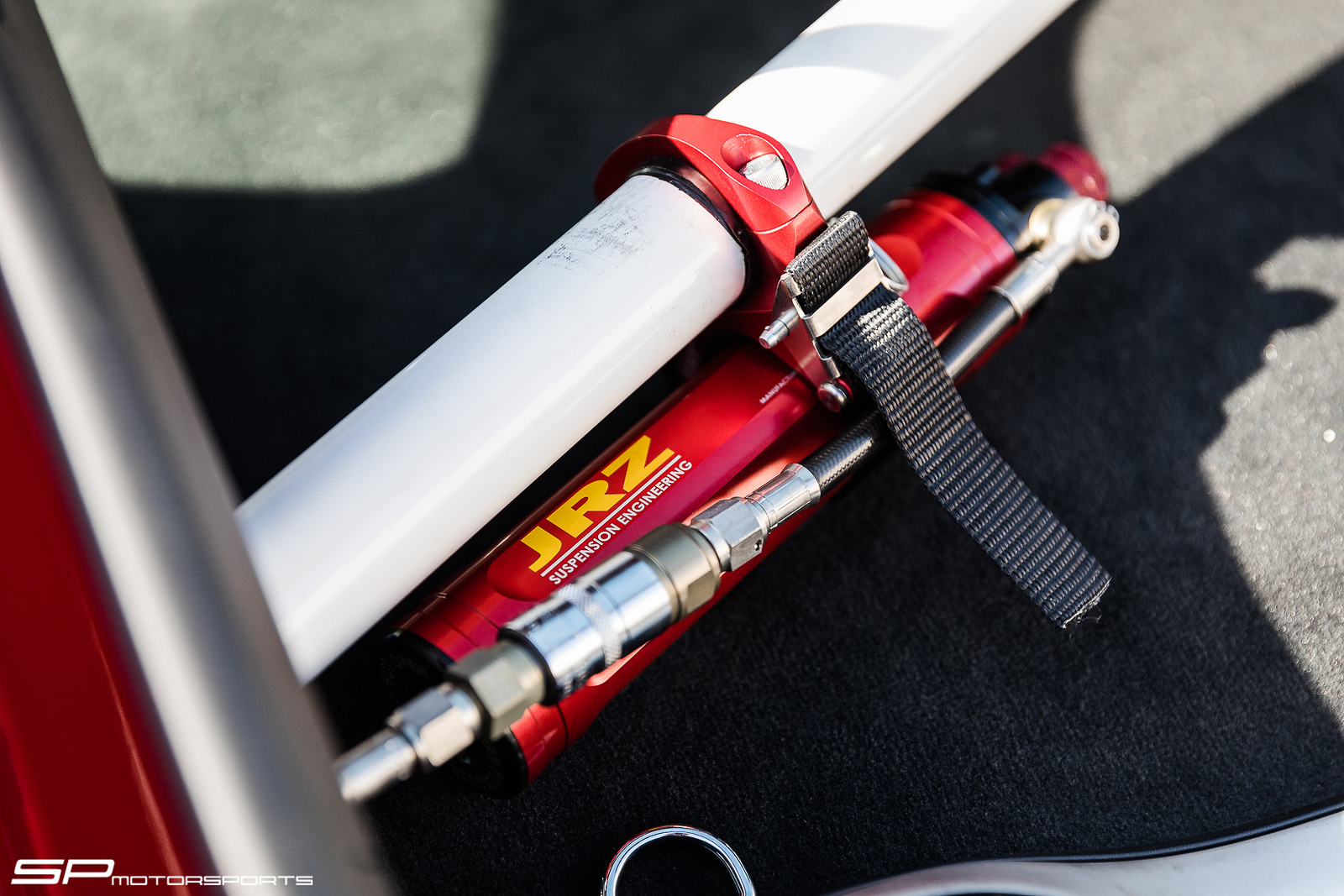

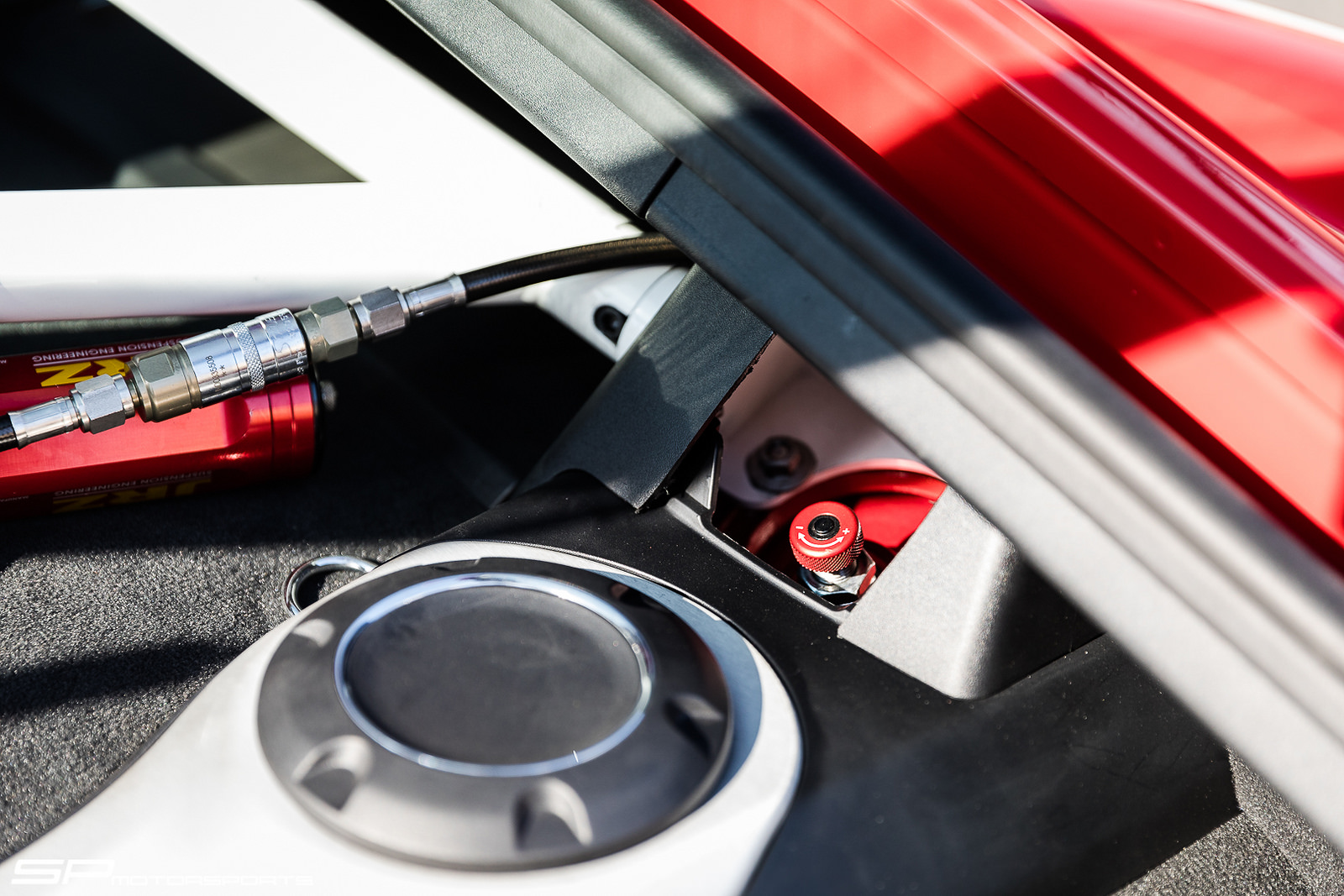

- JRZ 3-Way Adjustable Dampers
- BBi Autosport Bump Steer Kit (Front)
- BBi Autosport Thrust Arms (Front/Rear)
- BBi Autosport Adjustable Thrust Arm Bushings (Front/Rear)
- BBi Autosport Rear Adjustable Toe Kit
- Tarett Engineering Lower Control Arm Inner Spherical Bearing (Mono-ball) End Kit (Front/Rear)
- Tarett Engineering Adjustable Sway Bar End Link (Front/Rear)
Brakes:
- Brembo Type 3 & Type 5 Slotted Rotors
- Brembo RE10 Brake Pads
- Endless RF650 Fluid
- Cup Car Style Caliper Stud Kit
- Olsen Motorsports Aluminum Brake Ducts
Wheels/Tires:
- Forgeline GS1Rs 19x9 and 19x10.5
- Bridgestone RE71Rs
- MSI Stud Kit

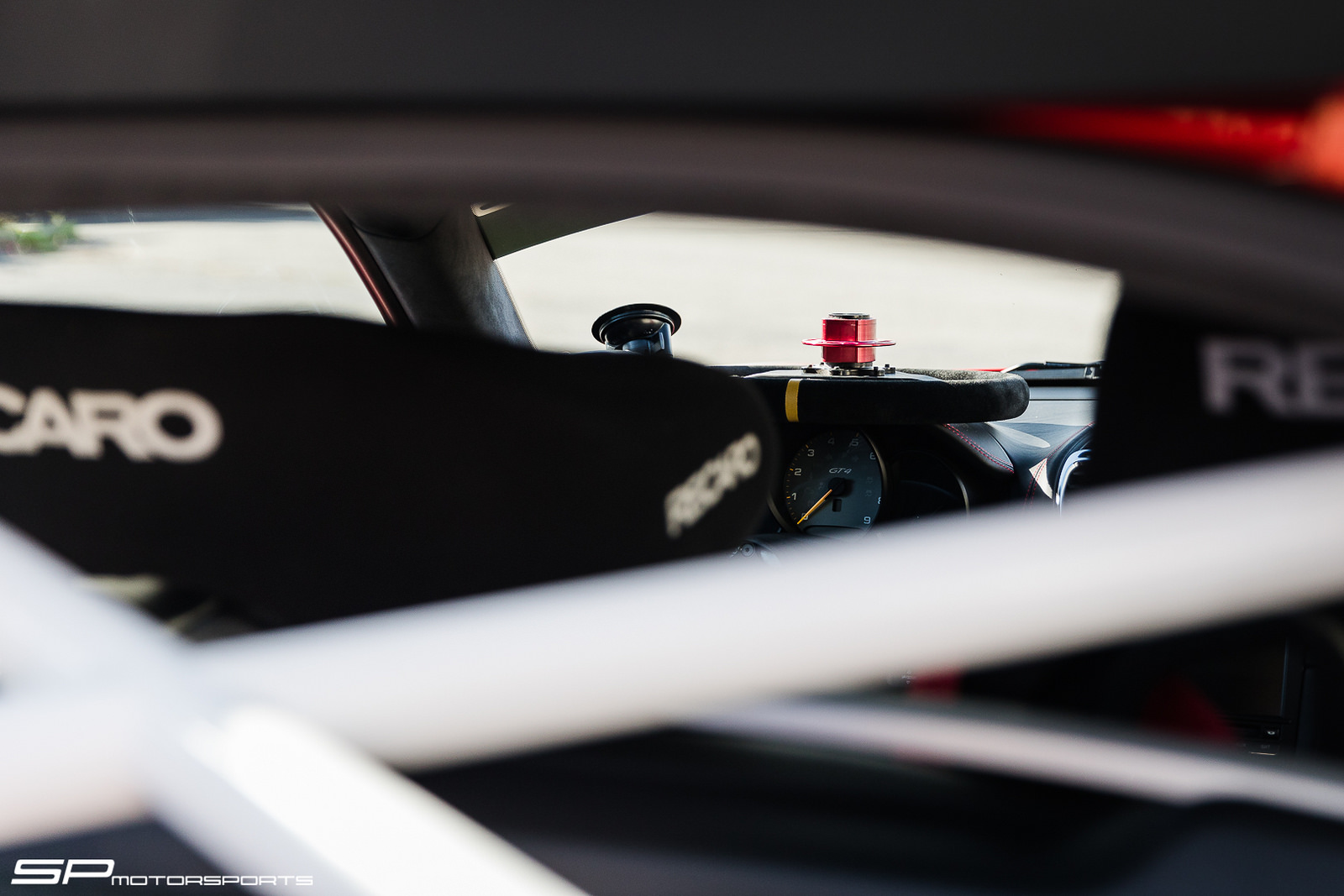

Interior:
- Schroth Profi II Harnesses
- BBi Autosport GT4 Roll Bar White
- Recaro Pro Racer Hans XL Driver Seat
- Recaro Profi XL Passenger Seat

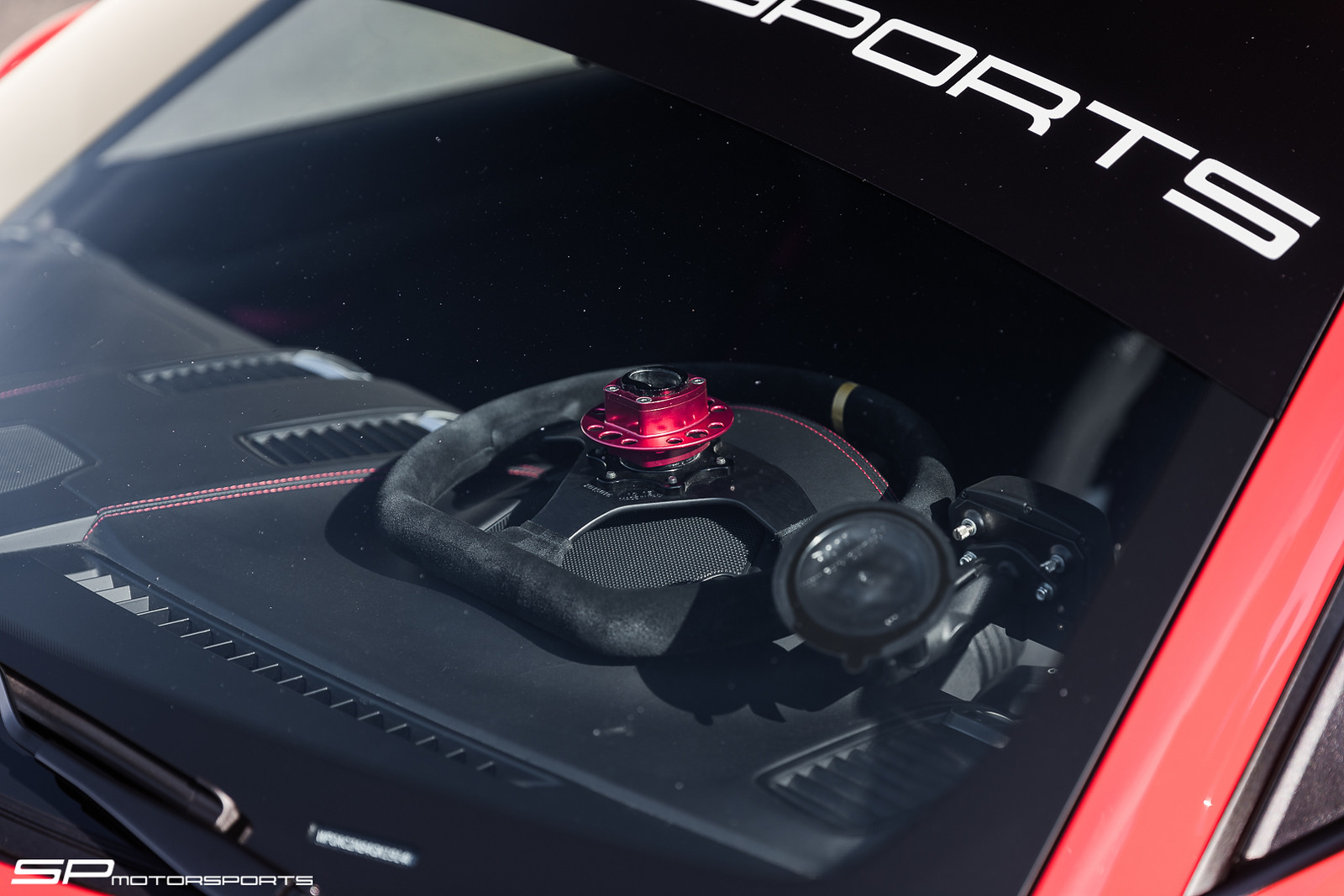

- GT4 Clubsport Steering Wheel
- Rothsport Quick Release
- Momo Hub

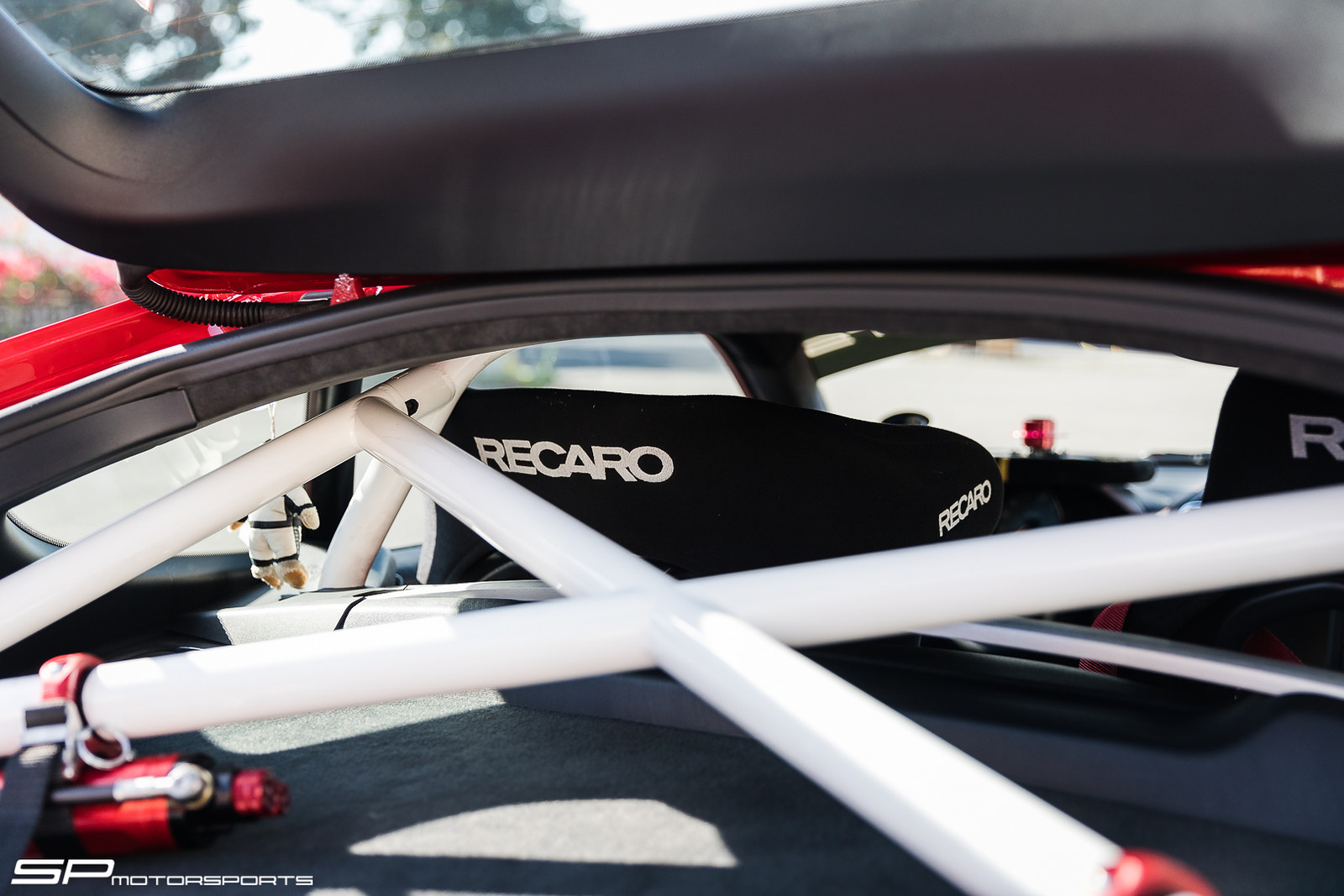

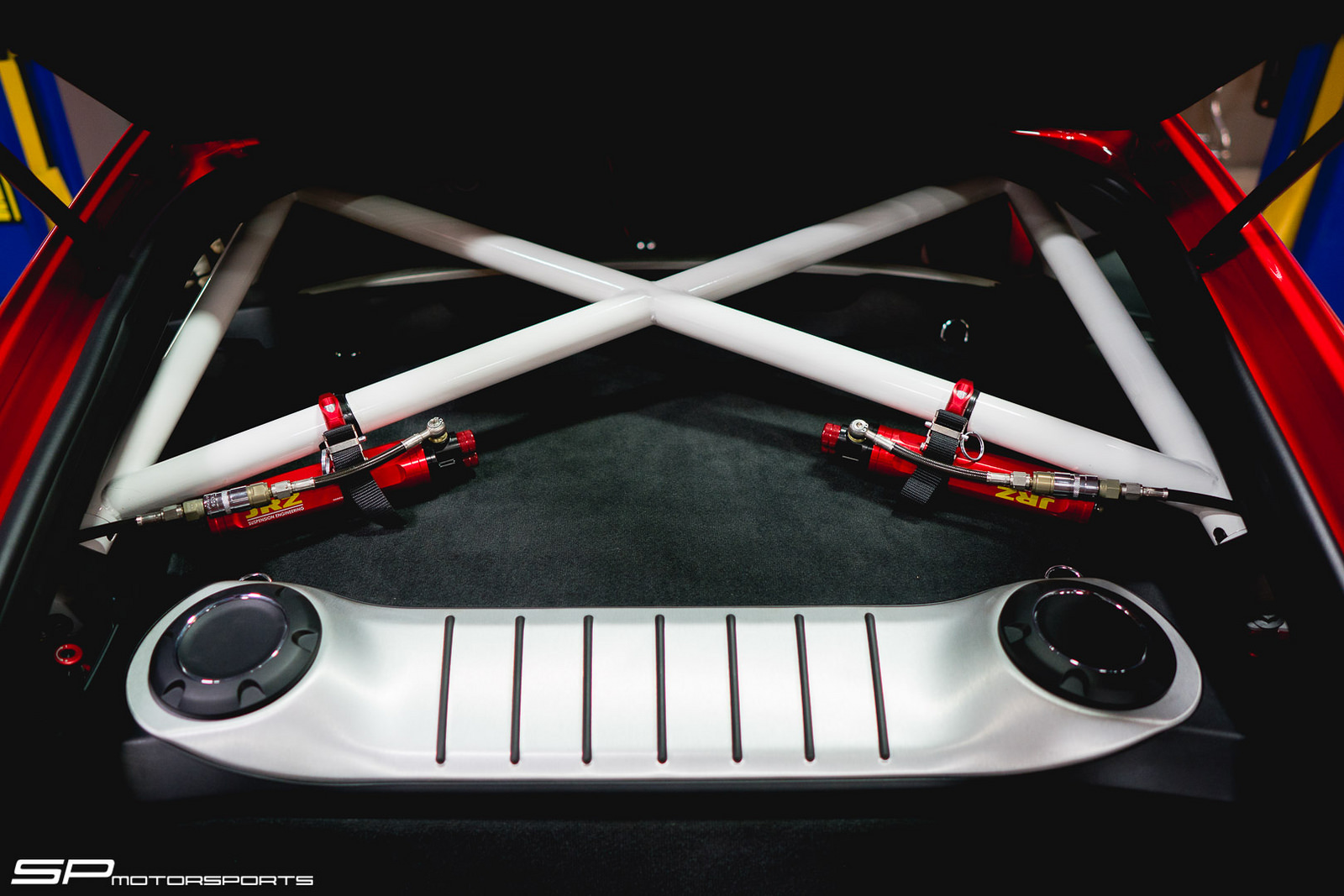

BBi 981 GT4 StreetCup Harness Bar
Key Features
- Chrome moly steel tubing utilized for excellent strength to weight ratio
- Modular construction to allow access to engine for servicing without removing entire roll bar
- Shoulder harness mounting crossbar positioned at appropriate height as per Schroth's instructions
- TIG welded and utilizes "X" braces on rear section for superior strength and rigidity
- Mounts to frame structure and rear strut tower to provide strongest mounting points and maximum protection
- Utilizes laser cut mounting plates & inner diameter tube clamps that are CNC turned and milled for a precise fit
- Designed to work with stock or any aftermarket seats on the market
- Minimal affect on seat travel to accommodate taller drivers
- Can be used with stock seat-belts or 6 point harnesses for track use
- Designed to work with wrap-around style harnesses while optional eyelet bolt provisions are available for clip-in harnesses
- OEM fit & finish. The main hoop contours entire arch of the roof with an even curve
- Finished in satin black powder coat. Other colors available
- Bolt-in installation requires no drilling and minimal carpet trimming
Front Suspension Upgrades
- BBi Bumper Steer Kit Front
- BBi Adjustable Thrust Arms Front Pair
- BBi Adjustable Thrust Arm Bushings Front Pair
- Porsche Motorsport Lower Control Arm Inner Spherical Bearing (Mono-ball) End Kit Front Pair
- Tarett Engineering Adjustable Sway Bar End Link Front
Attachment 537412
Attachment 537413
Attachment 537414
Attachment 537415
Rear Suspension Upgrades
- BBi Rear Toe Adjustable Toe
- BBi Adjustable Thrust Arms Rear Pair
- BBi Adjustable Thrust Arm Bushings Rear Pair
- Porsche Motorsport Lower Control Arm Inner Spherical Bearing (Mono-ball) End Kit Rear Pair
- Tarett Engineering Adjustable Sway Bar End Link Rear
Attachment 537416
Attachment 537417
Attachment 537418
Attachment 537419
BBi Autosport Front Bump Steer Kit
- Helps eliminate bump steer by maintaining proper front end suspension Geometry
- Utilizes misalignment rod ends of the arm to provide maximum articulation
- Highly recommended for vehicles that have been lowered
- Each kit includes pair of 2 Links
BBi Autosport Rear Adjustable Toe
- Provides additional rear toe adjustment
- OEM link is non adjustable and eccentric bolt provides limited adjustment range, causing excessive tire wear and handling issues.
- Helps maintain proper rear end suspension geometry
- Each kit includes pair of 2 Links
BBi Autosport Front & Rear Thrust Arm Kit
- Connects the Lower Control Arm to the subframe
- Provides precision caster adjustability
- Spacers included for setting stock or anti-squat and anti-dive configurations
- Each Kit Includes Pair of 2 Links
- Fits both front and rear axles
BBi Autosport Front & Rear Adjustable Thrust Arm Bushing Kit
- Provides two eccentric mounting points
- Used to adjust for increasing or decreasing wheelbase, and adjustable caster.
- A must-have for extended lower control arms (GT3 control arms or eccentric monoballs) to correct for unintended caster change
- Compatible with all stock Porsche 996 and 997 lower control arms (including Porsche Motorsport Cup arms)
- Sold as a set of 2
Porsche Motorsport Lower Control Arm Inner Spherical Bearing (Mono-ball) End Kit:
- Upgrades 981 GT4 front and rear control arms to improve chassis response by eliminating rubber bushings
- Also fits all 986, 987, 996, 997 with upgraded GT3/RS OE front or rear split control Arms
- Each kit includes a pair of 2 inner bearing flanges
Tarrett Front and Rear Adjustable Sway Bar End Links
- Simple bolt in replacement for the factory drop links
- Left & right hand threaded rod-ends allow for simple length adjustment to eliminate swaybar preload
- Correctly sized, precision, Teflon-lined rod-ends for smooth and quiet operation, long life, and high reliability. No wear and rattling problems, like those seen with other designs, due to undersized or low quality rod ends
- Eliminates the factory compliant plastic drop link bushings that deflect under loading and quickly wear out
- High misalignment, stainless steel spacers allow for superior bind free operation and corrosion resistance
- Precisely connects the stock or adjustable swaybar to the front strut assembly for improved feedback and swaybar response
- Overall length is adjustable to accommodate either stock or adjustable swaybar requirements
Engine & Drivetrain Upgrades
- BMC Air Filters
- Cargraphic Longtube Exhaust Manifolds
- Custom 991 GT3 Center Muffler with custom tips
- IPD Competition Intake Plenum
- GT3 82mm Throttle Body
- Cobb Accessport V3 W/ Custom 100Oct tune
- Aasco Lightweight Flywheel
- Sachs Clutch Disc
- Sachs Sport Pressure Plate
- Guards LSD
- Mobil Delvac 75W-90

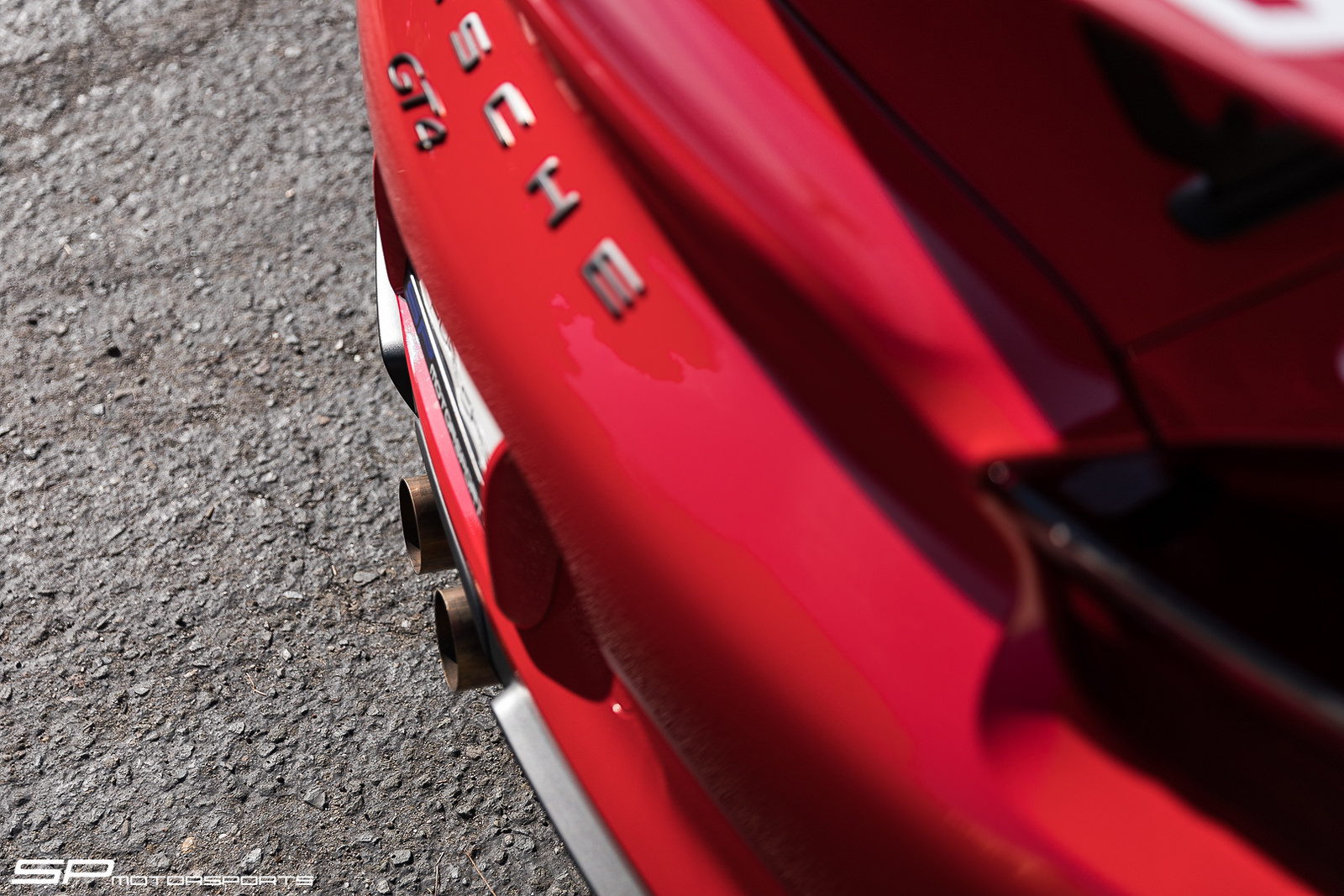

Cargraphic Long Tube Exhaust Manifolds & Custom 991 GT4 Center Muffler
Attachment 537420
Attachment 537421
Attachment 537422
Attachment 537423
Attachment 537424
Attachment 537425
Attachment 537426
IPD Competition Intake Plenum & GT3 82mm Throttle Body
BBi 981 Stage 2 Power Package with IPD Competition Plenum & Cobb Accessport V3 ECU Upgrade
With thousands of units sold over the years with great success and rave reviews, the IPD Plenums continue to deliver the best bang for the buck in the Porsche performance market. IPD has been developing patented intake plenum upgrades for Porsche vehicles since 2004 - now covering more than 30 applications distributed worldwide - and continues to share the same facility and technical resources with BBi Autosport to deliver the most innovative Porsche engine upgrades.
981 IPD 82mm Competition Plenum
To improve airflow, we used the IPD Porsche 981 Competion Plenum to replace the restrictive factory plastic unit. The revolutionary and patented design improves intake air flow by with a more efficient, precision casted aluminum design. All versions of the 981 Plenums upgrades the factory 74mm throttle body with the larger 997 GT3 82mm throttle body. This combination has proven to be considerably more popular and deliver even more performance. This Competition version will work with both 3.4L "S" and 2.9L "Non-S" applications.
Custom IPD silicone Hose Designed to Perfectly fit The alarger 82mm Throttle Body
The 981 intake is nearly identical to the 987.2 intake. Porsche made a few upgrades with the 981, most notably being that the 981 draws outside air from both driver and passenger air intakes instead of the driver's side only as previously found with all 986, 987 and 987.2 applications. IPD has developed a custom silicone hose designed to perfectly fit the larger 82mm TB and considerably improve air flow.
Diversion Splitter and Dimpled Interior
The new 981 Plenums also benefits from the internal dimpling effect that have been implemented on all Plenums moving foward. This internal dimpling allows us to control the boundary layer and maximize air flow. Just like a dimpled golf ball travels farther than a smooth golf ball. Controlled turbulent air creates less friction and "tumbles" over a given area more efficiently.
Power gains with the 981 Competition Plenum are virtually the same as with the 987.2 Competition Plenum, putting down 20 horsepower and 16 foot pounds of torque at the wheels. The bulk of the power gains from the IPD Plenum begin around 4000 rpm, continues all the way through to redline and become fully realized in the 6000 rpm range. IPD performance gains stay above both factory power curves throughout the entire rev range
IPD 981 IPD 82mm Competition Plenums Features:
• Increases horsepower, torque, and boost responsibly optimizing air flow efficiency
• Utilizes diversion splitter and dimpled interior surface eliminate turbulence and increase air flow
• High quality cast aluminum construction
• Direct fit OEM replacement
• Larger 82mm competition plenum version available
• Made in USA
Side by Side Comparison Between the Factory and IPD 981 IPD 82mm Competition Plenums:
82mm vs 74mm Throttle Bodies
Cobb Tuning Porsche Cayman GT4 Accessport V3
Features
- Simple Installation: Everything is included for the simple installation you can do in your driveway! Intuitive on-screen instructions identify your exact vehicle, saves stock vehicle data, and displays available OTS maps.
- Change Maps: Store up to 100 maps from our OTS map database or from your favorite COBB tuner and quickly switch between them for any need.
- Vehicle Upgrade Support: As you continue to modify your car, Accessport maps can be used to optimize performance upgrades. Changing the map can be done in less than 1 minute in your driveway.
- In Car Mount: The Accessport can be mounted in vehicle to allow you to monitor the performance data.
- Data Logging: Record multiple data channels simultaneously for in-depth evaluation of engine performance. Stores up to 1 hour of continuous data.
- Gauges: Use your Accessport as a gauge to monitor boost or any other live information, directly from the ECU.
- Trouble Codes: Read engine trouble codes to diagnose issues. Clear them when resolved. Prevent expensive trips to the dealership.
- Full Uninstall: Using the Uninstall option will completely remove our programming from the car’s ECU. It is then able to be re-installed after a dealer visit or on another vehicle.
At Buttonwillow Raceway
