I changed my screen. So, apparently it's something else. I saw somewhere in the forum that the soldering on some board is detached. Mine actually quit for about a year then came on perfectly one day when I charged the dead battery!
Registered User
Joined: Nov 2006
Posts: 470
From: NCal
Rep Power: 47
I don't own a Pepper. I have other P cars and have been considering these misunderstood beasts. It has been THIS particular website and wonderful posts like this one that is leaning me towards on of these. I must say it is a delight to see that the hands on enthusiasts exist on this part of the spectrum also.
GREAT JOB and thanks for your contribution to PP owners everywhere [PP= Porsche Pepper]. I suspect this guide might be helpful to rear and mid engined owners also!
Best regards,
JR
GREAT JOB and thanks for your contribution to PP owners everywhere [PP= Porsche Pepper]. I suspect this guide might be helpful to rear and mid engined owners also!
Best regards,
JR
Registered User
Joined: Jul 2006
Posts: 64
From: Minneapolis
Rep Power: 22
If anyone is interested, drop me a note, I have a PCM 2.1 (DVD based), that I took out of my 2005. It works perfectly - upgraded to a Pioneer unit. Can send power it up if you want and send post a video. Takes a few minutes to swap out...also have the Bose Amp, DVD Player and Navigation DVD.
Registered User
Joined: Jul 2011
Posts: 80
From: IL
Rep Power: 18
If anyone is interested, drop me a note, I have a PCM 2.1 (DVD based), that I took out of my 2005. It works perfectly - upgraded to a Pioneer unit. Can send power it up if you want and send post a video. Takes a few minutes to swap out...also have the Bose Amp, DVD Player and Navigation DVD.
Registered User
Joined: Nov 2012
Posts: 15
From: Iowa
Rep Power: 0
If anyone is interested, drop me a note, I have a PCM 2.1 (DVD based), that I took out of my 2005. It works perfectly - upgraded to a Pioneer unit. Can send power it up if you want and send post a video. Takes a few minutes to swap out...also have the Bose Amp, DVD Player and Navigation DVD.
Registered User
Joined: Mar 2013
Posts: 1
From: Italy
Rep Power: 0
DEAR roxboxxx
Thanks from Italy. I was into the same problem with my parent's Cayenne (year 2004).
Solutions:
1) Porsche Dealer in Italy: 1600 Euro. (they wanted to substitute all PCM with a new one)
2) Electronic Shop for Car: 650 Euro. (they took the PCM and change the monitor)
3) MY HANDS solution, buy a screen in Ebay and change it following your instruction: 300 Euro (including shipping cost from California to Italy).
I FOLLOWED YOUR PHOTOS (and made photos too) and ALL WAS REALLY PERFECT))
Here in my blog photos of my Job.
http://giovannicev.blogspot.it/
THANK YOU AGAIN for your BLOG and your HELP))
Thanks from Italy. I was into the same problem with my parent's Cayenne (year 2004).
Solutions:
1) Porsche Dealer in Italy: 1600 Euro. (they wanted to substitute all PCM with a new one)
2) Electronic Shop for Car: 650 Euro. (they took the PCM and change the monitor)
3) MY HANDS solution, buy a screen in Ebay and change it following your instruction: 300 Euro (including shipping cost from California to Italy).
I FOLLOWED YOUR PHOTOS (and made photos too) and ALL WAS REALLY PERFECT))
Here in my blog photos of my Job.
http://giovannicev.blogspot.it/
THANK YOU AGAIN for your BLOG and your HELP))
Registered User
Joined: Jul 2013
Posts: 1
From: IRVINE, CA
Rep Power: 0
PORSCHE PCM 2.1 SCREEN REPLACEMENT TUTORIAL
------------------------------------------------------------

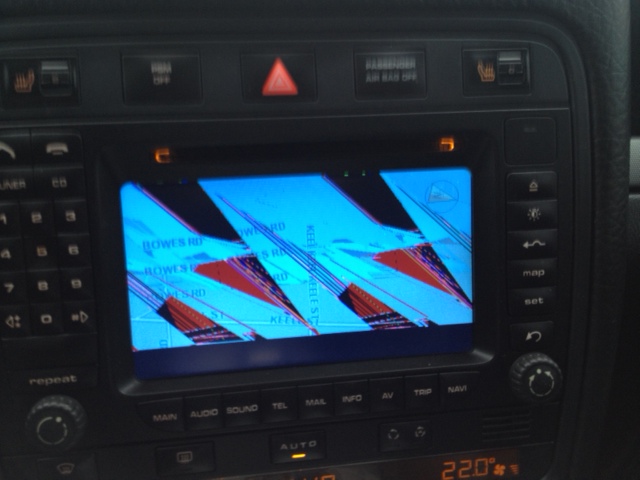

My PCM screen started failing a year ago and it finally failed 2 weeks ago. The symptoms were a screen that would go white and then display video artifacts. When I pushed on the lower half of the screen, it would occasionally return to normal or at least to a state of legibility. Outside of the screen issue, all other functions of the radio, CD, CD changer, NAV all worked. Thanks to another member her pointing me towards an ebay seller, I was able to purchase just a new screen for $400 shipped instead of the $2400 the dealer wanted (not including install). The job is not that difficult. Having the guts to pull apart your $2400 stereo is a different story
INFO:
LINK TO THE EBAY DEALER (Excellent seller): http://stores.ebay.com/Worldwide-Sou...34Q2ec0Q2em322
LINK TO MY FULL DISMANTLE PICTURES:http://s412.photobucket.com/albums/p...view=slideshow
VIDEO TUTORIAL OF THE RE-ASSEMBLY:
------------------------------------------------------------
My PCM screen started failing a year ago and it finally failed 2 weeks ago. The symptoms were a screen that would go white and then display video artifacts. When I pushed on the lower half of the screen, it would occasionally return to normal or at least to a state of legibility. Outside of the screen issue, all other functions of the radio, CD, CD changer, NAV all worked. Thanks to another member her pointing me towards an ebay seller, I was able to purchase just a new screen for $400 shipped instead of the $2400 the dealer wanted (not including install). The job is not that difficult. Having the guts to pull apart your $2400 stereo is a different story
INFO:
LINK TO THE EBAY DEALER (Excellent seller): http://stores.ebay.com/Worldwide-Sou...34Q2ec0Q2em322
LINK TO MY FULL DISMANTLE PICTURES:http://s412.photobucket.com/albums/p...view=slideshow
VIDEO TUTORIAL OF THE RE-ASSEMBLY:
PART 1 REASSEMBLY
http://www.youtube.com/watch?v=A93lzls295cPART 2 REASSEMBLY
http://www.youtube.com/watch?v=V7avBNrsTpc
http://www.youtube.com/watch?v=V7avBNrsTpc
PART 3 REASSEMBLY
http://www.youtube.com/watch?v=o0hqBX1unQcPART 6 REASSEMBLY
http://www.youtube.com/watch?v=Gbotee_rQOc
Feel free to ping me if you have any ???
http://www.youtube.com/watch?v=Gbotee_rQOc
Feel free to ping me if you have any ???
Going to give it a shot - thanks for a great DIY post
Registered User
Joined: Jul 2013
Posts: 1
From: San Francisco
Rep Power: 0
I signed up here just to say thank you for the guide, pictures and stuff.
I did the repair yesterday. took me an hour from start to end, and it works perfect. My alternative was to spend $4k on a new unit or sell the car at a substantially lower price. This ended up costing me a lot less. $325 for the screen and a $8 toolkit with the various sizes of torx bits needed (only two sizes needed).
One note on the guide.
On picture 36 to 40 you point to a screew that is really hard to get out. This one does not need to be taken out until later in the proccess where you open up the unit.
The screew does not need to go out until you take the front panel of (after step 53).
THANK you for this guide. Saved me a bunch of money. and the new screen is a lot better. contrast and brightness rocks.
Martin
I did the repair yesterday. took me an hour from start to end, and it works perfect. My alternative was to spend $4k on a new unit or sell the car at a substantially lower price. This ended up costing me a lot less. $325 for the screen and a $8 toolkit with the various sizes of torx bits needed (only two sizes needed).
One note on the guide.
On picture 36 to 40 you point to a screew that is really hard to get out. This one does not need to be taken out until later in the proccess where you open up the unit.
The screew does not need to go out until you take the front panel of (after step 53).
THANK you for this guide. Saved me a bunch of money. and the new screen is a lot better. contrast and brightness rocks.
Martin
Banned
Joined: Oct 2013
Posts: 1
From: Miami
Rep Power: 0
screen replacement
please help ...i have a 2007 997 turbo with same screen problem... i want to order the replacement screen from the site u recommended but which part number from that site should i be ordering????
