Evaporated emission purge flow. Anyone have a part number for what I need? Or a procedural on how to change it?


Also, since having my front bumper changed I now have to go out and tap my drivers side headlight for it to work. Thinking that something is loose.



P0441 code is evap purge valve, alongside the drive side intake manifold tubes. A 100 dollar part and installed in 30 minutes.

For the shaky headlight connection, make sure the rubber seals are still good.



Anyone have a procedural for this fix? Something / anything to go by?

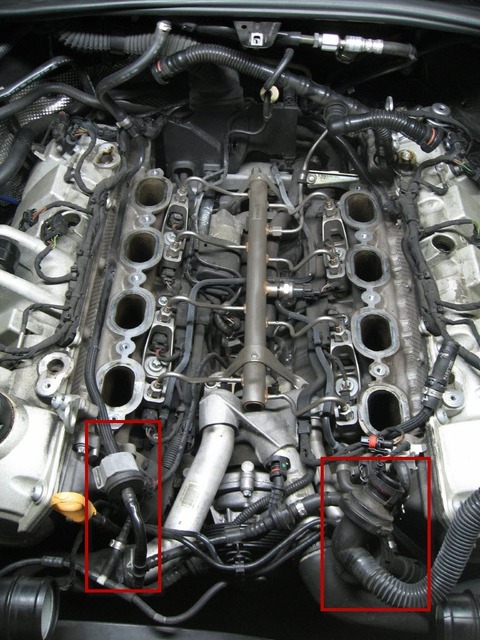

This is the cause for the P0441 code. The photo shows 957 engine. So for the 2006 955 that evap purge valve (red square, left) will actually be on the opposite side of your 4.5L motor. And, NO - the intake does NOT need to come off. Here is the eBay link for the part. Only the rear and throttle engine covers need to come off:

http://www.ebay.com/itm/150673680378?_trksid=p2060353.m1438.l2649&ssPageName=STRK%3AMEBIDX%3AIT



Man I Really do appreciate your help but I am coming up with a different part number and something that looks very different.

Mine is an 06 Turbo- S model. Does the S make a difference?

This is what I got:

http://www.rockauto.com/en/catalog/p...-partdescribe2



No difference. Use my eBay thumbnail link on my previous message, with photo. The part is a long tube, with a small valve at one end.
