:: ECS Tuning :: Stainless Steel Brake Rotor Set Screws

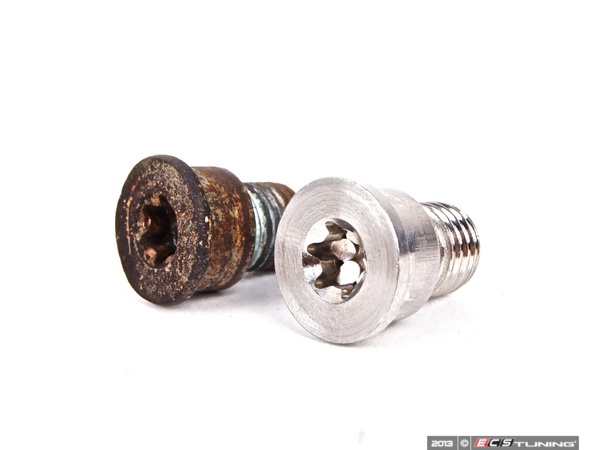

The factory rotor set screws are easily damaged during removal and by the excessive heat and elements that they’re exposed to on a daily basis. If the screws on your rotors are corroded or damaged, replace them to make your next brake job a bit easier. These stainless steel screws will not rust, and can be used again and again when changing your rotors.
Plan ahead. Install stainless screws on this brake job, and you won't have to drill them out on the next one.
Click Here for more information and to purchase
#3
958
958 Base: Click Here
958 S: Click Here
958 S Hybrid: Click Here
958 Turbo: Click Here

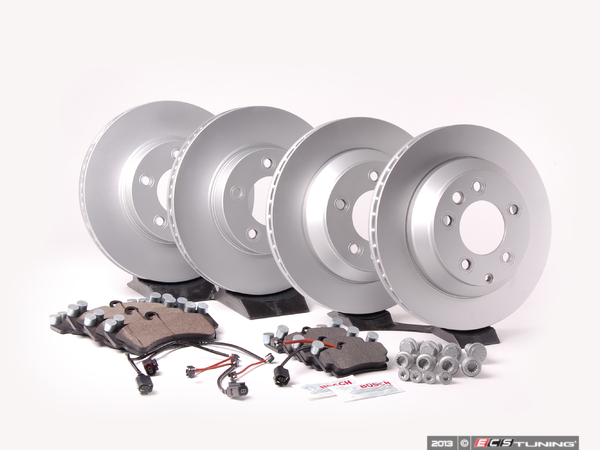

For more information on other brake service kits we offer, select your Vehicle > Braking > Service Kit
#5
The factory rotors are cast iron, and have a coating on the hats to prevent corrosion. There should be no issue with dissimilar metal bonding between the screw and the rotor. The main area of concern is between the screw and the iron hub. 304 stainless steel is deemed suitable for this application, and is preferable to the stock zinc plated screws. Since the area of the less noble material (the iron hub) is very large compared to that of the more noble material (the 304 stainless screw), the galvanic corrosive effect is greatly reduced, and in our experience and testing has proven to be negligible. With the application of anti-sieze on the threads, the hub and screw are electrically insulated and this already minimal corrosive effect is virtually eliminated.
With the stock zinc plated steel fastener in iron hub:
The corrosion of the base metal is not increased by the fastener, however the plating on the fastener is rapidly consumed, leaving the bare fastener metal - This eventually leads to a seized fastener, bonded to the hub due to rust. This is what we're trying to avoid by using a stainless fastener.
304 stainless screw in iron hub:
The corrosion of the base metal is only marginally increased by the fastener, and the rate of corrosion is greatly reduced compared to the stock bolt. In this application, this corrosion effect is deemed negligible due to favorable anode/cathode area ratio and the easily insulated materials through use of a lubricant (such as grease or anti-seize).
If you have any other questions or concerns fell free to ask me and I will gladly get an answer for you as soon as I can.
With the stock zinc plated steel fastener in iron hub:
The corrosion of the base metal is not increased by the fastener, however the plating on the fastener is rapidly consumed, leaving the bare fastener metal - This eventually leads to a seized fastener, bonded to the hub due to rust. This is what we're trying to avoid by using a stainless fastener.
304 stainless screw in iron hub:
The corrosion of the base metal is only marginally increased by the fastener, and the rate of corrosion is greatly reduced compared to the stock bolt. In this application, this corrosion effect is deemed negligible due to favorable anode/cathode area ratio and the easily insulated materials through use of a lubricant (such as grease or anti-seize).
If you have any other questions or concerns fell free to ask me and I will gladly get an answer for you as soon as I can.
Last edited by ECS Tuning - Porsche; 03-01-2013 at 08:30 AM.
#6
The main area of concern is between the screw and the iron hub. 304 stainless steel is deemed suitable for this application, and is preferable to the stock zinc plated screws. Since the area of the less noble material (the iron hub) is very large compared to that of the more noble material (the 304 stainless screw), the galvanic corrosive effect is greatly reduced, and in our experience and testing has proven to be negligible. With the application of anti-sieze on the threads, the hub and screw are electrically insulated and this already minimal corrosive effect is virtually eliminated.
With the stock zinc plated steel fastener in iron hub:
The corrosion of the base metal is not increased by the fastener, however the plating on the fastener is rapidly consumed, leaving the bare fastener metal - This eventually leads to a seized fastener, bonded to the hub due to rust. This is what we're trying to avoid by using a stainless fastener.
The corrosion of the base metal is not increased by the fastener, however the plating on the fastener is rapidly consumed, leaving the bare fastener metal - This eventually leads to a seized fastener, bonded to the hub due to rust. This is what we're trying to avoid by using a stainless fastener.
304 stainless screw in iron hub:
The corrosion of the base metal is only marginally increased by the fastener, and the rate of corrosion is greatly reduced compared to the stock bolt. In this application, this corrosion effect is deemed negligible due to favorable anode/cathode area ratio and the easily insulated materials through use of a lubricant (such as grease or anti-seize).
The corrosion of the base metal is only marginally increased by the fastener, and the rate of corrosion is greatly reduced compared to the stock bolt. In this application, this corrosion effect is deemed negligible due to favorable anode/cathode area ratio and the easily insulated materials through use of a lubricant (such as grease or anti-seize).
I wonder if material such as CorrosionX (which I use on my boat) or other would be good in either situation? How hot the rotors get would be a factor as of course are the location, salty roads, etc.
Don't get me wrong, regardless of hub material, I would prefer SS screws however I would use a corrosion resistant material on them as well as a touch of anti-seize. I would have to make it a point to inspect the area around the screws regularly to check for corrosion. Once it starts, it seemingly goes exponentially.
#7
Regardless of the size of the hub, the corrosion will happen where the contact is made. If anti-seize were electrically insulated there wouldn't be an issue either way, stainless or not. Anti-seize is NOT going to be electrically insulating the two. I'd bet if you liberally applied anti-seize, you'd not even have a .1 ohm resistance between the two. It would be super easy to test with a ohm meter. However the anti-seize will protect the surface somewhat where it is in contact on either screw material and this will help.
If the screws are stainless, corrosion of the base metal would be increased by the fastener located right around the fastener as anyone with a boat would be able to tell you from experience. It doesn't matter how big the hub is.
You acknowledge the corrosion of base material with SS screw here. Of course the corrosion of the screw would be greatly reduced because the corrosion transfers to the hub instead.
I wonder if material such as CorrosionX (which I use on my boat) or other would be good in either situation? How hot the rotors get would be a factor as of course are the location, salty roads, etc.
Don't get me wrong, regardless of hub material, I would prefer SS screws however I would use a corrosion resistant material on them as well as a touch of anti-seize. I would have to make it a point to inspect the area around the screws regularly to check for corrosion. Once it starts, it seemingly goes exponentially.
Don't get me wrong, regardless of hub material, I would prefer SS screws however I would use a corrosion resistant material on them as well as a touch of anti-seize. I would have to make it a point to inspect the area around the screws regularly to check for corrosion. Once it starts, it seemingly goes exponentially.
