  #16
Old 03-25-2019, 01:04 PM
quantz's Avatar
Registered User
Join Date: Mar 2019
Age: 53
Posts: 9
Rep Power: 0
quantz is an unknown quantity at this point
Thanks so much. Very appreciated. So I'll order 5 units of 5G0 947 409 for footwells and glove box.
This is very convenient, I'm sure that OEM will work best and Only a set of 10 BMW bulbs will be enough.

Regarding the puddle lights in the mirrors, this replacement is the most appealing IMO. The yellowish light doesn't match up to the LED daytime running light.
Replacing them is quite easy. Using a plastic prying tool, gently lever out the mirror glass. The glass is held in place with pop off retaining clips. Next, disconnect the electrical connectors. 3 torx 10 need to be removed in order to release the rear cover and gain access to the bulbs (be careful, it is also fitted with three locking tabs that must be pressed gently). Thats it! I have taken them out many times without any problem.

  #17
Old 03-25-2019, 01:13 PM
Elberoth's Avatar
Registered User
Join Date: Mar 2018
Location: Warsaw
Age: 48
Posts: 140
Rep Power: 0
Elberoth is an unknown quantity at this point
If you want to order them from the dealer, go to VW dealer instead. I bet they will cost 2x as much at Porsche dealer, ha ha. This is an universal part, used across VW range of cars (Golf 7 etc).

  #18
Old 03-25-2019, 01:32 PM
quantz's Avatar
Registered User
Join Date: Mar 2019
Age: 53
Posts: 9
Rep Power: 0
quantz is an unknown quantity at this point
I'll do! Thank you.
I've found a youtube video that exemplifies the procedure I wrote previously about replacing mirror bulbs by led:

I hope it helps.

  #19
Old 03-29-2019, 04:22 AM
quantz's Avatar
Registered User
Join Date: Mar 2019
Age: 53
Posts: 9
Rep Power: 0
quantz is an unknown quantity at this point
footwell OEM lights

5 footwell OEM lights arrived today (4 for the footwells and 1 for the glove compartment). Tested and work great.
Will post pictures of the whole car as soon as I replace all the bulbs, including the puddle lights in the mirrors; BMW 10er set on his way too.


  #20
Old 03-29-2019, 03:17 PM
Elberoth's Avatar
Registered User
Join Date: Mar 2018
Location: Warsaw
Age: 48
Posts: 140
Rep Power: 0
Elberoth is an unknown quantity at this point
Thanks for the vid - very helpful! I will try when it gets a bit warmer here in Poland - plastic will be more flexible and harder to break.

  #21
Old 03-30-2019, 07:19 AM
9000RPM's Avatar
Registered User
Join Date: Aug 2015
Age: 37
Posts: 62
Rep Power: 13
9000RPM is a jewel in the rough9000RPM is a jewel in the rough9000RPM is a jewel in the rough
Originally Posted by Elberoth
For the footwell, it is best to use the OEM Porsche / VW part. Fits plug & play:

I bought mine for like $10 a piece on ebay. VW part # : 5G0 947 409

Here is the comparo:




So even the OEM housing will give off that blue light?

  #22
Old 03-30-2019, 12:56 PM
Elberoth's Avatar
Registered User
Join Date: Mar 2018
Location: Warsaw
Age: 48
Posts: 140
Rep Power: 0
Elberoth is an unknown quantity at this point
It is not blue (like 6000K xenons) - it is just a crappy picture. I believe the OEM color temp is around 4000K, which means it is perfectly neutral.

  #23
Old 04-07-2019, 09:54 AM
quantz's Avatar
Registered User
Join Date: Mar 2019
Age: 53
Posts: 9
Rep Power: 0
quantz is an unknown quantity at this point

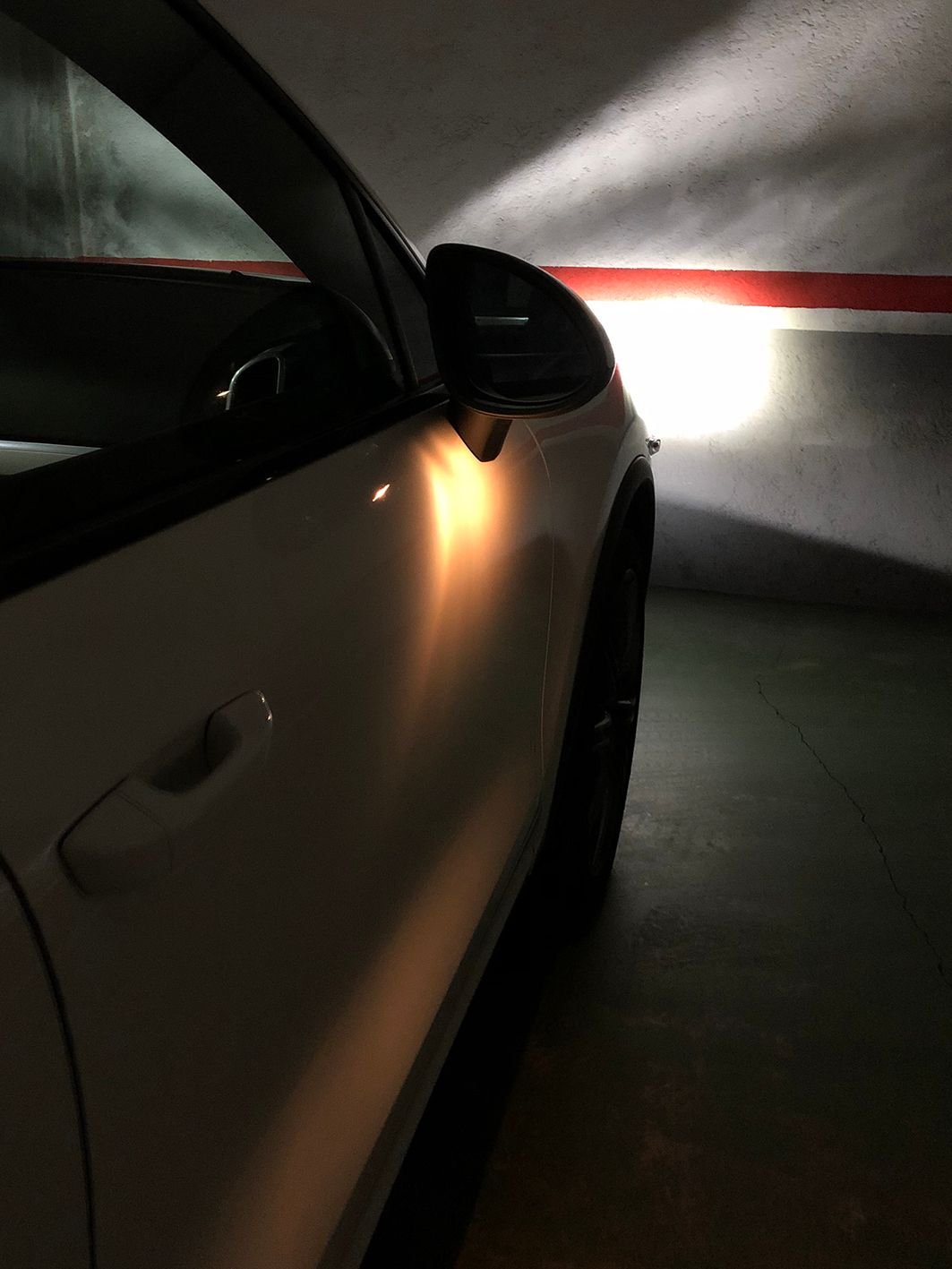

Just doing some spot-testing with mirror bulbs. The result is extremely worthwhile IMO:


Before

After

Before

After


Last edited by quantz; 04-07-2019 at 09:56 AM.
  #24
Old 04-07-2019, 11:00 AM
Elberoth's Avatar
Registered User
Join Date: Mar 2018
Location: Warsaw
Age: 48
Posts: 140
Rep Power: 0
Elberoth is an unknown quantity at this point
Nice!

  #25
Old 04-08-2019, 08:03 AM
quantz's Avatar
Registered User
Join Date: Mar 2019
Age: 53
Posts: 9
Rep Power: 0
quantz is an unknown quantity at this point
Any thoughts about how to replace the vanity mirror bulbs?

**EDIT** and reply to myself:
https://www.6speedonline.com/forums/...errerid=117260

Thanks.


Last edited by quantz; 04-08-2019 at 10:00 AM.
  #26
Old 04-26-2019, 06:20 PM
galion's Avatar
Registered User
Join Date: Dec 2010
Location: Brasil
Posts: 759
Rep Power: 57
galion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud ofgalion has much to be proud of
Are these LED bulbs dimmable?

  #27
Old 10-28-2019, 12:39 PM
RyanCn28's Avatar
Registered User
Join Date: Oct 2019
Age: 30
Posts: 1
Rep Power: 0
RyanCn28 is an unknown quantity at this point
Originally Posted by howardhaoxie
how do I change the light above the rear doors?
did you find out how to change this? Also need to explore the foot wells

  #28
Old 10-30-2019, 09:13 AM
coffeeisgood's Avatar
Registered User
Join Date: Oct 2019
Location: Encinitas
Age: 49
Posts: 7
Rep Power: 0
coffeeisgood is an unknown quantity at this point
best I am finding is

5G0 947 409

$20 each (approx)
from a VW online dealership...

ebay currently has no stock
cool mod though, its on my list
