Tool to check the 958 base engine oil level
#1
Tool to check the 958 base engine oil level
Hey guys,
Just wanted to share this tool I found to manually check our 958 base engine oil level. I was surprised when I did the oil change and found out that there was no dipstick last August. Since our base cayenne 958s use the VW 3.6 engine, there is a special tool used by VW Techs to manually check the engine oil level instead of driving it for 5+ miles for the computer to register.
Part number is T40178. If you google around, they can be bought for about $25.00.
Here are some the instructions on how to use this tool:
As always, I will post a picture of it when mine arrives in the mail.
I wouldn't be surprised if Porsche techs use this to manually check the oil level in the bigger engines. Since it has an adjustable slide, it's just a matter of knowing where to set the slide at. Maybe someone who has access to PIWIS can chime in if it shows this kind of information? There's no way a tech is going to drive for 5+ miles after every oil change he/she does.
Just wanted to share this tool I found to manually check our 958 base engine oil level. I was surprised when I did the oil change and found out that there was no dipstick last August. Since our base cayenne 958s use the VW 3.6 engine, there is a special tool used by VW Techs to manually check the engine oil level instead of driving it for 5+ miles for the computer to register.
Part number is T40178. If you google around, they can be bought for about $25.00.
Here are some the instructions on how to use this tool:
As always, I will post a picture of it when mine arrives in the mail.
I wouldn't be surprised if Porsche techs use this to manually check the oil level in the bigger engines. Since it has an adjustable slide, it's just a matter of knowing where to set the slide at. Maybe someone who has access to PIWIS can chime in if it shows this kind of information? There's no way a tech is going to drive for 5+ miles after every oil change he/she does.
Last edited by 9000RPM; 04-02-2016 at 09:05 PM.
#2
I took a look at the data on oil from the ICarScan - and found a readout of oil-level: It's under the oil-pressure data section on the engine DME.
"0110 Engine oil level sensor 3.15 inch" - I imagine this corresponds to some spec that the Porsche techs get with the PIWIS. That's on a 2011 Turbo. Be interested in what your V6 reads..
"0110 Engine oil level sensor 3.15 inch" - I imagine this corresponds to some spec that the Porsche techs get with the PIWIS. That's on a 2011 Turbo. Be interested in what your V6 reads..
#4

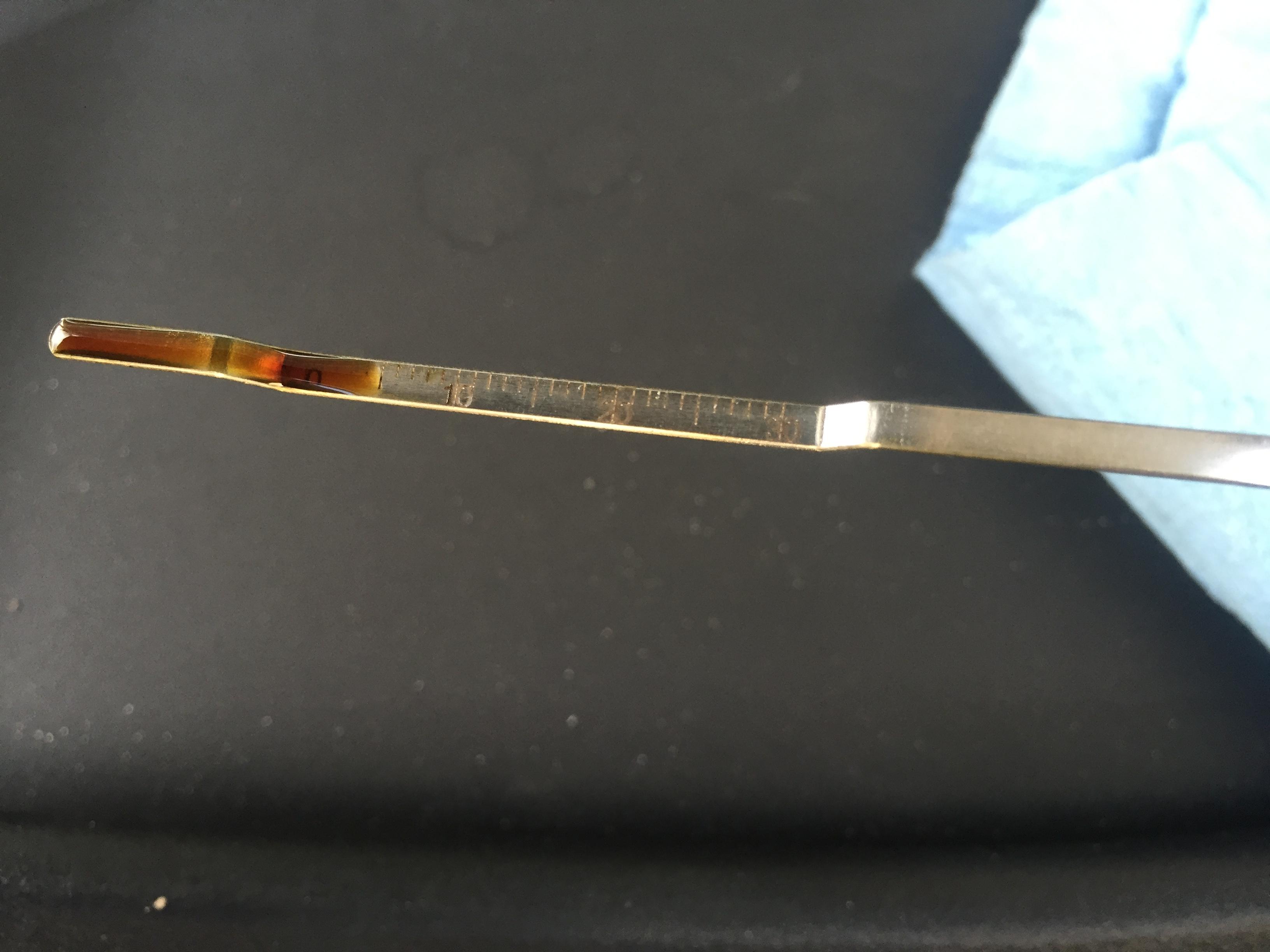

Arrived today and thought I post some pics of this thing.
My driveway is on an incline so this reading is probably not accurate. I'll check the reading on level surface this weekend.
See the pics where the tube is located.
Don,
I haven't tried it out on the icarscan yet. I'll check it next time I have it connected. I still prefer the traditional way of checking the oil level.
My driveway is on an incline so this reading is probably not accurate. I'll check the reading on level surface this weekend.
I took a look at the data on oil from the ICarScan - and found a readout of oil-level: It's under the oil-pressure data section on the engine DME.
"0110 Engine oil level sensor 3.15 inch" - I imagine this corresponds to some spec that the Porsche techs get with the PIWIS. That's on a 2011 Turbo. Be interested in what your V6 reads..
"0110 Engine oil level sensor 3.15 inch" - I imagine this corresponds to some spec that the Porsche techs get with the PIWIS. That's on a 2011 Turbo. Be interested in what your V6 reads..
I haven't tried it out on the icarscan yet. I'll check it next time I have it connected. I still prefer the traditional way of checking the oil level.
#5
I did the oil change yesterday. Good thing it's only a yearly thing because getting the oil filter housing out is such a PITA. Oil spills everywhere. Every time.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
Last edited by 9000RPM; 08-08-2016 at 11:59 AM.
#6
It seems Amazon sells the OEM tool, but its listed for audi engines:
https://www.amazon.com/T40178-Engine.../dp/B01A6RB3SE
maybe this tool is cross manufacturer approved? I can see where you can adjust the sitting height of the stick where the knurled **** is.
https://www.amazon.com/T40178-Engine.../dp/B01A6RB3SE
maybe this tool is cross manufacturer approved? I can see where you can adjust the sitting height of the stick where the knurled **** is.
#7
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
Trending Topics
#8
This is a very interesting info.
When I had a warranty service at a stealership, the service manager told me that they removed engine oil a bit since the level was too high. I thought that they removed oil through the drain plug underneath the vehicle.
Aha! They must remove engine oil through the dipstick hole by using a vacuum fluid evacuator
As a matter of fact, I had to remove engine oil myself since I saw a warning sign of "exceeded engine oil level." By accident, I did add more oil than recommended.
It was a messy job to loosen the drain plug but I successfully made engine oil level right!
It must be much easier to check the oil level than checking the multi-display panel.
Thanks for this great alternative to check the engine oil level as well as to remove/adjust oil level using a vacuum evacuator.
Have a great day!
When I had a warranty service at a stealership, the service manager told me that they removed engine oil a bit since the level was too high. I thought that they removed oil through the drain plug underneath the vehicle.
Aha! They must remove engine oil through the dipstick hole by using a vacuum fluid evacuator
As a matter of fact, I had to remove engine oil myself since I saw a warning sign of "exceeded engine oil level." By accident, I did add more oil than recommended.
It was a messy job to loosen the drain plug but I successfully made engine oil level right!
It must be much easier to check the oil level than checking the multi-display panel.
Thanks for this great alternative to check the engine oil level as well as to remove/adjust oil level using a vacuum evacuator.
Have a great day!
I did the oil change yesterday. Good thing it's only a yearly thing because getting the oil filter housing out is such a PITA. Oil spills everywhere. Every time.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
#9
Engine oil
About to change the oil on my 2012 958 v6 soon. It will be the fist time since ive purchased it. So how many quarts does it require? I read your post you mentioned you put in 6 qt took it for a spin later added 1/2 qt. So 6.5? Or 7
#10
I put in 6.5qt total.
#11
It seems Amazon sells the OEM tool, but its listed for audi engines:
https://www.amazon.com/T40178-Engine.../dp/B01A6RB3SE
maybe this tool is cross manufacturer approved? I can see where you can adjust the sitting height of the stick where the knurled **** is.
https://www.amazon.com/T40178-Engine.../dp/B01A6RB3SE
maybe this tool is cross manufacturer approved? I can see where you can adjust the sitting height of the stick where the knurled **** is.
#14
I did the oil change yesterday. Good thing it's only a yearly thing because getting the oil filter housing out is such a PITA. Oil spills everywhere. Every time.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
I poured in 6 qt of the Total Quartz INEO 5W-30. Ran the car for a bit and checked the oil level with the dipstick. It looks pretty accurate. I then added another 1/2qt. Does anyone else run this oil? Its got the Porsche C30 spec and a lot cheaper ($6.52/qt) than the Mobil 1 ESP formula. I'll get an oil analysis on this oil during next year's oil change.
Don, I checked it out on my icarscan and the data read something like 2.11 inches. There is another data PID "oil warning level threshold" right underneath that with a reading of around "1.18"
Another thing I noticed is that the icarscan will allow you to get a reading right away. I think it forces the sensor to get a reading instead of driving it around for awhile. This must be similar to what the PIWIS does. I closed the hood, turn the key to ignition and checked the oil level and it gave me an instant reading. It also displayed the reading on the multi-function display.
Durametric does the job beautifully to reset the service. The machine is paid for itself. Porche dealer charges me $279 for oil service with discount.
#15
BTW I bought this tool, opened my engine bay and couldn't find where to insert the measuring tool.
I'm guessing this only works for the 958 and NOT the 958.2
Please correct me if I'm wrong.
I'm guessing this only works for the 958 and NOT the 958.2
Please correct me if I'm wrong.
Last edited by Defratos; 05-11-2017 at 03:21 AM.
