Height for garage 4 post lift?
#1
Height for garage 4 post lift?
We are hopefully going to be breaking ground on our dream house in the next 3-4 months and we currently have a 9' ceiling in the 4 car garage. It is 3 bay's wide and one bay is two deep. We don't have the land to add any more bays and we already have 4 cars so looking at a 4 post lift for future purchases.
Would possibly have a Lotus Elise and Lamborghini Gallardo that would share the same space, both are short but could they fit in a 9' tall garage or should I look at somehow digging deeper and making a 10' or qq' tall garage?
Would possibly have a Lotus Elise and Lamborghini Gallardo that would share the same space, both are short but could they fit in a 9' tall garage or should I look at somehow digging deeper and making a 10' or qq' tall garage?
#2

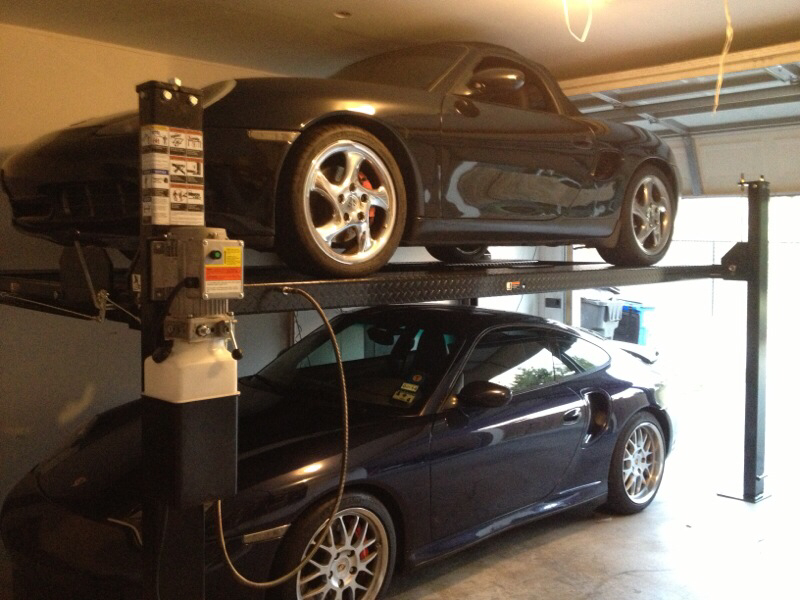

FWIW, my garage was like 9ft 3.5in. I fit a 4 post lift and keep a Boxster on top and my 996 turbo on bottom with about 2 in from the boxster to the top of the garage and maybe 4 or 5 in between them.
#3
So essentially a tight fit at 9'...
I think I am going to talk to my builder and see if its possible to have at least one bay with higher ceilings or dug deeper(which might requiring re-engineering the house)
I think I am going to talk to my builder and see if its possible to have at least one bay with higher ceilings or dug deeper(which might requiring re-engineering the house)
#4
We have a 9' ceiling and wanted a lift. So we employed an engineer to help us move from roof trusses to rafters and collar ties, allowing us to raise the ceiling (keeping the same roof line). My wife and I did the installation. Anyway, we are at 10' or so now and have two lifts to stack cars. Cars of the height you are suggesting would not be a problem. What I did when I was determining the ceiling elevation required was to select my lift and then use the calculator from that manufacturer to determine the height required. I had dimensions of all my cars, used the calculator and had no issues at all.
#5
Well I have 15 plus years at this house so I have no idea what cars will go there. I have two stories above my garage but luckily I can dig down to get over 1' of extra height.
#6
No expert here, but hard to imagine not being able to add one foot to your ceiling height. Of course it could be trickier if you have a room above the garage. A side-reeling Lift Master can hug the door to the ceiling.
I have a high ceiling in my garage so it's a little hard to relate, but it would be a little unnerving for me if I had the clearances with my cars that stilov has (above).
I have a high ceiling in my garage so it's a little hard to relate, but it would be a little unnerving for me if I had the clearances with my cars that stilov has (above).
#7
Trending Topics
#9
Hmm. Never thought about that. My wife does pretty well.

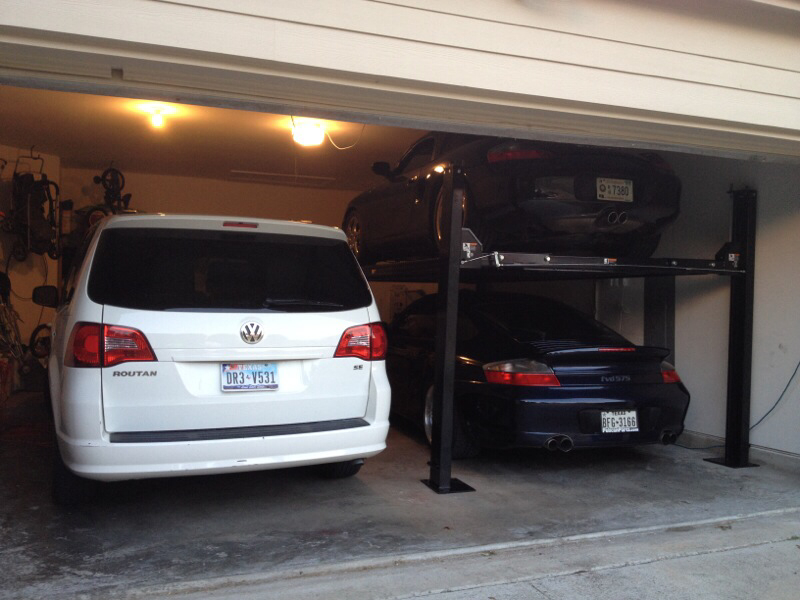

Normally she is way closer to the wall than that pic.
Also I did make sure that the locking positions fell in between the two cars so if there was a malfunction it would catch the top car.
Normally she is way closer to the wall than that pic.
Also I did make sure that the locking positions fell in between the two cars so if there was a malfunction it would catch the top car.
#10
If it's a dream house, do a higher ceiling. I have 17' ceiling on half of mine and with my extended height lift I can put my G63 on the top and GL63 on the bottom (G-wagen is too tall to go on the bottom). The other half has about a 9' ceiling and it would be really tight to fit anything taller than two sports cars stacked. Even then, it would be impractical.
#13
Thanks boss!! My garage is 12ft but since the builder was a smartone they ran a beam right in the middle to make it 9ft lol. Gonna check it out!
