ACI Motorsport's Matte Wrapped Porsche 991.2 GT3 BBi Roll Bar Safety Package Install

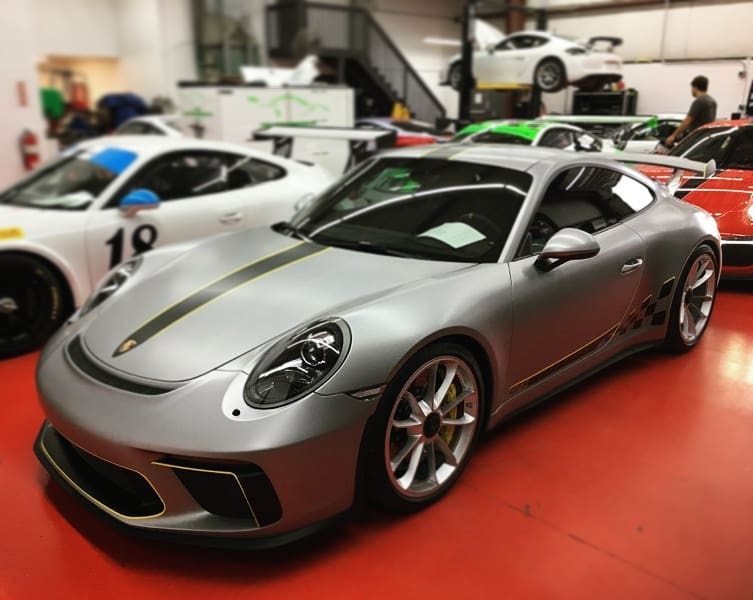

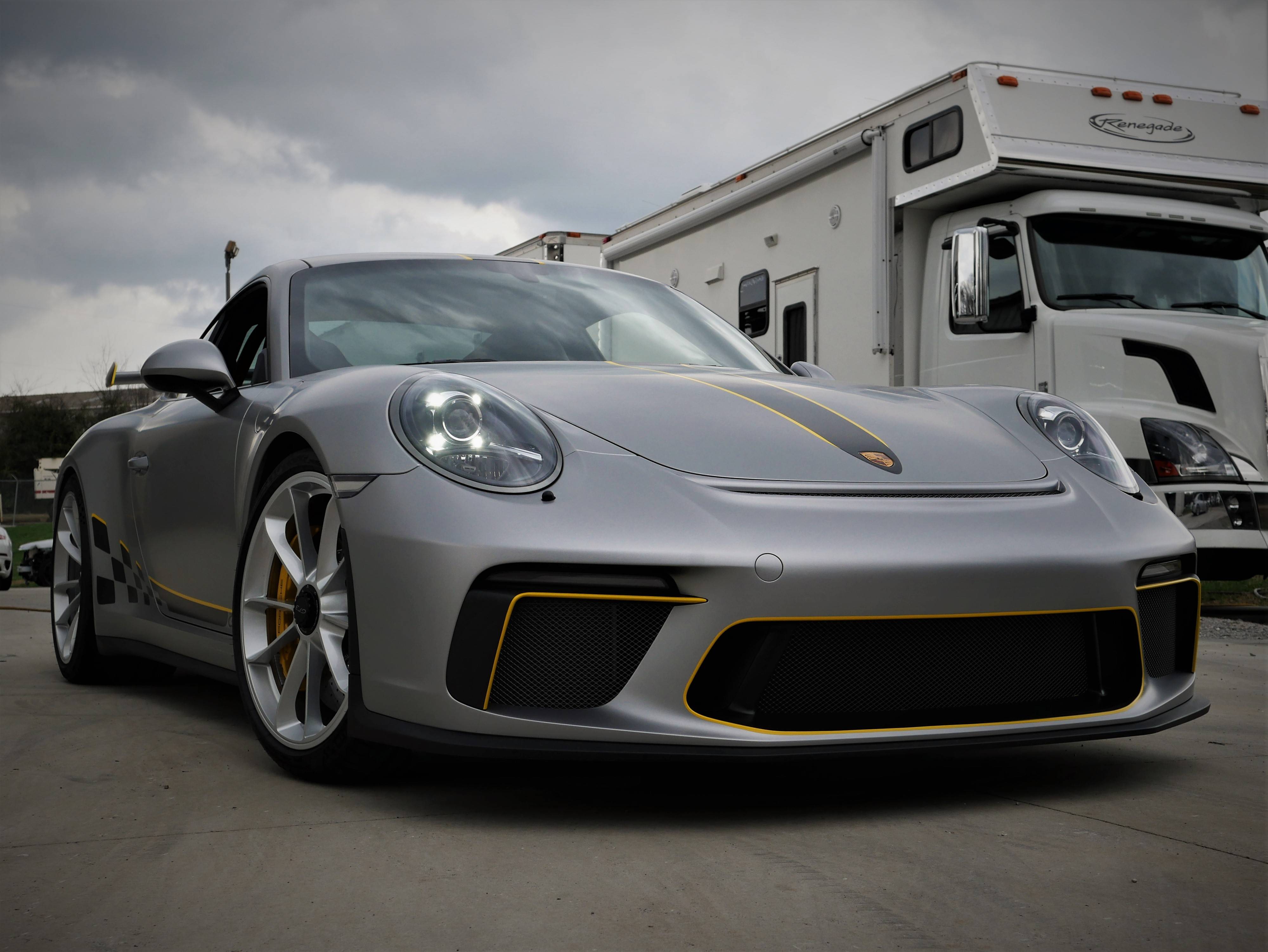

In collaboration with ACI Motorsports, we would like to present this stunning Matte Silver Porsche 991 GT3 RS. To provide proper restraint & improved protection, ACI installed our BBi Autosport StreetCup Roll Bar Safety Package. Located in Chattanooga, Tennessee, we are proud to have ACI as one of our latest authorized installation centers in the country representing our complete line of performance and safety upgrades. Here are some detailed pictures of the build that we would like to share below.




Upgrades

Safety Package

• BBi Autosport StreetCup Roll Bar in Matte Yellow
• BBi Autosport Sub Belt Bar
• Schroth Racing Profi II GT3 HANS Harnesses

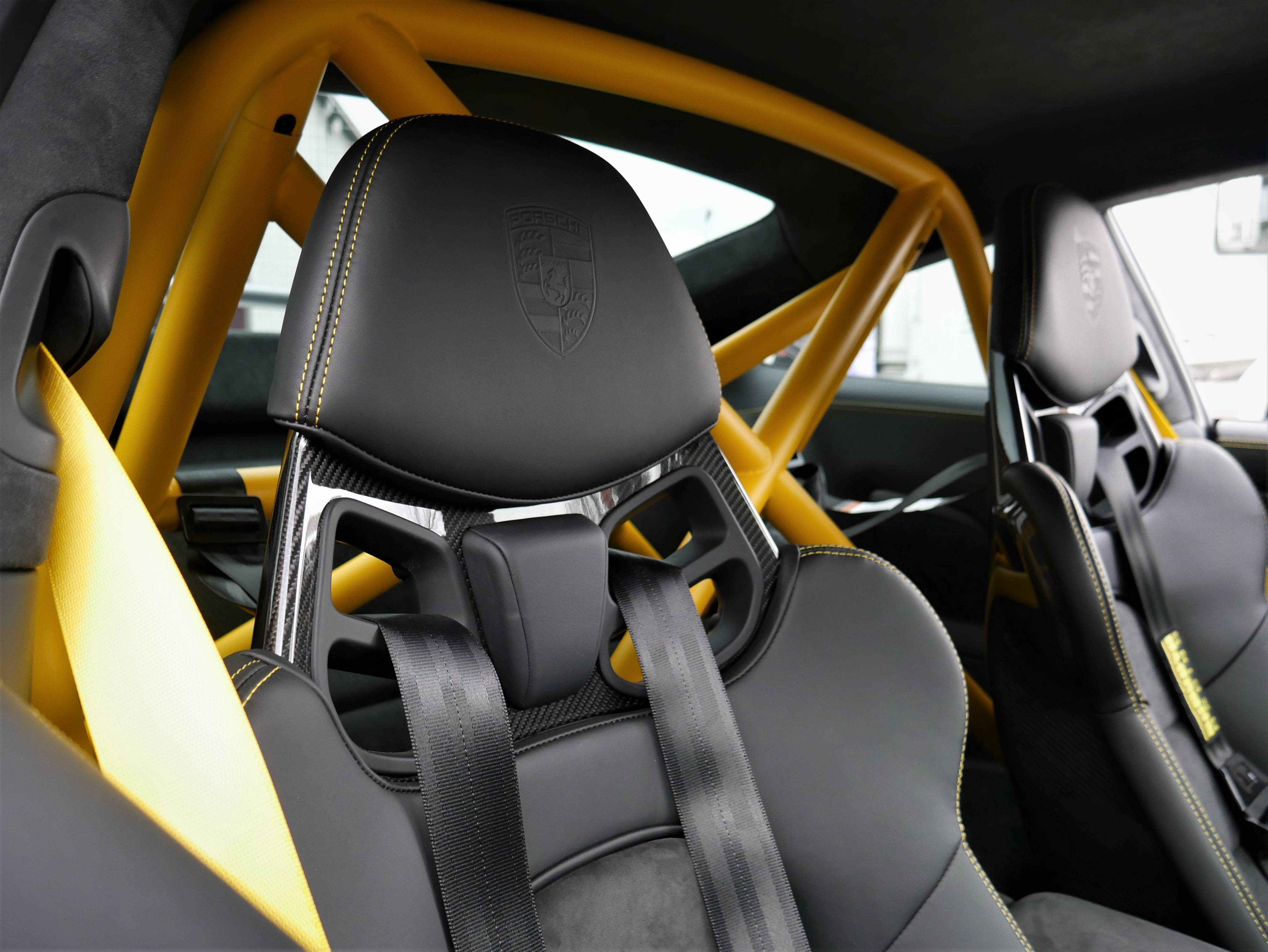

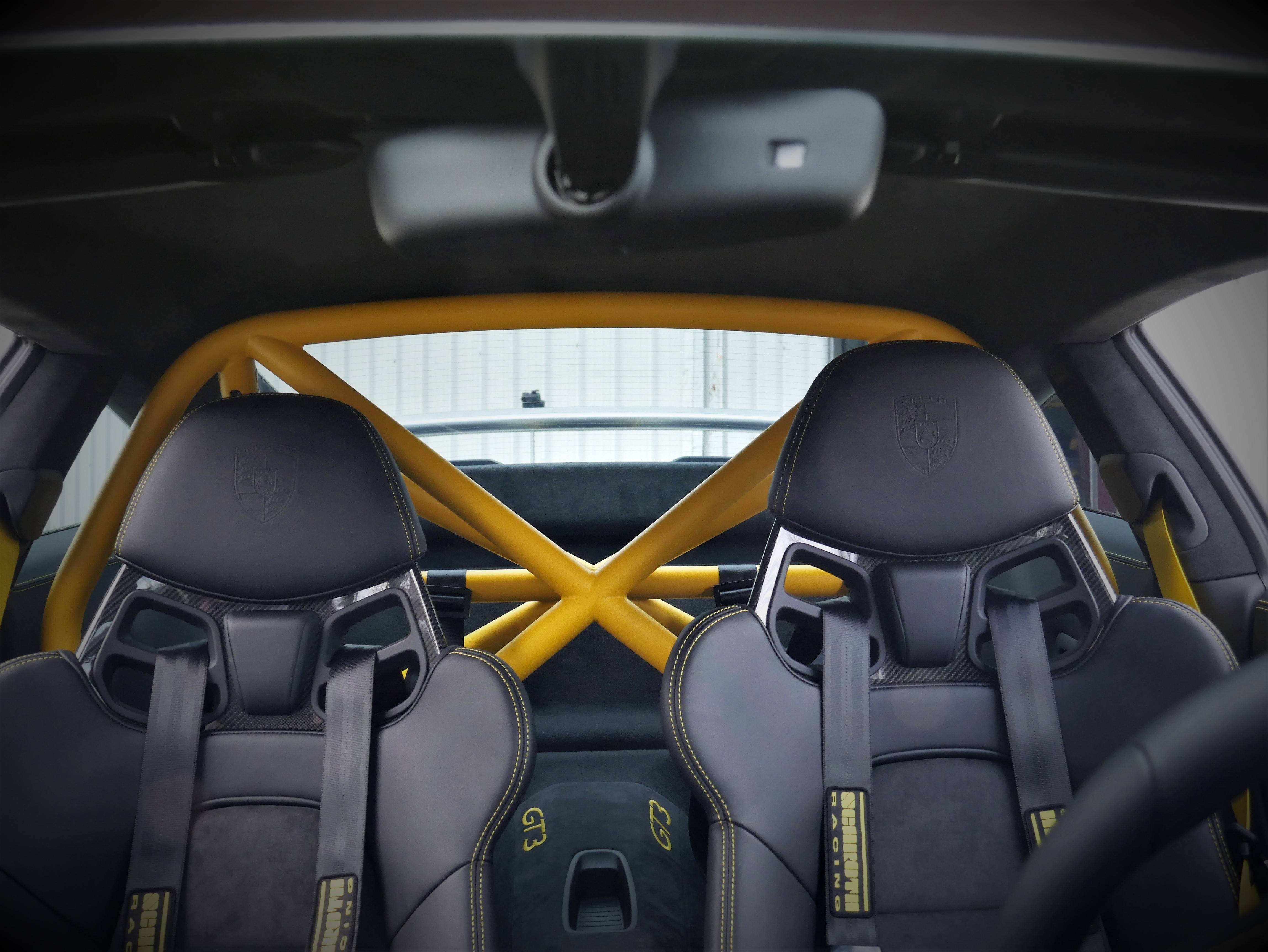

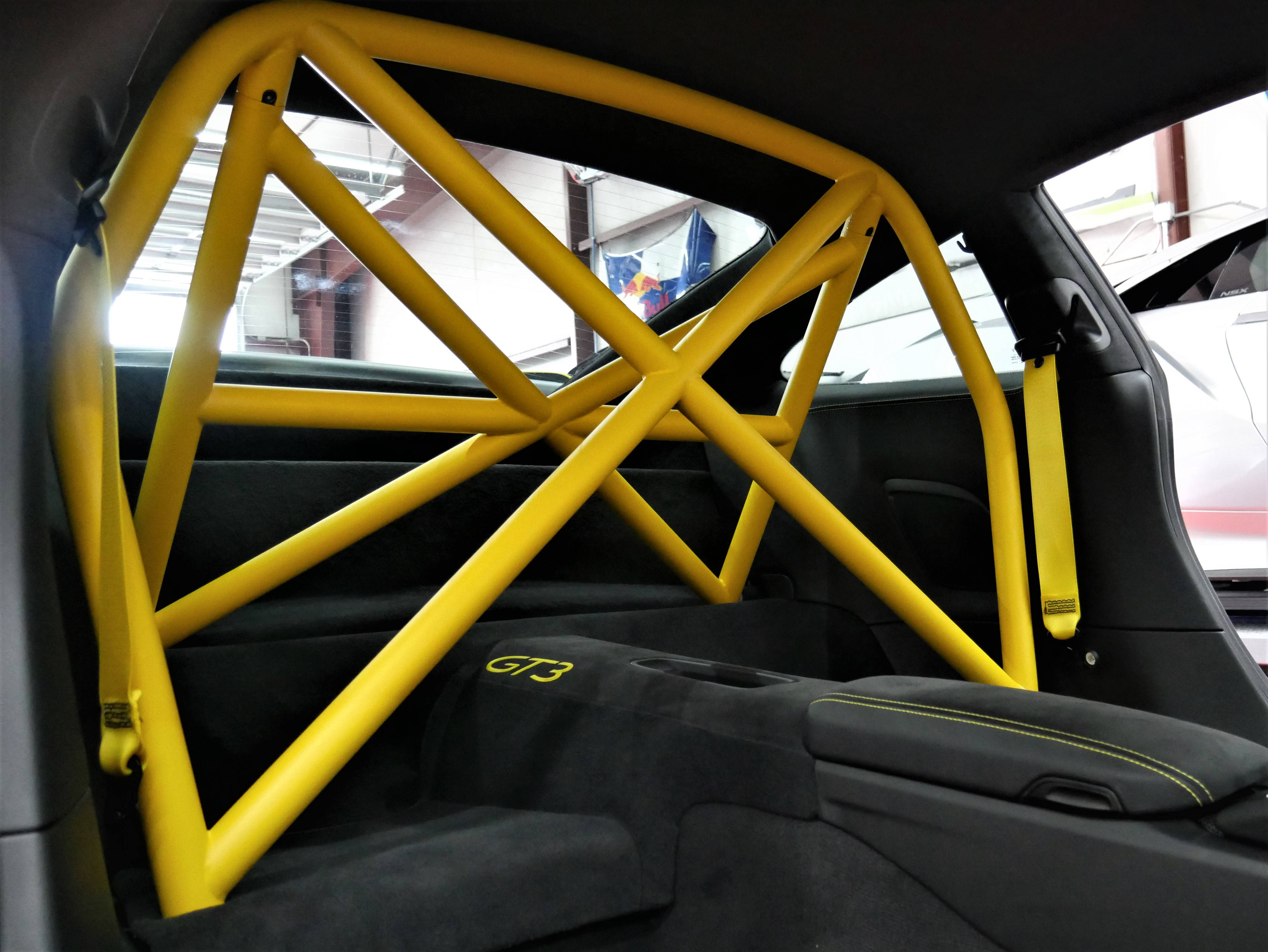

Bar Installed

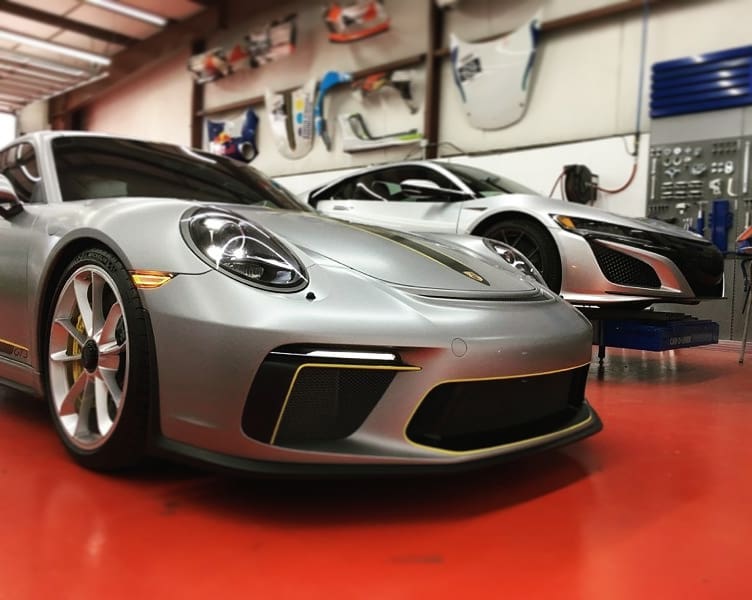

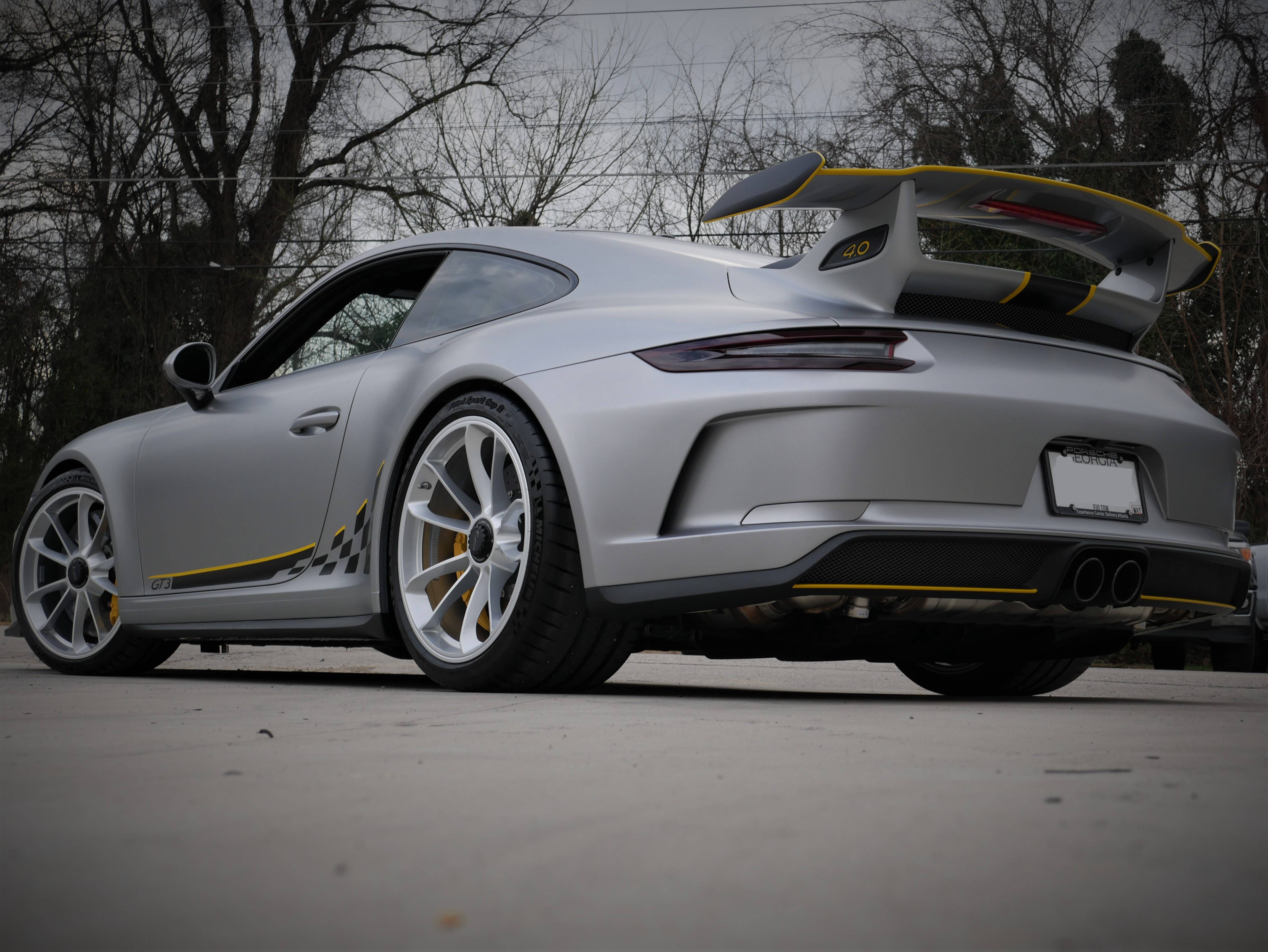

Completed Project

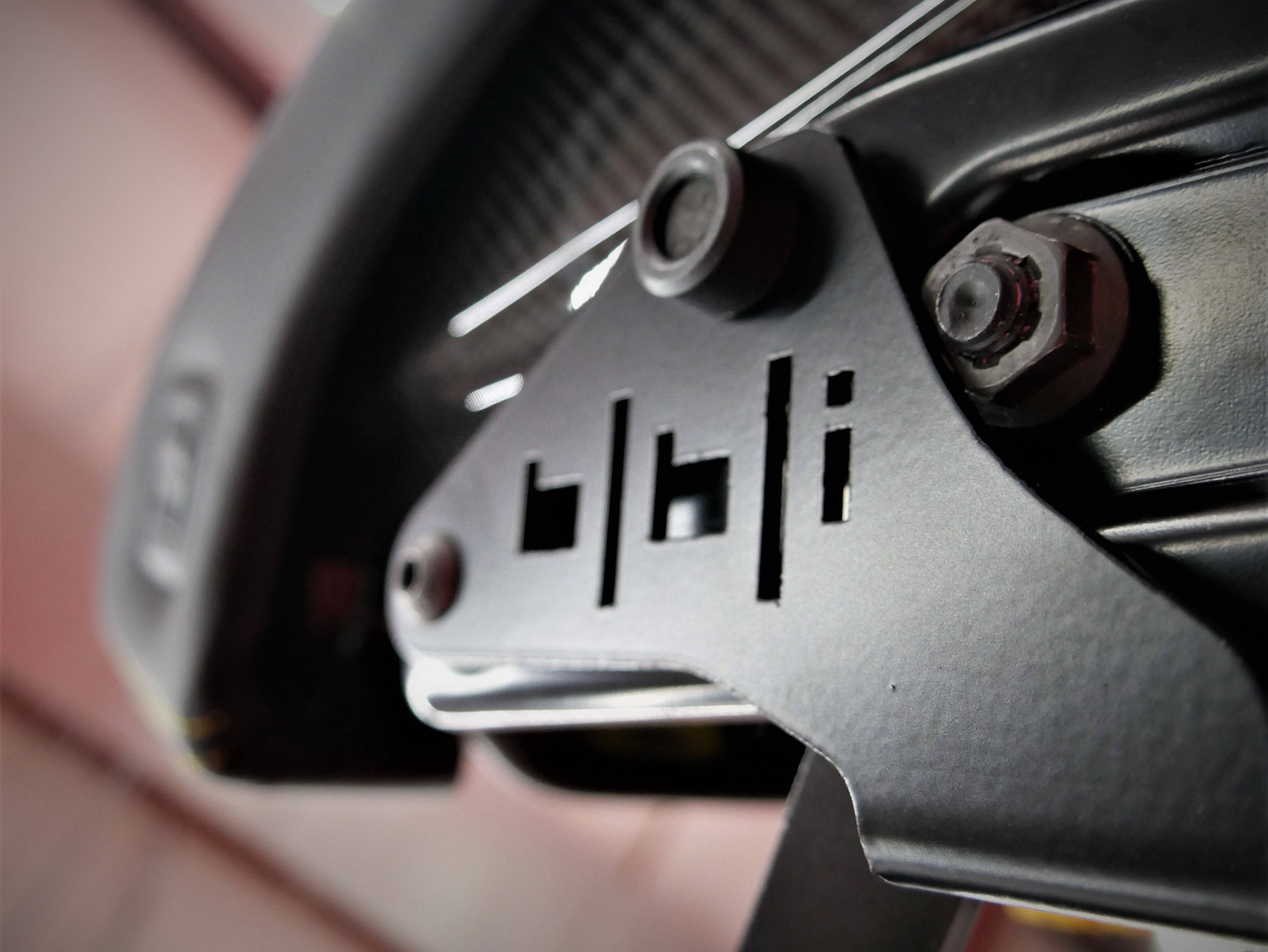

BBi Porsche 991 GT3/ GT3RS / Cayman GT4 Sub-Strap Mount




If you have the optional Sport Bucket seats and planning to install 6-point race harnesses, then you will need this bracket. This bracket bolts directly to the seat and keeps the harnesses at the proper 10-20° angle regardless of the seat position.

Schroth Racing Profi-II HANS Harness, Porsche GT3 Specific



Porsche GT3 Cup Cars come with Schroth belts direct from the factory. They are specific because of the lap belt attachment. They have a sewn-in bracket that fits perfectly on the factory mount. Standard belts require additional fabrication and a spacer to make them work. These are a bolt-in replacement which is much easier. The sub-straps have no adjusters to fit correctly in the vehicle, and the shoulder belts are shorter to reach the works cages with minimal excess.

Features

• Shoulder: HANS Specific 2" tapered to 3" Shoulders
• Lap: Sewn-in B43A (GT3 Specific Hardware)
• Sub belts: LV11 with B14 Snap-in Bracket Wrapped-in
• Include hardware: 1 SG23 7/16" Eyebolt, 1 S3 Wavy Washer
• Available with Pull-Down lap belts only

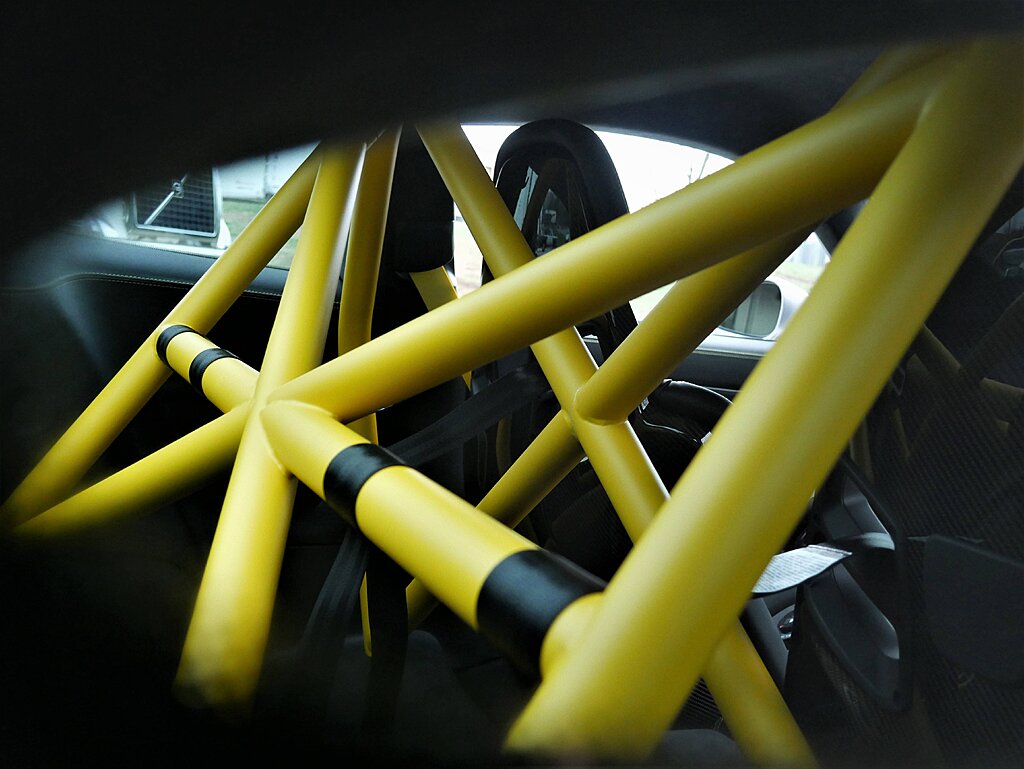

BBi Autosport Porsche 991 GT3 StreetCup II Bolt-In Roll Bar




Features

• 1.625" x 0.095" 4130 chrome moly steel tubing utilized for excellent strength to weight ratio
• TIG welded and utilizes "X" braces on both front and rear sections for superior strength and rigidity
• Mounts to frame structure (utilizing factory bolts) to provide strongest mounting points and maximum protection
• Utilizes laser cut mounting plates & inner diameter tube clamps that are CNC turned and milled for a precise fit
• Designed to work with stock seats or any aftermarket seats on the market
• Allows full seat travel to accommodate taller drivers
• Can be used with stock seat belts or 6 point harnesses for track use
• Designed to work with wrap-around style harnesses while optional eyelet bolt provisions are available for clip-in harnesses
• OEM fit & finish. The main hoop contours entire arch of the roof with an even 3/16 inch gap
• Finished in satin black powder coat. Other colors available Bolt-in installation requires no drilling and minimal carpet trimming
• Made in USA

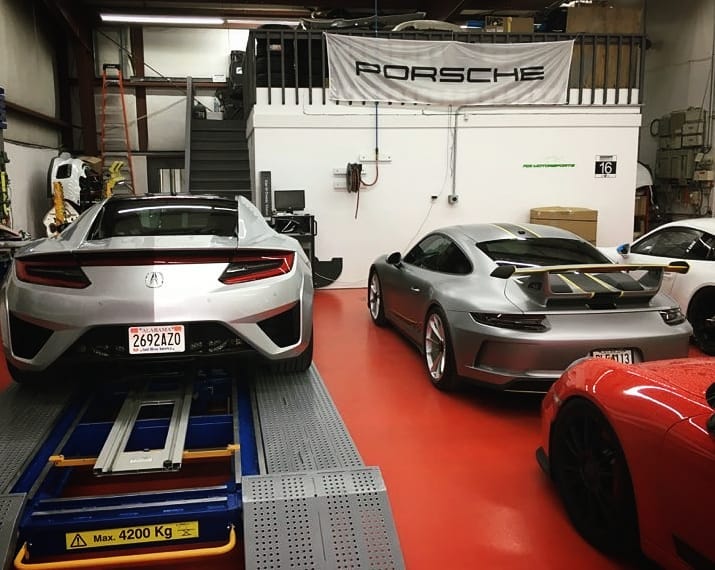

About ACI Motorsports
