Air suspension questions - Nitrogen Fill

Thread Tools

Rate Thread

Old Jun 22, 2018 | 09:21 AM
  #16
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
Correct. Whenever the system is depressurized, you should have all tires suspended so that the bellows do not crease. When you crease your bellows, they will wear on the mark and can cause leaking later.



Originally Posted by amgpan
I do know, that when filling the Nitrogen in the system, the wheels MUST be suspended in the air (i.e- on a hoist, not a ramp style)

Old Jun 23, 2018 | 06:53 AM
  #17
HP41's Avatar
Registered User
Joined: Feb 2017
Posts: 120
From: Michigan
Rep Power: 16
HP41 is a jewel in the roughHP41 is a jewel in the roughHP41 is a jewel in the rough
In response to
"P.S. what is not clear to me is how to remove all the 's*it' from system before refilling ?"

One answer is pressure and de-pressure the system.

"Overpressure Purging" is used to removed undesired gases from process vessels / piping in industry. The equation for calculating the number of purge cycles required is a function of the desired final desired concentration and the pressures used during the pressure and venting cycles.

Number of volume changes:
i = (ln(ca) – ln(ce)) ⁄ (ln(p1) – ln(p2))

*where "ln" is the natural log.
ca = initial concentration
ce = final concentration
p2 = venting pressure
p1 = pressurization target pressure

Let's say for your example you want to get to 98% (2% remaining) removal of all initial system gas and you plan to pressure to 100psig.

You must use absolute pressures in this calculation not gauge pressure (just add 14.7 to convert psig to psia)

ca = 100 (all air)
ce = 2 (2% of air left)
p2 = 14.7
p1 = 114.7

n = [ln(100)-ln(2)]/[ln(114.7)- ln(14.7)]
n = 1.9

so it takes approx 2 cycles from 0 psig to 100 psig with N2 to remove 98% of the gas that was initially in the system.

Important -- this is all based on perfect mixing of the gases in the system during pressurization and venting. Air suspension does not lend itself to mixing very well -- I'd add at least one cycle to account for non-ideal mixing.

Old Jun 24, 2018 | 10:27 PM
  #18
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
From what I understand, shocks and reservoir are all connected to valve block, and are not accessible unless the block valves are opened. Each component is self contained (shocks keep their pressure, so does reservoir, compressor, etc.).

Service manual calls to connect nitro tank regulator via an adapter, to passenger front shock pipe (unscrew from top of shock, and connect to nitro tank via the adapter).
Then, using software diags, valve block is requested to open valve to the reservoir, make the needed pressure check/fill, close the valve. Then open another valve to a shock. Then the next one, etc. until all components are checked. Once that is done, reconnect the line back to passenger front shock.

Some specifics on steps are missing in the service manual, as it refers to PIWIS to follow steps therein.

If someone has done this, please chime in. Very helpful.


Last edited by ciaka; Jun 25, 2018 at 08:45 AM.
Old May 19, 2021 | 02:18 AM
  #19
pkainzner's Avatar
Registered User
Joined: May 2021
Posts: 10
From: Nuremberg, Germany
Rep Power: 0
pkainzner is infamous around these parts
Originally Posted by ciaka
From what I understand, shocks and reservoir are all connected to valve block, and are not accessible unless the block valves are opened. Each component is self contained (shocks keep their pressure, so does reservoir, compressor, etc.).

Service manual calls to connect nitro tank regulator via an adapter, to passenger front shock pipe (unscrew from top of shock, and connect to nitro tank via the adapter).
Then, using software diags, valve block is requested to open valve to the reservoir, make the needed pressure check/fill, close the valve. Then open another valve to a shock. Then the next one, etc. until all components are checked. Once that is done, reconnect the line back to passenger front shock.

Some specifics on steps are missing in the service manual, as it refers to PIWIS to follow steps therein.

If someone has done this, please chime in. Very helpful.
I am about to replace the compressor. It is not easy to find the PIWIS outside of a Porsche workshop. So my idea is to put a T-connector in the line between compressor and pressure tank. Then add a manual valve at the 3rd port of the connector. This can be used the tank with nitrogen and keep it at 17 bars. Let the car adjust itselve. Then close the manual valve and disconnect the nitrogen bottle. Could this work? The advantage is that not PIWIS needed.

Old May 20, 2021 | 06:59 AM
  #20
jzchen's Avatar
Registered User
5 Year Member
Joined: Jul 2019
Posts: 829
From: Arcadia, CA. USA
Rep Power: 40
jzchen is infamous around these parts
Originally Posted by pkainzner
I am about to replace the compressor. It is not easy to find the PIWIS outside of a Porsche workshop. So my idea is to put a T-connector in the line between compressor and pressure tank. Then add a manual valve at the 3rd port of the connector. This can be used the tank with nitrogen and keep it at 17 bars. Let the car adjust itselve. Then close the manual valve and disconnect the nitrogen bottle. Could this work? The advantage is that not PIWIS needed.
Most people here seem to just let the car fill with normal air. You would then leave the T-connector there permanently? Interesting idea! I saw the filling function in my Foxwell NT510 Elite when I replaced the front left air strut, without needing to fill/replace Nitrogen. You can verify with Foxwell it will work as a not very expensive option….

Old May 20, 2021 | 07:07 AM
  #21
pkainzner's Avatar
Registered User
Joined: May 2021
Posts: 10
From: Nuremberg, Germany
Rep Power: 0
pkainzner is infamous around these parts
Originally Posted by jzchen
Most people here seem to just let the car fill with normal air. You would then leave the T-connector there permanently? Interesting idea! I saw the filling function in my Foxwell NT510 Elite when I replaced the front left air strut, without needing to fill/replace Nitrogen. You can verify with Foxwell it will work as a not very expensive option….
Yes, I will leave the T connector and the valve permanently. Then is easy to connect in the future. Foxwell looks interesting. It shows more features than my icarsoft.

Old May 20, 2021 | 10:58 AM
  #22
jzchen's Avatar
Registered User
5 Year Member
Joined: Jul 2019
Posts: 829
From: Arcadia, CA. USA
Rep Power: 40
jzchen is infamous around these parts
Originally Posted by pkainzner
Yes, I will leave the T connector and the valve permanently. Then is easy to connect in the future. Foxwell looks interesting. It shows more features than my icarsoft.
Brilliant idea! Don't know if I've read anyone do that but I don't see why it won't work. Here the USA at least buying from Amazon seller OBDZON is risk free (minus you pay to ship it back after regular Amazon return policy of 30 days. At just prior to 1 year Foxwell stopped updating my old NT644Pro, and refunded all my money when I shipped it back to them in GA). If they don't have a similar policy in your country better check with Foxwell directly for whatever function(s) you need, before you purchase. (I have Toyota software add on and spent a long time asking them to implement the TPMS sensor registration in Toyota models. They eventually did but it took a long time (6 months) and repeated asking them politely.)

Old May 21, 2021 | 09:22 AM
  #23
jzchen's Avatar
Registered User
5 Year Member
Joined: Jul 2019
Posts: 829
From: Arcadia, CA. USA
Rep Power: 40
jzchen is infamous around these parts
Originally Posted by ciaka
Some specifics on steps are missing in the service manual, as it refers to PIWIS to follow steps therein.

If someone has done this, please chime in. Very helpful.
There is a service document called "WM 4301IN Bleeding and filling the levelling system". It details what to do in case of system part replacement, for example I replaced the front left strut with no leak in the system. Process (with no leak) is to bleed the strut/shock you want to replace which sends the N2 all over it seems. Then to fill the new strut/shock with PIWIS or equivalent. If someone were to have a leak then filling the system with N2 is prescribed. No mention of filling and vacating cycle to get rid of "crud". As noted 70% atmospheric air is N2 at 1 ATM combined with pressurized N2 5.0 at (7 bar each strut/shock) and (16.5 bar system fill) is very pure already I guess, not knowing the math personally...


Last edited by jzchen; May 21, 2021 at 09:35 AM.
Old May 23, 2021 | 01:20 AM
  #24
pkainzner's Avatar
Registered User
Joined: May 2021
Posts: 10
From: Nuremberg, Germany
Rep Power: 0
pkainzner is infamous around these parts

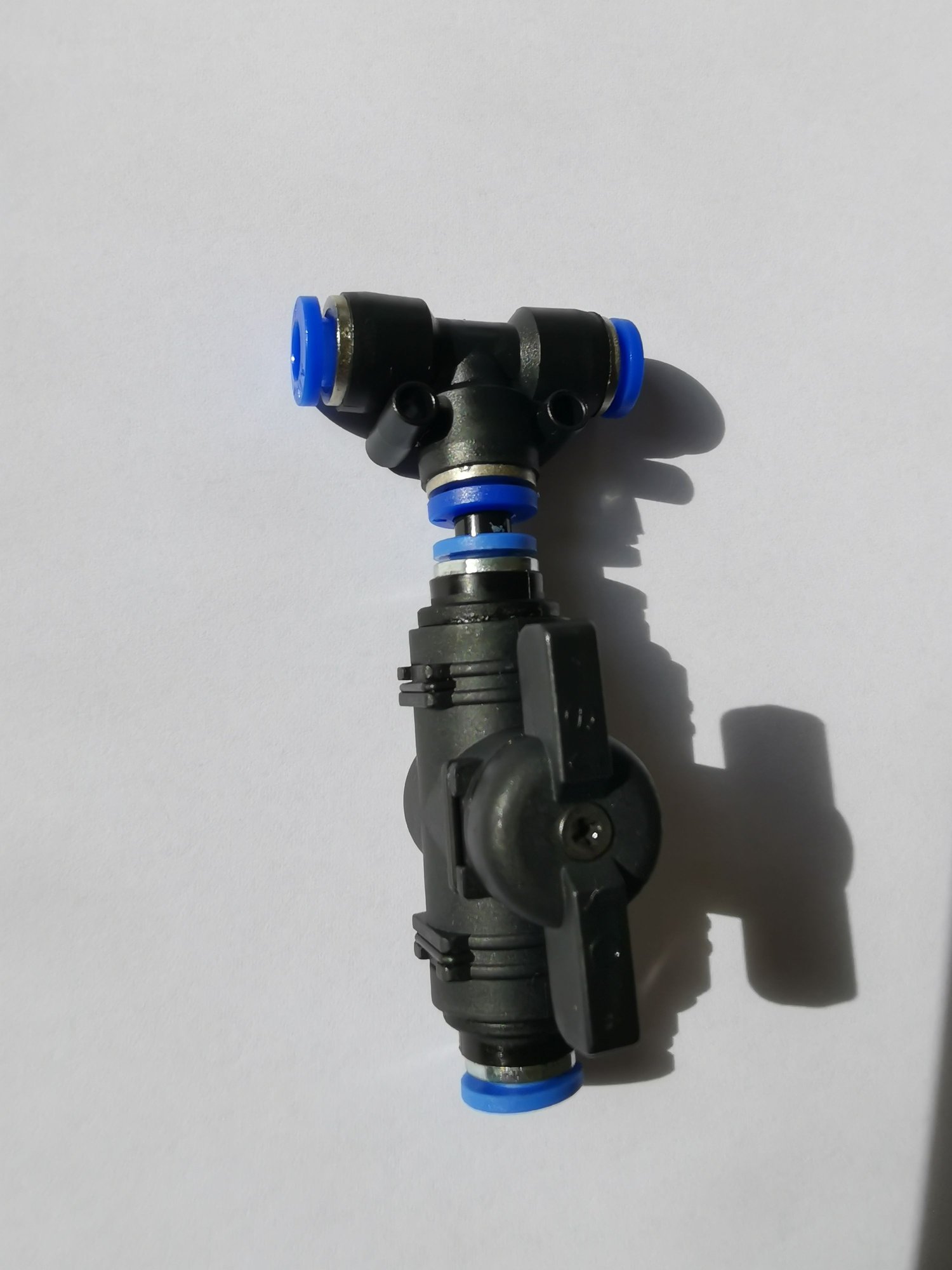

This is my little pneumatic access gate. I will install it on Tuesday in the line between compressor and pressure tank. I will leave it there permanently. Then it is easy to refill. I think it is not important to have 100% nitrogen in the system. More important is to have a minimum of moisture and oxygen inside. This can cause corrosion or blocks when freezing. So I will use the nitrogen from a bottle to fill up to the 17 bar.

Old May 24, 2021 | 11:46 AM
  #25
DogWood's Avatar
Registered User
5 Year Member
Joined: Apr 2018
Posts: 935
From: Bend, Oregon
Rep Power: 47
DogWood is infamous around these partsDogWood is infamous around these parts
nice solution

Old May 2, 2022 | 08:50 PM
  #26
Elboy0712's Avatar
Registered User
Joined: Apr 2022
Posts: 5
Rep Power: 0
Elboy0712 is infamous around these parts
Did this work out?

Originally Posted by pkainzner

This is my little pneumatic access gate. I will install it on Tuesday in the line between compressor and pressure tank. I will leave it there permanently. Then it is easy to refill. I think it is not important to have 100% nitrogen in the system. More important is to have a minimum of moisture and oxygen inside. This can cause corrosion or blocks when freezing. So I will use the nitrogen from a bottle to fill up to the 17 bar.
I'm really curious if this worked out? Also what source for nitrogen did you use and the fittings on that unit to attach to your valve? I would like to duplicate this

Old May 2, 2022 | 08:53 PM
  #27
ciaka's Avatar
Thread Starter
|
Registered User
10 Year Member
Joined: Mar 2012
Posts: 2,298
From: TX
Rep Power: 123
ciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant futureciaka has a brilliant future
Actually I wonder too, if this was installed, and if yes, did it work (sealed well, no leaks, easy to fill, etc).

As for nitrogen, you can get it from any welding supply store.
Nitrogen II I believe.

Old May 2, 2022 | 08:59 PM
  #28
Elboy0712's Avatar
Registered User
Joined: Apr 2022
Posts: 5
Rep Power: 0
Elboy0712 is infamous around these parts
I'd really like the specific spec for each component used. I want to do this tomorrow if I have the chance. Anyone know the fitting and air line sizes? Also, where is the suspension compressor located. I've seen stuff online when searching that says under the floor if the trunk then others saying it's under the vehicle by the accumulator tank.
. I think this is worth being a sticky if it works.

Old May 2, 2022 | 11:11 PM
  #29
pkainzner's Avatar
Registered User
Joined: May 2021
Posts: 10
From: Nuremberg, Germany
Rep Power: 0
pkainzner is infamous around these parts
Originally Posted by Elboy0712
I'm really curious if this worked out? Also what source for nitrogen did you use and the fittings on that unit to attach to your valve? I would like to duplicate this
I used quite normal nitrogen. I think the only important thing is that the gas is dry for the initial fill. During the normal operation the system releases and takes air from the environment anyway. It just breathes through a dryer unit which takes the moisture from the intake air and gives back moisture to the air when release it to the environment. I didn't touch it again, because is works until now.



Old May 4, 2022 | 12:07 PM
  #30
Elboy0712's Avatar
Registered User
Joined: Apr 2022
Posts: 5
Rep Power: 0
Elboy0712 is infamous around these parts
Originally Posted by pkainzner
I used quite normal nitrogen. I think the only important thing is that the gas is dry for the initial fill. During the normal operation the system releases and takes air from the environment anyway. It just breathes through a dryer unit which takes the moisture from the intake air and gives back moisture to the air when release it to the environment. I didn't touch it again, because is works until now.

Can you confirm if these are 6mm or 1/4in fittings?
