Can Apple car play to be installed on P 2013?

Hi
I do have a 2013 Panamera 4 and I was wondering if we can install apple car play on it.
Thanks

Dec 29, 2018 | 06:31 PM

liyuans

Registered User

Joined: Sep 2017

Posts: 17

Rep Power: 0

With external CarPlay box can do this,it’s my 2014 panamera CarPlay added job https://gpsadapter.us/blogs/news/pcm3-1-add-carplay

Dec 29, 2018 | 07:12 PM

Kayvan1347

Thread Starter

Registered User

Joined: Dec 2018

Posts: 151

Rep Power: 0

Who did for you

thanks

Dec 29, 2018 | 08:22 PM

LGARCIA

Registered User

Joined: Jun 2018

Posts: 314

From: South Florida

Rep Power: 20

Good deal, seems like a flawless install, I would like to know also who installs these? I assume the dealers do it for a pretty penny.

Btw the new style steering wheel would be nice too....

Dec 30, 2018 | 07:37 AM

liyuans

Registered User

Joined: Sep 2017

Posts: 17

Rep Power: 0

Quote:

Originally Posted by Kayvan1347

Who did for you

thanks

This box made by http://www.unichip-tec.com/ ,now have CarPlay and Android auto both supported version.Can works with all PCM3.1 equipped porsche.
If you can remove air vents and take out PCM head unit,can do it by self. Plug&play.

Dec 30, 2018 | 10:19 AM

LGARCIA

Registered User

Joined: Jun 2018

Posts: 314

From: South Florida

Rep Power: 20

Lyuans, where did you install the unichip external box, does it fit behind the PCM? Or next to the air vents?

Dec 30, 2018 | 04:37 PM

liyuans

Registered User

Joined: Sep 2017

Posts: 17

Rep Power: 0

Quote:

Originally Posted by LGARCIA

Lyuans, where did you install the unichip external box, does it fit behind the PCM? Or next to the air vents?

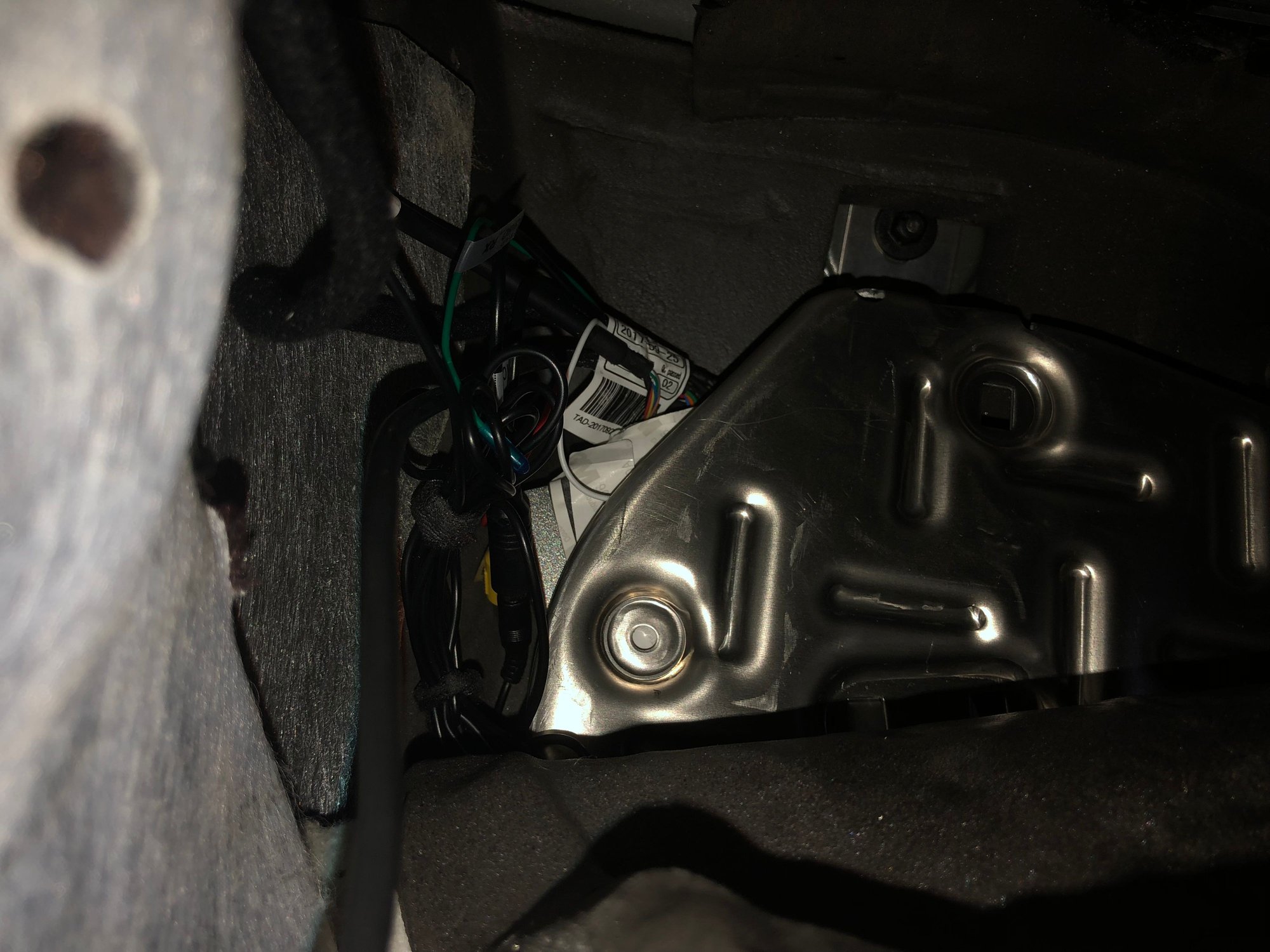

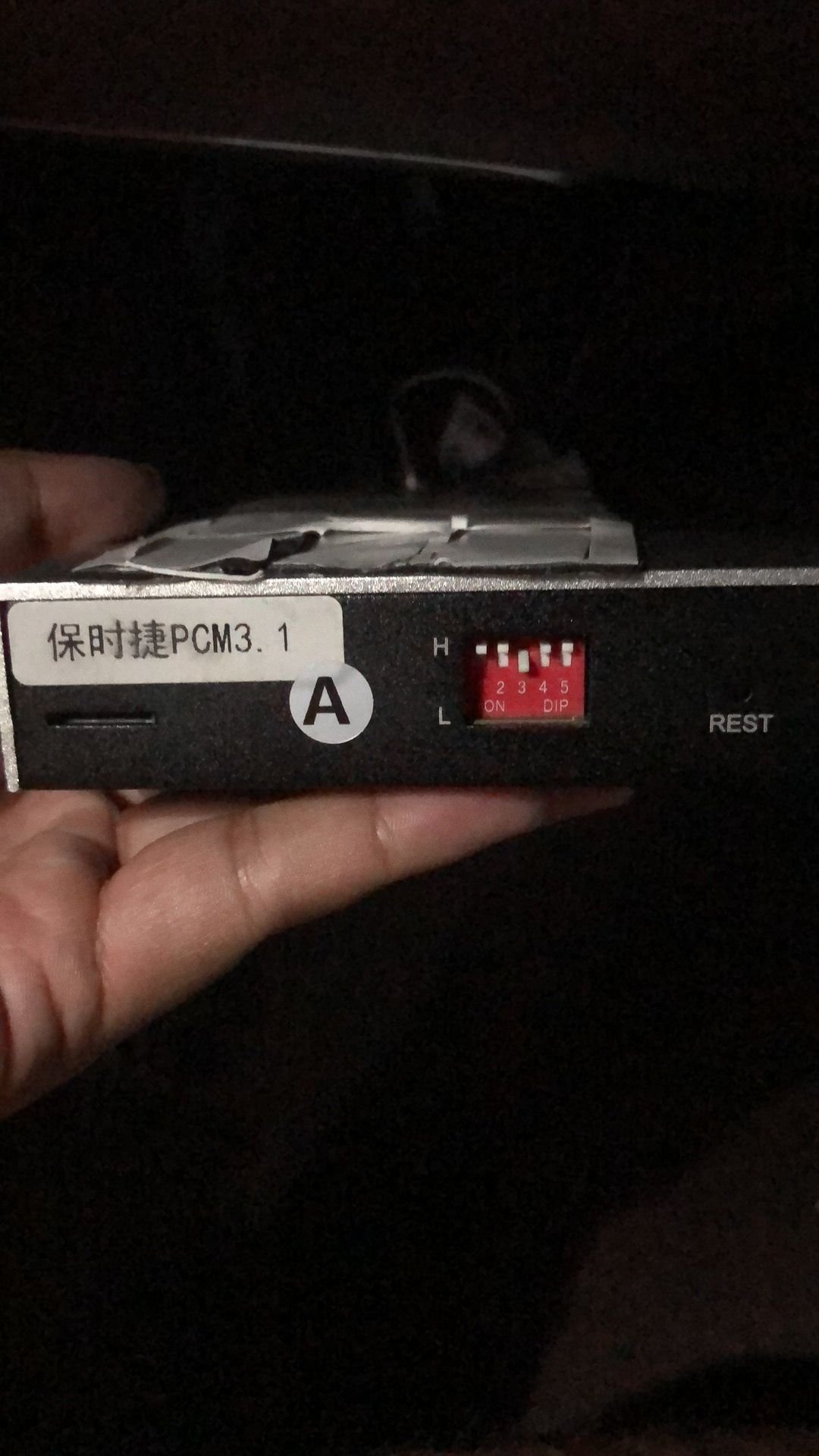

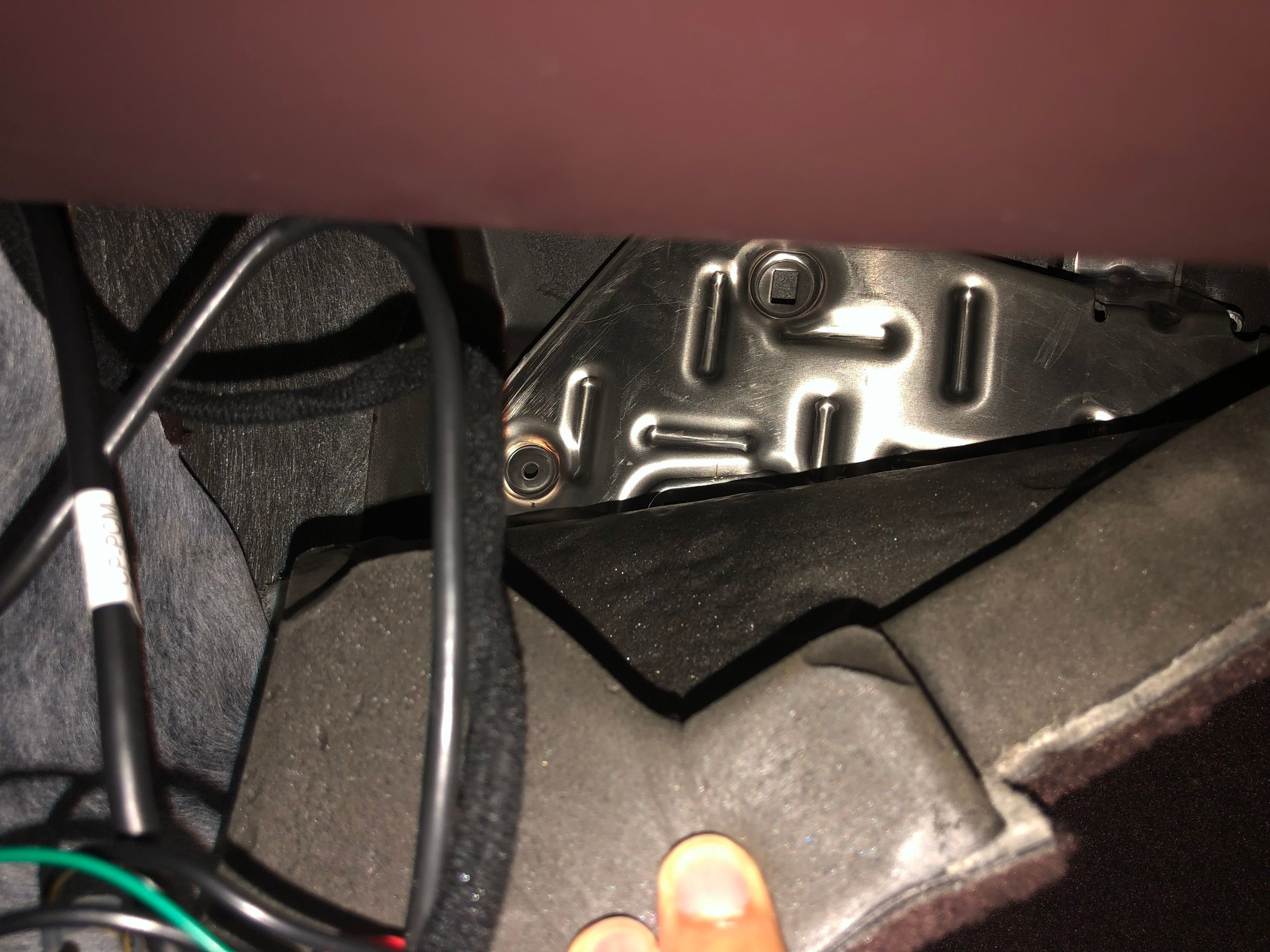

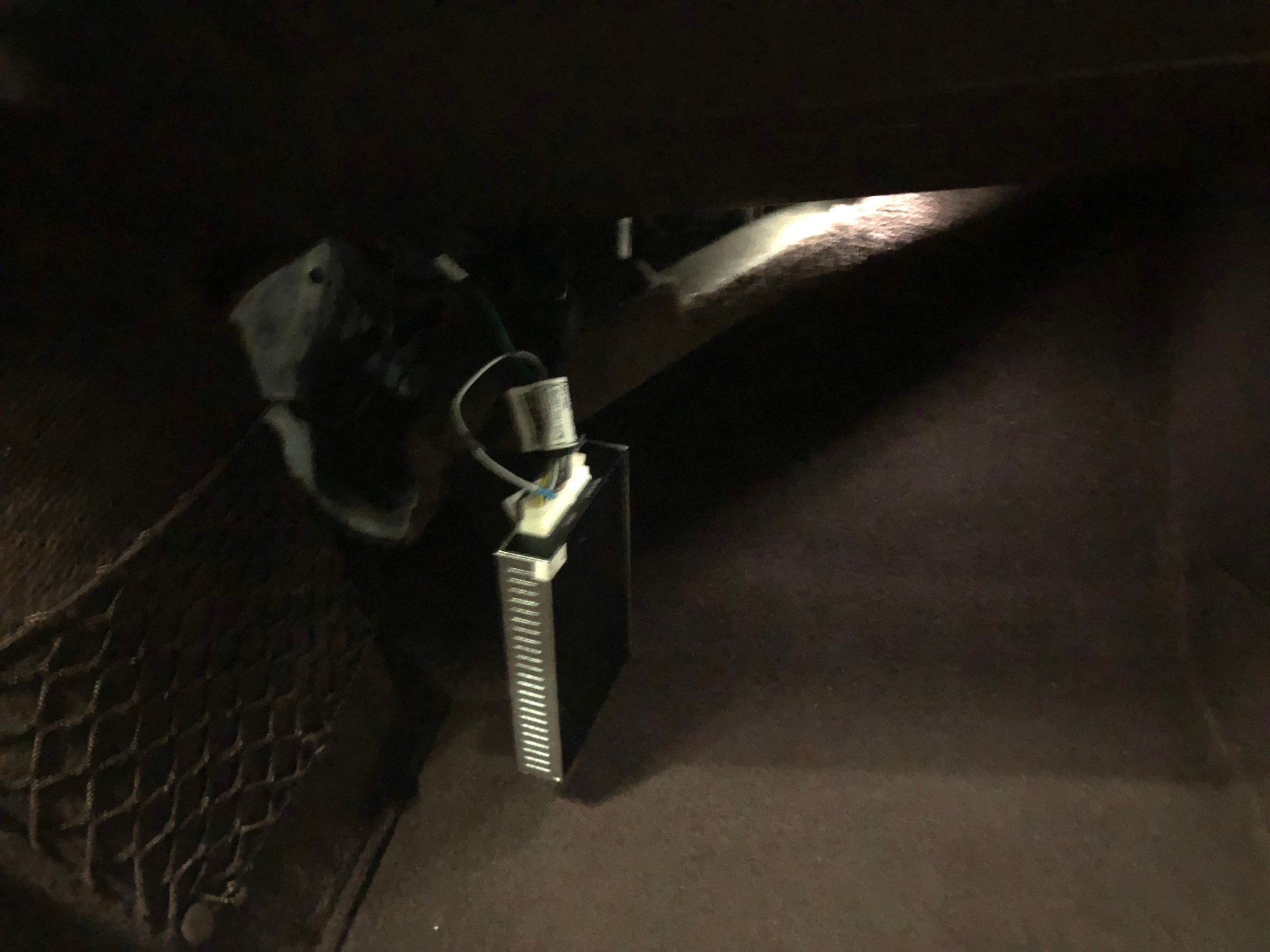

I installed the box close the amplifier (under the front side of ground front passenger),fixed the micphone of siri to top of steering column.Added cooling silicone pad inside and outside of box,this space is hot.And suggest use TAPE covered the DIP switch window,prevent accidental changed DIP setting(i have met)

Last edited by liyuans; Dec 30, 2018 at 04:45 PM.

Trending Topics

Just bought a V8VS and need to ALL service. Advice for Parts please.

19

473
Vantage GT Market

7

337
replacement shocks 2010 gallardo

3

157
Greetings from Miami FL

3

112
2016 Vanquish

13

946

Dec 30, 2018 | 08:41 PM

LGARCIA

Registered User

Joined: Jun 2018

Posts: 314

From: South Florida

Rep Power: 20

Good deal, thanks for the pics.

Dec 30, 2018 | 09:32 PM

Kayvan1347

Thread Starter

Registered User

Joined: Dec 2018

Posts: 151

Rep Power: 0

This is an external box. Do you still need to remove the head unit to have access to back of it. How does it hook up with PCM?
I saw some CarPlay boards that instal directly on the back the head unit.
Thanks

Dec 31, 2018 | 12:55 AM

#10

liyuans

Registered User

Joined: Sep 2017

Posts: 17

Rep Power: 0

Quote:

Originally Posted by Kayvan1347

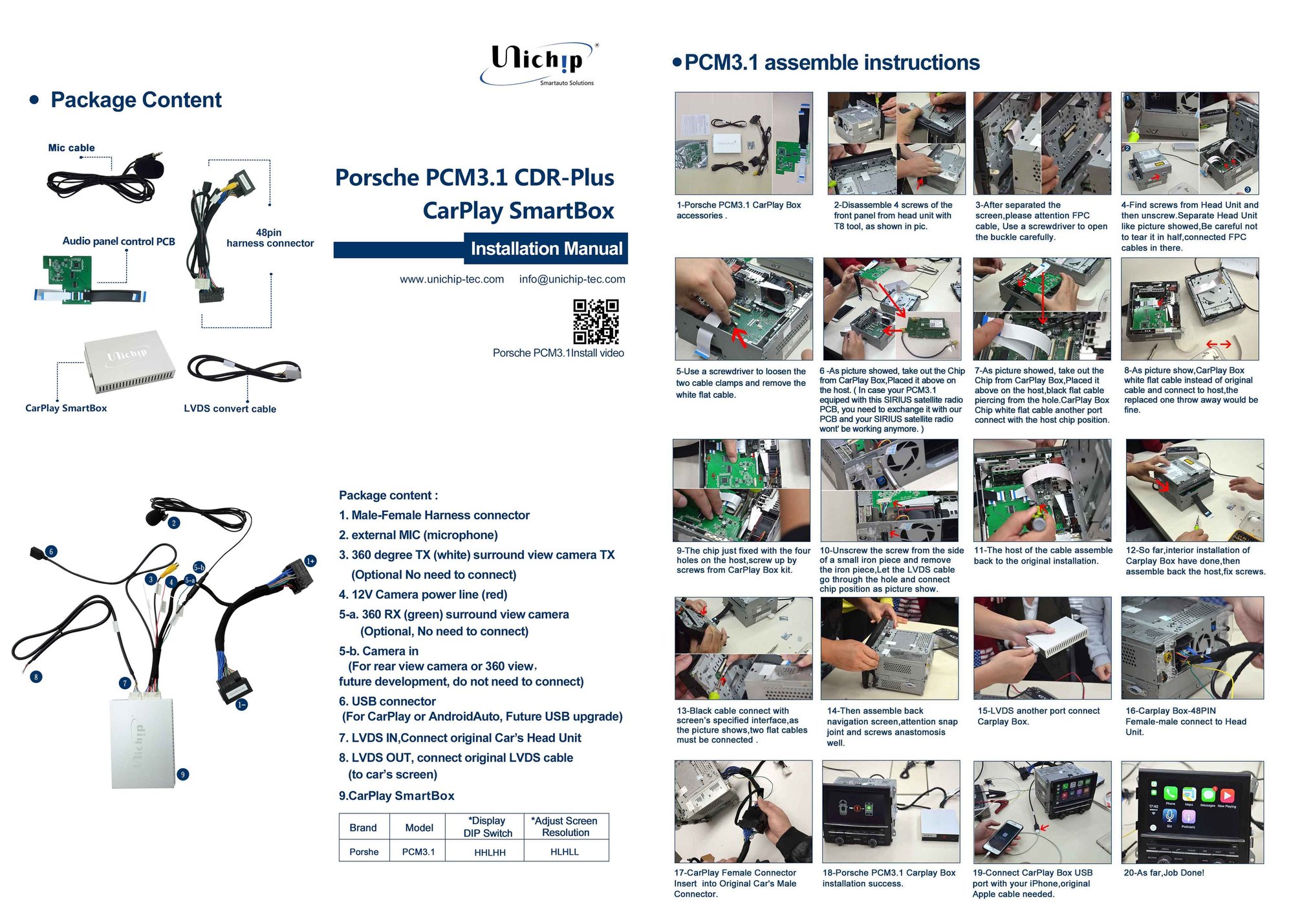

Add circuit board into PCM to inject touch screen signals to box needed.This is the installation guide

Jan 7, 2019 | 12:37 AM

#11

Kayvan1347

Thread Starter

Registered User

Joined: Dec 2018

Posts: 151

Rep Power: 0

hi
anyone bought this Apple car play from AliExpress? Are you happy with it? Any comparison between the different kits?
They claim they have the wireless version now!!
Thanks

Jul 19, 2019 | 11:02 PM

#12

dougcayenne

Registered User

Joined: Jun 2015

Posts: 528

From: los alto, california

Rep Power: 34

dougcayenne has a spectacular aura about

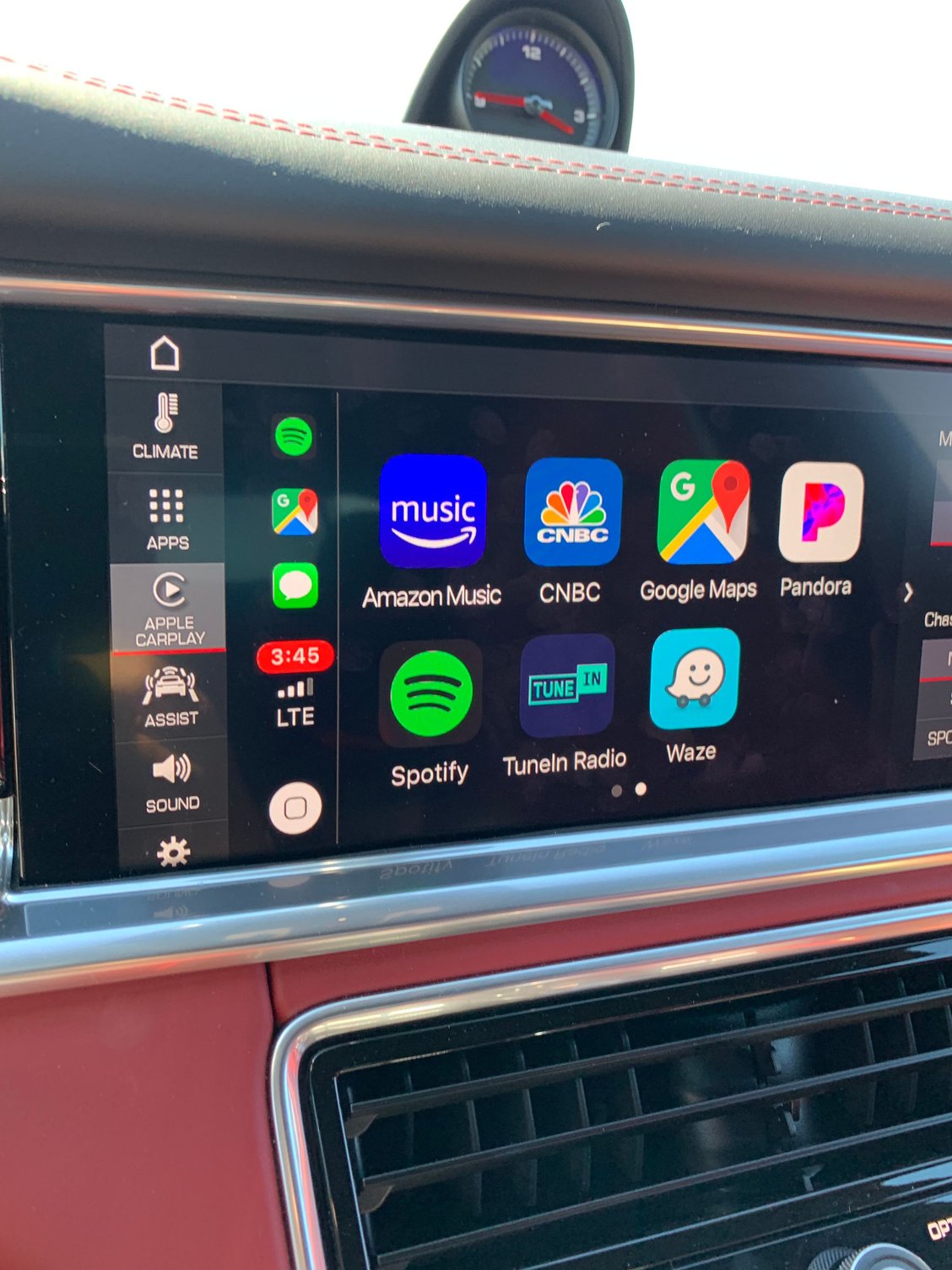

I really like apple car play in my wife 2018 pan4s. FYI, the apple car play has to be activated during startup. I was driving I5 to LA, for some reasons apple car play was disconnected - apple car play display on the screen, I could not able to reconnect while driving. Until I stop at pit-stop I can reconnect apple car play. I ask my SA @ Porsche dealer today they told me for safety reason Porsche will not reactivate apple car play if disconnect and connect while i am driving. That's suck !!!

Jul 20, 2019 | 08:14 PM

#13

elShiz

Registered User

Joined: Aug 2018

Posts: 224

Rep Power: 16

Quote:

Originally Posted by liyuans

Dumb question, but how do I find out if I have PCM3.1? I would love Android Auto, and this box can do that?

Jul 24, 2019 | 09:24 AM

#14

LouDA

Registered User

Joined: Nov 2018

Posts: 451

From: Colorado

Rep Power: 26

Quote:

Originally Posted by elShiz

Dumb question, but how do I find out if I have PCM3.1? I would love Android Auto, and this box can do that?

I cant remember which setting it is, but it's somewhere in the menu options... I think "Info" then one of the menu items within that? Should say which version you're running.
