Panamera The 4-dour coupe by Porsche

Need Help wiring LED Strip


  #16
Old 02-21-2019, 12:42 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough
I went with blue (Versalume) since I have more blue LED strips from Oznium that may find their way to light up either under the dash or the door cubbies.

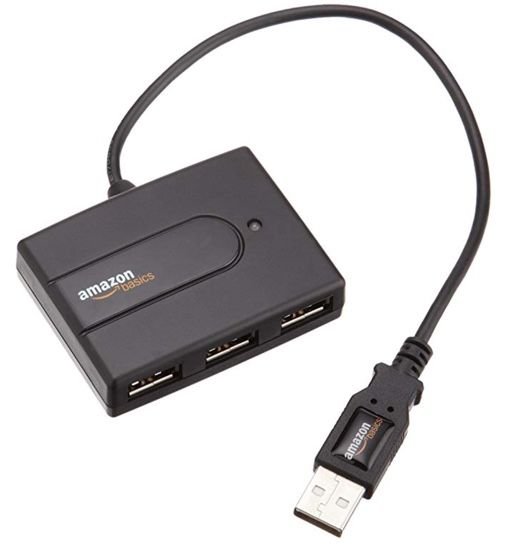

I plan to make the versalume blue dim so that it is enough to appreciate it but it is not blinding in any way.. I also play music using the USB so I was thinking on putting a USB splitter in the compartment under the arm rest (see pic). I will report back if it all works...

something like this...

  #17
Old 02-21-2019, 01:14 PM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 505
Rep Power: 22
DogWood will become famous soon enough
Cool, looking forward to your results

  #18
Old 02-21-2019, 06:29 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough

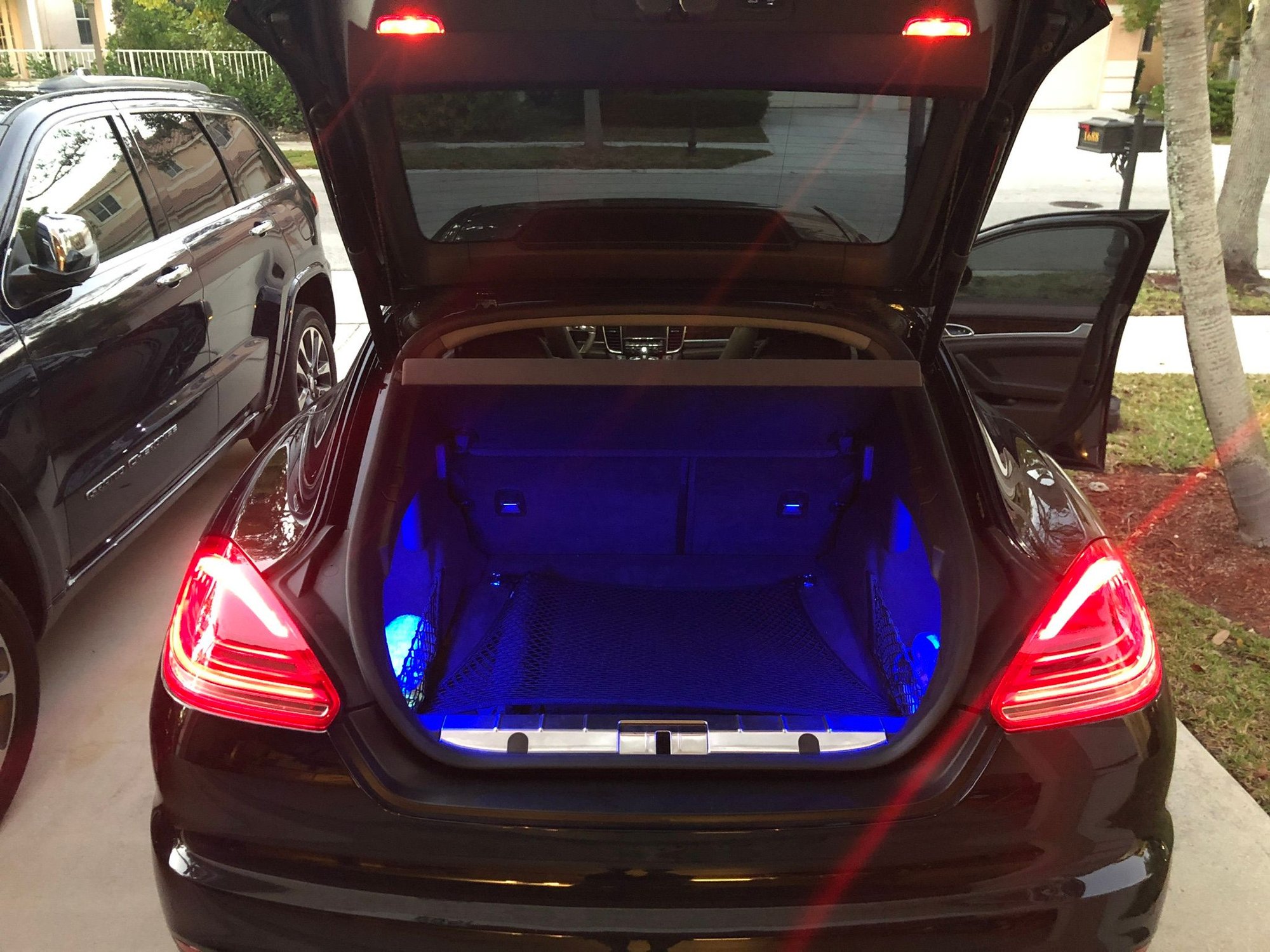

Here’s a pic of the trunk done, installed on LED strip on each side

Looks pretty good even with some sunlight

  #19
Old 02-21-2019, 06:33 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough
I started the foot wells and got the passenger side done.
Took the driver side foot well panel apart and can’t figure out how to put back the four screw fasteners so I’ll have to try it tomorrow with some sunlight.

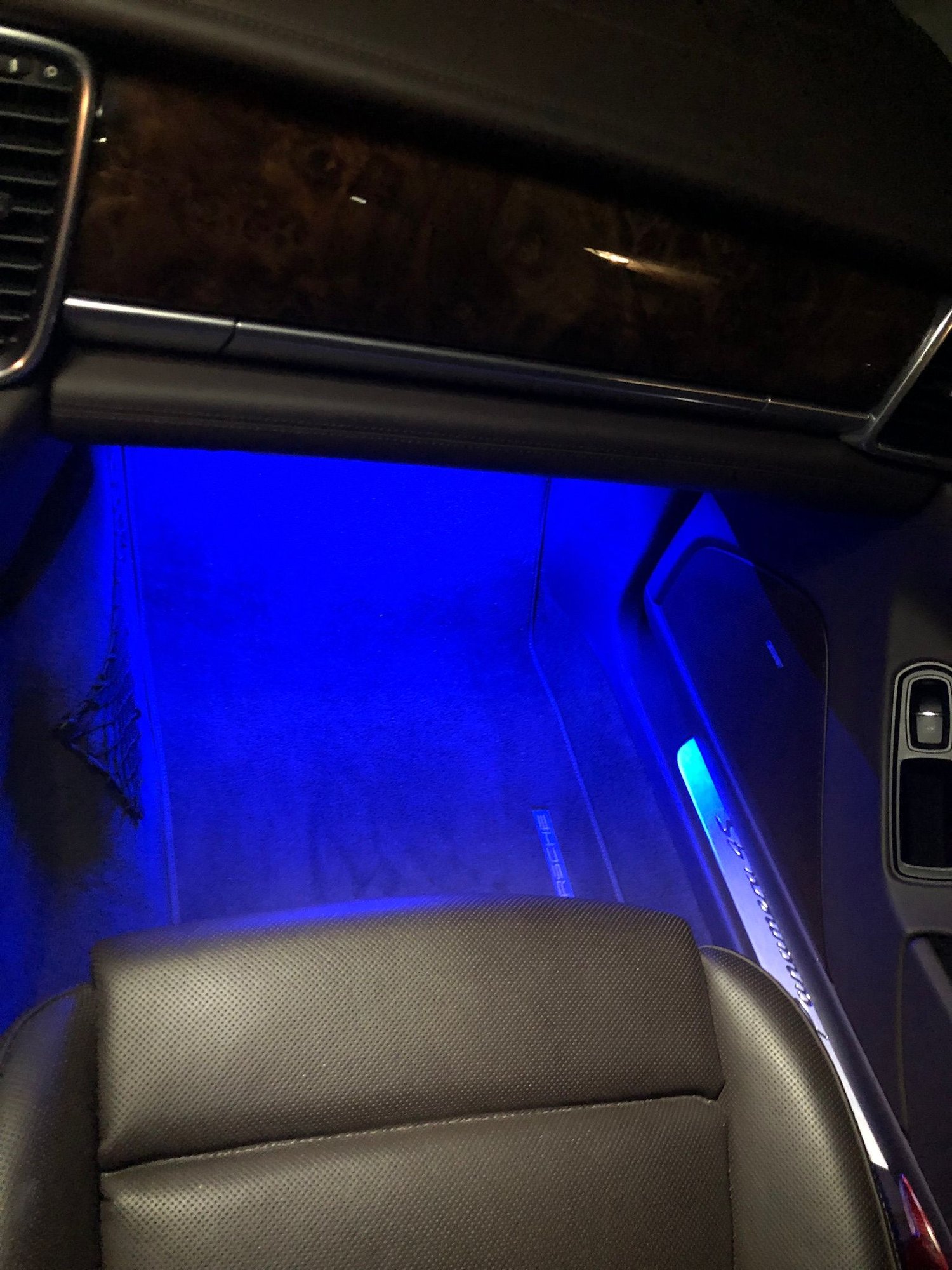

In the meantime here’s the passenger side. Dims on and dims out with the interior lights. It is not on while driving.

Looking in with the door open

This is with the door closed

  #20
Old 02-21-2019, 06:34 PM
Registered User
Join Date: Nov 2018
Location: Colorado
Age: 36
Posts: 285
Rep Power: 0
LouDA is an unknown quantity at this point
That really does look awesome. Given me some more stuff I need to buy... thanks for that 😂

  #21
Old 02-21-2019, 06:42 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough

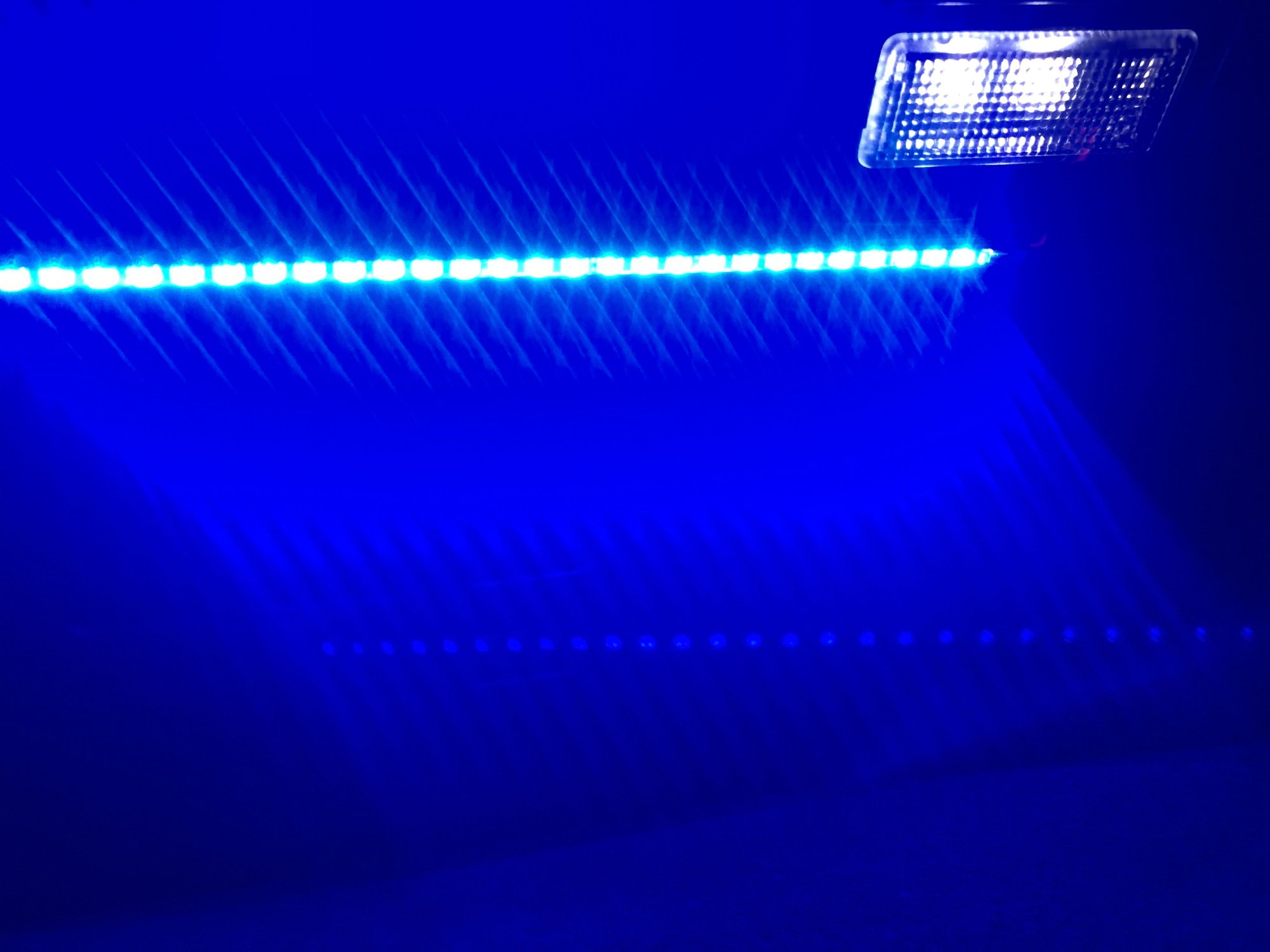

Here is the connection and the strip held by double sided tape

  #22
Old 02-21-2019, 08:27 PM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 505
Rep Power: 22
DogWood will become famous soon enough
looking good

  #23
Old 02-21-2019, 10:17 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough
Thanks, it is shaping up, the Oznium LED strips light up nicely. I found that the car already has great courtesy lamp placement so I’m tapping right Into those lights.

I know the feeling of adding things to buy and install from visiting this forum! Time to shop!!

My son is 12 years old and has really enjoyed helping with this project, he is really getting into working on the car with me. So that makes these little projects a BIG plus for me!

  #24
Old 02-22-2019, 08:41 PM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 505
Rep Power: 22
DogWood will become famous soon enough
I had forgotten all about EL Wire until you started this thread, I might have to play around with it as it really has endless possibilities
http://www.coolneon.com
http://www.elwirepros.com


Last edited by DogWood; 02-22-2019 at 08:45 PM.
  #25
Old 02-22-2019, 09:04 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough
Hey Doug, EL wire is interesting, this will be my first experience with it but I’m looking forward to it. If it works out well on the center console I may order a second one to do the rear console too.
Post pics if you decide to add some EL wire to your interior!

  #26
Old 02-28-2019, 09:16 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough

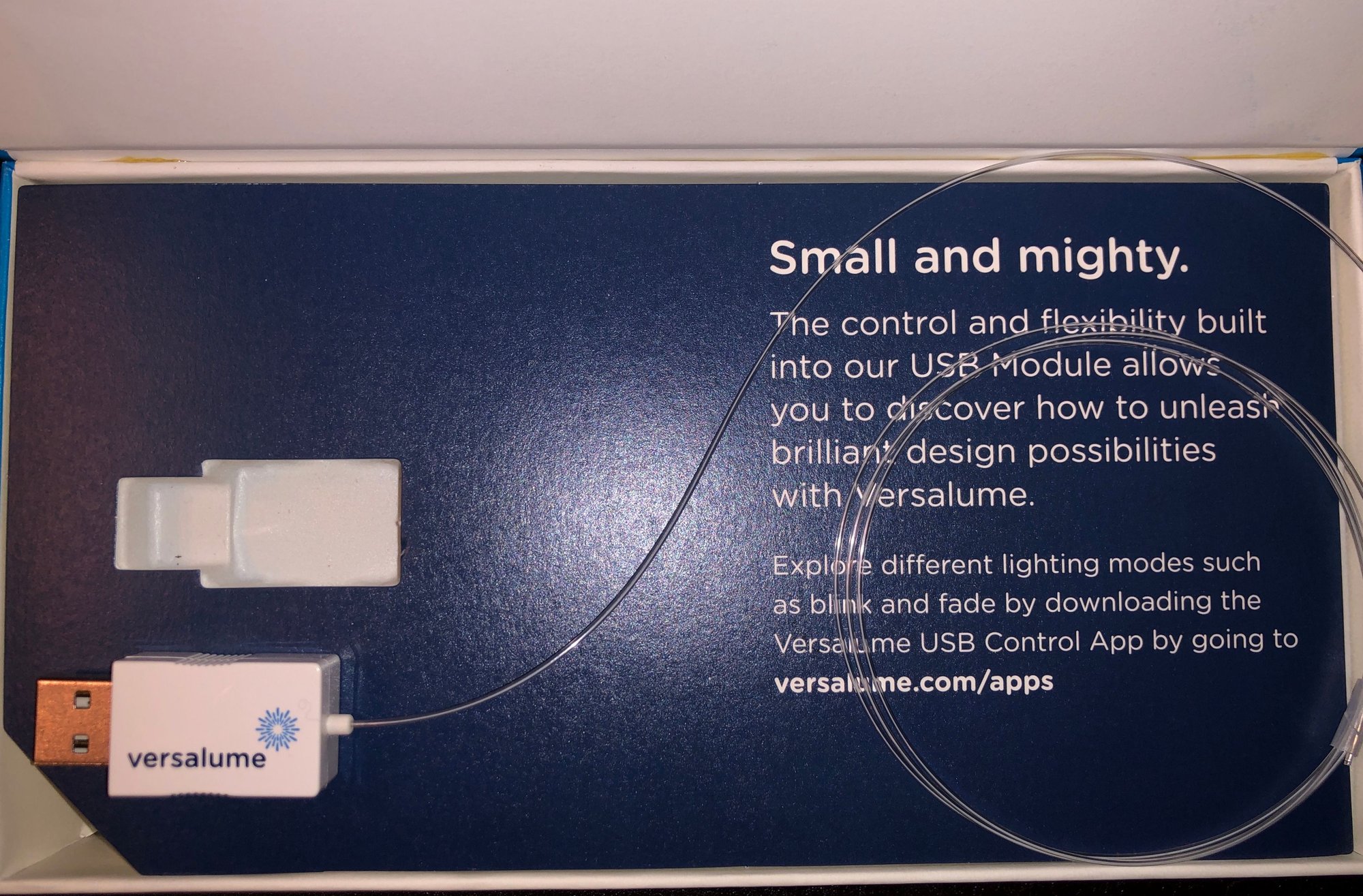

Alright, the Versalume kit has arrived and I had a chance to test it. Here it is out of the box, this is one tiny strand looks like fishing line but lights up pretty bright. I’ll try installing it this weekend and post more pics...

Nice packaging

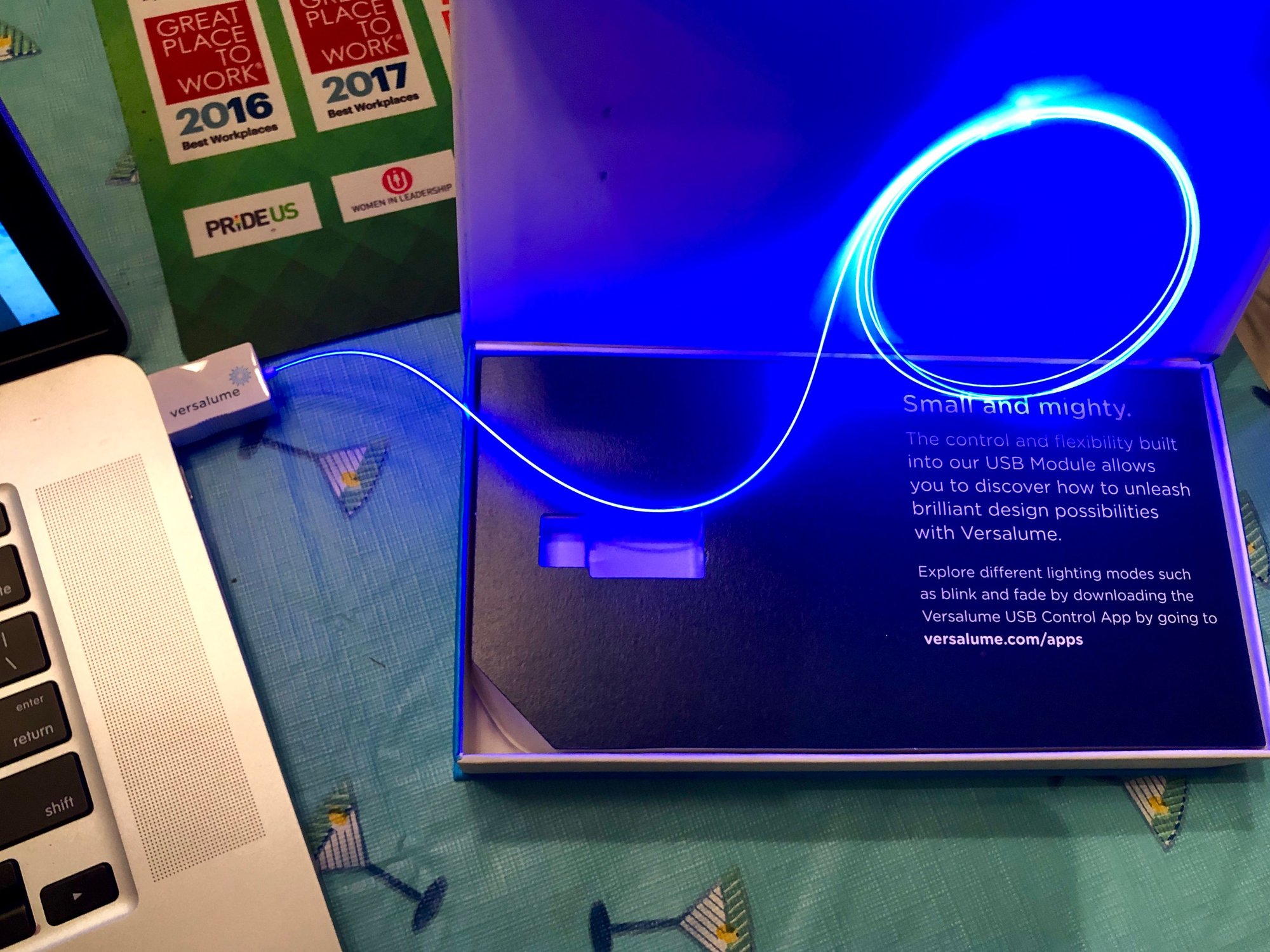

Here it is set about 30 to 40% brightness

Here is the app that drives the modes you can set



  #27
Old 02-28-2019, 10:24 PM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 505
Rep Power: 22
DogWood will become famous soon enough
nice

  #28
Old 05-04-2019, 01:33 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough

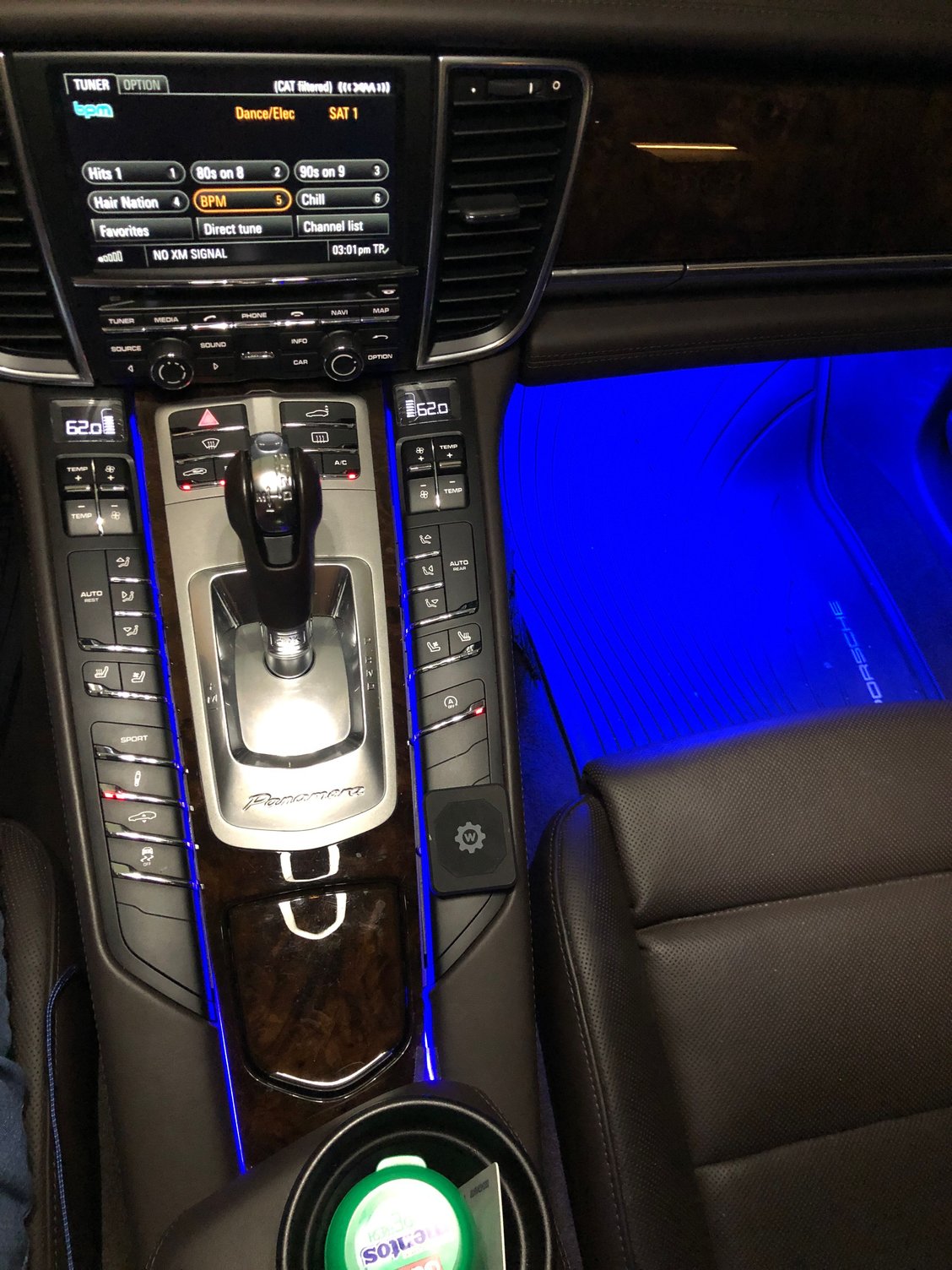

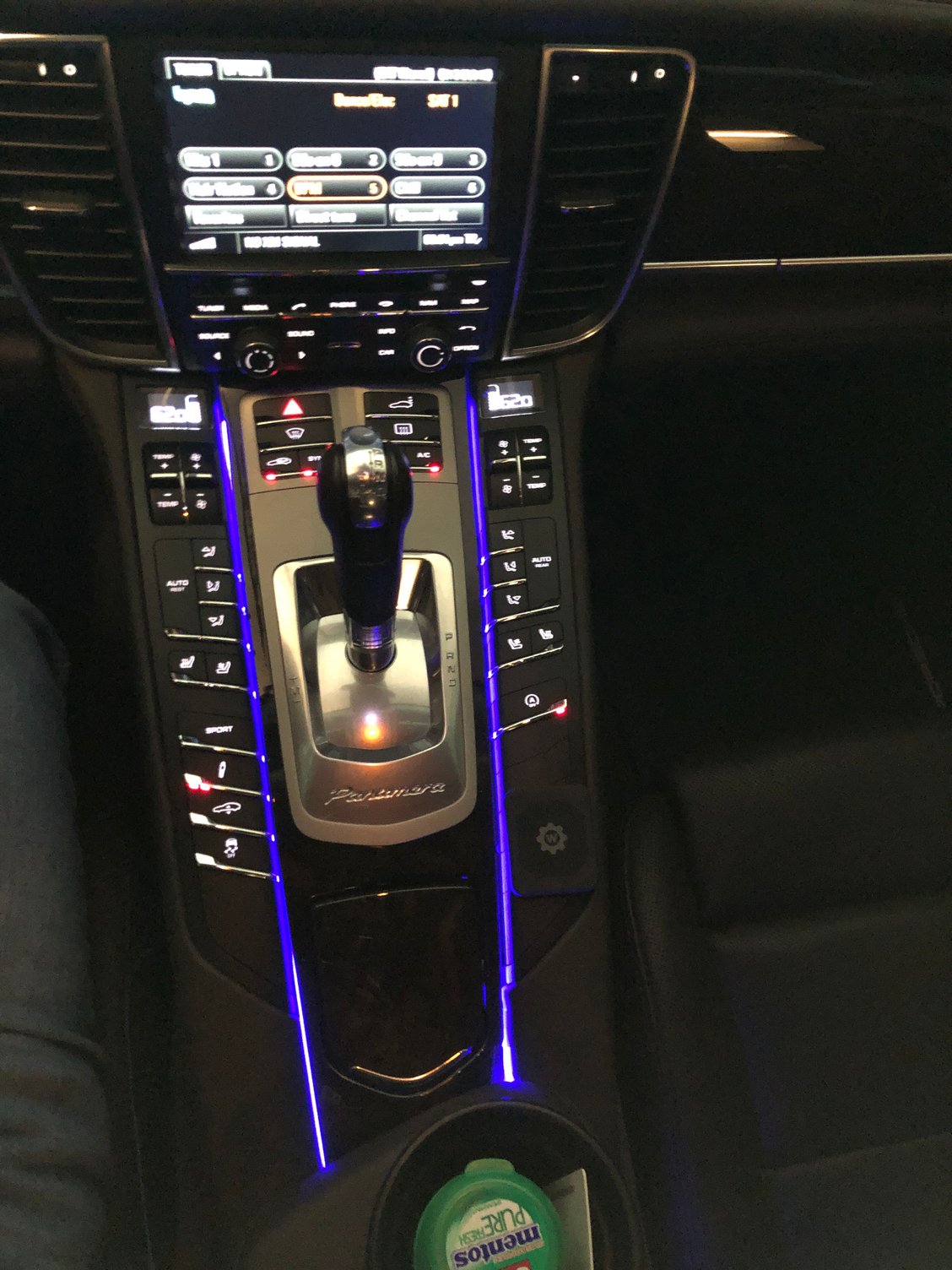

Just a recap, been really happy with the blue LED strips for the footwells and the trunk area. The Versalume ended up not being flexible enough and a little too delicate to handle. I went with Ellumiglow and got the center Console done with no problems, and it only took a few minutes to install. I connected it via USB in the center arm rest. All in all it gives the interior a bit of a fresher look. I have the footwell lights come on only when the door are open. The center console is on anytime the engine is on. Here’s a few pics, cheers!

Doors shut

Doors open

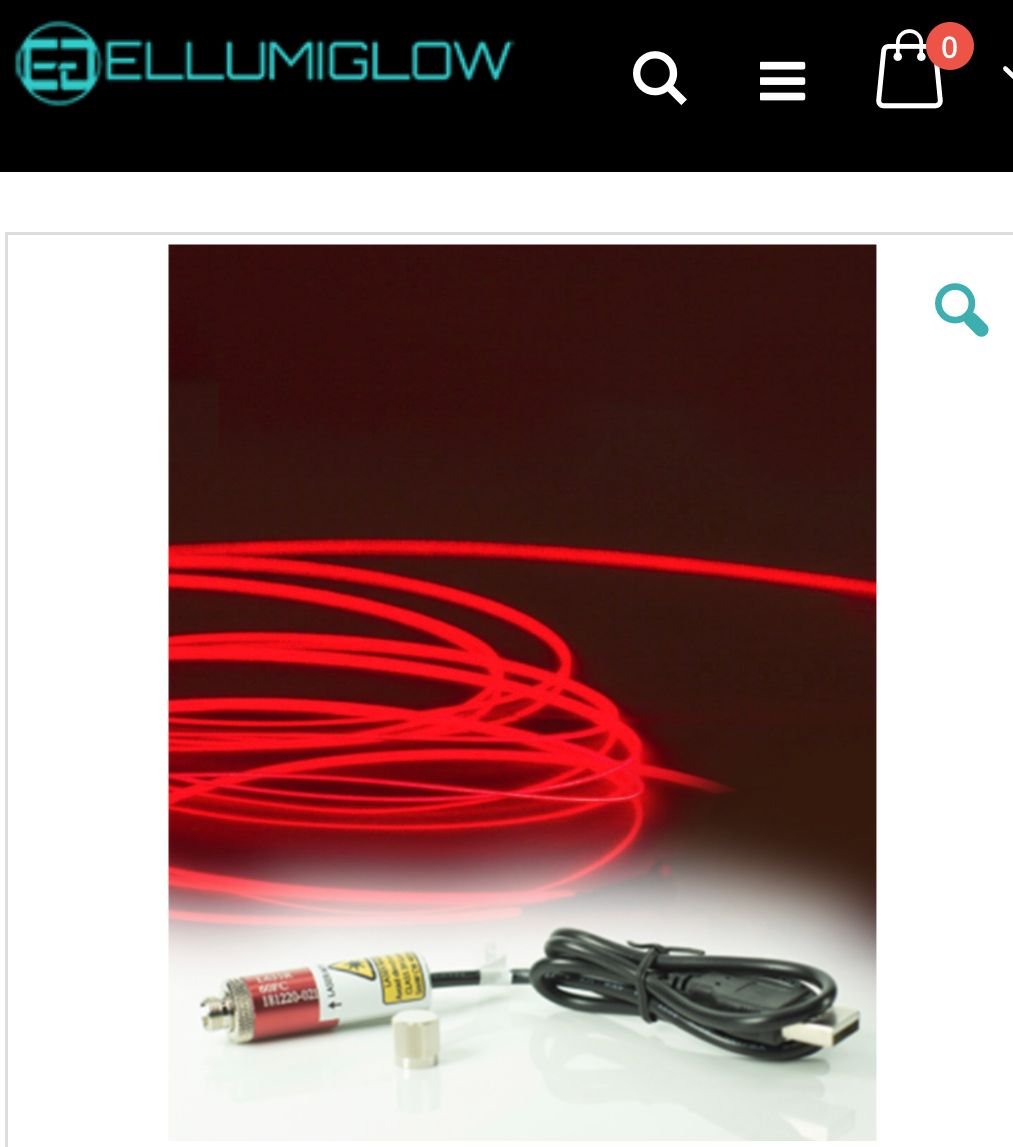

This is what I used

  #29
Old 05-04-2019, 10:41 PM
DogWood's Avatar
Registered User
Join Date: Apr 2018
Location: Bend, Oregon
Age: 56
Posts: 505
Rep Power: 22
DogWood will become famous soon enough
looks good, nice touch
single strand? or 2

  #30
Old 05-04-2019, 10:51 PM
LGARCIA's Avatar
Registered User
Thread Starter
Join Date: Jun 2018
Location: South Florida
Age: 46
Posts: 237
Rep Power: 11
LGARCIA will become famous soon enough
Thanks!! This is a single strand. Iím thinking Iíll add one to the middle console in the back between the seats.
