2010 V8 layout
Anyone have a layout that shows which cylinder is which? I.E. looking at motor from front of car Cylinder 1 is first front on drivers side, Cylinder 2 is first front passenger side etc? I swear I saw one somewhere and now can't find it and just want to be sure as I'm chasing some misfires and wanna be sure I'm swapping coils on the correct cylinders. TIA!!

Reply
Old Mar 7, 2023 | 12:04 PM
Share
  #2
allroadusa's Avatar
Registered User
10 Year Member
Joined: Apr 2015
Posts: 156
From: Paris, France
Rep Power: 18
allroadusa has a spectacular aura aboutallroadusa has a spectacular aura about

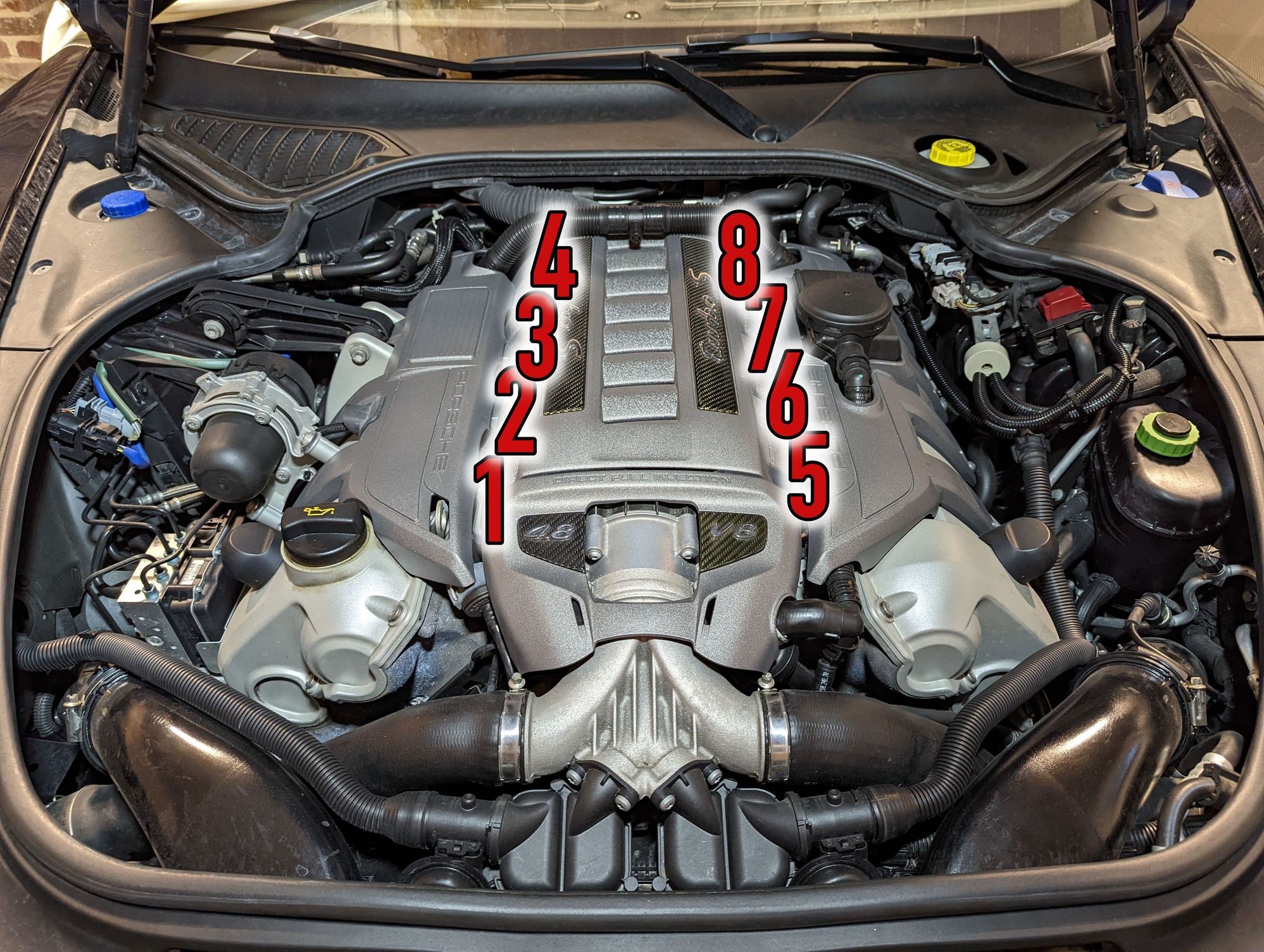

Here you go...



Reply
Old Mar 7, 2023 | 12:11 PM
Share
  #3
Sling Shot's Avatar
Thread Starter
|
Registered User
Joined: May 2022
Posts: 27
Rep Power: 0
Sling Shot is infamous around these parts
YOU ROCK!! THANK YOU!! I thought that was the layout but just need to be 100%!!

Originally Posted by allroadusa
Here you go...


Reply
