Removing Tiptronic Shifter Knob

I want to change the Tiptronic Shifter Knob on a 2006 Carrera S. I searched the forum and DIY and did not find a thread. Any help out there? I was told you could simply pull it off. Does not sound correct. Thanks in advance.
Reply With Quote
  #2
Old 01-26-2010, 06:23 PM
lakerholic's Avatar
Registered User

Join Date: Sep 2008
Location: Yorba Linda, CA
Age: 39
Posts: 384
Rep Power: 30
lakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to behold
Take an allen key (the l-shaped type that you'd get with furnture you buy from Ikea, for example). Stick the short end under the bottom edge of the button on the shifter you use to shift from P-R-N-D and tilt it so the button cover pops off. Once this is done, you'll see an upside down "u" shaped metal pin that you have to either press in or pull out toward you (I can't remember). While doing so, you pull up on the entire shifter, and it pops right off.

Took me forever to figure this out as there is little to no info for tip users. I will also see if I can find a link to another forum that had some helpful images.
__________________
2012 Cayenne S Hybrid | White/Black
2011 BMW 535i M-Sport | Carbon Black/Black | BMS JB4 Stage 2 | M Performance Exhaust

Gone but not forgotten: 2006 Carrera S | Tiptronic | Midnight Blue/Sand Beige | Cargraphic Exhaust | Carrera S II Wheels
GO LAKERS!
Reply With Quote
  #3
Old 01-26-2010, 06:24 PM
Luzy_V8's Avatar
Registered User

Join Date: Oct 2009
Location: Michigan
Posts: 53
Rep Power: 8
Luzy_V8 will become famous soon enough
I do not know if that't the official procedure, but on my 2007 I removed it according to the attached photos. Nothing broke (so far).

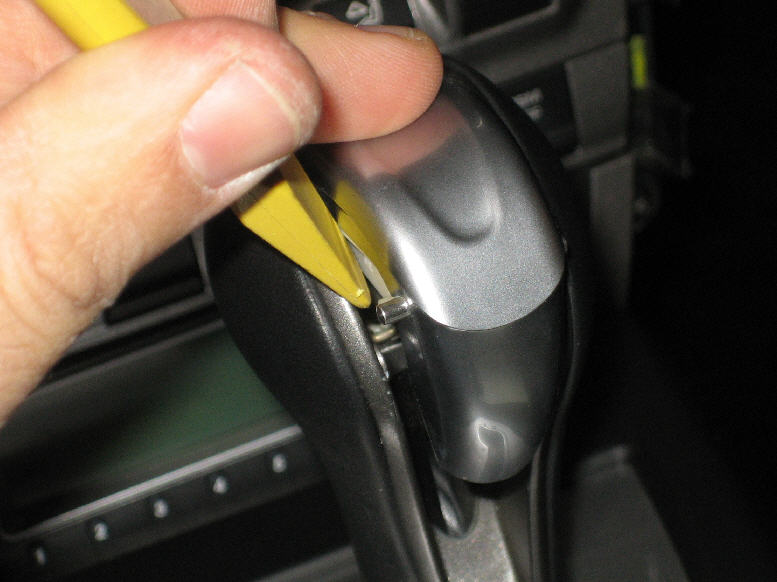

I used a trim removal wedge and carefully pushed out the upper release button. The button is still attached to the **** with a spring. Could be removed too, but it's not necessary.

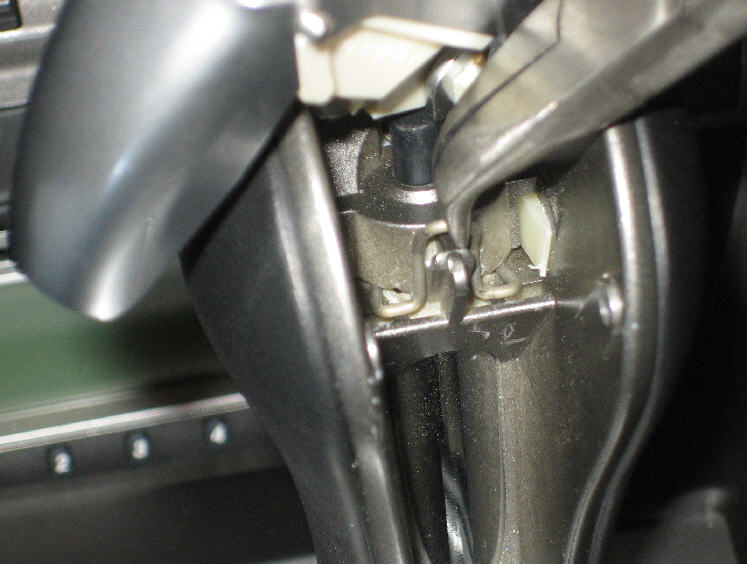

The **** is fixed to the lever with a clip. Remove that clip and you can pull off the **** from the lever.

Good luck.
Attached Thumbnails
Click image for larger version

Name:	tip shift knob.jpg
Views:	619
Size:	55.0 KB
ID:	114668   Click image for larger version

Name:	tip shift knob 2.jpg
Views:	571
Size:	60.9 KB
ID:	114669   Click image for larger version

Name:	tip shift knob 3.jpg
Views:	565
Size:	63.7 KB
ID:	114670
Reply With Quote
  #4
Old 01-26-2010, 06:26 PM
lakerholic's Avatar
Registered User

Join Date: Sep 2008
Location: Yorba Linda, CA
Age: 39
Posts: 384
Rep Power: 30
lakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to behold
Here you go:

http://www.renntech.org/forums/index...7&#entry108867

You'll see the step referencing the "spring lock" does not have a picture and was the most confusing for me, but you'll see the upside down u-shaped metal pin that you'll push in.
__________________
2012 Cayenne S Hybrid | White/Black
2011 BMW 535i M-Sport | Carbon Black/Black | BMS JB4 Stage 2 | M Performance Exhaust

Gone but not forgotten: 2006 Carrera S | Tiptronic | Midnight Blue/Sand Beige | Cargraphic Exhaust | Carrera S II Wheels
GO LAKERS!
Reply With Quote
  #5
Old 01-26-2010, 06:28 PM
lakerholic's Avatar
Registered User

Join Date: Sep 2008
Location: Yorba Linda, CA
Age: 39
Posts: 384
Rep Power: 30
lakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to beholdlakerholic is a splendid one to behold
oops pull out (as Luzy_V8 shows)
__________________
2012 Cayenne S Hybrid | White/Black
2011 BMW 535i M-Sport | Carbon Black/Black | BMS JB4 Stage 2 | M Performance Exhaust

Gone but not forgotten: 2006 Carrera S | Tiptronic | Midnight Blue/Sand Beige | Cargraphic Exhaust | Carrera S II Wheels
GO LAKERS!
Reply With Quote
  #6
Old 01-26-2010, 07:24 PM
FD9NY's Avatar
Registered User

Join Date: Jul 2009
Location: Mount Sinai, NY
Posts: 16
Rep Power: 0
FD9NY is on a distinguished road
Thanks for the great info and especially the pics!
