Cayenne Turbo Battery Replacement Guide DIY

Reply




Thread Tools Search this Thread Rate Thread Display Modes
  #1
Old 11-29-2012, 12:08 PM
Registered User
Garage is empty, add now

Join Date: Oct 2012
Location: Atlanta, GA
Posts: 107
Rep Power: 6
VIPNiSS is on a distinguished road
Cayenne Turbo Battery Replacement Guide DIY

This was done on my 2005 Cayenne Turbo. I only have a battery under my drivers seat. I think some might of came equipped with a battery in the trunk.

I did't want to pay the dealer $400+ for a OE battery and labor. I was able to get mine from Advance Auto Parts for about $130 after coupon code.. It took me about 30 mins max!

http://shop.advancea...8agm&showTitle=

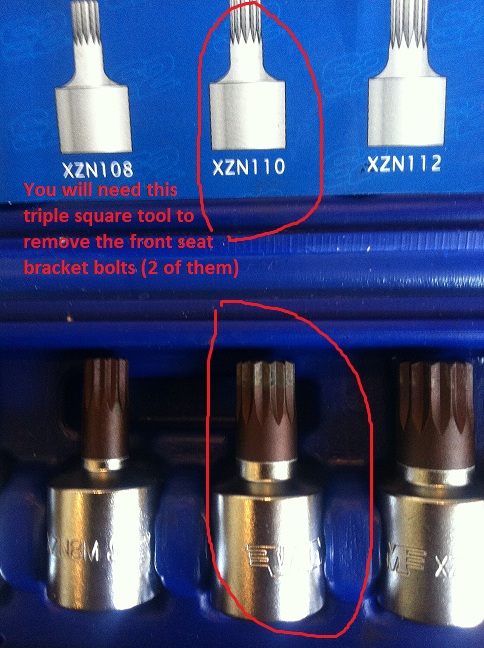

Click the image to open in full size.

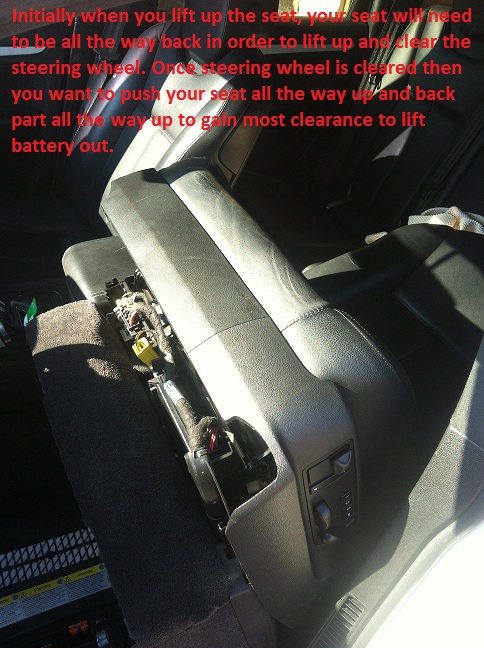

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.




NOW PUT IN THE NEW BATTERY AND DO EVERTYHING IN REVERSE ORDER!!

Remember to put blue loctite on the seat rail bolts and manual calls for 37ft lb torque.
__________________
Debt: 2005 Porsche Cayenne Turbo
Evoms V-Flow Intake, AP Diverter Valves, 200 Cell Primary Cats, Secondary Cat Bypass Pipes, Fabspeed Exhaust, Lowering Module.

Last edited by VIPNiSS; 11-29-2012 at 07:58 PM.
Reply With Quote
  #2
Old 11-29-2012, 02:31 PM
Registered User
Garage is empty, add now

Join Date: Mar 2012
Location: TX
Posts: 520
Rep Power: 23
ciaka will become famous soon enough
...great write up...should help us all. Thanks for the post, I was going to look into how this would be done, but with the info, it will be easy.
Reply With Quote
  #3
Old 11-29-2012, 07:45 PM
rymo926's Avatar
Registered User
2005 Porsche Cayenne

Join Date: Jun 2011
Posts: 25
Rep Power: 5
rymo926 is on a distinguished road
Thanks for the write up
__________________

Gutted airbox w/ AFE filter, Inlet and muffler bypass exhaust mod, Colgen, S pedals, Beatle dead, Phaeton E, 285/50R18
Reply With Quote
  #4
Old 11-29-2012, 07:58 PM
Registered User
Garage is empty, add now

Join Date: Oct 2012
Location: Atlanta, GA
Posts: 107
Rep Power: 6
VIPNiSS is on a distinguished road
Forgot to mention.. put blue loctite on the bolts for the seat rails and also the manual calls for 37ft lb torque
__________________
Debt: 2005 Porsche Cayenne Turbo
Evoms V-Flow Intake, AP Diverter Valves, 200 Cell Primary Cats, Secondary Cat Bypass Pipes, Fabspeed Exhaust, Lowering Module.
Reply With Quote
  #5
Old 11-29-2012, 09:36 PM
Cole's Avatar
Registered User
2004 Porsche Cayenne

Join Date: Sep 2005
Location: Colorado
Posts: 1,140
Rep Power: 57
Cole is just really niceCole is just really niceCole is just really niceCole is just really nice
Send a message via AIM to Cole
Thumbs up

You spent more time making the write up than it takes to change the battery


.....now go write one for the other battery
__________________
Cole Ford

http://farm6.static.flickr.com/5107/5565606489_68da354ce0_m.jpg
Current average power to weight ratio of my garage is 7.37 lbs per hp. Silly KLR 650 is screwing up my average
Reply With Quote
  #6
Old 11-29-2012, 10:12 PM
Registered User
Garage is empty, add now

Join Date: Oct 2012
Location: Atlanta, GA
Posts: 107
Rep Power: 6
VIPNiSS is on a distinguished road
lol.. i would but dont have another battery
__________________
Debt: 2005 Porsche Cayenne Turbo
Evoms V-Flow Intake, AP Diverter Valves, 200 Cell Primary Cats, Secondary Cat Bypass Pipes, Fabspeed Exhaust, Lowering Module.
Reply With Quote
  #7
Old 11-29-2012, 11:27 PM
Registered User
Garage is empty, add now

Join Date: Mar 2012
Location: TX
Posts: 520
Rep Power: 23
ciaka will become famous soon enough
It often is the easy jobs that intimidate and scare those new to the car maintenance. Having these write ups helps to give others the info to complete as diy. Otherwise tbey are much more likely to pay to have it done. So good job and keep em coming.
Reply With Quote
  #8
Old 11-30-2012, 06:21 AM
Hal 2000's Avatar
Registered User
2006 Porsche Cayenne

Join Date: Sep 2011
Location: Feeling Used and Naked in Oyster Bay NY
Posts: 63
Rep Power: 5
Hal 2000 is on a distinguished road
Hal Lasinskas
Thanks for all your time making this pictorial- Will be printing.
__________________
06 CS BLK/BLK
JL 500/1, 12W3V3x2
Clear Markers
Aluminum Pipes
Reply With Quote
  #9
Old 11-30-2012, 08:06 AM
Renaissance.Man's Avatar
Moderator
Garage is empty, add now

Join Date: Jan 2011
Location: (in my garage welding something vicious)
Posts: 1,155
Rep Power: 64
Renaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud of
Great post! I am somewhat used to turning a wrench and actually thought that accessing the battery under the seat was unnecessarily complicated.

My biggest frustrations was:

1) You need to move the seat a few times in order to get it completely out of the way. This thread makes it easier to understand.

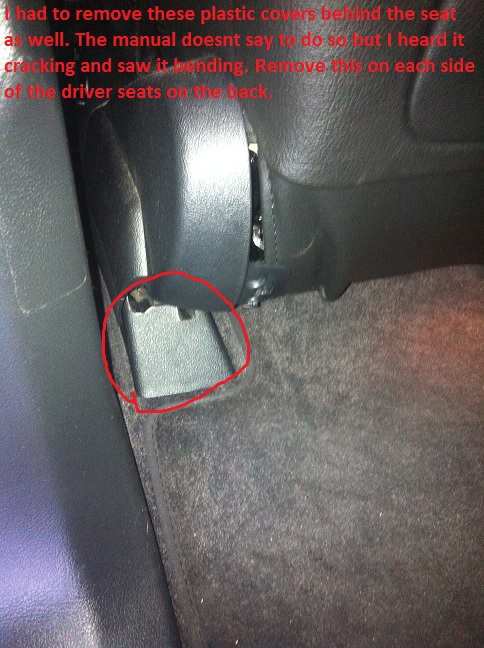

2) I had to remove the plastic seat rail covers in the rear since they got "pinched" (and subsequently broken) when tilting the seat back. The owners manual did not mention this and I had to buy replacement seat rail covers.
__________________
700+hp Cayenne Club - Power-to-Weight Ratio, 1:7.8 > Ferrari California, 1:8.4 - New members welcomed!
Reply With Quote
  #10
Old 12-02-2012, 02:23 AM
loveivs's Avatar
Registered User
Garage is empty, add now

Join Date: Nov 2010
Location: CN
Posts: 169
Rep Power: 10
loveivs is on a distinguished road
Good write up. Very useful post.
I had battery replaced in Sep. IF........bla bla bla
__________________
MY02 S500L, MY03 330ci, MY08 Alfa Romeo Brera(sold)
08 Porsche CTT
10 Maserati QP GT S
11 Mercedes S63 AMG
12 BMW Z4 sDrive23i
14 Porsche 911 GT3
Reply With Quote
  #11
Old 12-05-2012, 04:54 PM
Registered User
Garage is empty, add now

Join Date: Mar 2009
Location: seattle, WA
Posts: 633
Rep Power: 34
pcst is a jewel in the roughpcst is a jewel in the roughpcst is a jewel in the roughpcst is a jewel in the rough
I've always wondered why in the hell they put the battery under the driver's seat.....
Reply With Quote
  #12
Old 12-05-2012, 05:23 PM
Renaissance.Man's Avatar
Moderator
Garage is empty, add now

Join Date: Jan 2011
Location: (in my garage welding something vicious)
Posts: 1,155
Rep Power: 64
Renaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud ofRenaissance.Man has much to be proud of
Quote:
Originally Posted by pcst View Post
I've always wondered why in the hell they put the battery under the driver's seat.....
I am sure having it so low is better for weight distribution and lower center of gravity. However, it is more complicated than I would prefer. At least you only have to access it once every 5 years, so I guess the minor inconvenience is worth the handling gains.
__________________
700+hp Cayenne Club - Power-to-Weight Ratio, 1:7.8 > Ferrari California, 1:8.4 - New members welcomed!
Reply With Quote
  #13
Old 12-05-2012, 06:42 PM
Registered User
Garage is empty, add now

Join Date: Feb 2009
Location: Little Rock, AR
Posts: 120
Rep Power: 10
rbb1991 will become famous soon enough
Great write up!
Reply With Quote
  #14
Old 12-05-2012, 06:48 PM
Registered User
Garage is empty, add now

Join Date: Jan 2011
Location: Long Island, NY
Posts: 39
Rep Power: 5
B3nz0 is on a distinguished road
On a side note, does anyone know if an optima yellow top or kinetik racing battery will work/fit?
Reply With Quote
  #15
Old 12-06-2012, 02:57 AM
Registered User
Garage is empty, add now

Join Date: Mar 2009
Location: seattle, WA
Posts: 633
Rep Power: 34
pcst is a jewel in the roughpcst is a jewel in the roughpcst is a jewel in the roughpcst is a jewel in the rough
Quote:
Originally Posted by B3nz0 View Post
On a side note, does anyone know if an optima yellow top or kinetik racing battery will work/fit?
I've been looking for this info as well, optima will last longer.
Reply With Quote
