996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Located the oil leak...Pic Attached

Thread Tools

Rate Thread

Old Jun 30, 2004 | 11:56 AM
  #1
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
Located the oil leak...Pic Attached

I don't know if this is good or bad, but the drip is from the left exhaust header. I attached a photo of the leak...

Attached Images
Old Jun 30, 2004 | 12:04 PM
  #2
KPV's Avatar
KPV
Registered User
Joined: Jul 2003
Posts: 4,343
From: New Jersey
Rep Power: 199
KPV is just really niceKPV is just really niceKPV is just really niceKPV is just really nice
John,
Hmmm. 2004 and a leak there? Well, we know the impeller is right behind there and its spindle is fed with the engine oil. It sounds like the turbo spindle seals are suspect.
How many miles are on the car? Are these the stock turbos?
One last thing. Don't discount the possibility that the oil could be coming from higher up and dripping down onto the header although that seems somewhat unlikely given the proximity of the turbos.

Keep us posted.

Old Jun 30, 2004 | 12:06 PM
  #3
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
4 weeks old with 300 miles....stock turbos. This bites! Time to go to the dealer and see what's up.

Old Jun 30, 2004 | 12:33 PM
  #4
PorschePhd's Avatar
Registered User
Joined: Jul 2003
Posts: 3,670
Rep Power: 189
PorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond reputePorschePhd has a reputation beyond repute
No turbo leaking there, look above on the valve cover. There is a drip on it. I suspect that the valve cover is leaking or the breather housing. This is unless the turbo is throwing oil up on the cover. Normally if the turbo is at fault the drip tank will be coated. It is not in the picture.

Old Jun 30, 2004 | 12:37 PM
  #5
cjv's Avatar
cjv
Moderator
20 Year Member
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !cjv Is a GOD !
Look at the oil, upper right of the circle. This appears to be coming from above the turbo flange.

Old Jun 30, 2004 | 01:40 PM
  #6
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
The leak is actually further to the rear...I will post another pic. It was "moving" forward and then dripping onto the header.

Old Jun 30, 2004 | 07:16 PM
  #7
Greyghost's Avatar
Registered User
Joined: Nov 2003
Posts: 2,777
From: Orange Park, FL
Rep Power: 134
Greyghost is infamous around these parts
Aint that a *****. Seth @ Technical Dimensions might have some additional insights. Call him at 904-721-9700.

Old Jun 30, 2004 | 07:41 PM
  #8
Porsche Tech's Avatar
Registered User
Joined: Dec 2003
Posts: 349
From: Jacksonville
Rep Power: 39
Porsche Tech is just really nicePorsche Tech is just really nicePorsche Tech is just really nicePorsche Tech is just really nice
Originally posted by JK996TT
The leak is actually further to the rear...I will post another pic. It was "moving" forward and then dripping onto the header.
Without seeing a couple more detailed pictures it's hard to speculate but if you say it is dripping down from further toward the transmission and blowing back as you drive the car it could be a valve cover gasket, maybe a cam seal, variocam actuator seal. Does it look like where it is dripping down is from a location slightly above the valve cover? The turbine is probably not the issue unless the pressure line had a strange location pin hole leak that's pissing a stream up and toward the engine. Have seen stranger things. See if you can get the car off the ground a bit (use a jack stand while you're under there) and post a couple more pics so we can get a better view. Seth.

Old Jun 30, 2004 | 08:03 PM
  #9
carbonissimo's Avatar
Registered User
Joined: Sep 2003
Posts: 2,085
From: Park City, Utah
Rep Power: 118
carbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud ofcarbonissimo has much to be proud of
Cool service

when are you taking it to the dealer?

Old Jun 30, 2004 | 09:23 PM
  #10
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
Originally posted by Porsche Tech
Without seeing a couple more detailed pictures it's hard to speculate but if you say it is dripping down from further toward the transmission and blowing back as you drive the car it could be a valve cover gasket, maybe a cam seal, variocam actuator seal. Does it look like where it is dripping down is from a location slightly above the valve cover? The turbine is probably not the issue unless the pressure line had a strange location pin hole leak that's pissing a stream up and toward the engine. Have seen stranger things. See if you can get the car off the ground a bit (use a jack stand while you're under there) and post a couple more pics so we can get a better view. Seth.

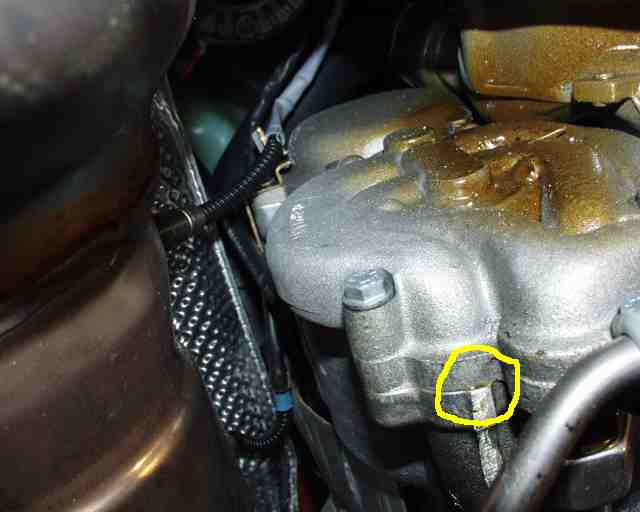

Seth, sorry for the confusion...It is actually leaking from further towards the rear of the car and then running along what appears to be part of the block (you can see the drip above and right of my yellow circle in the first picture). I have attached a new picture with the actual source of the leak. Thanks!!!

Attached Images
Old Jun 30, 2004 | 09:24 PM
  #11
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
I am calling Champion Porsche to get this thing in first thing tomorrow.

Old Jul 1, 2004 | 12:19 AM
  #12
Porsche Tech's Avatar
Registered User
Joined: Dec 2003
Posts: 349
From: Jacksonville
Rep Power: 39
Porsche Tech is just really nicePorsche Tech is just really nicePorsche Tech is just really nicePorsche Tech is just really nice
If that is actually where the leak begins then the pump will need to be resealed. Have seen that on older TT's- Shouldn't be leaking on a brand new car but it happens. They should be able to get that resealed in a day, maybe into the next depending on when they start. Seth.

Old Jul 1, 2004 | 12:31 AM
  #13
JK996TT's Avatar
Thread Starter
|
Registered User
Joined: May 2004
Posts: 392
From: Davie, FL
Rep Power: 38
JK996TT is infamous around these parts
What part is that????

Old Jul 1, 2004 | 09:44 AM
  #14
Greyghost's Avatar
Registered User
Joined: Nov 2003
Posts: 2,777
From: Orange Park, FL
Rep Power: 134
Greyghost is infamous around these parts
I told you Seth was the man!
