996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

PCM1 IPOD interface? I need one bad!

Thread Tools

Rate Thread

Old Oct 14, 2010 | 08:28 PM
  #1
VAGscum's Avatar
Thread Starter
|
Registered User
Joined: Oct 2008
Posts: 1,696
From: Portland Oregon
Rep Power: 188
VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !
PCM1 IPOD interface? I need one bad!

I cannot find one, nor do I know who makes them. The dealer was zero help. TIA.

Old Oct 14, 2010 | 10:13 PM
  #2
X98boardwell's Avatar
Registered User
Joined: Jun 2010
Posts: 278
From: Central Valley, CA
Rep Power: 27
X98boardwell is infamous around these parts
Help is on the way

Just bought it, Just installed it last weekend and love it.

The system is made by Dension. Call or email Erik at Bumperplugs.com

You will be able to control your ipod from your nav system

Best of luck,
Bryan

Old Oct 14, 2010 | 10:24 PM
  #3
Slider's Avatar
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
+1 - if you have Nav, the Denison system uses the CD player interface to drive the IPod. You get IPod and lose CD. I went the other way - I replaced the entire Nav (can't get maps anyway) with a Pioneer Double Din (AVIC Z120BT). Now I have Nav, CD, DVD, MP3, IPod, SD, FM, AM and SAT radio = happy.

Old Oct 14, 2010 | 10:25 PM
  #4
VAGscum's Avatar
Thread Starter
|
Registered User
Joined: Oct 2008
Posts: 1,696
From: Portland Oregon
Rep Power: 188
VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !VAGscum Is a GOD !
My car is a 2001 with the PCM1 CD based tape deck nav unit. The compatibility chart on Dension's site shows 2003 and newer cars.

http://www.dension.com/sites/default...e-24-08-10.pdf

Old Oct 15, 2010 | 09:37 AM
  #5
OS Inspector's Avatar
Registered User
Joined: Aug 2009
Posts: 2,496
From: Houston Tx
Rep Power: 187
OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !OS Inspector Is a GOD !
john i ended up usging an FM modulator

Old Oct 15, 2010 | 10:21 AM
  #6
Slider's Avatar
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Yeah, I tried the FM modulator too. I'm not a big fan of the music quality when you go that route.

I looked into the Denison interface before I decided to replace the head unit, and I'm pretty sure there was something available for PCM1. I just looked at their compatibility chart and they are listing the same years for PCM1, PCM2 and PCM2.1 - that doesn't make sense - I think their chart is incorrect. If you want to go that way, it would be worth giving them a call.

Old Oct 15, 2010 | 10:24 AM
  #7
JoeinLA's Avatar
Registered User
Joined: Sep 2010
Posts: 86
From: USA
Rep Power: 19
JoeinLA is infamous around these parts
Slightly off topic, but I'm pretty much thinking of replacing the entire nav/head unit. Is it something you can do yourself? Are the new units "plug and play"? I've never done anything like this, but, yeah the PCM1 is pretty much useless now...

Was looking at the new Sony XNV-770BT unit if it matters...

Old Oct 15, 2010 | 10:45 AM
  #8
fdorn's Avatar
Registered User
Joined: Jul 2007
Posts: 668
From: Chicago, Illinois
Rep Power: 56
fdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud offdorn has much to be proud of
You will not regret replacing PCM 1. That thing is nothing but a heavy paper weight. I had someone do the install - it was like 300. There is pre and post MOST on the 996's. Mine is an 01 (so pre) and I think is a little cheaper to install. Wish I did this a week after I bought the car.

He seemed to do it himself.
https://www.6speedonline.com/forums/...r-upgrade.html




Originally Posted by VAGscum
I cannot find one, nor do I know who makes them. The dealer was zero help. TIA.
Originally Posted by JoeinLA
Slightly off topic, but I'm pretty much thinking of replacing the entire nav/head unit. Is it something you can do yourself? Are the new units "plug and play"? I've never done anything like this, but, yeah the PCM1 is pretty much useless now...

Was looking at the new Sony XNV-770BT unit if it matters...

Old Oct 15, 2010 | 10:47 AM
  #9
Slider's Avatar
Registered User
15 Year Member
Joined: Apr 2010
Posts: 2,164
From: Victoria, BC
Rep Power: 217
Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !Slider Is a GOD !
Yep, that's what I did (Pioneer AVIC Z120BT). Give Loi (see above) a call to get the kit. I had to be a little more creative for the wiring because, with PCM1, not all cars are the same. Loi will help you sort out everything, but it really isn't that complicated.

Here are some threads where this is discussed...
https://www.6speedonline.com/forums/996-turbo-gt2/222734-radio-wiring-2001-tt-w-nav.html
https://www.6speedonline.com/forums/996-turbo-gt2/225092-2002-996tt-headunit-install.html#post2998638

PM me if you have any questions - I did this recently so it's still fresh...


Last edited by Slider; Oct 15, 2010 at 10:52 AM.
Old Oct 15, 2010 | 11:30 AM
  #10
GMendoza's Avatar
Registered User
Joined: Apr 2008
Posts: 285
From: Alta Loma, CA
Rep Power: 35
GMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of light
I just recieved and installed this. It works great for me:
http://www.iwirep.com/products/iwirep-220-ipod

Old Oct 15, 2010 | 12:06 PM
  #11
JoeinLA's Avatar
Registered User
Joined: Sep 2010
Posts: 86
From: USA
Rep Power: 19
JoeinLA is infamous around these parts
Also FWIW, sound quality of FM modulators sucks. One of those tape cassette things would actually sound better. And that's not saying much...

Old Jan 25, 2011 | 05:12 PM
  #12
GMendoza's Avatar
Registered User
Joined: Apr 2008
Posts: 285
From: Alta Loma, CA
Rep Power: 35
GMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of lightGMendoza is a glorious beacon of light
Kala, sorry for the late replay. Yes, the cable iwirep has been working great in my '01; it chages and plays my iPod classic no problem. I doesn't work on my iPhone but there's an upgrade from iwirep that allows you to play the newer Apple devices.

Old Jan 26, 2011 | 06:35 PM
  #13
tjj7ff's Avatar
Registered User
Joined: Feb 2007
Posts: 167
From: Virginia Beach
Rep Power: 26
tjj7ff is infamous around these parts

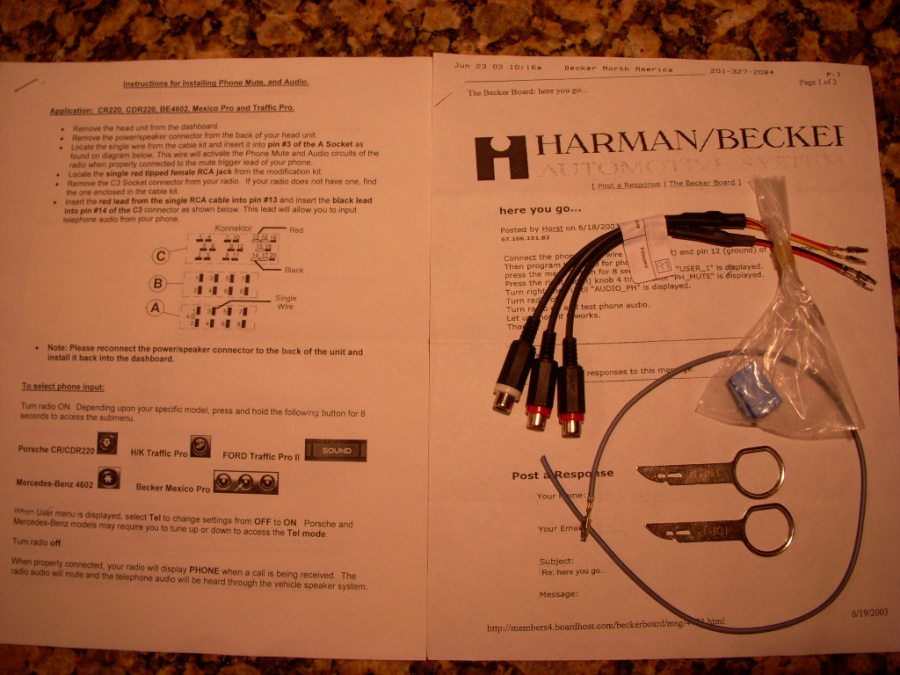

I bought this external radio MP3/phone wiring harness from Harman/Becker of North American back in 2003 to install in a MY 2002 Boxster S to run my ipod. I never got around to installing it as I sold the Boxster and purchased a 2003 TT, which has the newer PCM 2.0 MOST technology and does not support this harness. The harness is for CR220, CDR220, BE4602, Mexico Pro and Traffic Pro head units. The instructions state that it provides an auxiliary input that can be used for an MP3 or phone. Playback is heard through the headunit/speakers. If you're interested in it drop me a PM.
