Intercooler Cores
Registered User
Joined: Jun 2007
Posts: 771
From: NC
Rep Power: 122
Chad-
I might be able to get you ONE Secan to look at if you are interested. It was on a 993 GT2 EVO and was replaced. Don't know if it would help you efforts but you might be able to get an idea on their technology at least. If interested let me know and I'll see what I can do.
I might be able to get you ONE Secan to look at if you are interested. It was on a 993 GT2 EVO and was replaced. Don't know if it would help you efforts but you might be able to get an idea on their technology at least. If interested let me know and I'll see what I can do.
Thread Starter
|
Moderator
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
Chad-
I might be able to get you ONE Secan to look at if you are interested. It was on a 993 GT2 EVO and was replaced. Don't know if it would help you efforts but you might be able to get an idea on their technology at least. If interested let me know and I'll see what I can do.
I might be able to get you ONE Secan to look at if you are interested. It was on a 993 GT2 EVO and was replaced. Don't know if it would help you efforts but you might be able to get an idea on their technology at least. If interested let me know and I'll see what I can do.
I believe I would be very interested. Could you send me a PM with your phone number and I will call you or if you like I could e-mail you mine.
Mark,
I do know a lot about IC's, however surely not everything. I have discovered I learn far more by listening than talking. I have already picked up one bit of information from this thread and hope to pick up some more.
I had a pretty trick set of IC's on my old motor. The cores were smaller then as were the inlets and outlets seizing. We also utilized liquid CO2 cooling of the cores and the double jacketed Y pipe. The interesting thing we discovered was after a certain ambient temperature the delta was minimal.
Would you like to have your IC's included in our test? Provide a set and I will have them tested on my dime when we test some others. If they are the best ones I would be happy to pay for them. Otherwise I would provide you with the results and return them.
I do know a lot about IC's, however surely not everything. I have discovered I learn far more by listening than talking. I have already picked up one bit of information from this thread and hope to pick up some more.
I had a pretty trick set of IC's on my old motor. The cores were smaller then as were the inlets and outlets seizing. We also utilized liquid CO2 cooling of the cores and the double jacketed Y pipe. The interesting thing we discovered was after a certain ambient temperature the delta was minimal.
Would you like to have your IC's included in our test? Provide a set and I will have them tested on my dime when we test some others. If they are the best ones I would be happy to pay for them. Otherwise I would provide you with the results and return them.
Im car is getting dyned... last set up had the 4.5s... now the 6"... Im very interested in the numbers... the dyno will tell us....
Ill share that info with you...
btw, to fit them I had to do somewhat serious fabbing..
mark
__________________
2001 996TT 3.6L and stock ECU
9.66 seconds @ 147.76 mph 1/4 mile click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL
2001 996TT 3.6L and stock ECU
9.66 seconds @ 147.76 mph 1/4 mile click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL
Thread Starter
|
Moderator
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
Im sure you know a lot and have done a lot lol
Im car is getting dyned... last set up had the 4.5s... now the 6"... Im very interested in the numbers... the dyno will tell us....
Ill share that info with you...
btw, to fit them I had to do somewhat serious fabbing..
mark
Im car is getting dyned... last set up had the 4.5s... now the 6"... Im very interested in the numbers... the dyno will tell us....
Ill share that info with you...
btw, to fit them I had to do somewhat serious fabbing..
mark
As you increase the depth of the cores you will hit a point of decreasing and then negative returns (efficiency). This is a result of the ambient flow warming as it goes farther thru the core. I would be very interested in what you learn.
We will be doing our tests on an engine dyno which will allow very good control of the variables on the different IC's.
Whatever IC we choose, we will make it fit if it is physically possible. On another note we are looking at the wide body fenders. If we opt for them we will be able to utilize larger cores. The tests will determine the way we proceed.
Last edited by cjv; Dec 13, 2010 at 11:50 PM.
I would appreciate any and all info.
As you increase the depth of the cores you will hit a point of decreasing and then negative returns. This is a result of the ambient flow warming as it goes thru the core. I would be very interested in what you learn.
We will be doing our tests on an engine dyno which will allow very good control of the variables on the different IC's.
Whatever IC we choose, we will make it fit if it is physically possible. On another note we are looking at the wide body fenders. If we opt for them we will be able to utilize larger cores. The tests will determine the way we proceed.
As you increase the depth of the cores you will hit a point of decreasing and then negative returns. This is a result of the ambient flow warming as it goes thru the core. I would be very interested in what you learn.
We will be doing our tests on an engine dyno which will allow very good control of the variables on the different IC's.
Whatever IC we choose, we will make it fit if it is physically possible. On another note we are looking at the wide body fenders. If we opt for them we will be able to utilize larger cores. The tests will determine the way we proceed.
__________________
2001 996TT 3.6L and stock ECU
9.66 seconds @ 147.76 mph 1/4 mile click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL
2001 996TT 3.6L and stock ECU
9.66 seconds @ 147.76 mph 1/4 mile click to view
160 mph @ 9.77 seconds in 1/4 mile click to view
50% OFF ON PORSCHE ECU TUNING BLACK FRIDAY SPECIAL
Thread Starter
|
Moderator
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
When you say staked ........ do you mean one core in front of the other?
We are running E85 and water/meth injection. We will be no where near 58 psi as we developed 1000 hp with just under 15 psi.
Last edited by cjv; Dec 13, 2010 at 11:48 PM.
Thread Starter
|
Moderator
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
With the engine dyno we can control not only air temperature into the IC's but also the flow. It will be pretty exacting and we will keep these numbers realistic.
As Markski said it really depends on your set up. I have the same Proto 5 inch ones, and I can tell you that on AT of 6c, they are are 43c at 200mph. At 19c then are at 53c at 200mph.
What they do well is recover very quickly.
What they do well is recover very quickly.
Thread Starter
|
Moderator
Joined: Jul 2003
Posts: 22,235
Rep Power: 1227
It's a kind to the power variances noted on a chassis dyno due to different cooling fan setups. The true test will note the inductance air temperature delta with constant flow and air temps between different IC's.
Basic Sponsor
Joined: Aug 2003
Posts: 2,280
From: AZ
Rep Power: 526
Evoms has a new core which happens to be terribly efficient on their 1300+whp997.I am not at liberty to say much more other than a set will be on my car soon and we will undoubtedly be able to tune my car more aggresively and still keep the motor in the safe zone.Maybe give Todd Z a call and he can fill u in.
__________________
Evolution MotorSports | www.evoms.com
EVOMSit - intelligent tuning |www.evomsit.com
P: 480.317.9911
F: 480.317.9901
E: info@evoms.com
Home of the Worlds Fastest 997TT Porsche(s)
997TT Standing Mile = 234.6 MPH
997TT Standing 1/2 Mile = 217.09 MPH
Fastest 1/4 Mile = 9.29 @ 172.7 MPH
60-130 MPH Time = 3.28 Seconds
Evolution MotorSports | www.evoms.com
EVOMSit - intelligent tuning |www.evomsit.com
P: 480.317.9911
F: 480.317.9901
E: info@evoms.com
Home of the Worlds Fastest 997TT Porsche(s)
997TT Standing Mile = 234.6 MPH
997TT Standing 1/2 Mile = 217.09 MPH
Fastest 1/4 Mile = 9.29 @ 172.7 MPH
60-130 MPH Time = 3.28 Seconds
Registered User
Joined: Aug 2009
Posts: 2,496
From: Houston Tx
Rep Power: 187

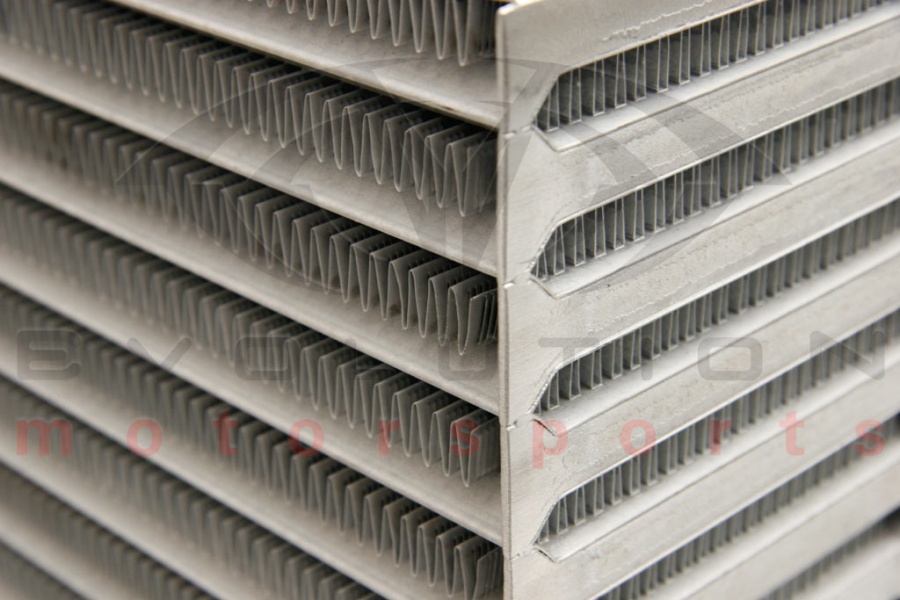

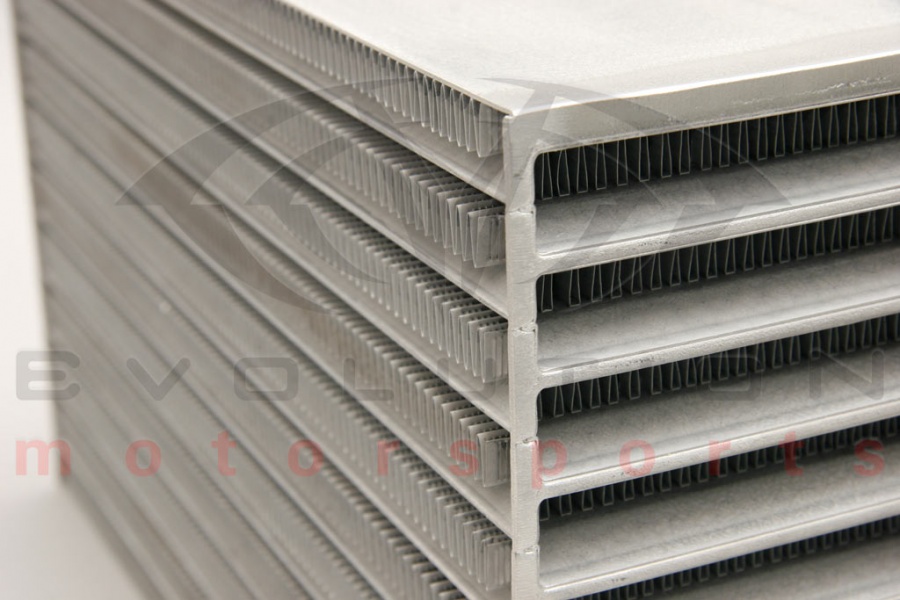

Here are the cores that we are using on my 997.1TT. We have been testing this intercooler core for the past 1.5 years and it is BY FAR the most efficient core we have found. I have tested dozens of different cores from "aerospace" companies, Garrett and many others. Most of the efficiency was directly related to the design of the intercooler core and NOT the size of it. I will post the specific details about the design of these cores and what we found in terms of efficiency later. FWIW, these are 4.5" thick and support a REAL 1300+ Wheel HP
