Data logging with Durametric?


  #1
Old 05-10-2012, 01:21 PM
pwdrhound's Avatar
Registered User
Thread Starter
Join Date: Jul 2010
Posts: 4,767
Rep Power: 436
pwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond reputepwdrhound has a reputation beyond repute
Data logging with Durametric?

Hey guys,
I am going to be at the track tomorrow and wanted to do some datalogging with my durametric to see if my engine is in it's "happy zone". I've used my durametric before to clear codes and pull up DME data on the car but I have never done any datalogging. I didn't really see any clear instructions on how set it up and do it, and obviously I am overlooking something. Anyone car to shed some light on how to set Durametric up for logging?? I don't know if it matters, but I'm running durametric on my MacBook with Windows XP Pro via Bootcamp. TIA....

  #2
Old 05-10-2012, 02:29 PM
FAST FWD's Avatar
Registered User
Join Date: Dec 2007
Location: Indiana
Posts: 1,158
Rep Power: 105
FAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond repute
Click the tab that says "Actual Values" then check the boxes for data that you want to log. Kevin recommends logging:
rpm, engine load, mass air flow, inlet air temp, ignition angle, injector time, O2 sensor lambda (1&2), Boost pressure at sensor, setpoint boost, boost control P/D factor, and correction factor for BPC with knock control.

When you are ready to log, click start, and when you are done click stop. Then export to an xls file. I then drag and drop the xls file to the mac desktop to look at it.

I am running Windows using VMware fusion, so windows runs under MacOS. The Mac is a little slow in logging data because of the windows overhead.

Hope that helps.

Jon

  #3
Old 05-10-2012, 08:21 PM
Danyol's Avatar
Registered User
Join Date: Nov 2007
Location: AZ
Posts: 447
Rep Power: 44
Danyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant future
You'll likely be limited to around 10 samples a second if you're lucky. I moved on to a tool that does more than 50 a second and includes all 6 knock sensors. You're much less likely to miss critical data, cheap insurance. Putting a hole in a couple of pistons will add up to many thousands more.


Last edited by Danyol; 05-10-2012 at 08:24 PM.
  #4
Old 05-10-2012, 08:25 PM
Tim941NYC's Avatar
Registered User
Join Date: Jul 2010
Location: Long island NY
Posts: 3,277
Rep Power: 370
Tim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond repute
all six knock sensors? there are only 2 on the motor. bank 1 and bank 2

  #5
Old 05-10-2012, 08:27 PM
bbywu's Avatar
Administrator
Join Date: Jan 2007
Location: OR Room 5
Posts: 10,838
Rep Power: 1002
bbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond reputebbywu has a reputation beyond repute
I have a (very) basic primer on how to use the Durametric scanner for data logging:

https://www.6speedonline.com/forums/...ic-primer.html

  #6
Old 05-10-2012, 08:58 PM
TTurbRon's Avatar
Registered User
Join Date: Dec 2009
Location: Maryland USA
Age: 43
Posts: 326
Rep Power: 26
TTurbRon is a jewel in the roughTTurbRon is a jewel in the roughTTurbRon is a jewel in the roughTTurbRon is a jewel in the rough
I've been told to log only 4 at a time for best data. Logging more than 4 values at a time will cause the program to freeze up at points during logging which has happened to me. I would start at rpm,engine load,ignition angle (timing), and lambda value bank 1 (afr). Try to do it in third or fourth gear from 2500 rpm to redline if you have the room and if your trying to see how the car is running at full load. Ignition angle you'll want to be preferably in the high teens low 20's I believe at around 15 or lower the car is pulling way too much timing at that point. 24 is the highest it goes as far as no timing being pulled but don't quote me on that. Lambda you want to be around .86-.91 at wide open throttle. You should be right at 1.0 at idle. To get your afr conversion from lambda you want to multiply lambda x 14.7 to get your afr # approximately. Porsches apparently like to run a bit on the leaner side at high 11's low 12 afr's I've been told. Again I'm no tuner and I hope this is accurate info. Perhaps a tuner would like to chime in to see if this is accurate info.

  #7
Old 05-10-2012, 08:59 PM
Registered User
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,335
Rep Power: 240
TTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond repute
Originally Posted by Danyol View Post
You'll likely be limited to around 10 samples a second if you're lucky. I moved on to a tool that does more than 50 a second and includes all 6 knock sensors. You're much less likely to miss critical data, cheap insurance. Putting a hole in a couple of pistons will add up to many thousands more.
Here's a Durametric log with 126 samples/sec, maybe your computer needs upgrading.


  #8
Old 05-10-2012, 09:58 PM
Danyol's Avatar
Registered User
Join Date: Nov 2007
Location: AZ
Posts: 447
Rep Power: 44
Danyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant future

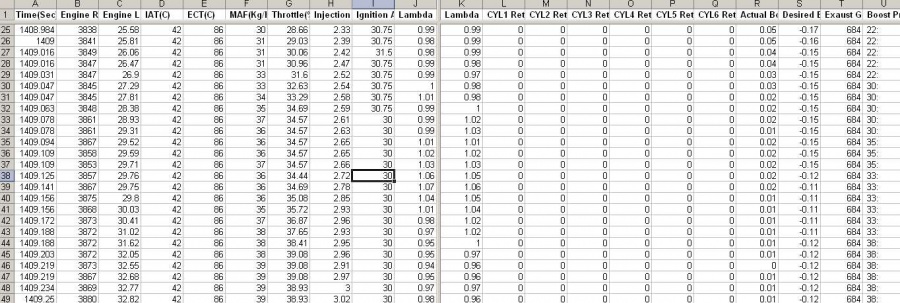

Naw, don't need a new computer; How about 24 full set of data samples in 0.25 seconds

Tim you're right and seem knowledgeable, 2 knock sensors but individual cylinder retard; can you explain how the system works?

Attached Images
  #9
Old 05-10-2012, 10:12 PM
Registered User
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,335
Rep Power: 240
TTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond repute
Originally Posted by Danyol View Post
Naw, don't need a new computer; How about 24 full set of data samples in 0.25 seconds

Tim you're right and seem knowledgeable, 2 knock sensors but individual cylinder retard; can you explain how the system works?
Looks like an efficient tool but why does the log display identical times twice on multiple occasions? No concern about the accuracy of the data?

  #10
Old 05-10-2012, 10:16 PM
Danyol's Avatar
Registered User
Join Date: Nov 2007
Location: AZ
Posts: 447
Rep Power: 44
Danyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant future
I'm wondering whether the sampling rate is higher rate than the ECU is sampling?

  #11
Old 05-10-2012, 10:21 PM
Registered User
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,335
Rep Power: 240
TTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond reputeTTdude has a reputation beyond repute
No clue. Which tool are you using?

  #12
Old 05-10-2012, 10:29 PM
Danyol's Avatar
Registered User
Join Date: Nov 2007
Location: AZ
Posts: 447
Rep Power: 44
Danyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant futureDanyol has a brilliant future

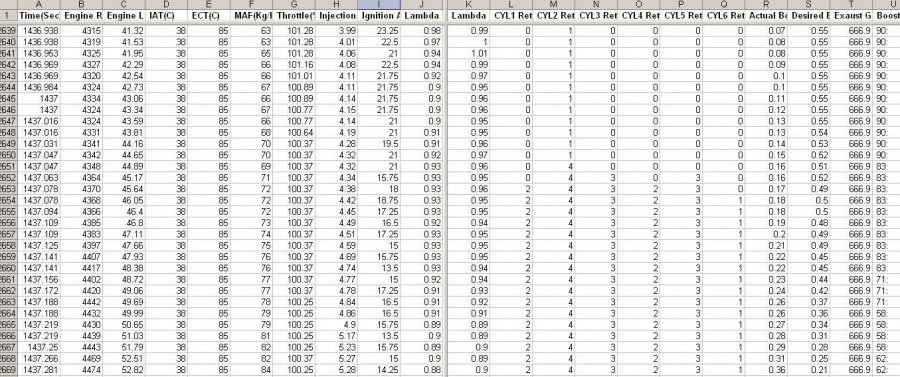

Here's another log showing some ret data; crappy AZ gas. UMW data logging tool.

Attached Images
  #13
Old 05-11-2012, 07:19 PM
Tim941NYC's Avatar
Registered User
Join Date: Jul 2010
Location: Long island NY
Posts: 3,277
Rep Power: 370
Tim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond reputeTim941NYC has a reputation beyond repute
Originally Posted by Danyol View Post
Naw, don't need a new computer; How about 24 full set of data samples in 0.25 seconds

Tim you're right and seem knowledgeable, 2 knock sensors but individual cylinder retard; can you explain how the system works?
The six are estimated off the two sensors. the sensors are one the middle cylinder on bank one and bank two. the engineers figured this out many years ago. code is cheaper then more parts in the car.

  #14
Old 05-12-2012, 02:31 AM
Registered User
Join Date: Jul 2010
Location: United Kingdom
Posts: 39
Rep Power: 10
Kenco911 is on a distinguished road
Great info on knock data guys.

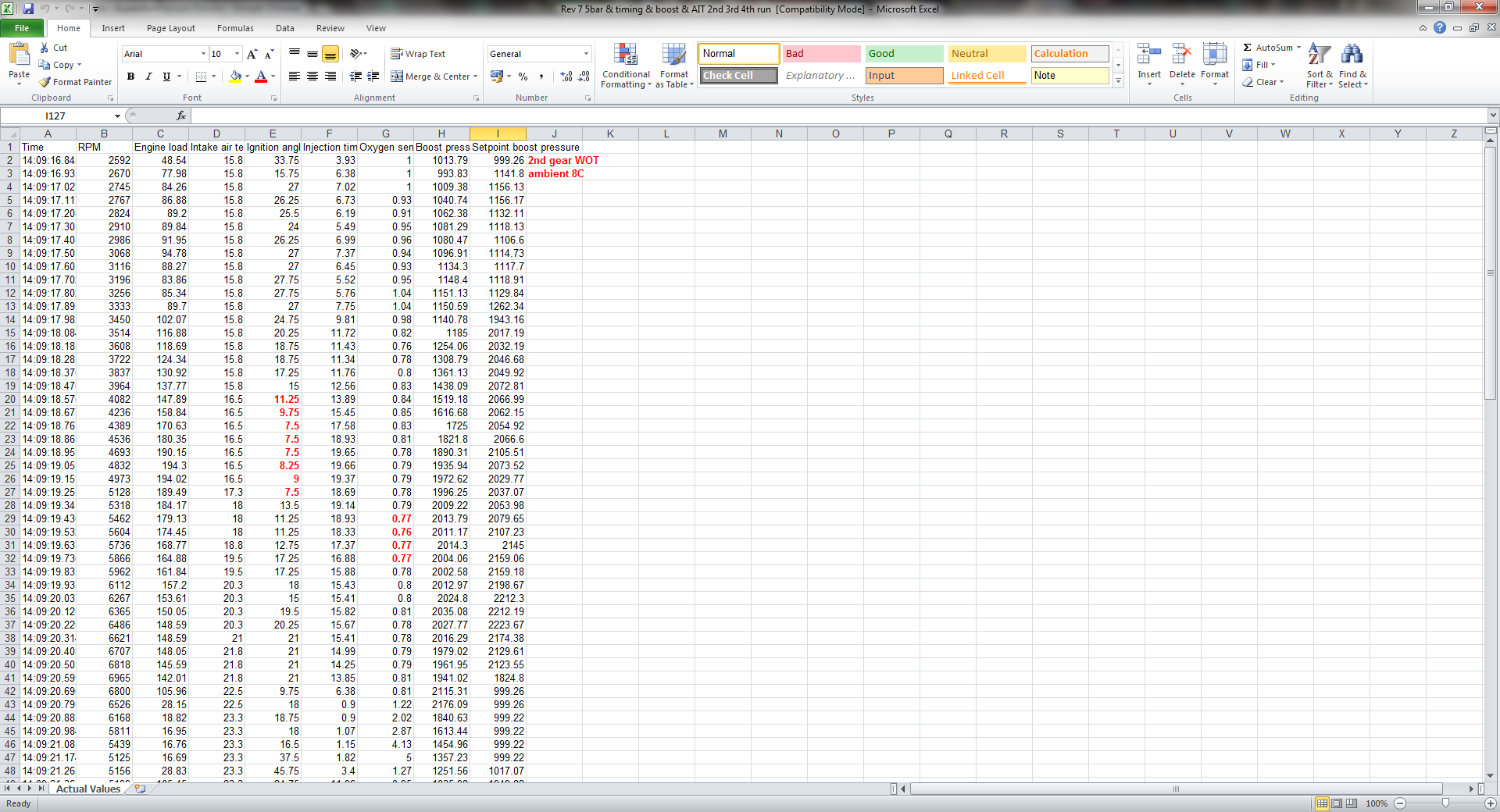

Would you guys be concerned with my datalog?

X50, 200cell Milltek exhaust, Forge actuators set to crack at 13.5psi, motorsport true 5bar FPR, US equivalent 93 fuel, EPL tune.

The red highlights timing pull & a bit of extra fuel, is this because of det/knock?

Attached Thumbnails Click image for larger version

Name:	Durametric log 1.png
Views:	166
Size:	256.0 KB
ID:	176678
  #15
Old 05-12-2012, 06:31 AM
FAST FWD's Avatar
Registered User
Join Date: Dec 2007
Location: Indiana
Posts: 1,158
Rep Power: 105
FAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond reputeFAST FWD has a reputation beyond repute
Originally Posted by Kenco911 View Post
Great info on knock data guys.

Would you guys be concerned with my datalog?

X50, 200cell Milltek exhaust, Forge actuators set to crack at 13.5psi, motorsport true 5bar FPR, US equivalent 93 fuel, EPL tune.

The red highlights timing pull & a bit of extra fuel, is this because of det/knock?
Looks pretty reasonable to me. You're correct - the timing pull and extra ful are there to prevent detonation. It's hard to get good data in 2nd gear because the time is so short. I try to do my pulls in 4th gear, but you have to have a place to do that.

Jon
