Put bigger turbos on...car makes less power
Thread Starter
|
Registered User
Joined: Nov 2009
Posts: 1,364
From: houston, TX
Rep Power: 96
tcu is the newest version, but not flashed
my mechanic does not see any codes/faults go on during the runs
my mechanic also says he hears a ticking noise
the car has all new exhaust and intake lifters, valves and stems...perhaps the machine shop that did the work on the valve job messed up
how do you check the exhaust cam without taking out the motor?
my mechanic does not see any codes/faults go on during the runs
my mechanic also says he hears a ticking noise
the car has all new exhaust and intake lifters, valves and stems...perhaps the machine shop that did the work on the valve job messed up
how do you check the exhaust cam without taking out the motor?
What interesting was you were breaking the Tip records left and right with those.
Registered User
Joined: Jul 2010
Posts: 3,319
From: Long island NY
Rep Power: 381
Ben,
Intake cam check on the durimetric. exhaust cam, put the motor on tdc bank one and pull the green plug that cover the rear of the cam look at the slot that is used to set the cam and see where it is and compare this to the tool. Bank two you may need to move the oil tank. Do Not rely on the crank pulley notch. use a indicator in plug one.
Intake cam check on the durimetric. exhaust cam, put the motor on tdc bank one and pull the green plug that cover the rear of the cam look at the slot that is used to set the cam and see where it is and compare this to the tool. Bank two you may need to move the oil tank. Do Not rely on the crank pulley notch. use a indicator in plug one.
In action....
__________________
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
#TeamAIM
997TT SilverSpool - 210.8 mph 1/2 Mile WR Apr 2019, 9.2 @ 168 mph 1/4 Mile Manual World Record , 3.15 60-130 mph , 2.72 100-150 mph , 1400whp E85
996TT SpoolBus - 204.6 mph 1/2 Mile 996TT WR Aug 2018, 9.5 @ 154 mph, 3.23 60-130 mph, 2.5 100-150 mph Manual Porsche World Record, 1400whp E85
997TT SlowBerry - 205.0 mph 1/2 Mile WR Nov 2018, 9.7 @ 170 mph 1/4 Mile , 3.2 60-130 mph , 2.4 100-150 mph , 1420whp E85
ESMOTOR | DO88 | TPC DSC | SYVECS | COBB | IPD | KLINE | XONA | AMS | ID | ERP | SACHS | TURBOSMART | CSF | DODSON |
Registered User
Joined: Jul 2010
Posts: 3,319
From: Long island NY
Rep Power: 381
LOL.. Mark that was the tare down.. I always check the timing before just to see. Its never been prefect. Or evenly off do to chain ware. water line fitting not fixed and exhaust cam plate not in because of being out of time, intake is in time.
Thread Starter
|
Registered User
Joined: Nov 2009
Posts: 1,364
From: houston, TX
Rep Power: 96
exhaust and intake timing were good

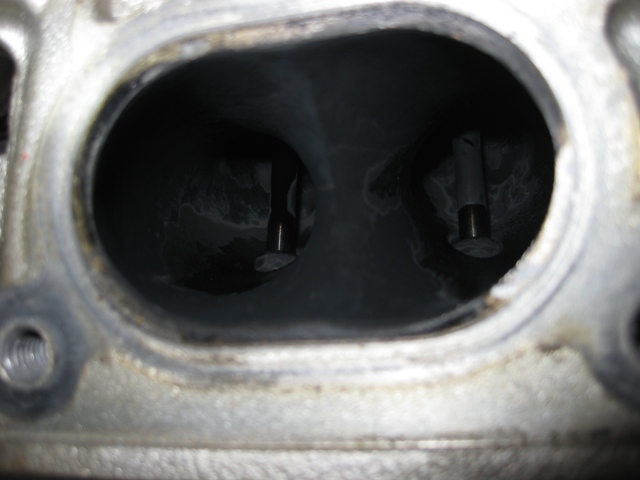

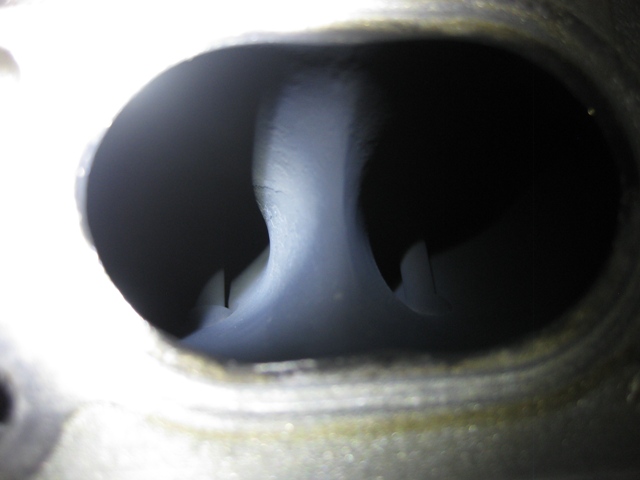

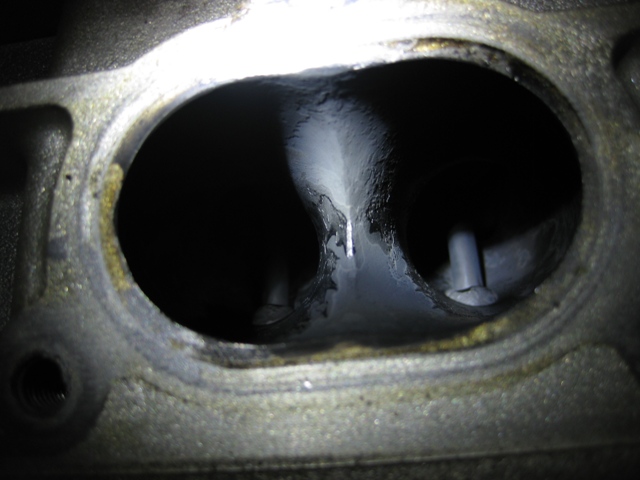

the problem is in the pics below...oil coming from cylinders 3&4
there appears to be oil in the exhaust port and oil around the valve heads
the problem is in the pics below...oil coming from cylinders 3&4
there appears to be oil in the exhaust port and oil around the valve heads
Registered User
Joined: Sep 2006
Posts: 7,481
Rep Power: 707
damn that sucks, was your motor built ? is it stock ?
Thread Starter
|
Registered User
Joined: Nov 2009
Posts: 1,364
From: houston, TX
Rep Power: 96
i am not sure if this shows what is causing the power loss, but i think it shows what is causing the smoking
i just don't understand how my leakdown and compression were good if two cylinders are messed up?
i just don't understand how my leakdown and compression were good if two cylinders are messed up?
Registered User
Joined: Jul 2010
Posts: 3,319
From: Long island NY
Rep Power: 381
Leak down is done on bottom dead center. If there is sleeve damage anywhere above that spot it will not show on a leak down. Bad news is you need to pull off that head and remove the jug and see with your eyes whats going on.
Edit Top dead center..
Last edited by Tim941NYC; Jul 19, 2012 at 02:11 PM. Reason: brain fart
